Product Description
General Information
- Manufacturer: Emerson
- Model/Part Number: 5X00109G02A

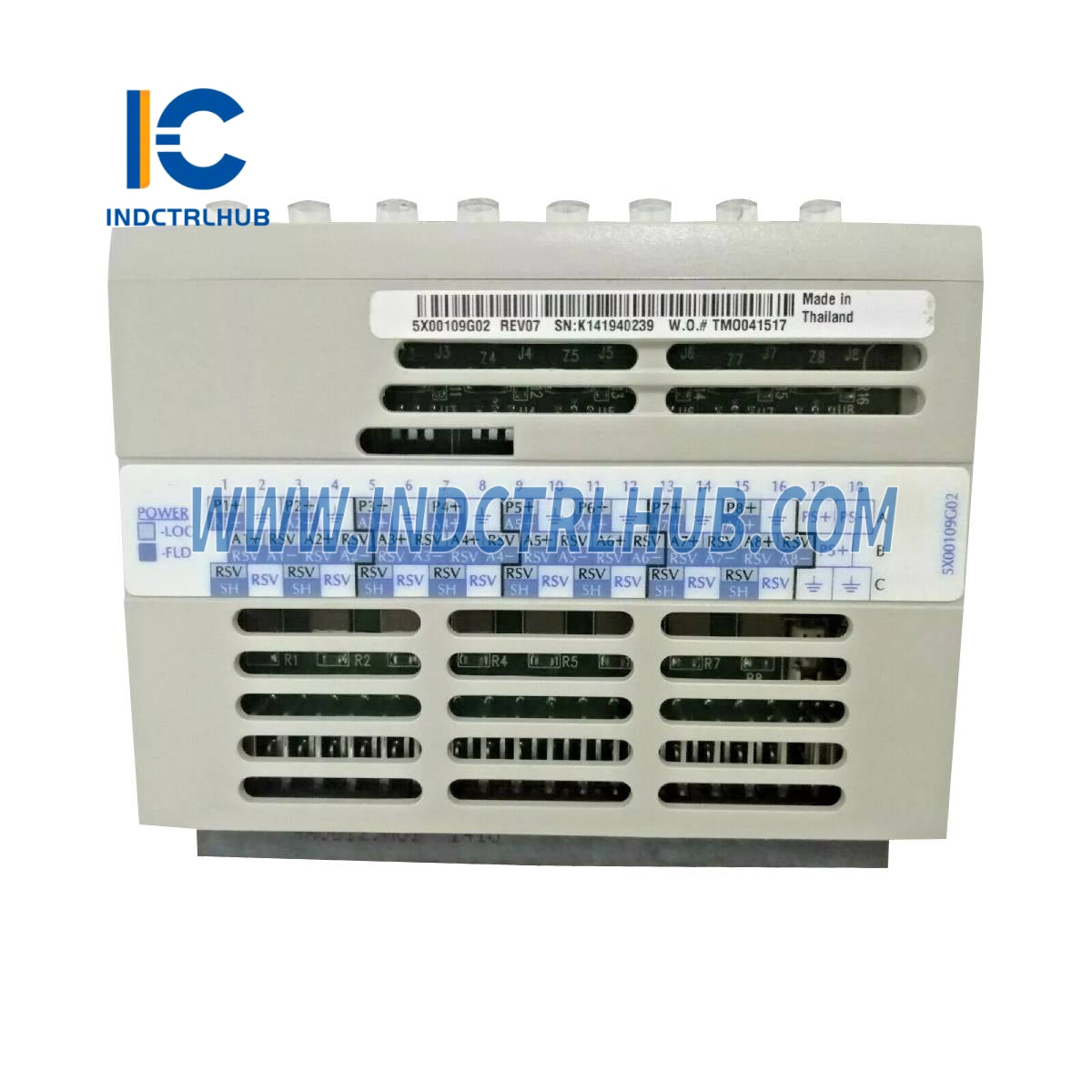

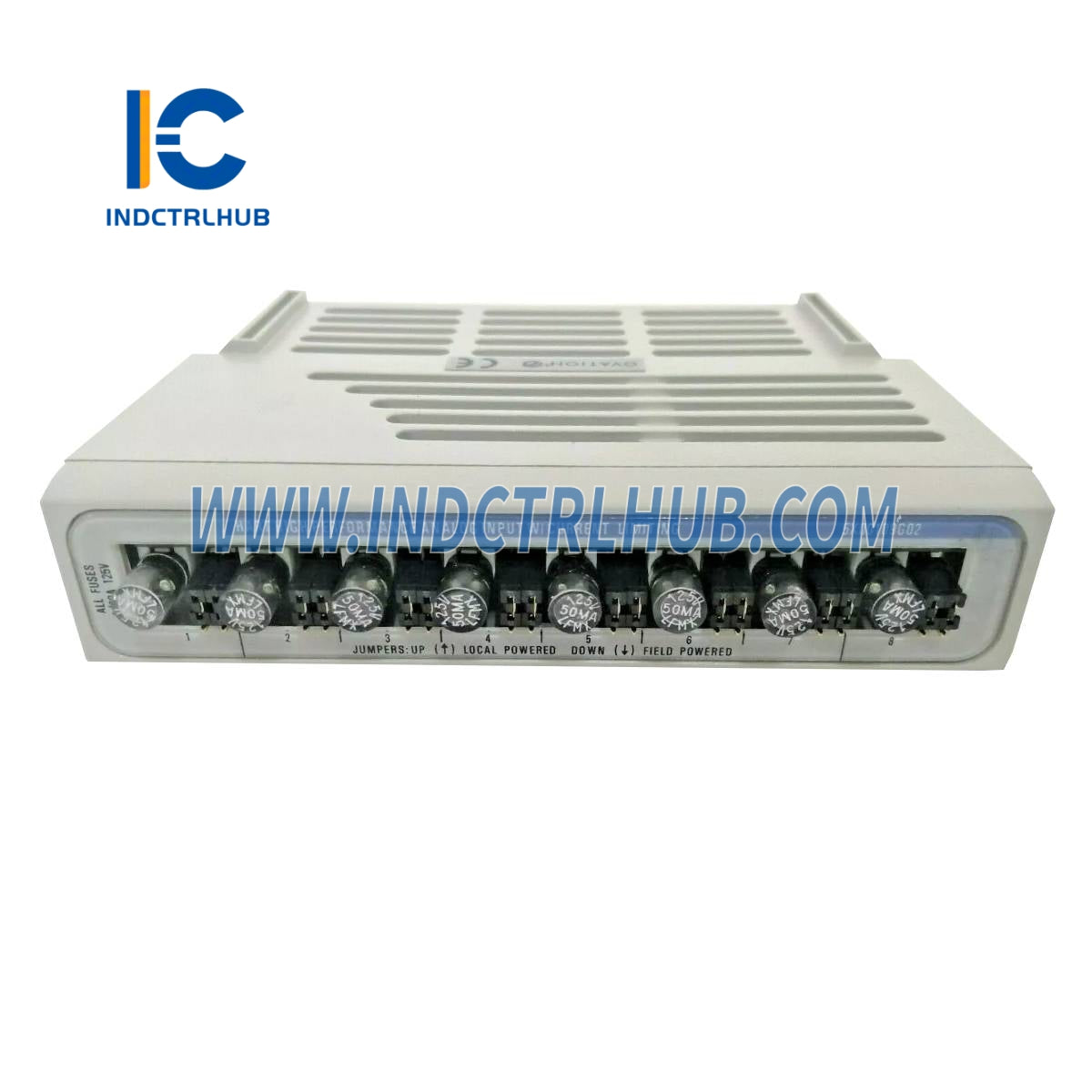

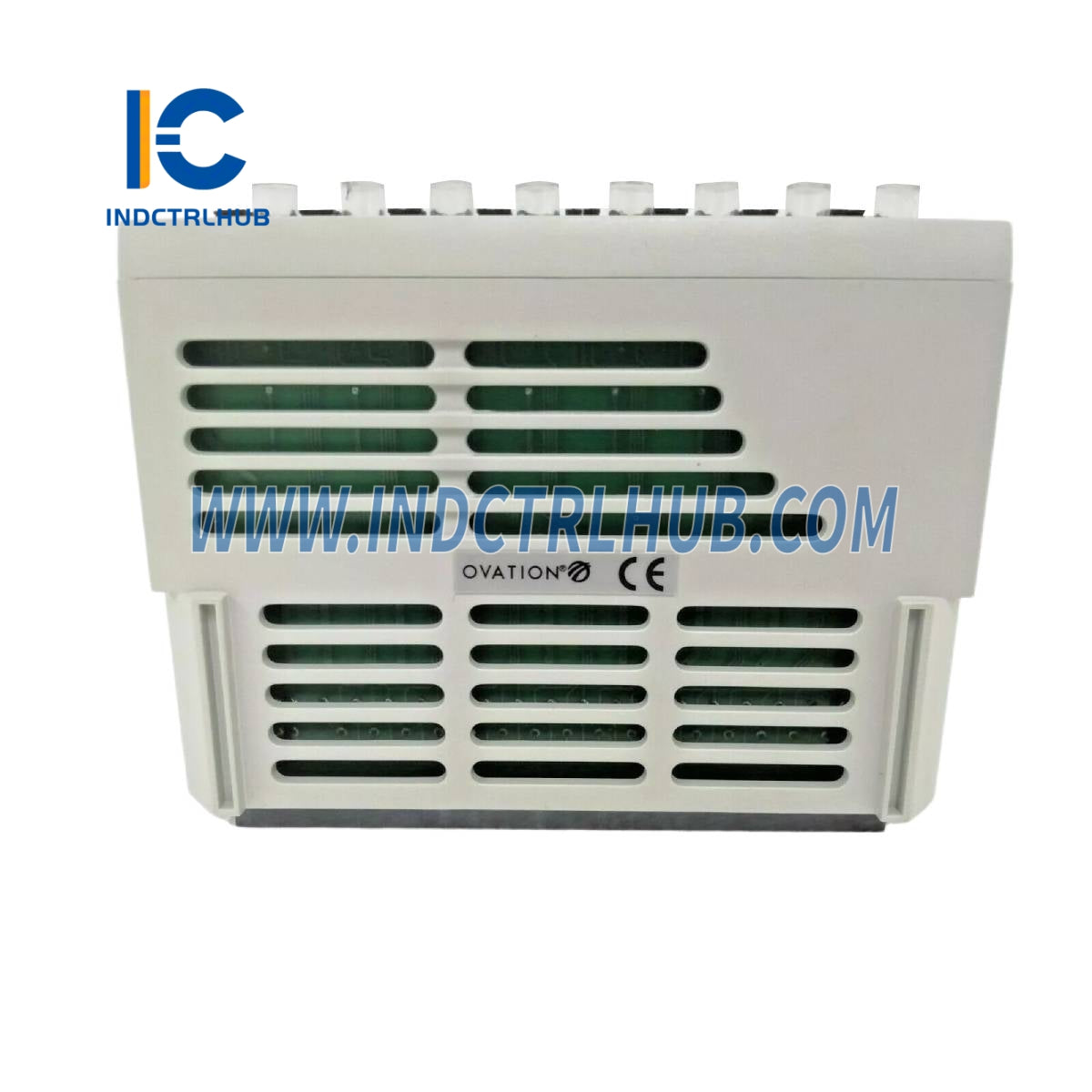

- Description: The Emerson 5X00109G02A is an Analog Input Module from the Ovation Distributed Control System (DCS). This module is designed to provide 8 channels of high-performance analog input, typically supporting 4–20 mA signals with HART (Highway Addressable Remote Transducer) communication capabilities. It is used in industrial automation and process control applications to monitor process variables such as pressure, temperature, and flow, particularly in power generation and water management systems. The "A" suffix may indicate a specific revision or configuration variant of the 5X00109G02 model.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Analog Input Module |
| Series | Ovation DCS |
| Channels | 8 analog input channels |
| Input Signal | 4–20 mA with HART |
| Communication | HART protocol |
| Power Requirements | 24 V DC nominal |
| Operating Temperature | -40°C to +70°C |
| Weight | Approximately 0.5 kg (1.1 lbs) |
| Application | Industrial automation, power generation, process control |
