Product Description

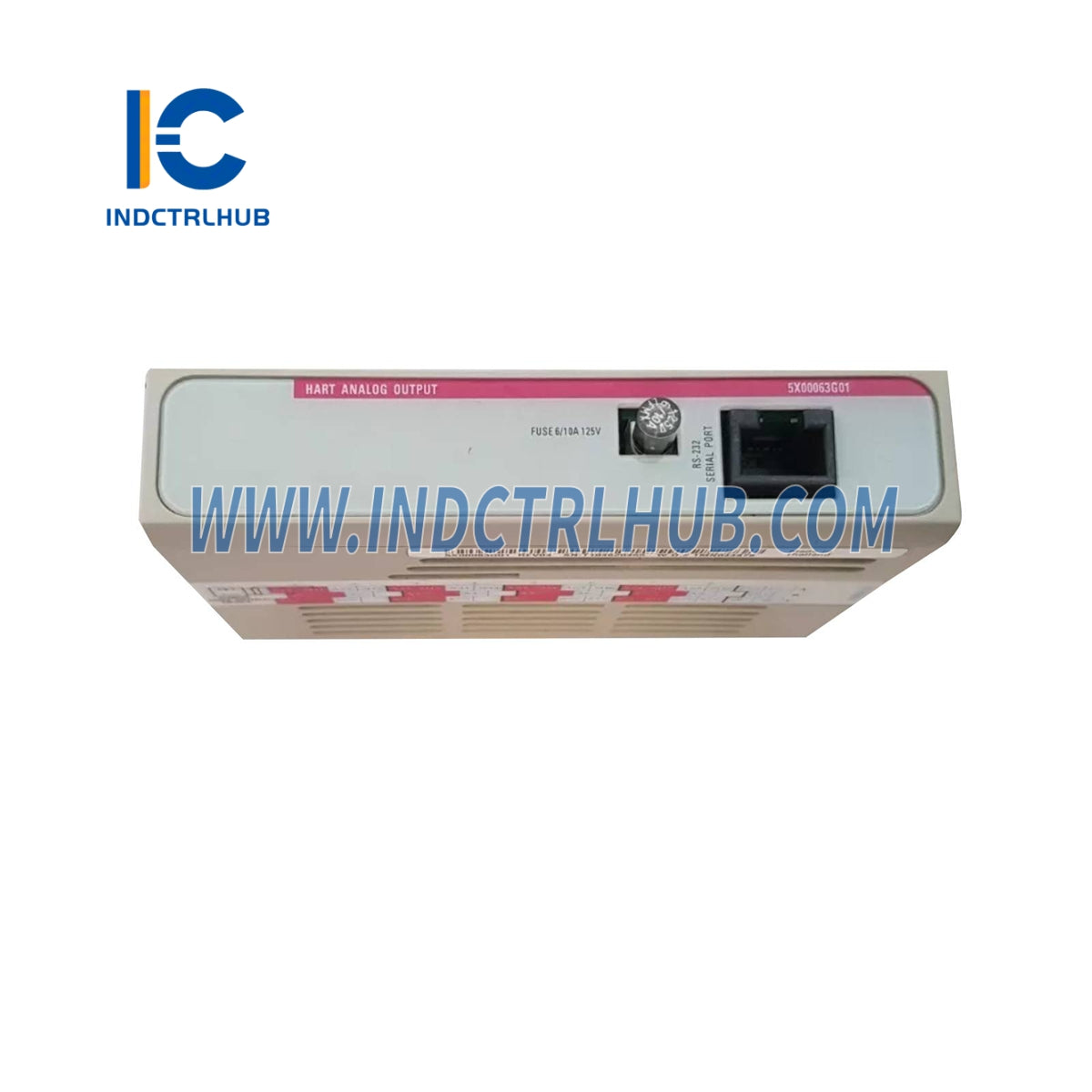

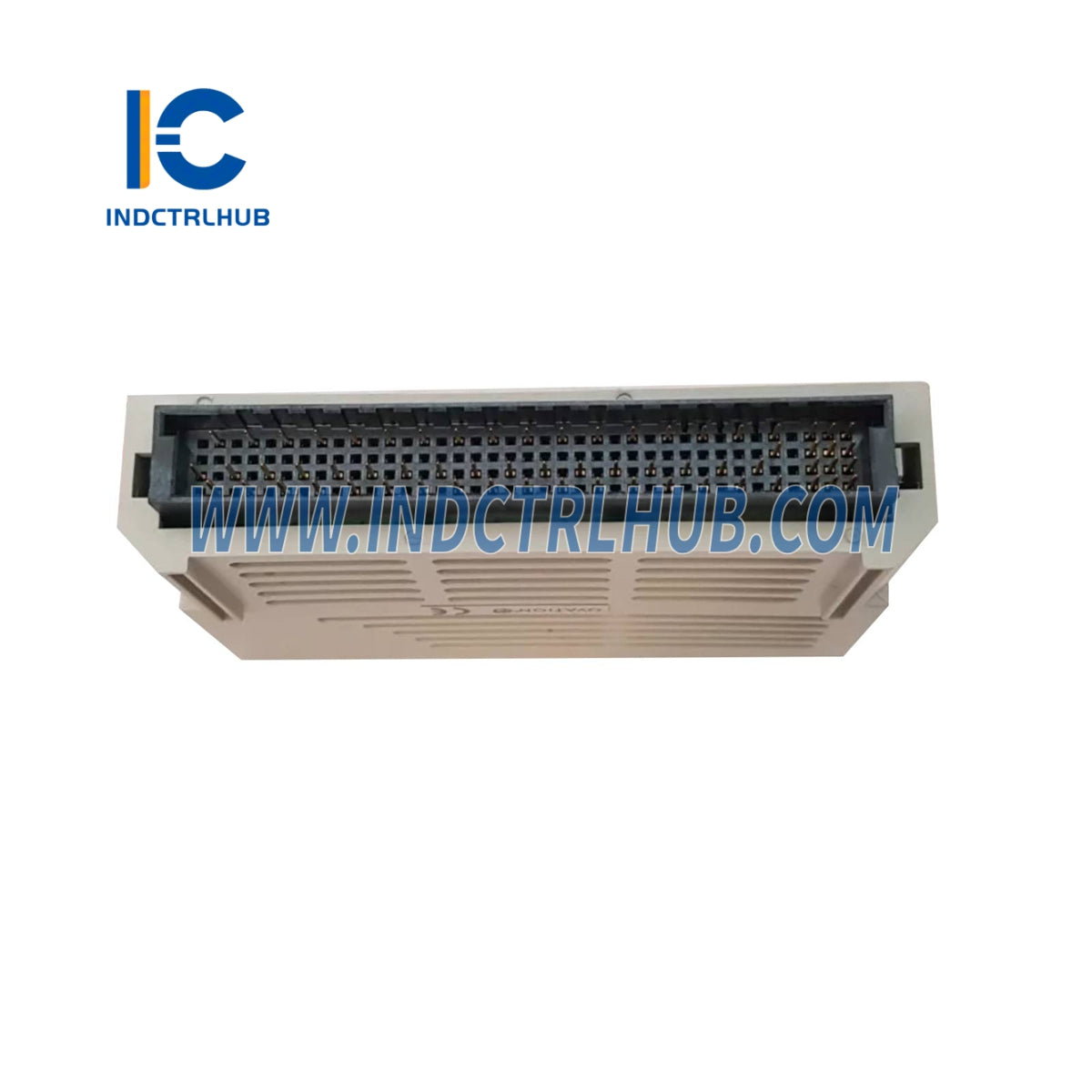

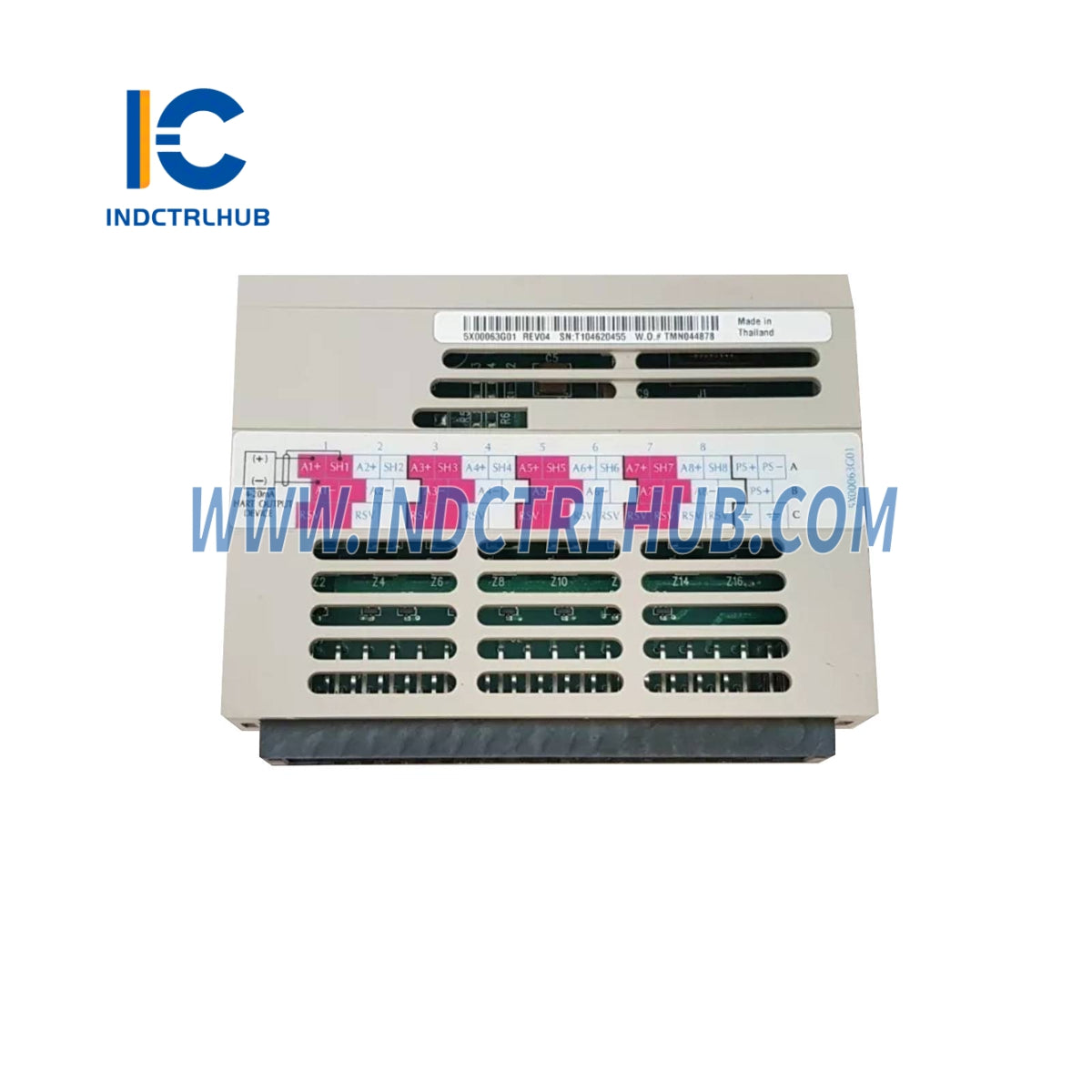

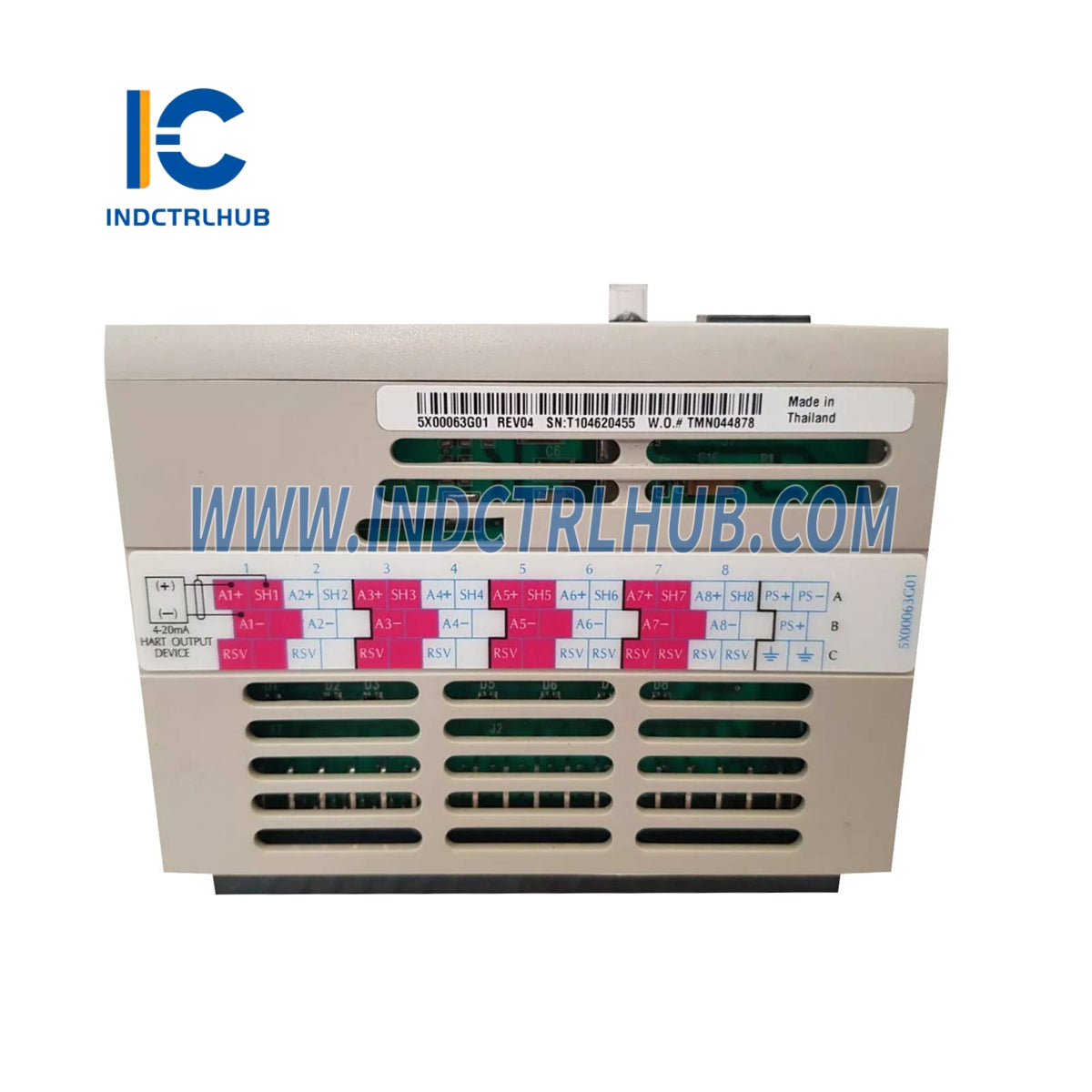

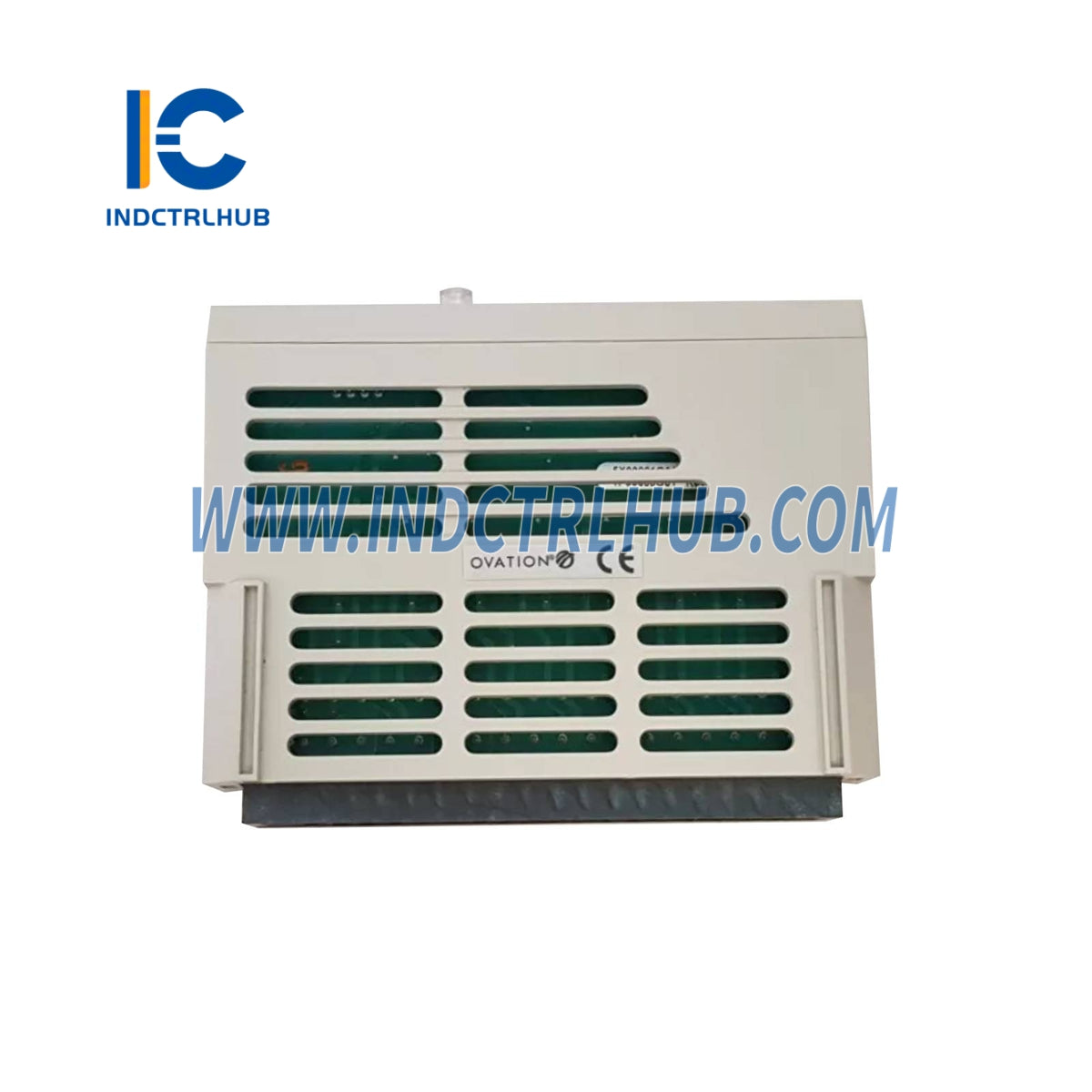

🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
5X00063G01 |
|
Description |
8-Channel HART Analog Output Module designed for Emerson control systems, providing analog signal outputs with HART protocol support for precise and reliable process control. |
🔹 Technical Specifications
|
Specification |
Value |
|---|---|
|
Number of Channels |
8 |
|
Channel Update Rate |
24 ms (Each channel updated every 24 ms by onboard microcontroller) |
|
D/A Resolution |
14 bits |
|
Output Range |
4 to 20 mA |
|
Accuracy (Over Temperature) |
±0.25% of span |
|
Output Compliance |
20 mA @ 21.6 VDC into 700 ohm load |
|
Output Loading |
4–20 mA into 230–700 ohm |
|
Diagnostics |
Open loop feedback detection; 8 pass/fail bits stored in register 0xC (Hex) |
|
Dielectric Isolation |
- Channel to Channel: None - Channel to Logic: 1000 VAC/VDC for 1 minute |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Humidity (Non-condensing) |
0% to 95% |
|
Power Supply (Main) |
24 VDC, 1.2 W typical, 2.5 W max |
|
Power Supply (Auxiliary) |
24 VDC (-5% / +6.25%), 6 W typical, 7.2 W max |
|
User Loop Voltage |
Supplied through the module via auxiliary power |
