Product Description
Product Overview

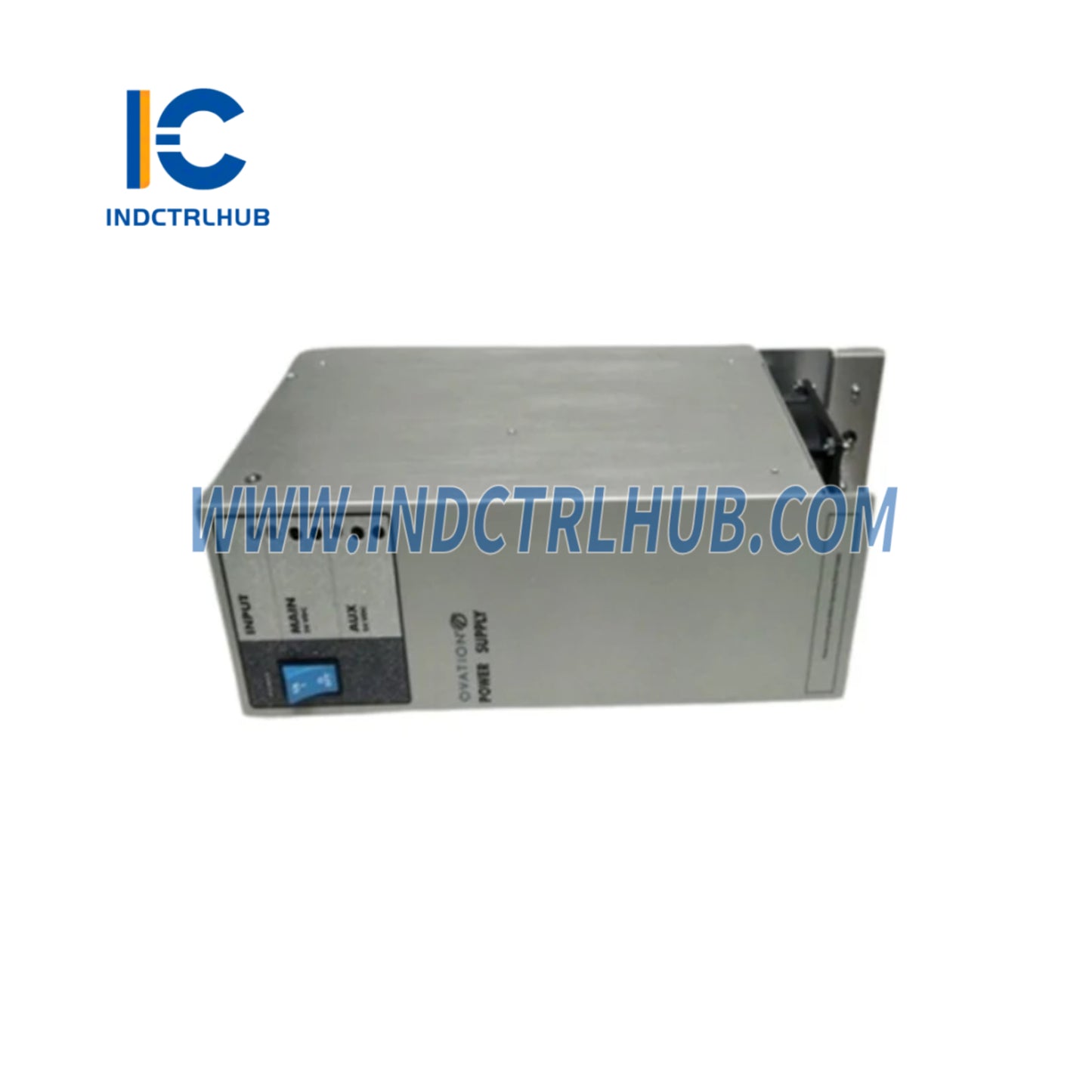

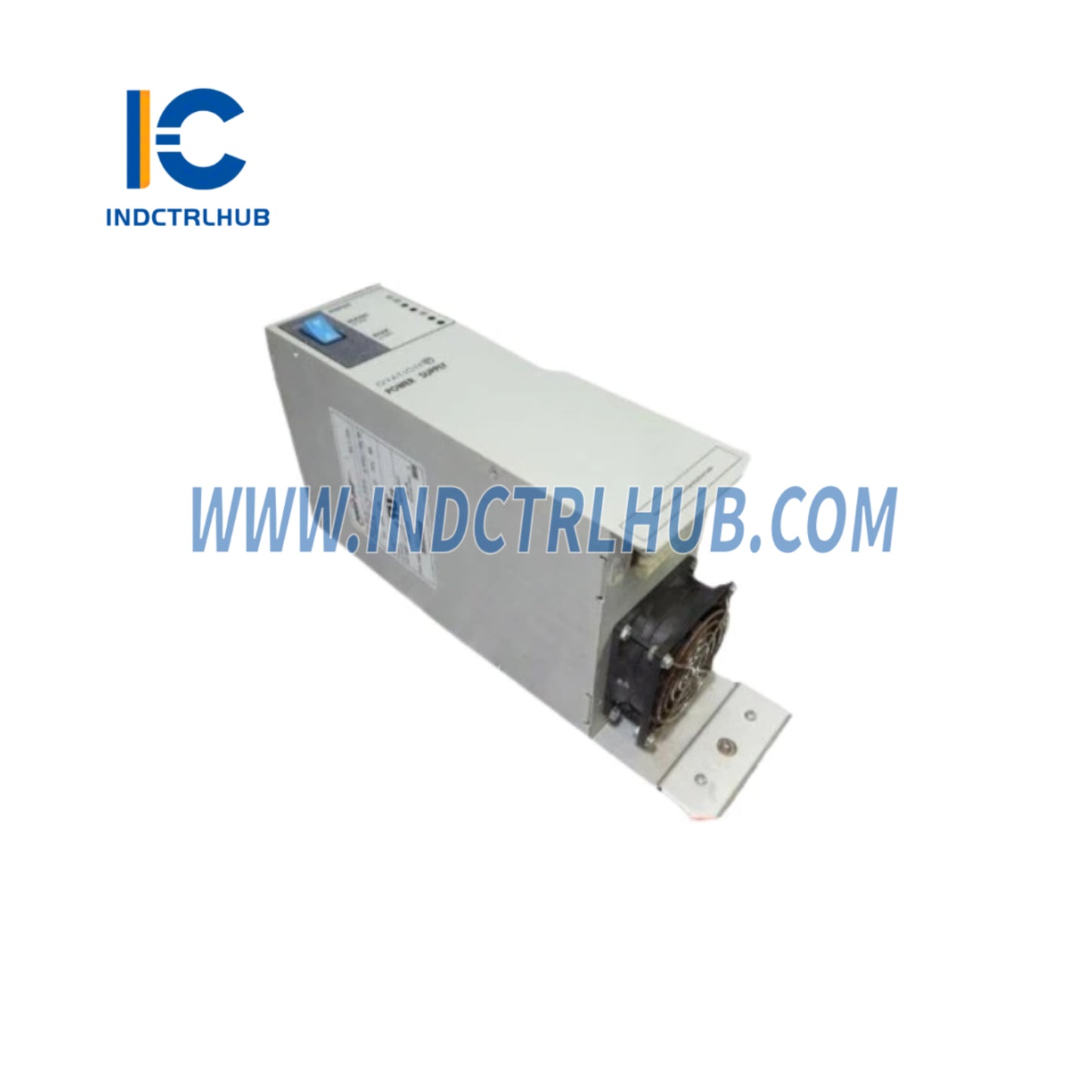

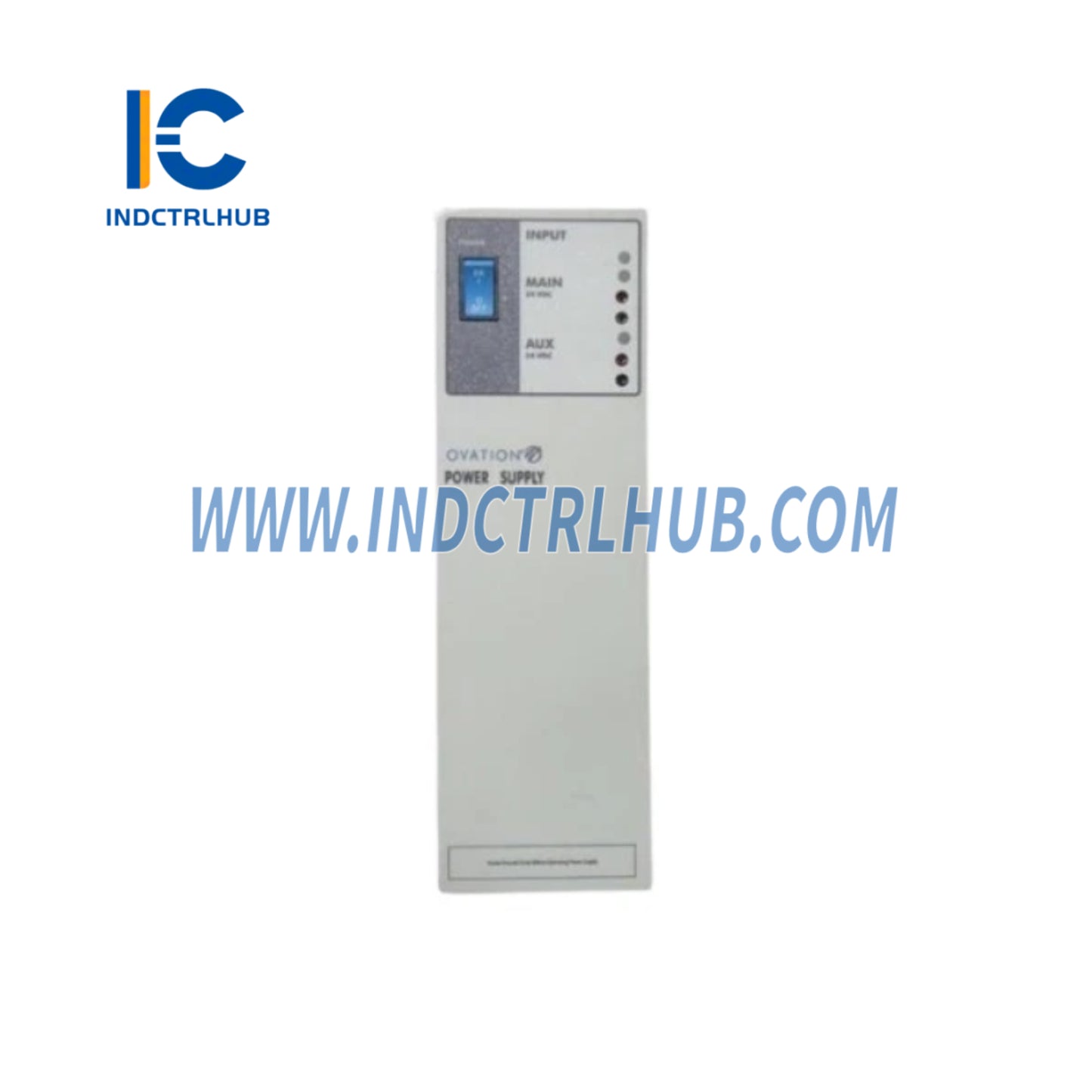

The Emerson 1X00691H01 is a Power Supply Module designed for the Ovation Distributed Control System (DCS). Manufactured by Emerson, this module provides regulated DC power to Ovation system components, such as controllers, I/O modules, and other critical hardware, ensuring reliable operation in industrial automation environments. It is widely used in applications like power generation, oil & gas, and water treatment, where consistent and stable power delivery is essential. The “1X” prefix aligns with Ovation power-related components, and “H01” indicates a specific configuration or revision.
Technical Specifications
The 1X00691H01 has the following specifications based on standard characteristics for Ovation power supply modules:
| Item | Specification |
|---|---|
| Model/Part Number | 1X00691H01 |
| Manufacturer | Emerson |
| Description | Power Supply Module |
| Series | Ovation DCS |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 10 A (typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 1.5 kg (3.3 lbs) |
Additional Details
The 1X00691H01 includes the following additional information based on its standard use and inferred documentation:
| Category | Details |
|---|---|
| Function | Converts AC input to DC output for Ovation system components |
| Mounting | DIN-rail or panel mountable |
| Connectivity | Terminal blocks for input/output wiring |
| Features | Overload protection, status indicators, high efficiency |
| Certifications | Designed for industrial safety standards (e.g., CE, UL) |
