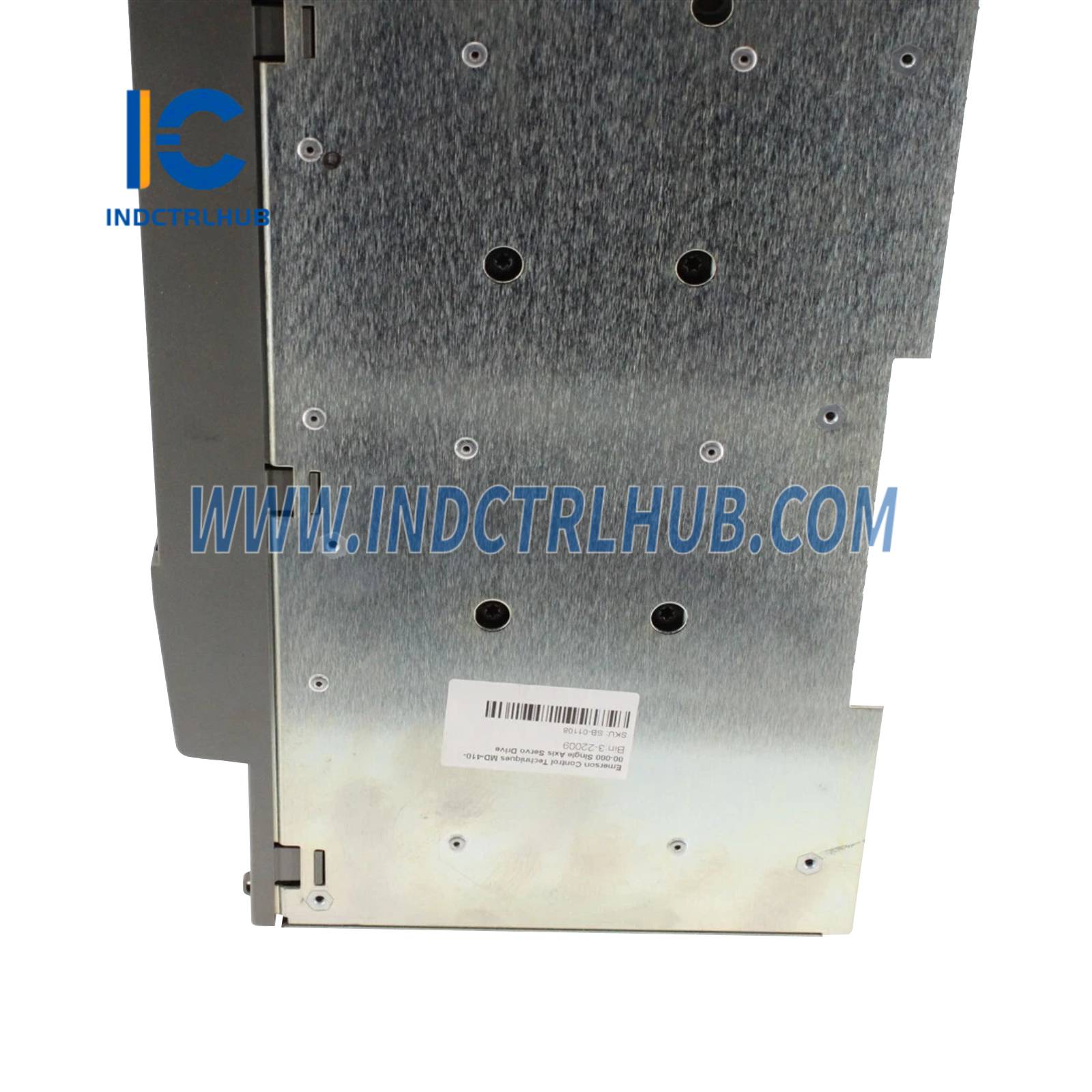

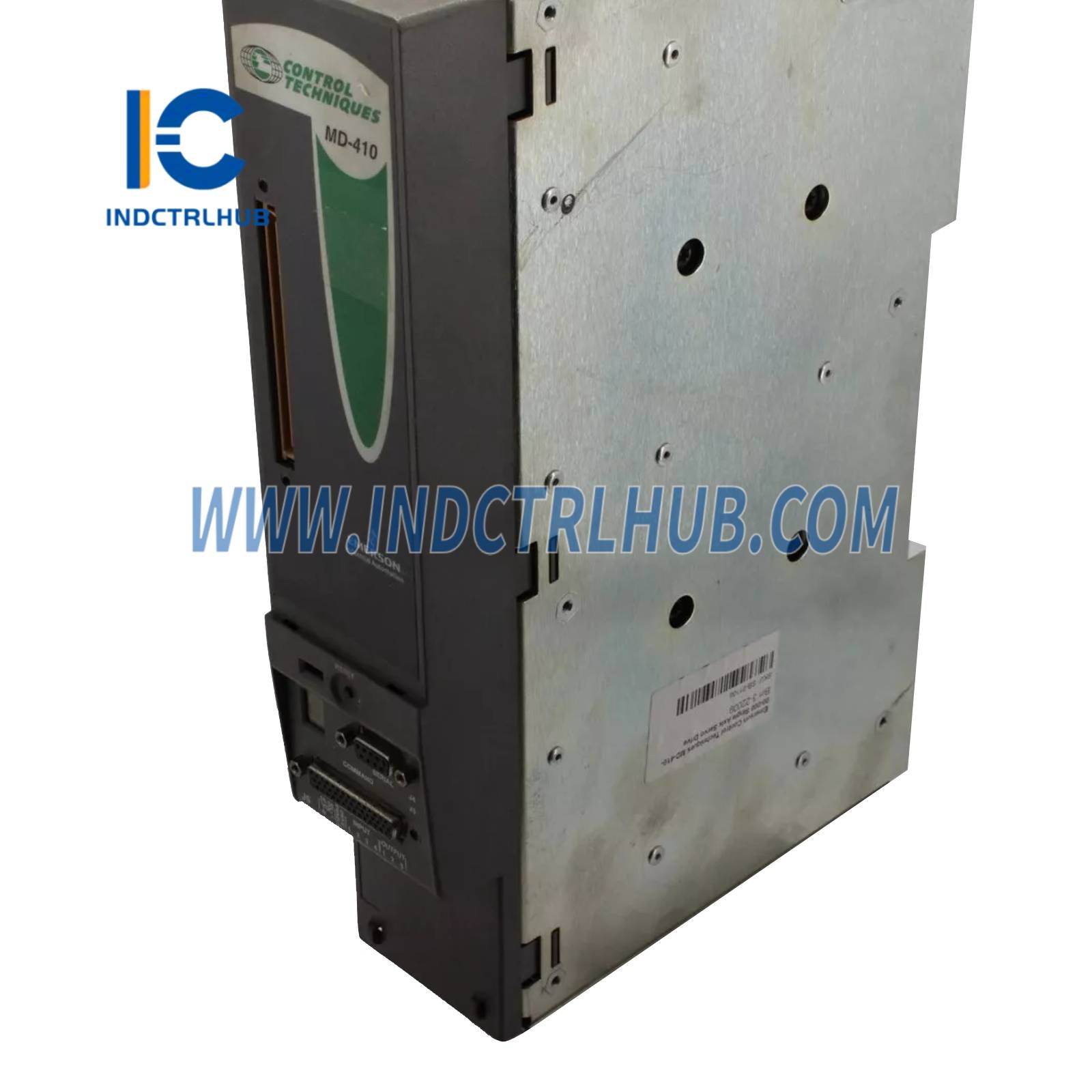

Emerson MD-410-00-000 Control Techniques Servo Drive Module
- Manufacturer: Emerson (Control Techniques)
- Model/Part Number: MD-410-00-000 (Alternate: 830488-04)
- Description: MDS Servo Drive Module, 10A Continuous Output Current, 20A Peak Current, 460V, with Backplane and Fuses
Overview
- The Emerson MD-410-00-000 is a Modular Drive System (MDS) Servo Drive Module designed by Control Techniques for precise motion control in industrial automation applications. It delivers 10A continuous and 20A peak output current at 460V, suitable for driving servo motors in industries such as metal production, paper processing, and material conveying. The module includes a backplane and fuses for streamlined installation and enhanced safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MD-410-00-000 |
| Series | Control Techniques MDS |
| Type | Servo Drive Module, 3-Phase AC |
| Input Voltage | 380-480 VAC, 3-Phase |
| Output Current | 10A continuous, 20A peak |
| Output Voltage | 0-480 VAC |
| Backplane Part Number | 300488-04 |
| Fuses | Included, mounted on backplane |
| Operating Modes | Velocity, Torque, Pulse/Direction |
| Optional Modules | FM-2 (Indexing), FM-3 (Programming), FM-4 (Advanced Programming) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Weight | Approximately 5 kg |
| Mounting | Backplane, panel mount |
| Certifications | CE, UL, CSA (dependent on configuration) |
Additional Information
- Functionality: The MD-410-00-000 operates as a base servo drive supporting velocity, torque, and pulse/direction modes. It can be enhanced with FM modules (FM-2, FM-3, FM-4) for advanced indexing and programming capabilities. The module mounts on a backplane (Part Number: 300488-04) that provides DC bus and logic power connections, minimizing installation time. Fuses on the backplane offer individual axis protection.
- Environmental Durability: Designed for industrial environments, the module operates reliably in moderate temperatures and is built to withstand typical industrial conditions, though specific ingress protection ratings (e.g., IP20) are not explicitly stated.
