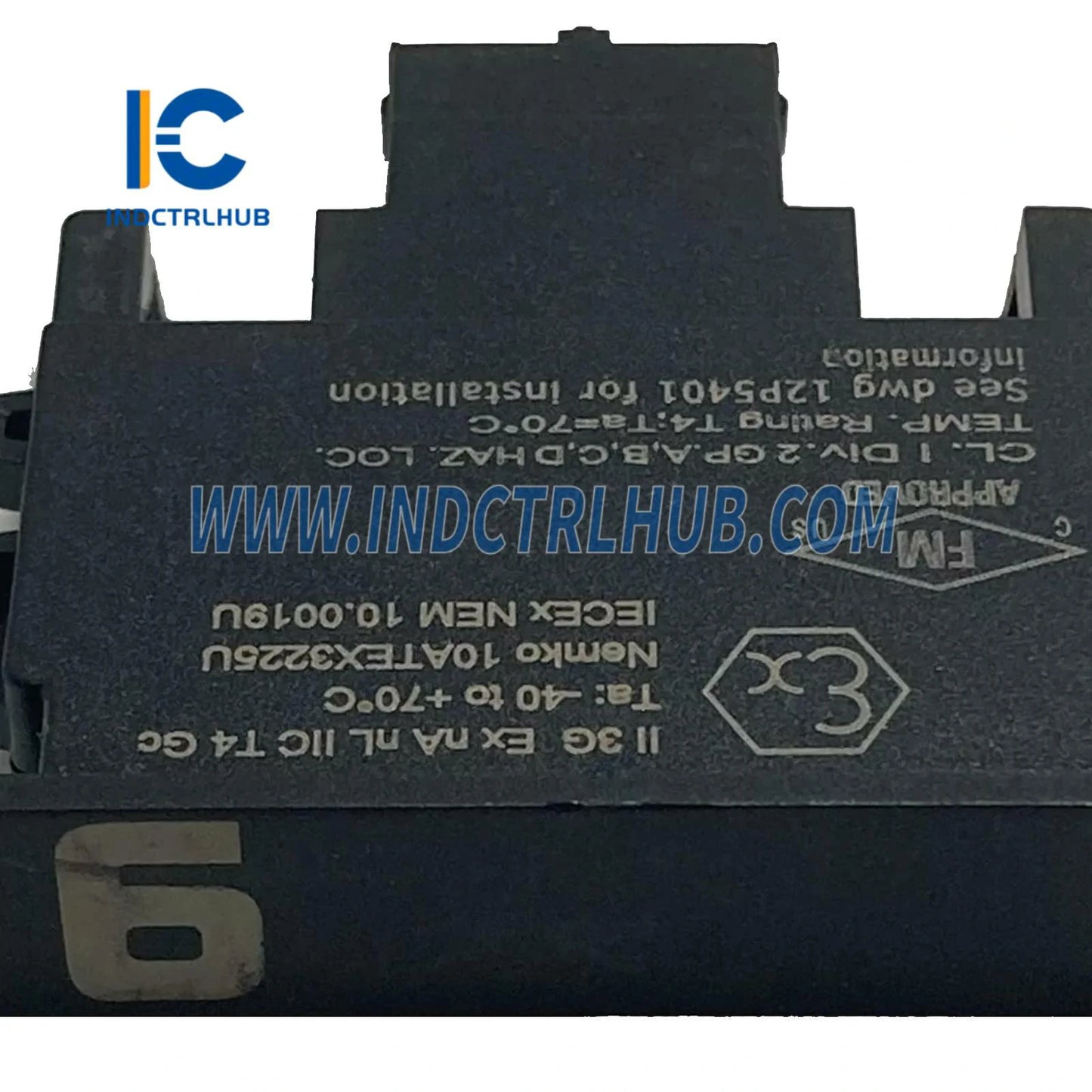

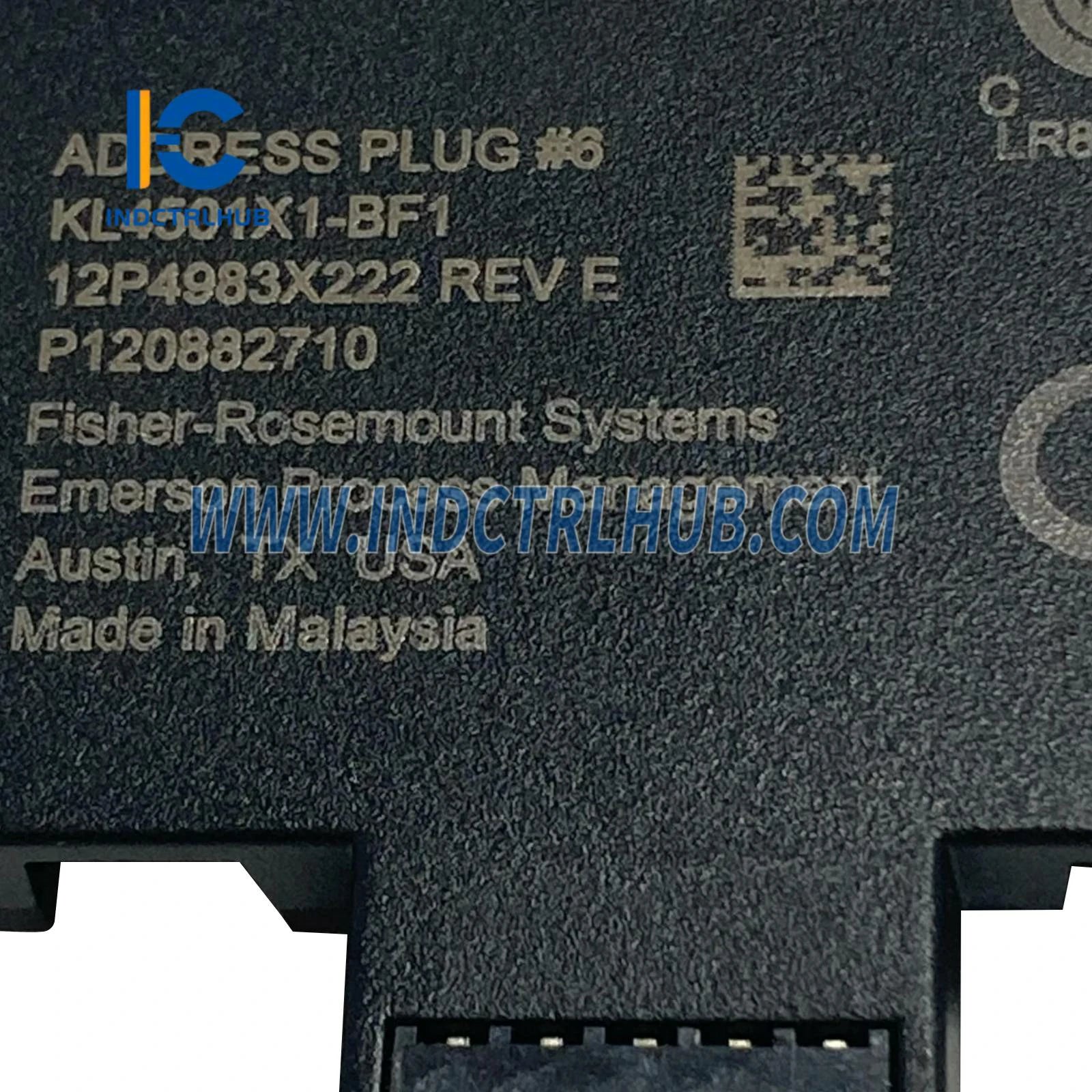

Emerson KL4501X1-BF1 CHARM Address Plug #6

Emerson KL4501X1-BF1 CHARM Address Plug #6 - Essential DeltaV I/O Configuration Component

The Emerson KL4501X1-BF1 CHARM Address Plug #6 serves as a critical configuration component in DeltaV CHARM I/O systems, providing unique addressing and mechanical keying for proper module identification and placement. This precision-engineered plug features key position 3E, enabling reliable system configuration and preventing installation errors in complex distributed control architectures across process industries.

Core Technical Specifications

• Model Number: KL4501X1-BF1
• Address Plug Number: #6
• Key Position: 3E (unique mechanical keying)
• Power Consumption: +6.5 VDC at 7 mA (ultra-low power)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
• Humidity Range: 5% to 95% non-condensing
• System Compatibility: DeltaV CHARM I/O subsystem with electronic marshalling

Function & System Role

CHARM Address Plugs are fundamental to DeltaV's electronic marshalling architecture, serving three critical functions in modern distributed control systems:

Unique Module Addressing: Each address plug provides a distinct identifier within the CHARM I/O network, enabling the DeltaV controller to recognize and communicate with individual I/O modules. The #6 address plug specifically assigns a unique position in the I/O addressing scheme, essential for multi-module configurations where dozens of CHARMs may coexist on a single carrier.

Mechanical Keying & Error Prevention: The 3E key position provides physical keying that prevents incorrect CHARM module insertion. This mechanical safeguard ensures that only compatible CHARM types can be installed in specific baseplate positions, eliminating costly commissioning errors and reducing troubleshooting time during system startup and maintenance.

Power Distribution & Signal Integrity: The address plug facilitates low-voltage power distribution from the CHARM baseplate to individual I/O modules while maintaining signal integrity across the CHARM bus. With only 7 mA power consumption, the plug minimizes thermal load and enables high-density I/O configurations without thermal management concerns.

Industrial Applications

Large-Scale Process Automation: In refineries, chemical plants, and pharmaceutical facilities with hundreds of I/O points, address plugs enable systematic organization of CHARM modules across multiple I/O carriers. The unique addressing simplifies system documentation, accelerates troubleshooting, and supports efficient spare parts management by clearly identifying module positions.

Modular System Expansion: When expanding existing DeltaV installations, address plugs allow seamless integration of new I/O modules without disrupting operational systems. The plug-and-play architecture with mechanical keying reduces commissioning time and minimizes the risk of configuration errors during live system modifications.

Redundant I/O Architectures: In critical process control applications requiring redundant I/O, address plugs maintain consistent module addressing across primary and backup systems. This addressing consistency simplifies failover logic and ensures reliable switchover during controller or I/O carrier failures.

Environmental Ruggedness

Complete Address Plug Family

The KL4501X1 series offers eight distinct address plugs for comprehensive system configuration:

Installation & Configuration

Address plugs integrate seamlessly into DeltaV CHARM I/O architecture:

• Installs on CHARM baseplate in conjunction with terminal blocks and I/O modules
• Mechanical keying ensures correct orientation and prevents reverse insertion
• No configuration software required - addressing is automatic upon installation
• Hot-swappable in non-hazardous areas (consult safety documentation for classified locations)
• Compatible with both standard and intrinsically safe CHARM baseplates

System Design Considerations

When planning DeltaV CHARM I/O configurations:

• Address Planning: Document address plug assignments during system design to maintain consistent addressing across multiple I/O carriers and facilitate future expansion
• Spare Parts Strategy: Stock complete sets of address plugs (#1-#8) to support rapid module replacement and system reconfiguration during maintenance windows
• Key Position Verification: Always verify key position matches system documentation before installation to prevent addressing conflicts
• Environmental Assessment: Ensure installation environment remains within -40 to 70°C operating range and 5-95% humidity specifications

Why Choose Industrial Control Hub?

Your trusted partner for genuine Emerson DeltaV components and accessories:

• ✓ 100% authentic OEM products with full manufacturer traceability
• ✓ Expert DCS technical support from certified automation specialists
• ✓ Comprehensive inventory of CHARM I/O modules, baseplates, and accessories
• ✓ Fast global shipping to US, UK, EU, and Asia-Pacific regions
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete system documentation and configuration assistance

Related DeltaV CHARM Components

Ordering Information

• KL4501X1-BF1: CHARM Address Plug #6, Key Position 3E (this product)
• Complete Set: Order all eight address plugs (BA1 through BH1) for comprehensive spare parts coverage
• Recommended Accessories: CHARM baseplates, terminal blocks, and I/O carriers available separately

Technical Documentation & Support

Complete installation instructions, addressing schemes, and system configuration guides available upon request. Our DeltaV specialists provide application engineering support for I/O system design, address planning, and troubleshooting assistance for complex CHARM architectures.
