Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KL4501X1-BB1 |
|
Description |

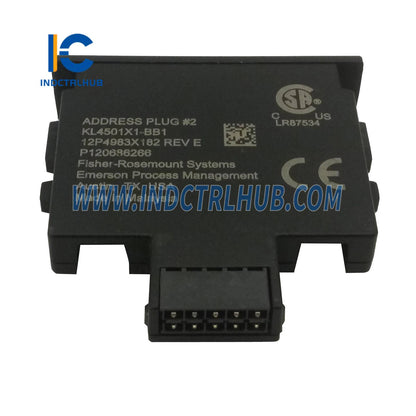

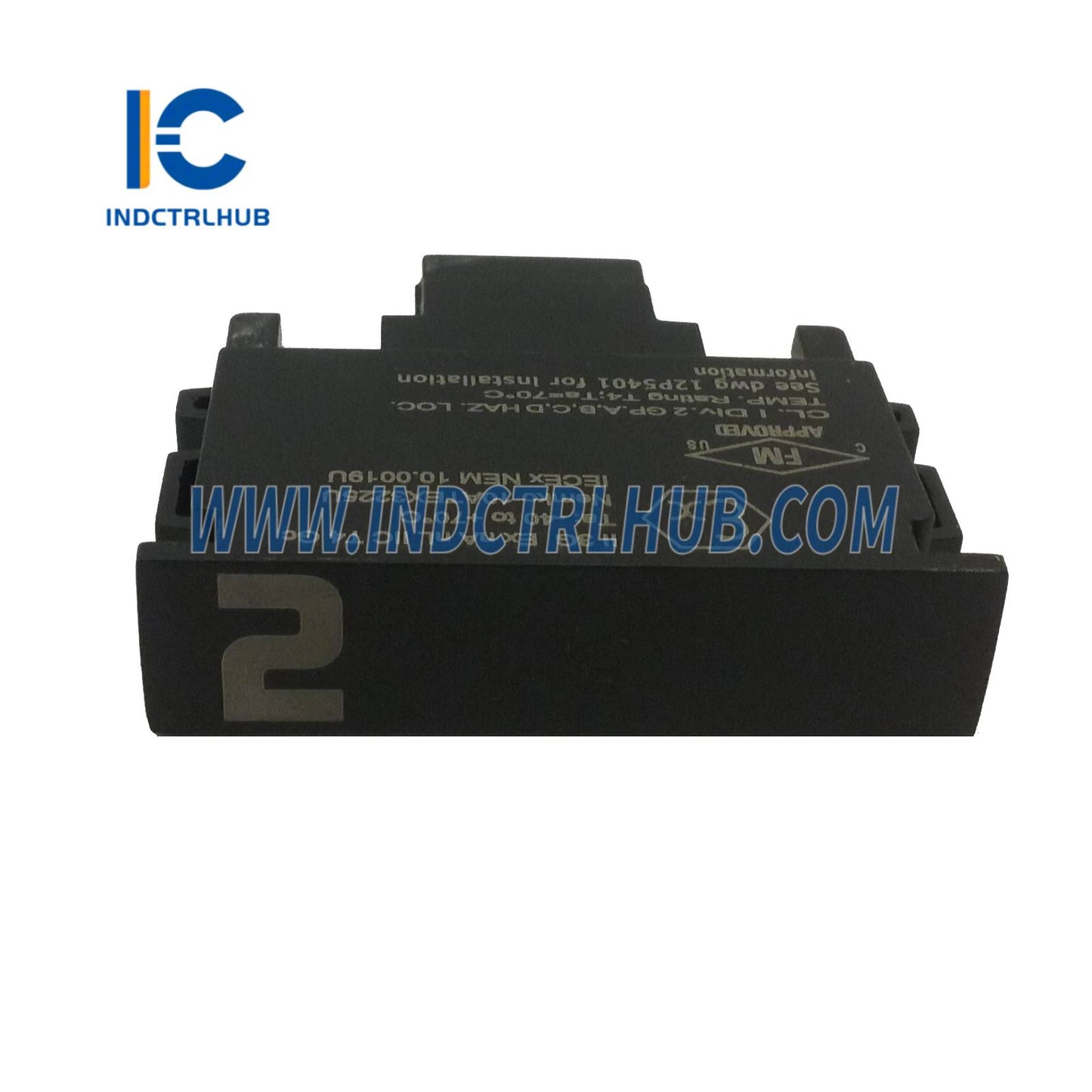

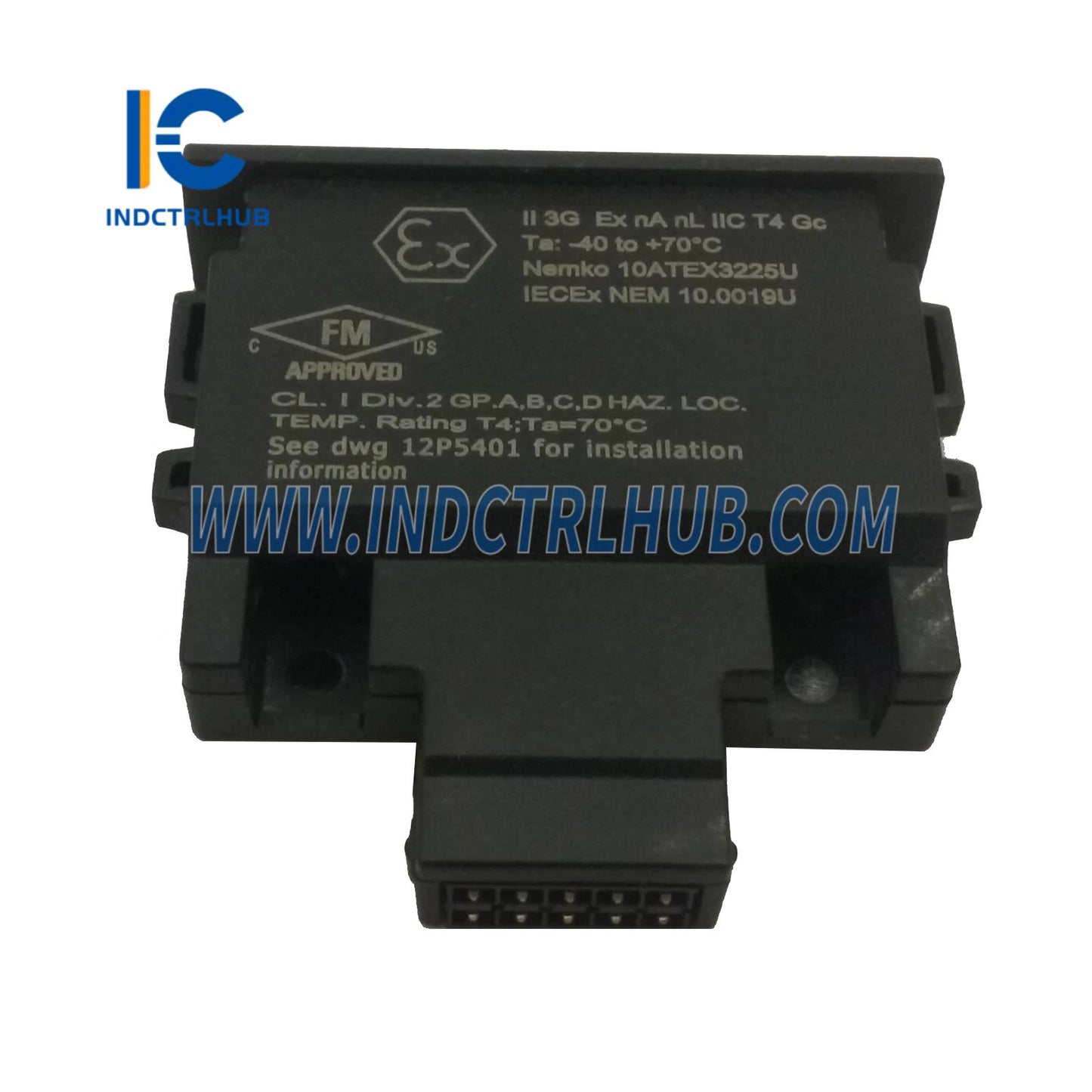

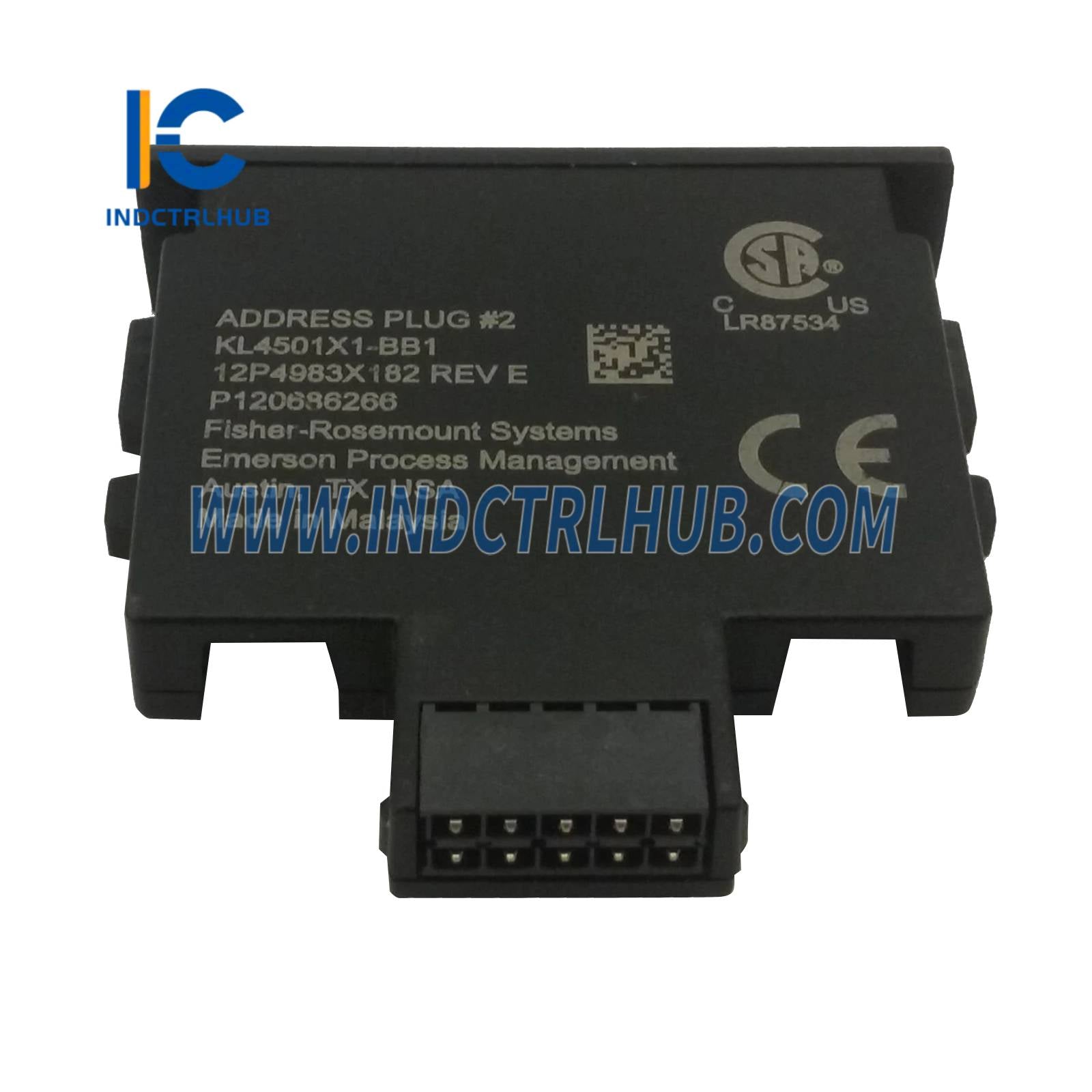

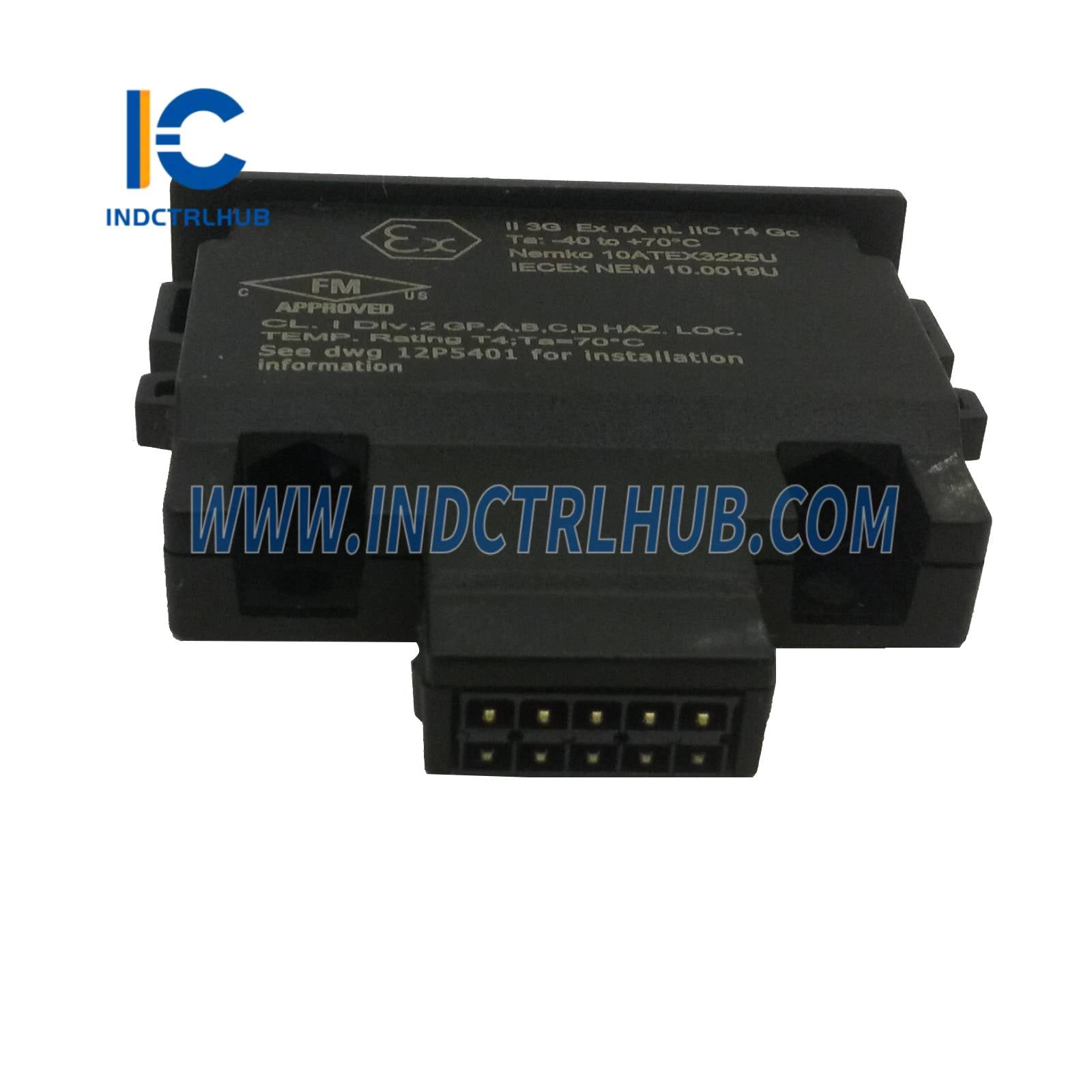

CHARM Address Plug #2 |
Power Specifications
|
Parameter |
Value |
|---|---|
|
CHARM Bus Power |
+6.5 VDC at 7 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm Peak to Peak (2–13.2 Hz) 0.7g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04-1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-condensing |
|
Address Plug Key Position |
1C (specific to KL4501X1-BB1) |
KL4501X1 Address Plug Variant Summary
|
Model Number |
Address Plug # |
Key Position |
|---|---|---|
|
KL4501X1-BA1 |
#1 |
1A |
|
KL4501X1-BB1 |
#2 |
1C |
|
KL4501X1-BC1 |
#3 |
1E |
|
KL4501X1-BD1 |
#4 |
3A |
|
KL4501X1-BE1 |
#5 |
3C |
|
KL4501X1-BF1 |
#6 |
3E |
|
KL4501X1-BG1 |
#7 |
5A |
|
KL4501X1-BH1 |
#8 |
5C |
