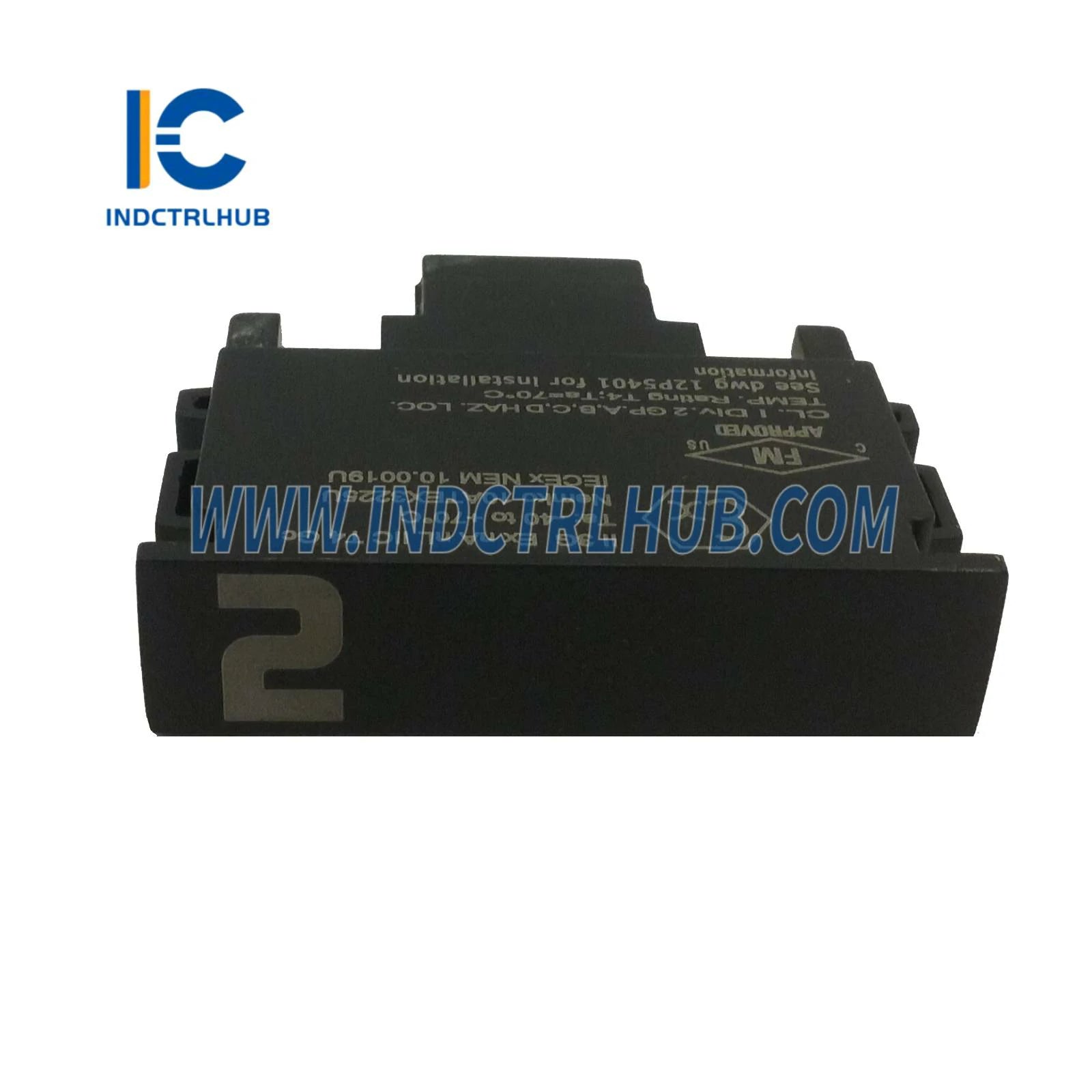

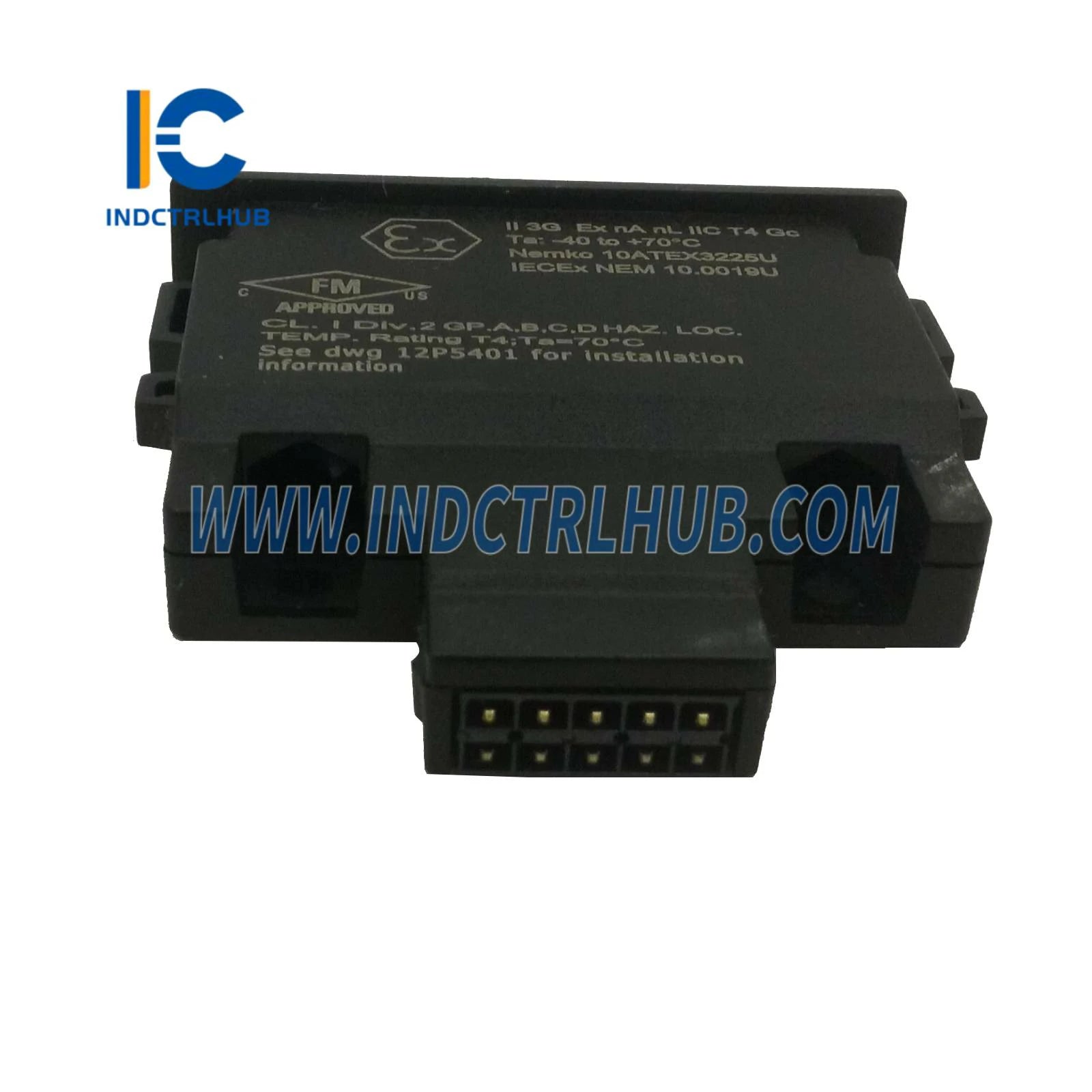

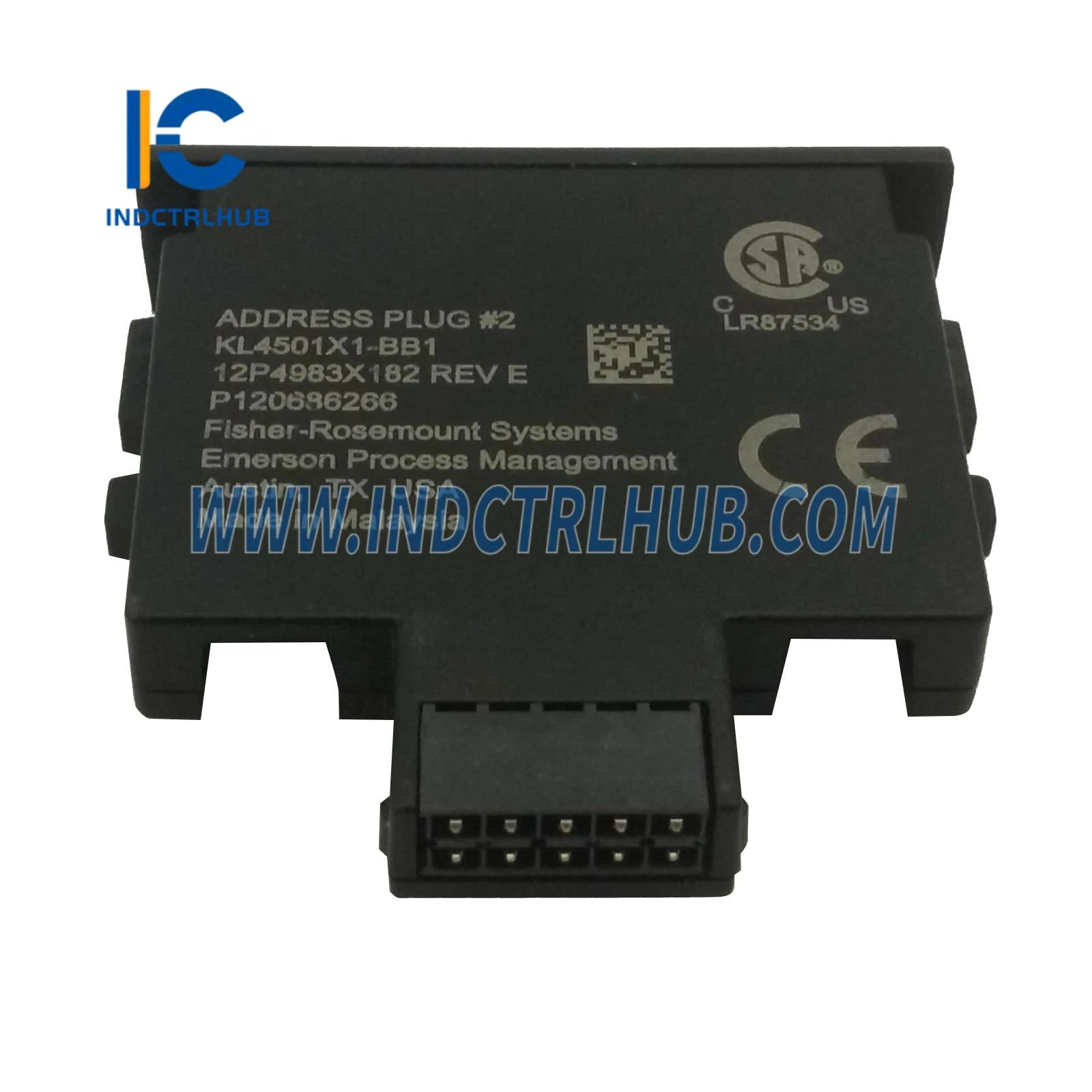

Emerson KL4501X1-BB1 CHARM Address Plug #2

Emerson KL4501X1-BB1 CHARM Address Plug #2 - Essential DeltaV I/O Configuration Component

The Emerson KL4501X1-BB1 CHARM Address Plug #2 serves as a critical configuration component in DeltaV electronic marshalling systems, enabling precise CHARM module addressing and identification within distributed I/O architectures. Featuring a 1C key position, this address plug ensures proper CHARM placement and prevents configuration errors in complex process control installations across oil & gas, chemical, pharmaceutical, and power generation facilities.

Technical Specifications

• Model Number: KL4501X1-BB1
• Address Plug Number: #2
• Key Position: 1C (mechanical keying for proper installation)
• CHARM Bus Power: +6.5 VDC at 7 mA
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Humidity Range: 5% to 95% non-condensing
• Shock Resistance: 10g half-sine wave for 11ms
• Vibration Resistance: 1mm peak-to-peak (2-13.2 Hz), 0.7g (13.2-150 Hz)
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating

Function & Purpose in DeltaV Systems

CHARM Addressing Architecture: The KL4501X1-BB1 address plug provides unique identification for CHARM modules within the DeltaV I/O network. Each address plug contains embedded electronics that communicate the CHARM's physical location to the controller, enabling automatic I/O discovery and configuration during system commissioning and hot-swap operations.

Mechanical Keying System: The 1C key position ensures that only compatible CHARM modules can be installed in this location, preventing accidental insertion of incorrect I/O types. This mechanical interlock system is critical for maintaining system integrity in large installations with hundreds of I/O points where manual configuration errors could compromise process safety.

Hot-Swap Capability: Address plugs enable field technicians to replace failed CHARM modules without shutting down the control system. When a CHARM is removed, the address plug retains the I/O point configuration, allowing the replacement module to automatically assume the correct address and parameters upon insertion.

Industrial Applications

Large-Scale DCS Installations: In refineries and chemical plants with thousands of I/O points distributed across multiple process units, address plugs provide systematic organization and prevent wiring errors during construction and commissioning. The #2 address plug typically designates specific I/O cabinet locations or functional groups within the control architecture.

Modular Process Skids: Equipment manufacturers building standardized process skids (pumping stations, compressor packages, filtration systems) use address plugs to pre-configure I/O addressing before shipment. This enables plug-and-play integration when the skid arrives at the plant site, reducing commissioning time and startup costs.

Redundant I/O Systems: In critical applications requiring fault-tolerant control (emergency shutdown systems, fire & gas detection, turbine control), address plugs facilitate redundant CHARM configurations where primary and backup I/O modules share the same address space for seamless failover operation.

Retrofit & Expansion Projects: When adding new I/O capacity to existing DeltaV systems, address plugs enable systematic expansion without disrupting operational control loops. The keyed design prevents installation mistakes that could cause process upsets during tie-in activities.

Address Plug Variant System

The KL4501X1 series includes eight address plug variants, each with unique key positions for different CHARM addressing schemes:

Installation & Configuration

Best practices for address plug deployment:

• Pre-Installation Planning: Document address plug assignments in I/O wiring diagrams and cabinet layouts before installation to ensure systematic addressing across the project
• Baseplate Integration: Address plugs mount on CHARM baseplates (KL4201X1-BA1 for intrinsically safe applications) and provide the mechanical interface for CHARM module insertion
• Power Budget Verification: Each address plug consumes 7mA at 6.5 VDC from the CHARM bus; verify total I/O power budget when designing large I/O cabinets
• Environmental Considerations: Conformal coating protects against airborne contaminants in harsh industrial environments, but cabinets should maintain IP54 or better protection for long-term reliability

Maintenance & Spare Parts Strategy

Address plugs are passive components with no wear mechanisms, but maintaining spares is critical for system availability:

• Stock complete sets of all eight address plug variants for maximum flexibility during expansions and reconfigurations
• Address plugs rarely fail but can be damaged during CHARM removal/insertion; inspect keying pins for mechanical damage during maintenance
• When replacing CHARM modules, verify address plug key position matches the replacement CHARM type to prevent installation errors
• Document address plug locations in as-built drawings to facilitate troubleshooting and future modifications

Why Choose Industrial Control Hub?

Your trusted source for genuine Emerson DeltaV components and accessories:

• ✓ 100% authentic OEM products with full manufacturer traceability
• ✓ Expert DCS technical support from certified automation specialists
• ✓ Comprehensive inventory of current and legacy DeltaV spare parts
• ✓ Fast global shipping to US, UK, EU, and Asia-Pacific regions
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation and configuration assistance

Related DeltaV CHARM Components

Ordering Information

• KL4501X1-BB1: CHARM Address Plug #2 with 1C key position (this product)
• Recommended Accessories: KL4201X1-BA1 I.S. CHARM Baseplate, KL4502X1-BA1 Standard Terminal Block
• Typical Order Quantity: Multiple units recommended for spare parts inventory and future expansion

Technical Documentation & Support

Complete installation instructions, address plug assignment guidelines, and CHARM system architecture documentation available upon request. Our technical team provides system design consultation, I/O addressing schemes, and configuration assistance for complex DeltaV implementations.
