Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KL3101X1-LS1 |
|
Description |

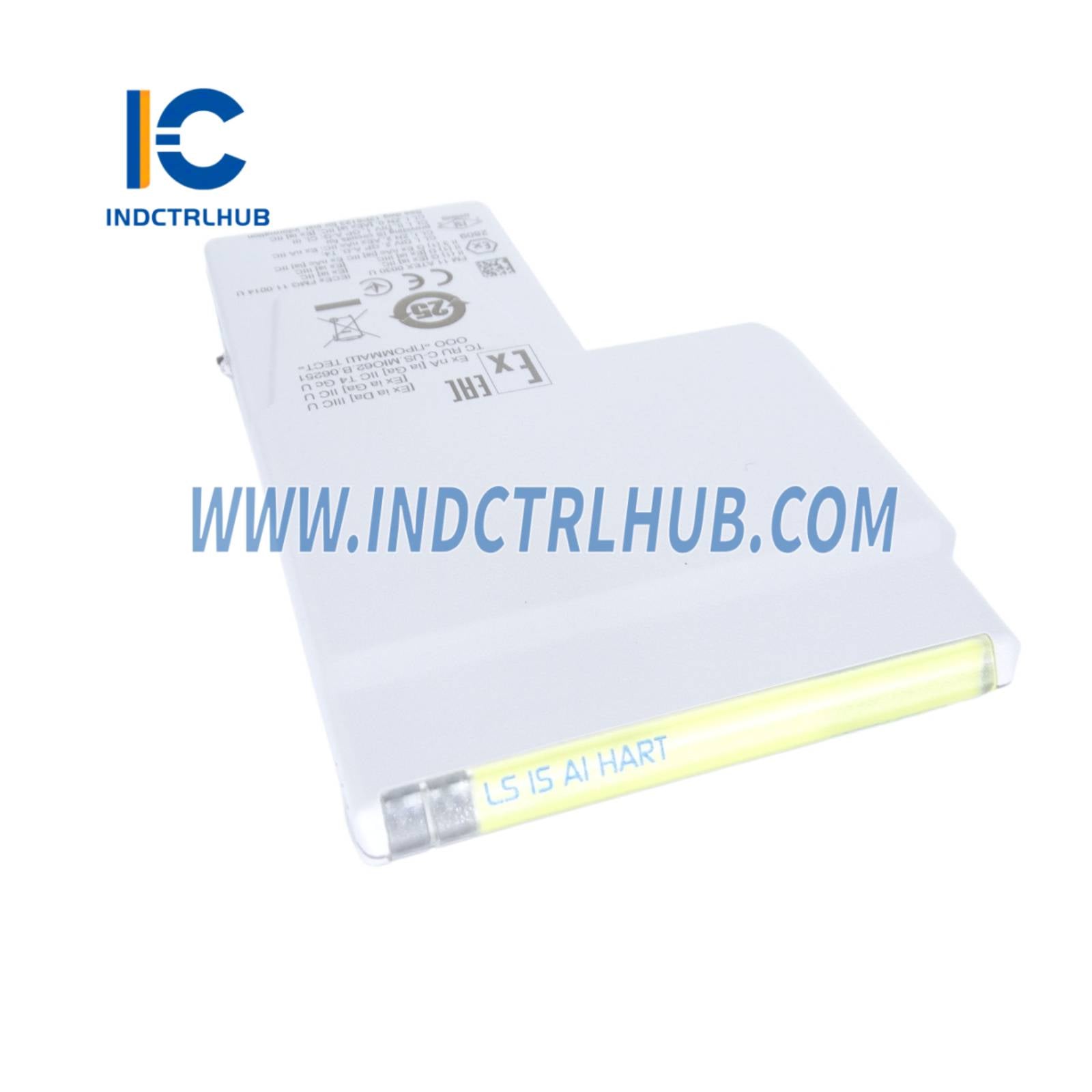

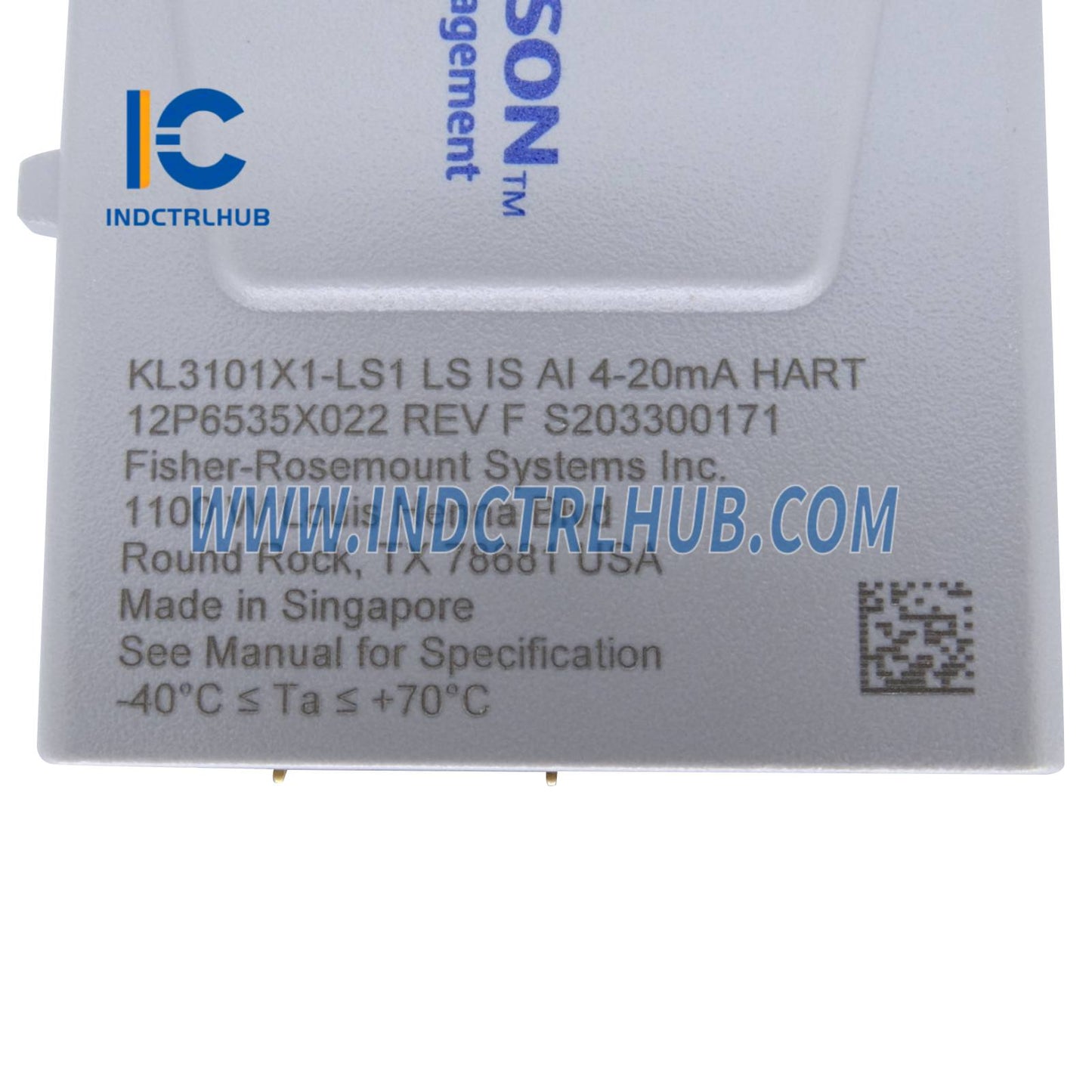

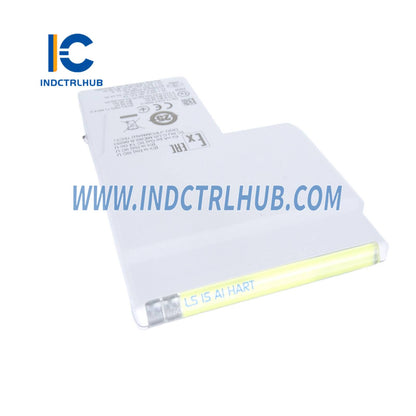

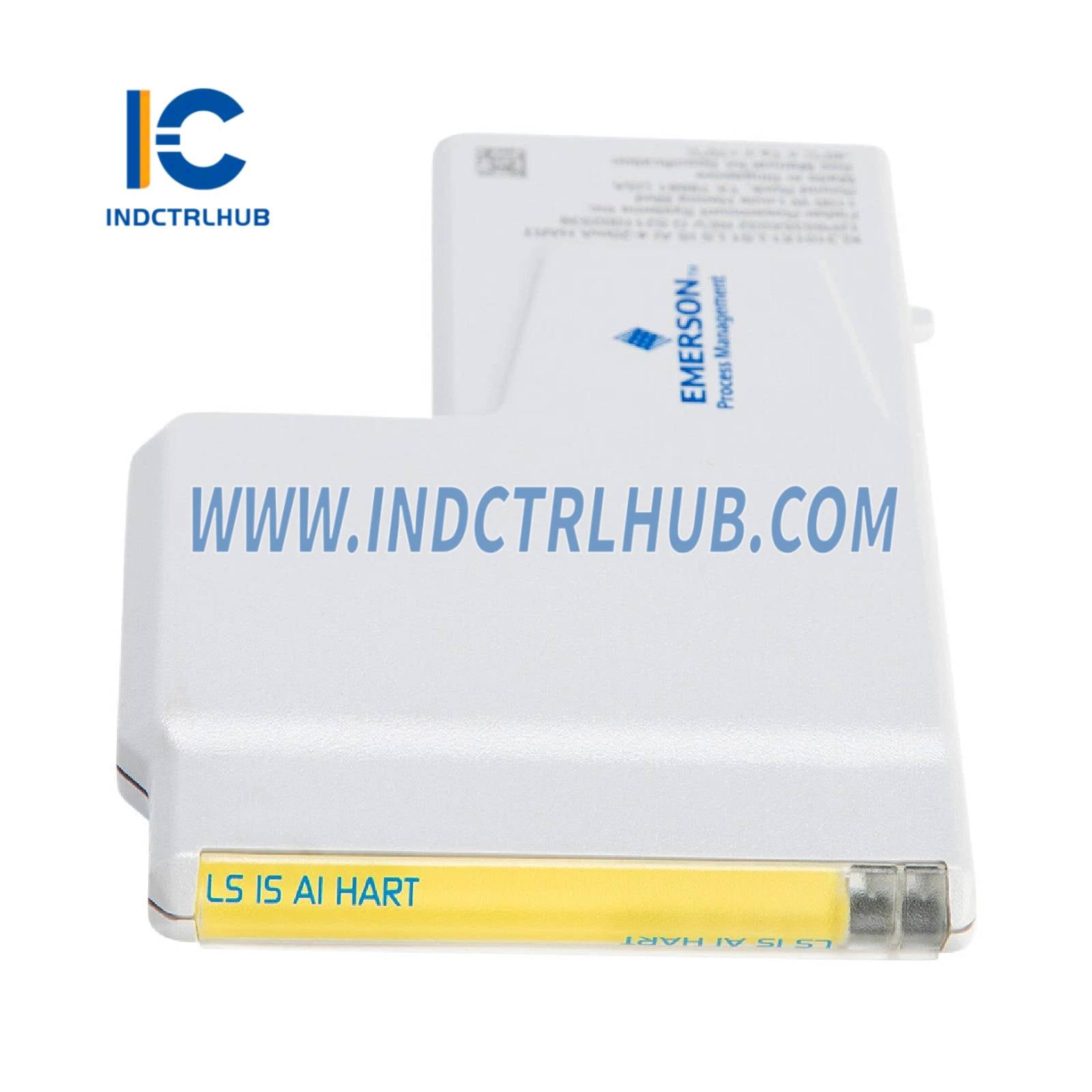

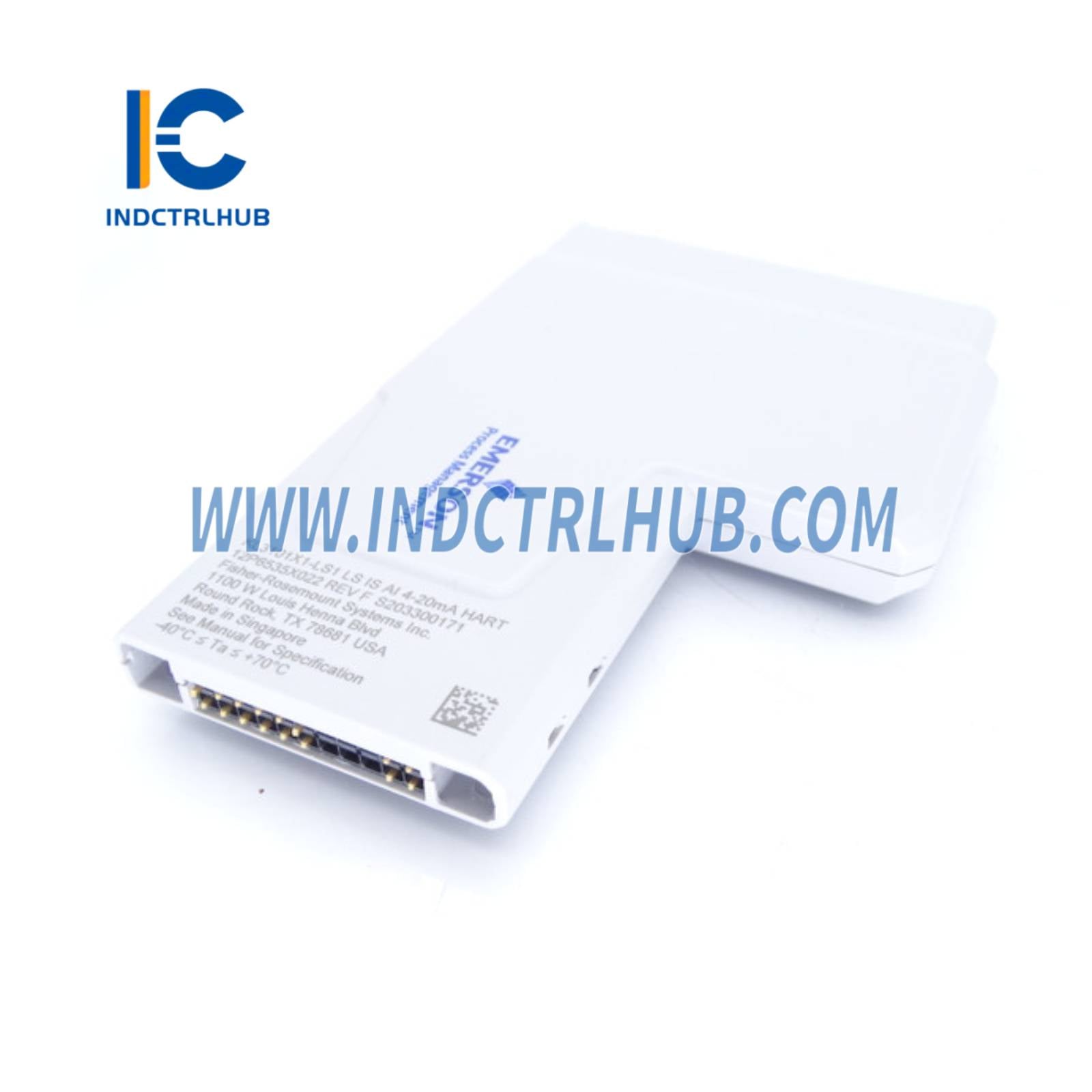

I.S. AI 4-20 mA HART CHARM |
Power Specifications
|
Parameter |
Value |
|---|---|
|
CHARM Bus Power Rating |
+6.3 VDC at 0 A |
|
Field Circuit Power |
+24 VDC at 60 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ sine wave for 11 ms |
|
Vibration |
1 mm Peak to Peak (2–13.2 Hz);0.7g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04–1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key |
A1 |
Important Notes
-
Hazardous Area Use:
For certified installation and use in hazardous areas, refer to:
-
ATEX/IECEx Instructions – IS-CHARM Subsystem (12P6523)
-
DeltaV™ IS-CHARMs Control Drawings – 12P6122, 12P6123
-
DeltaV™ S-series and CHARMs Hardware Installation Manual
-
Handling & Maintenance:
-
Hot Swap: Not allowed – power must be turned off during insertion/removal
-
Serviceability: No user-serviceable parts – disassembly is not permitted
-
Calibration: Not required
