Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KL3003X1-LS1 |
|
Description |

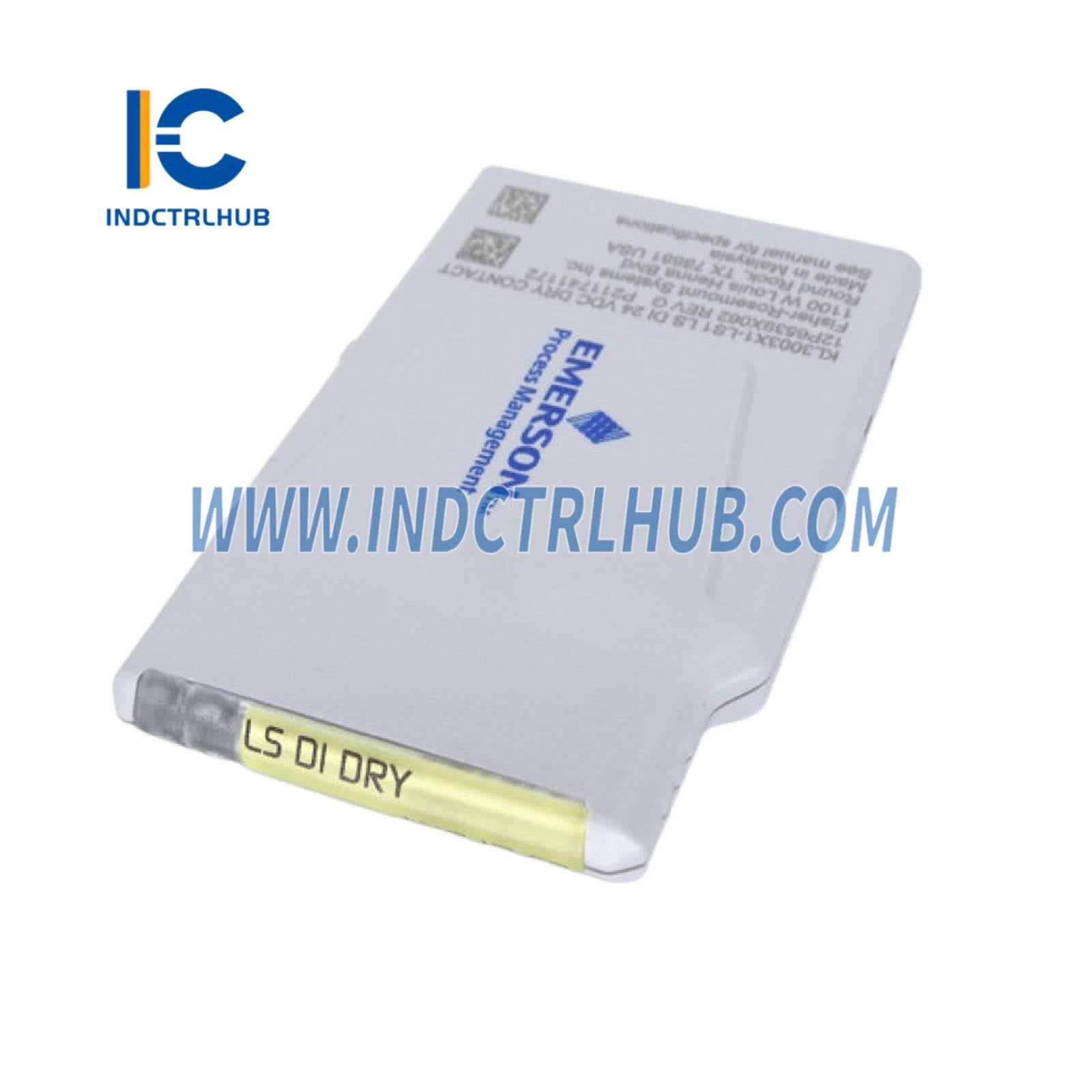

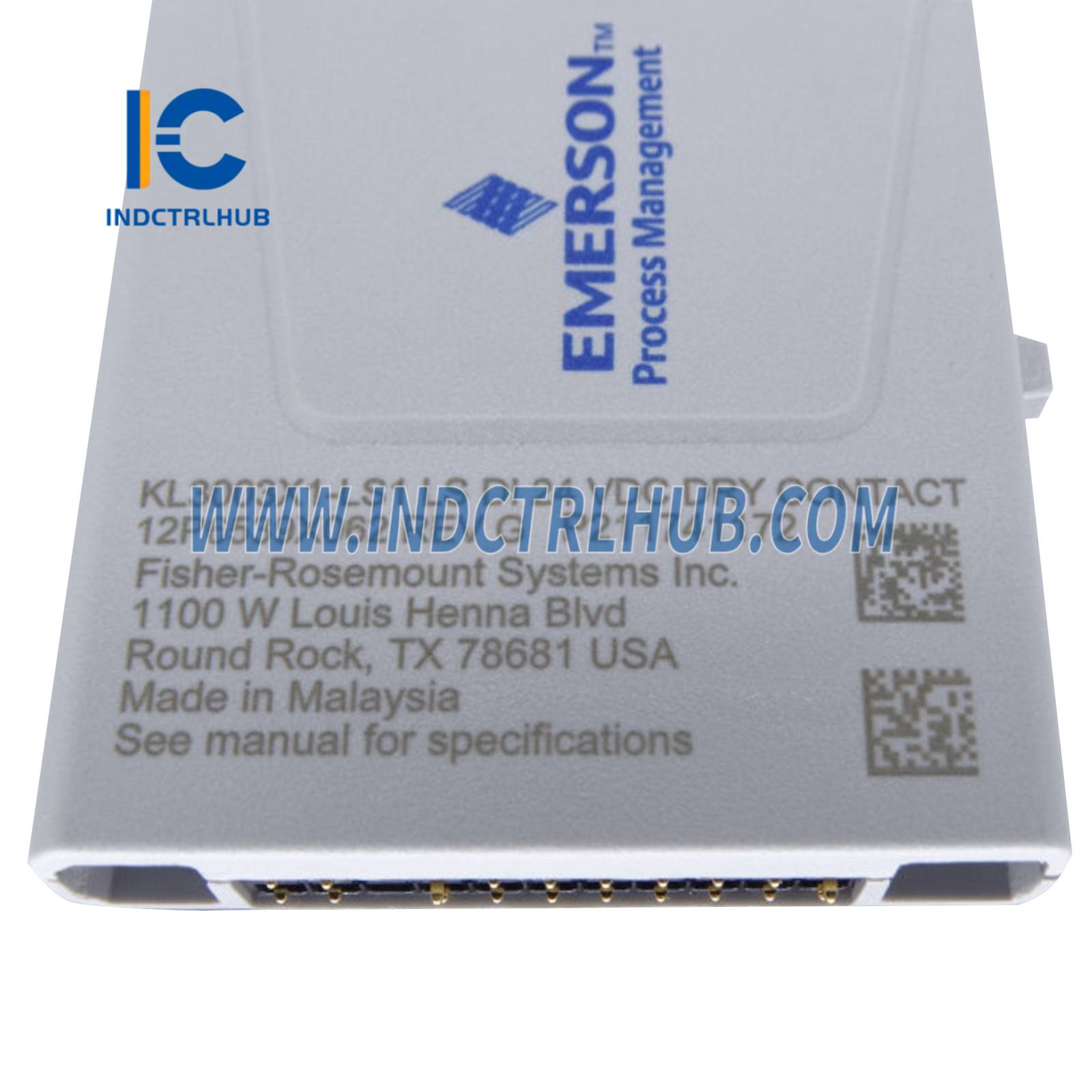

LS DI 24 VDC Dry Contact CHARM |
Power Specifications
|
Parameter |
Value |
|---|---|
|
CHARM Bus Power |
+6.3 VDC at 32 mA |
|
Field Circuit Power |
+24 VDC at 10 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ sine wave for 11 ms |
|
Vibration |
1 mm Peak to Peak (2–13.2 Hz);0.7g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04–1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key |
2C |
Important Notes
-

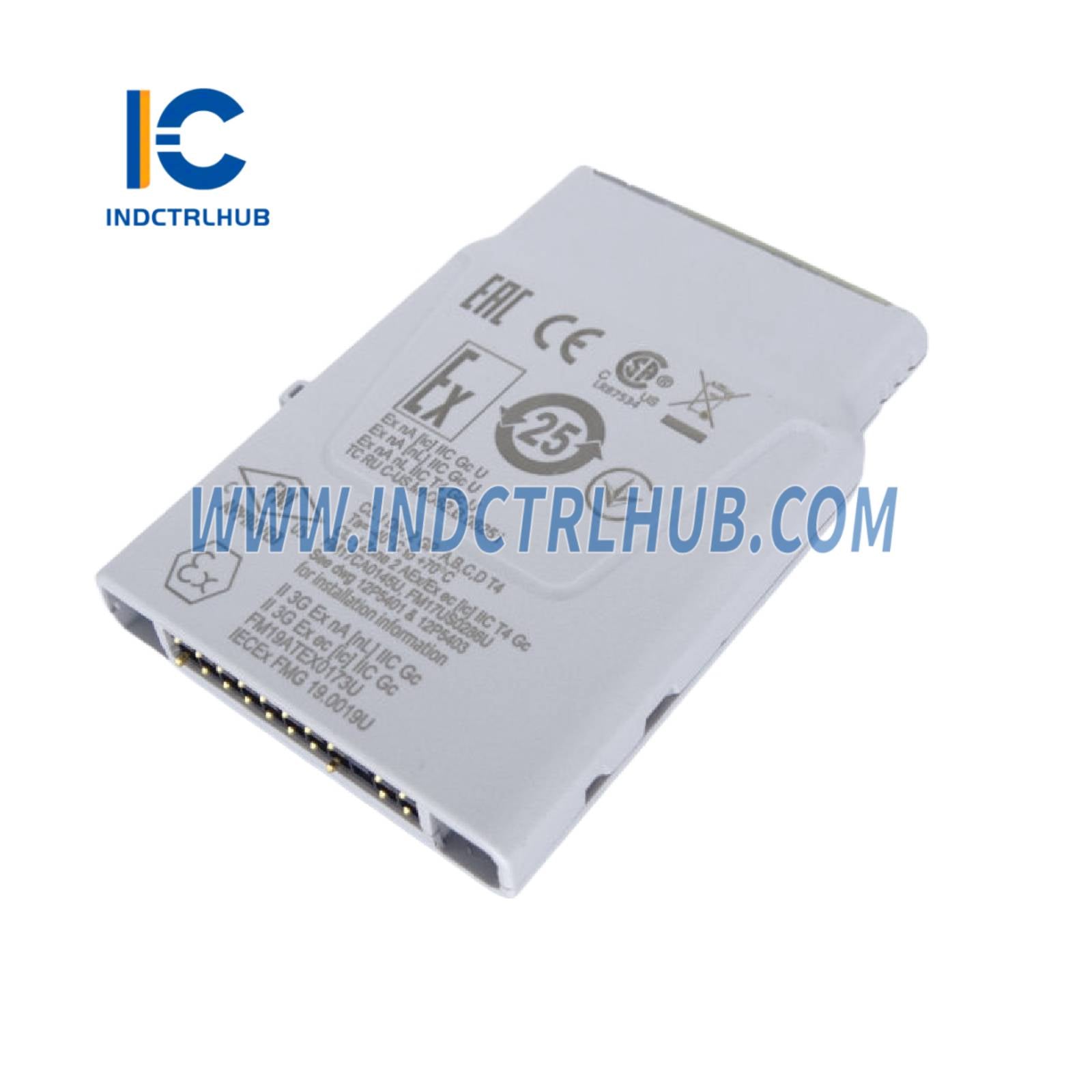

Hazardous Area Installation:
-
Refer to Document 12P5403 – DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions
-
Additional guidance found in DeltaV™ S-series and CHARMs Hardware Installation Manual
-
Removal and Insertion Guidelines:
-
Not allowed with system power energized unless area is non-hazardous
-
All energy-limited nodes require an I/O loop assessment
-
CHARM Compatibility Keying:
-
Terminal block keys auto-set upon initial CHARM installation
-
To change CHARM type, remove terminal block and unlock/reset keys
-
Maintenance:
-
Contains no user-serviceable parts
-
Do not disassemble
-
No calibration required
