Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KL3003X1-BA1 |
|
Description |

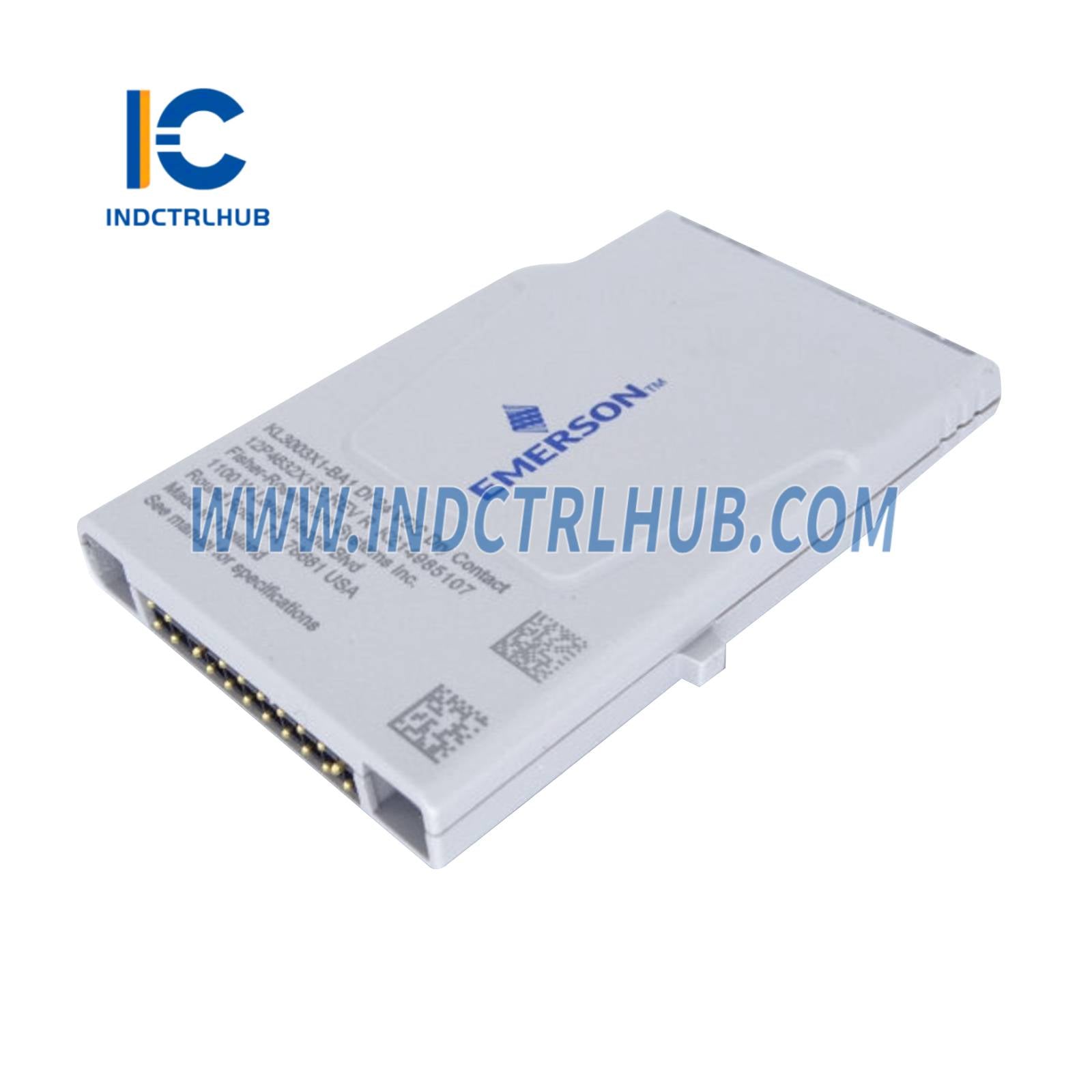

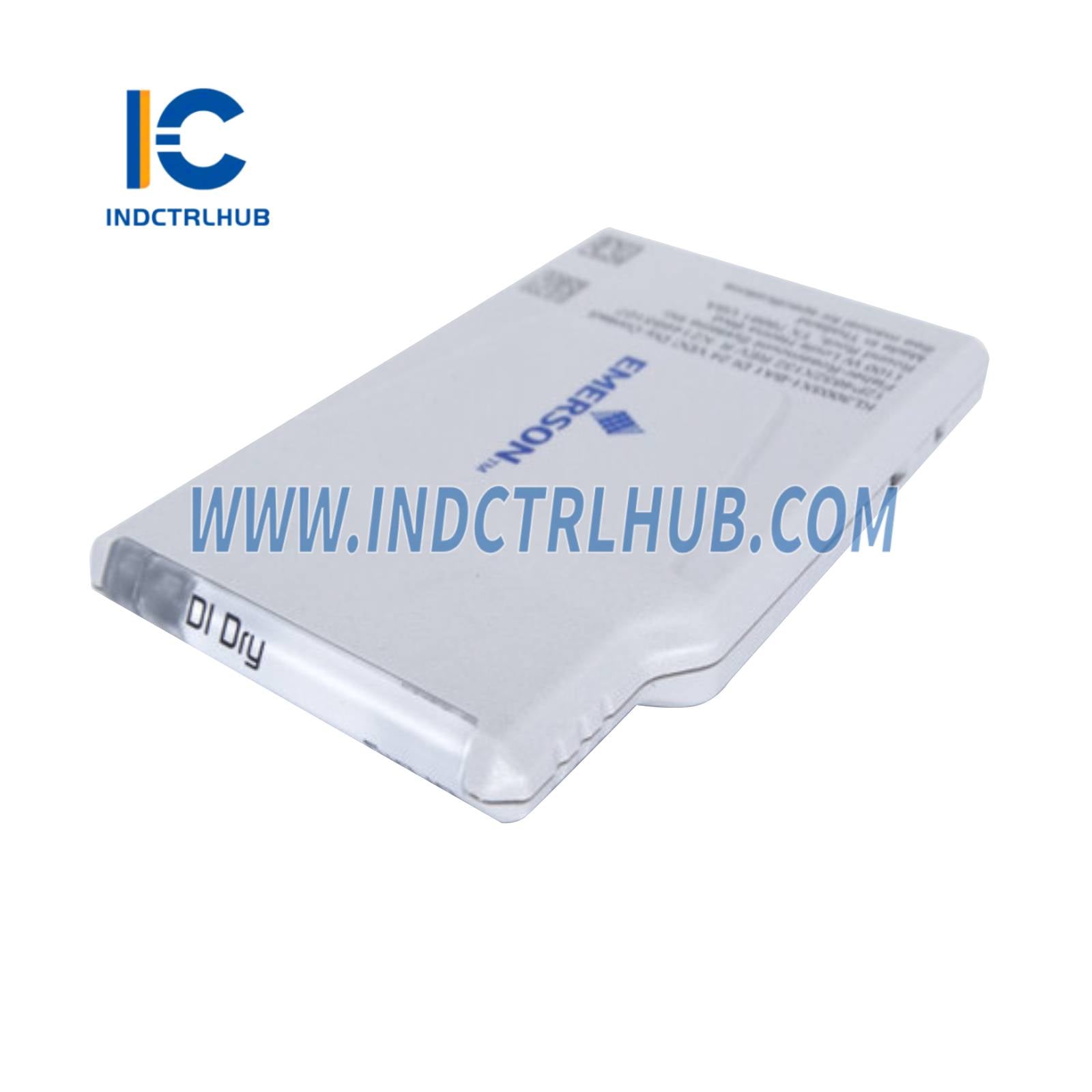

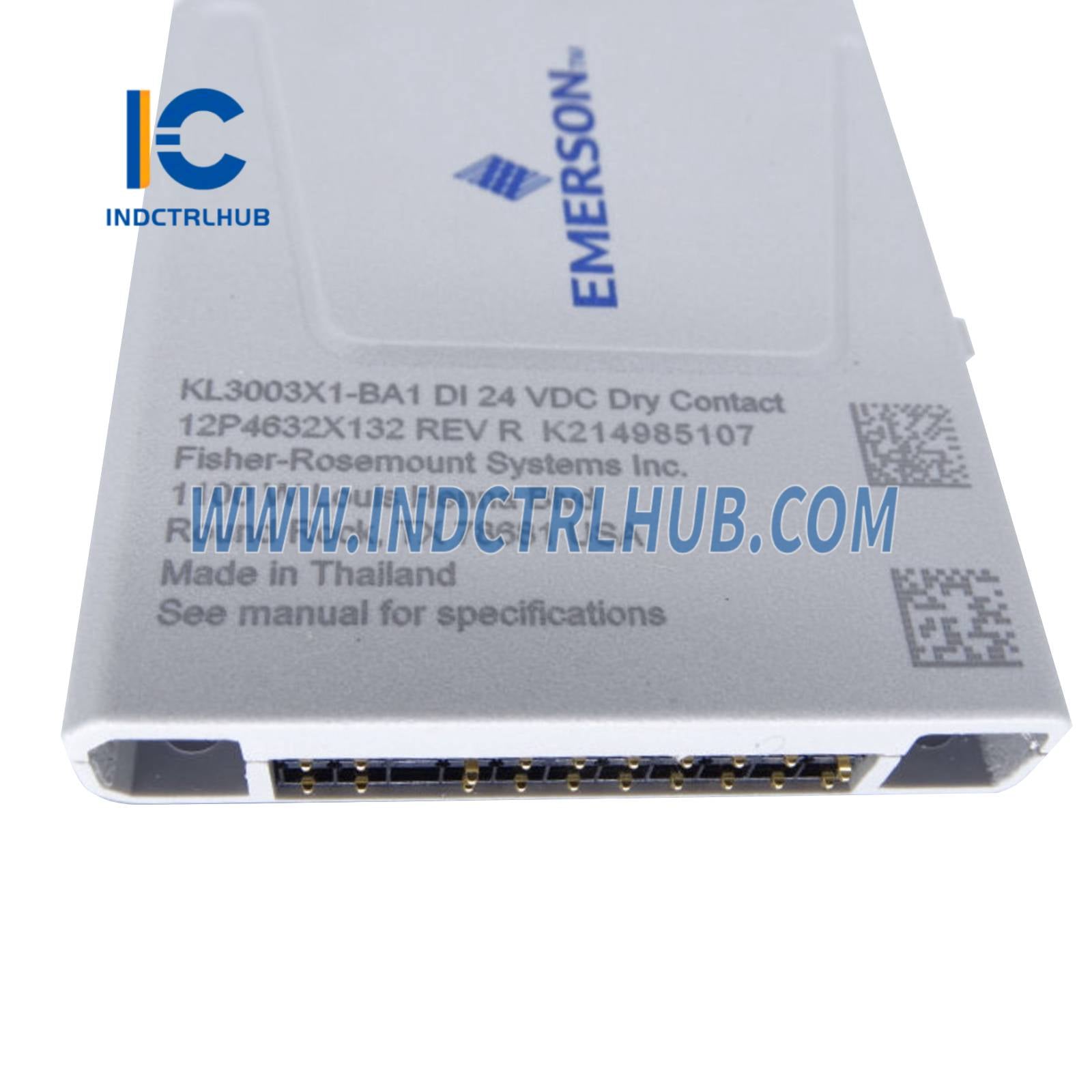

DI 24 VDC Dry Contact CHARM |
Power Specifications
|
Parameter |
Value |
|---|---|
|
CHARM Bus Power |
+6.3 VDC at 32 mA |
|
Field Circuit Power |
+24 VDC at 10 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ sine wave for 11 ms |
|
Vibration |
1 mm Peak to Peak (2–13.2 Hz);0.7g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04–1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key |
2C |
Important Notes
-
Installation in Hazardous Areas:
-
Refer to Document 12P5403 – DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions
-
Additional instructions in DeltaV™ S-series and CHARMs Hardware Installation Manual
-
Removal and Insertion:
-
Only permissible when de-energized or area is certified non-hazardous
-
I/O loop assessment required for energy-limited nodes
-
CHARM Terminal Block Keying:
-
Terminal block keys set automatically on first install
-
To install a different CHARM type, remove terminal block and unlock/reset the key
-
Maintenance:
-
No user-serviceable parts
-
Do not disassemble
-
Calibration not required
