Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KL2102X1-BA1 |
|
Description |

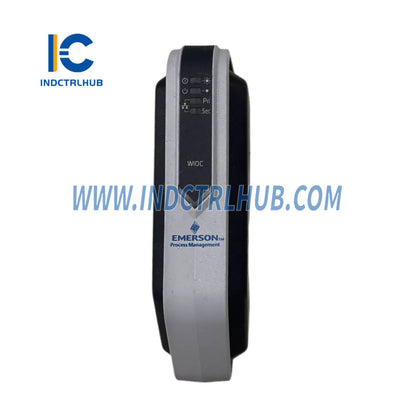

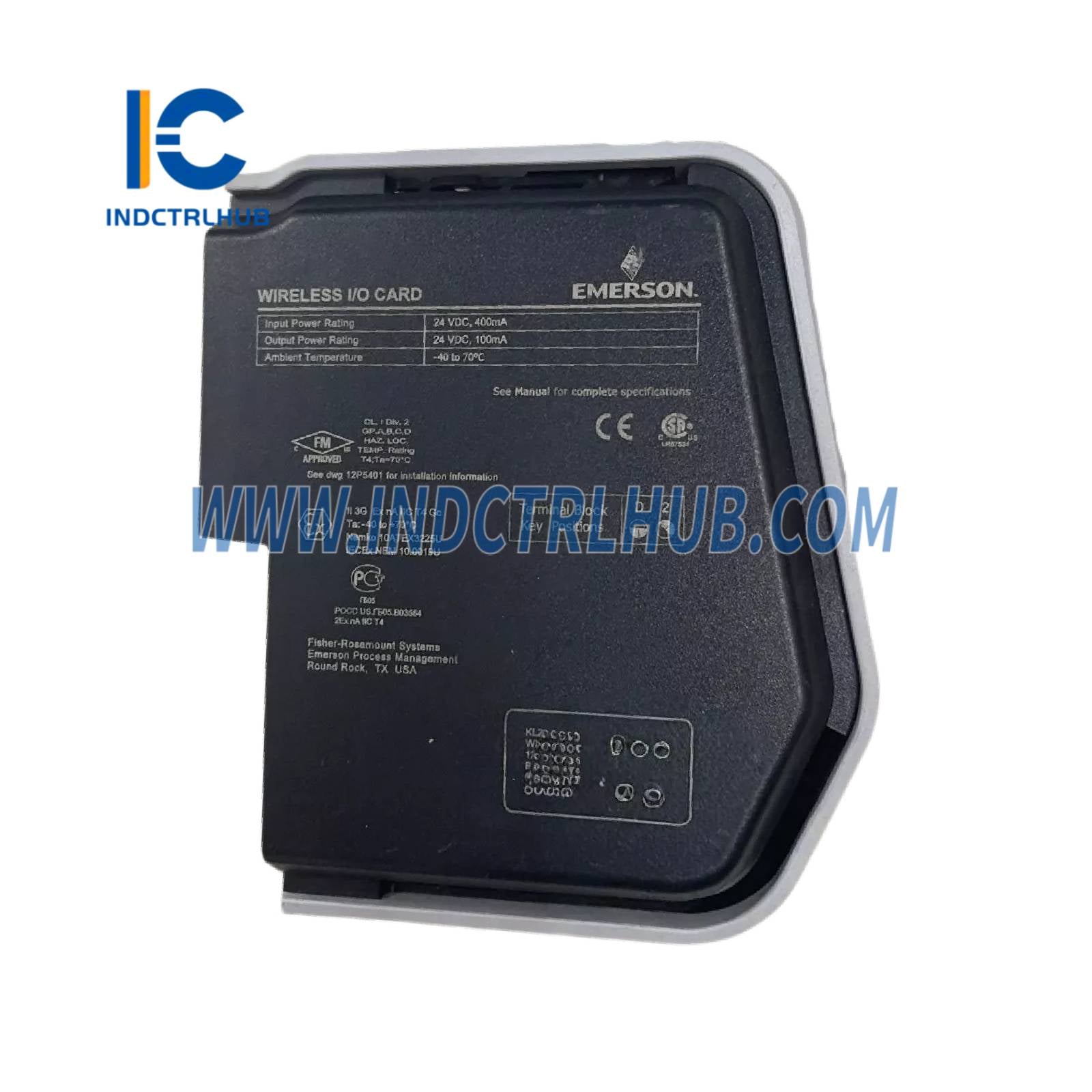

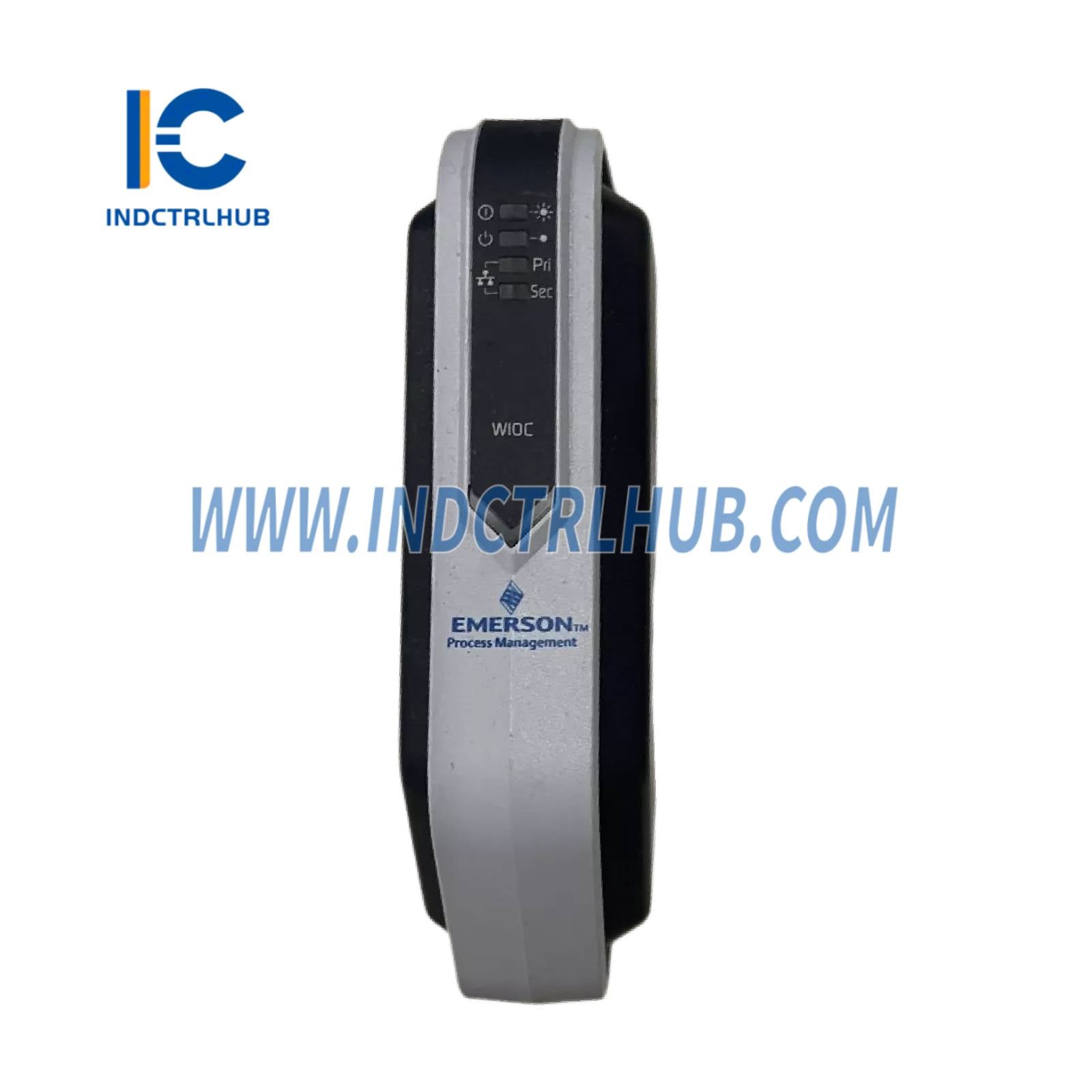

Wireless I/O Card (WIOC) |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Input Power |
24 VDC at 400 mA |
|
Output Power |
24 VDC at 100 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ sine wave for 11 ms |
|
Vibration |
1 mm Peak to Peak (2–13.2 Hz);0.7g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04–1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key |
D2 |
Important Notes
-
Hazardous Area Installation:
-
Follow Document 12P5403 – DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions
-
Additional guidelines in DeltaV™ S-series and CHARMs Hardware Installation Manual
-
Installation/Removal:
-
Field power must be removed before removing or connecting the device
-
Only permissible when de-energized or in a non-hazardous area
-
Keying System:
-
Rotary keying system ensures compatibility between I/O cards and terminal blocks after installation
-
Maintenance:
-
No user-serviceable parts
-
Do not disassemble
-
No calibration required
