Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

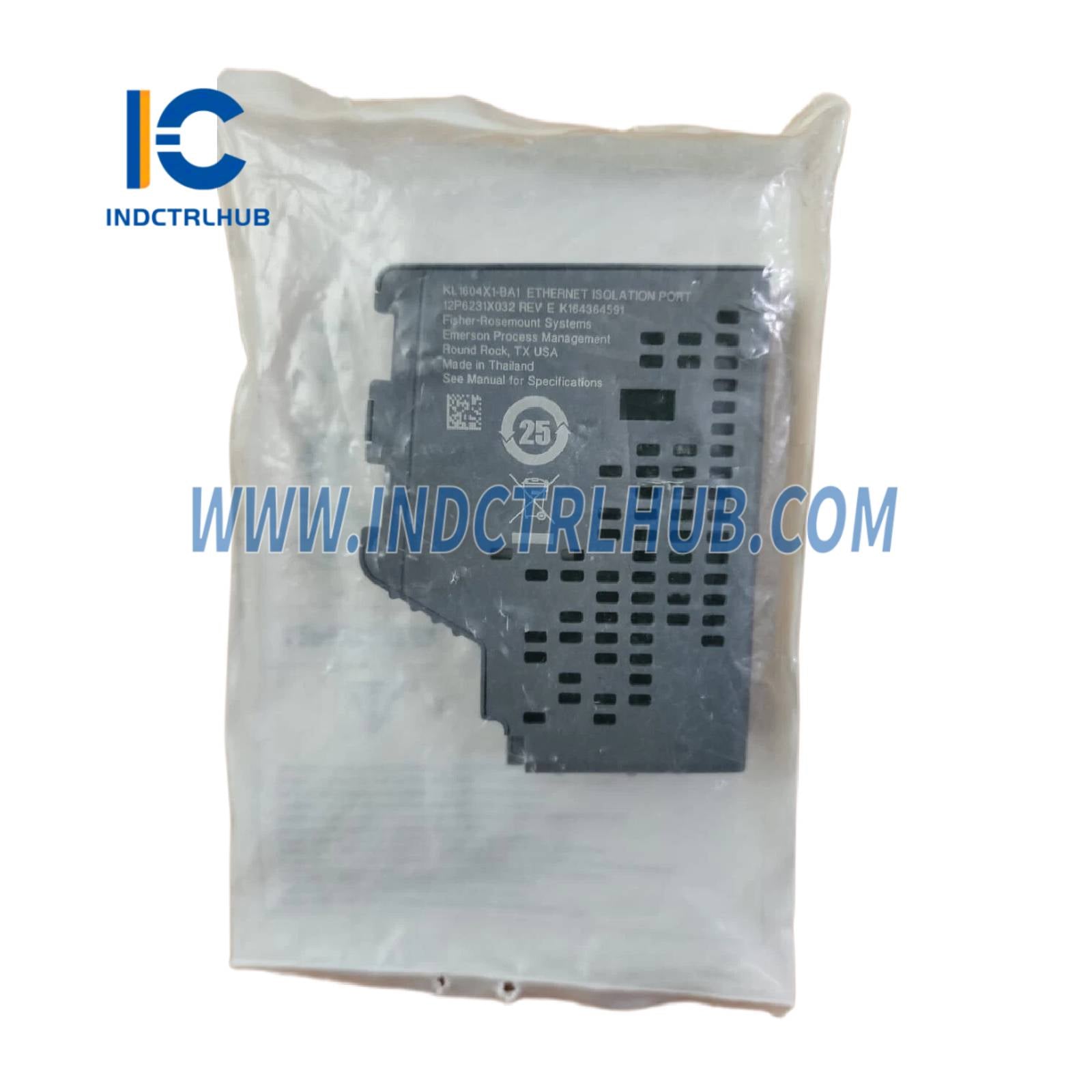

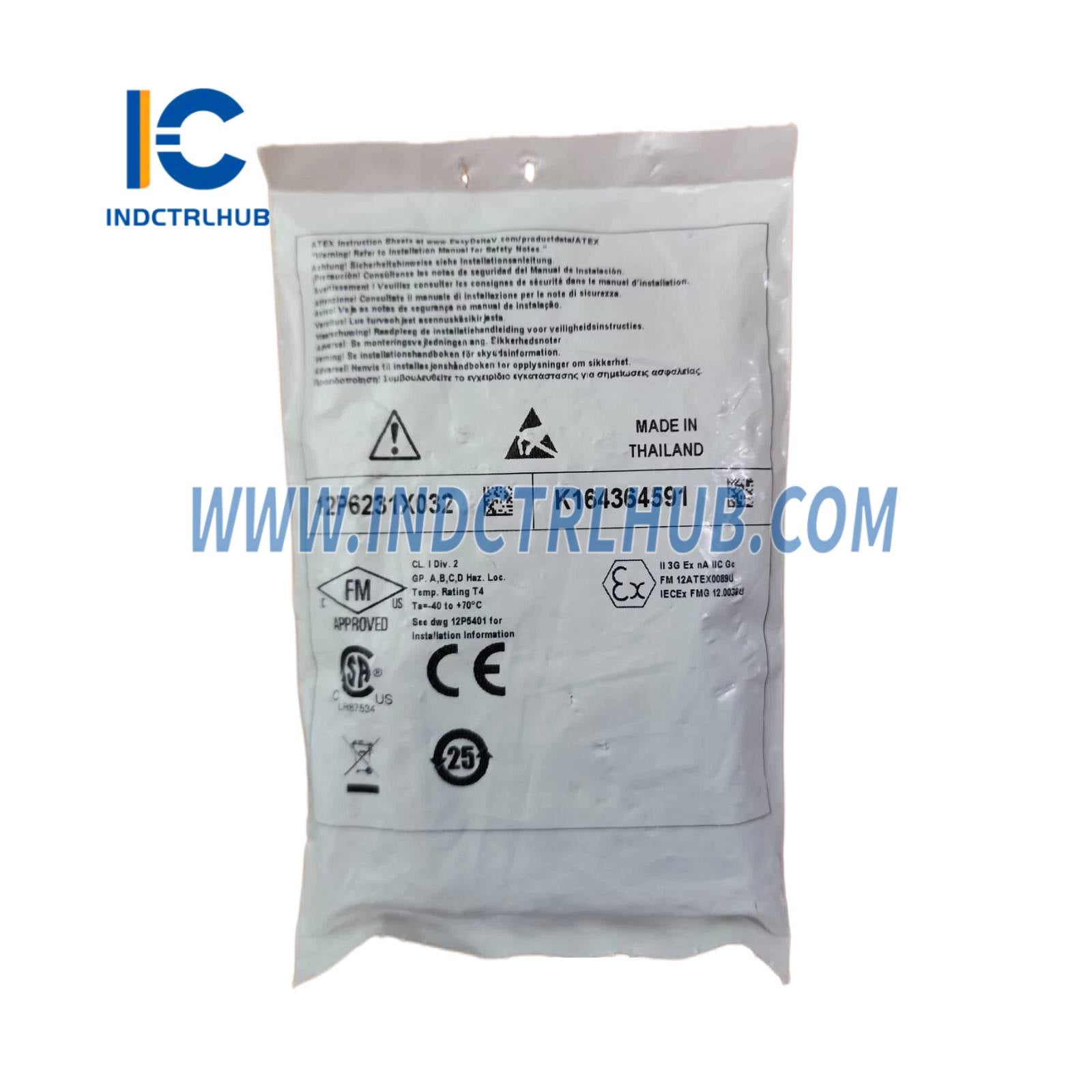

KL1604X1-BA1 |
|
Description |
Safety Isolation Port (Copper) |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Input Power |
+5.0 VDC at 200 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ Sinewave for 11ms |
|
Vibration |
1mm Peak to Peak from 2–13.2Hz; 0.7g from 13.2 to 150Hz |
|
Airborne Contaminants |
ISA-S71.04–1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
Important Notes
-
Hazardous Area Installation:
-
Refer to Document 12P5403 – DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions
-
Additional installation instructions available in DeltaV™ S-series and CHARMs Hardware Installation Manual
-
Installation/Removal:
-
Field power must be removed before removal or insertion
-
Can only be installed or removed when de-energized or in a non-hazardous area
-
Maintenance:
-
No user-serviceable parts
-
Do not disassemble
-
No calibration required
