Product Description
Product Overview
| Parameter | Details |
|---|---|

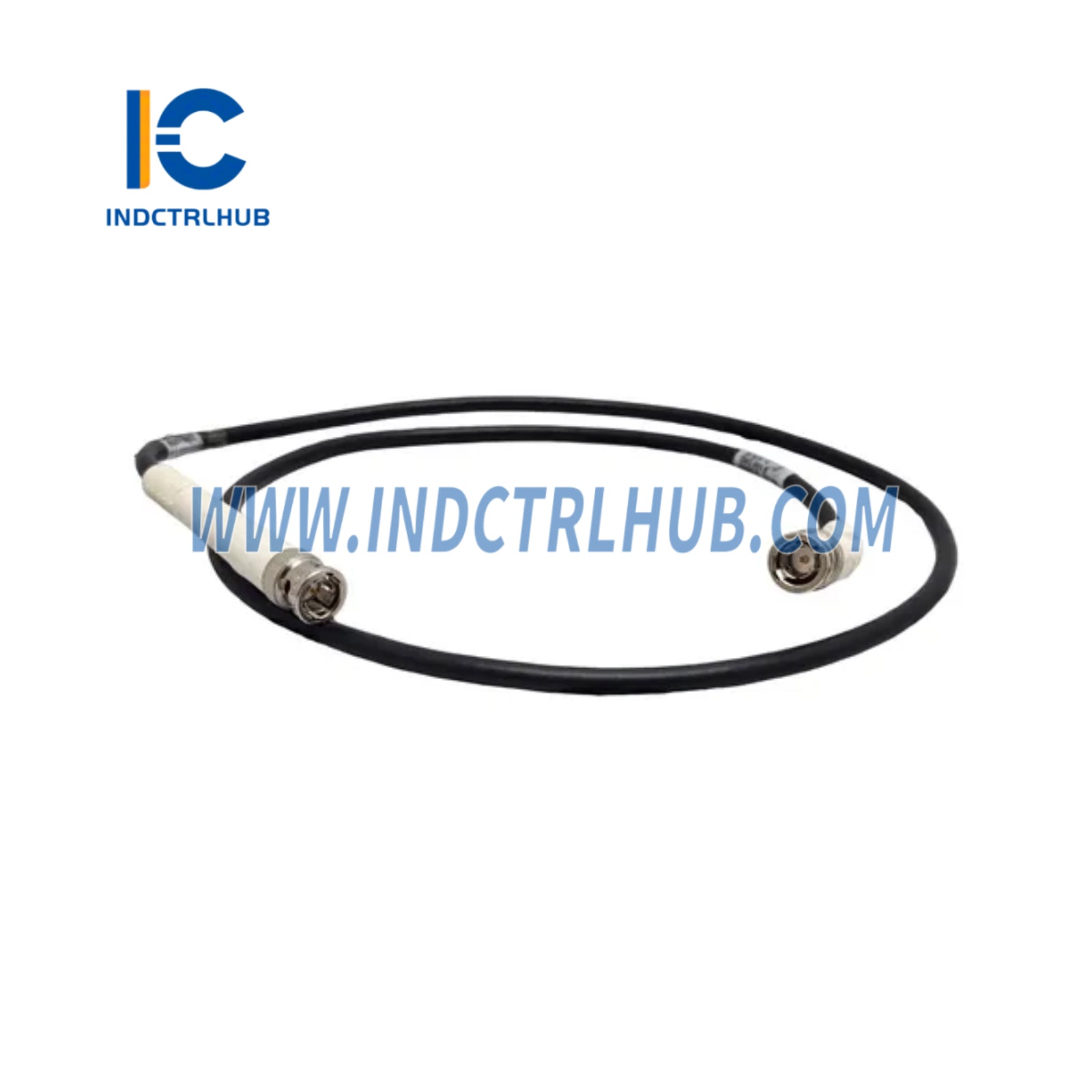

| Product Name | 1.2m White Coax Extender Cable for DeltaV SIS |

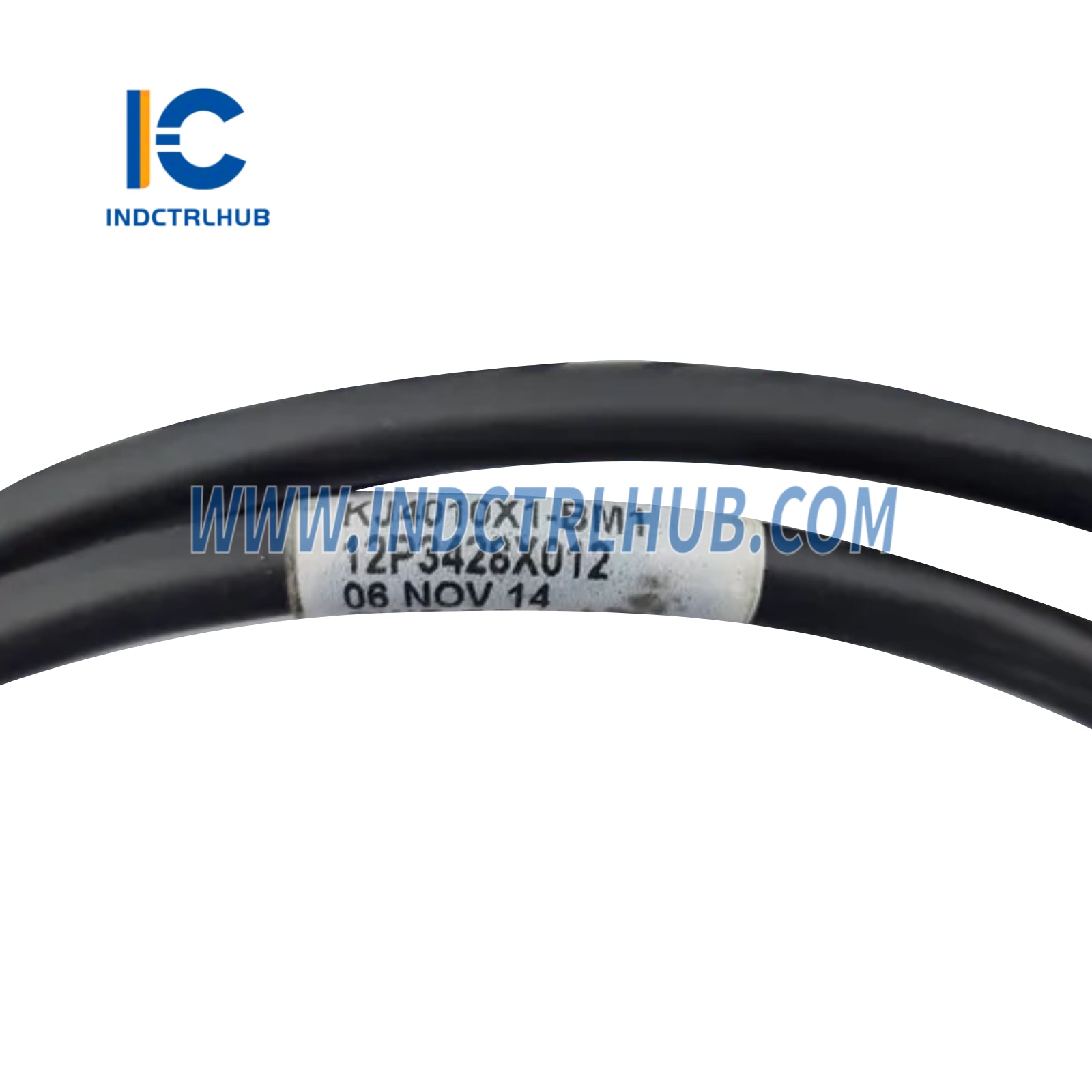

| Model Number | KJ4010X1-BM1 (associated with 12P3428X012, inferred) |
| Category | DeltaV M-series I/O Subsystem Horizontal Carriers - Spare Parts |
| Function | Extends the redundant safety bus for DeltaV SIS in horizontal carrier configurations |
| System Compatibility | DeltaV M-series horizontal carriers; requires 1-Wide I/O Carrier Extender (Left/Right) with dual 44-pin D-Shell connectors for SIS |
Hardware Specifications
| Specification | Value |
|---|---|
| Cable Type | Coaxial, white |
| Length | 1.2 meters |
| Purpose | Extends the redundant safety bus for DeltaV SIS |
| Connector | Compatible with 44-pin D-Shell connectors (A and B, in parallel) on 1-Wide I/O Carrier Extender |
| Capacity | Supports fault-tolerant configuration with dual cables for DeltaV SIS |
| Current Rating | Not specified for the cable; associated extender supports 8 A max backplane current |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Shock | 10 g ½-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz |
Certifications
| Standard | Details |
|---|---|
| CE | EMC: EN 61326-1 |
| FM (USA) | FM 3600, FM 3611 |
| CSA | CSA C22.2 No. 213, CSA C22.2 No. 61010-1 |
| ATEX | EN 60079-0, EN 60079-7, EN 60079-15 |
| Marine | IACS E10, ABS Certificate of Design Assessment, DNV Type Approval Certificate |
Hazardous Area Approvals
| Standard | Details |
|---|---|
| FM (USA) | Class I, Division 2, Groups A, B, C, D, T4 |
| cFM (Canada) | Class I, Division 2, Groups A, B, C, D, T4 |
| ATEX | II 3G Ex nA IIC T4 Gc, II 3G Ex ec IIC T4 Gc |
Physical & Installation
| Parameter | Details |
|---|---|
| Mounting | Used with 1-Wide I/O Carrier Extender (Left/Right), mounted on T-type DIN rail |
| Installation Type | Plugs into 44-pin D-Shell connectors (A or B) on the extender for fault-tolerant SIS configuration |
| Dimensions (Extender) | Height: 16.5 cm (6.5 in), Width: 4.2 cm (1.7 in), Depth: 3.1 cm (1.2 in) |
| Installation Notes | Suitable for hazardous areas (Class I, Division 2, Zone 2); follow installation instructions (12P1293 for Class I Division 2, 12P2046 for Zone 2) |
Functional Features
| Feature |
|---|
| Extends the redundant safety bus for DeltaV SIS, ensuring fault-tolerant communication |
| White coaxial cable for easy identification in dual-cable setups (paired with black cable, e.g., KJ4010X1-BL1) |
| Compatible with 1-Wide I/O Carrier Extender (Left/Right) with dual 44-pin D-Shell connectors |
| Supports DeltaV SIS Safety Logic Solvers for redundant safety bus extension |
| Designed for use in hazardous areas with ATEX/IEC-Ex and FM/CSA certifications |
| Modular design allows online expansion of I/O carriers |
| Integrated with M-series horizontal carriers for plug-and-play installation |
Spare Part Ordering Information
| Description | Model Number |
|---|---|
| 1.2m white Coax Extender Cable for DeltaV SIS | KJ4010X1-BM1 |
