Emerson KJ4010X1-BG1 Right LocalBus Extender Cable

Emerson KJ4010X1-BG1 Right LocalBus Extender Cable - Critical DeltaV System Interconnect

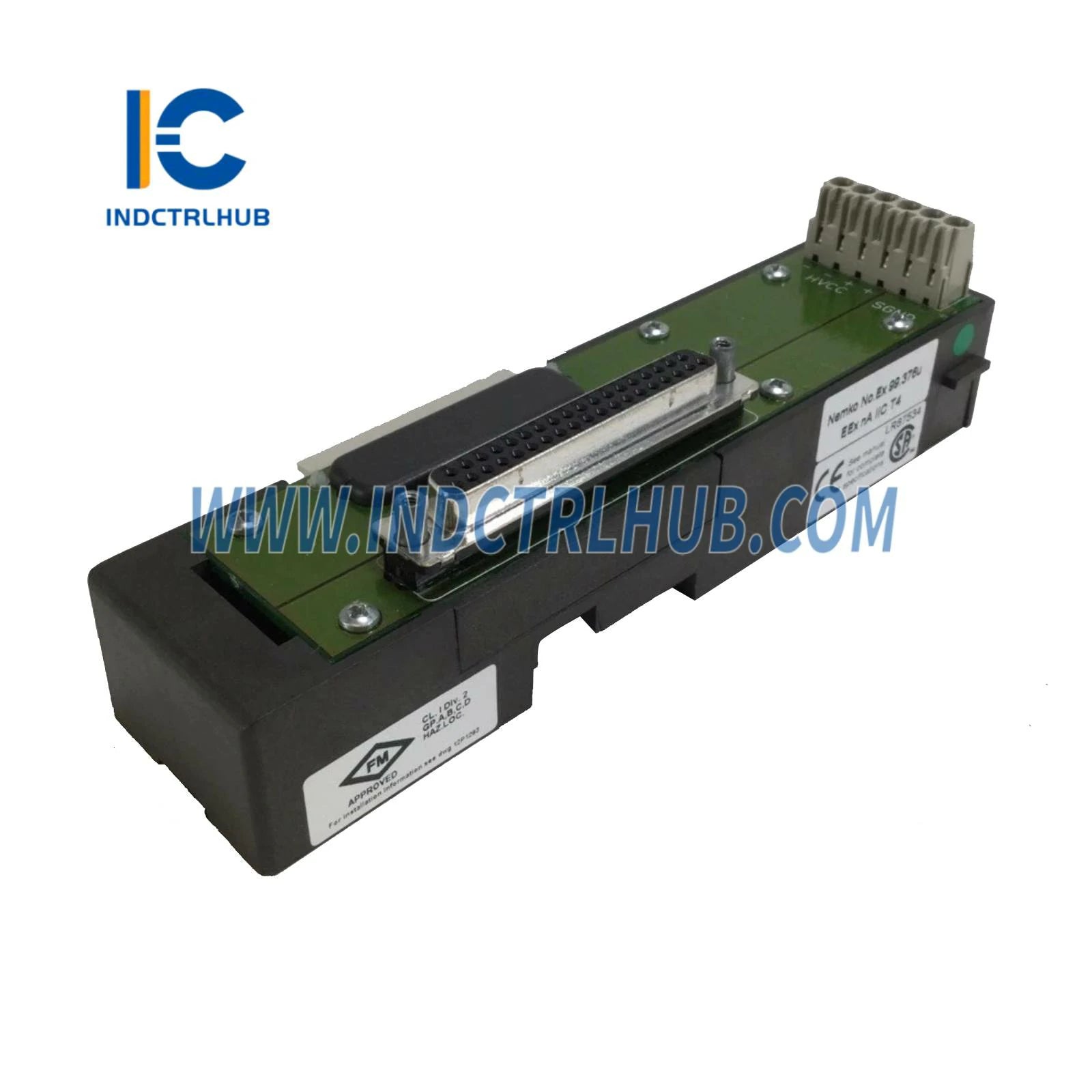

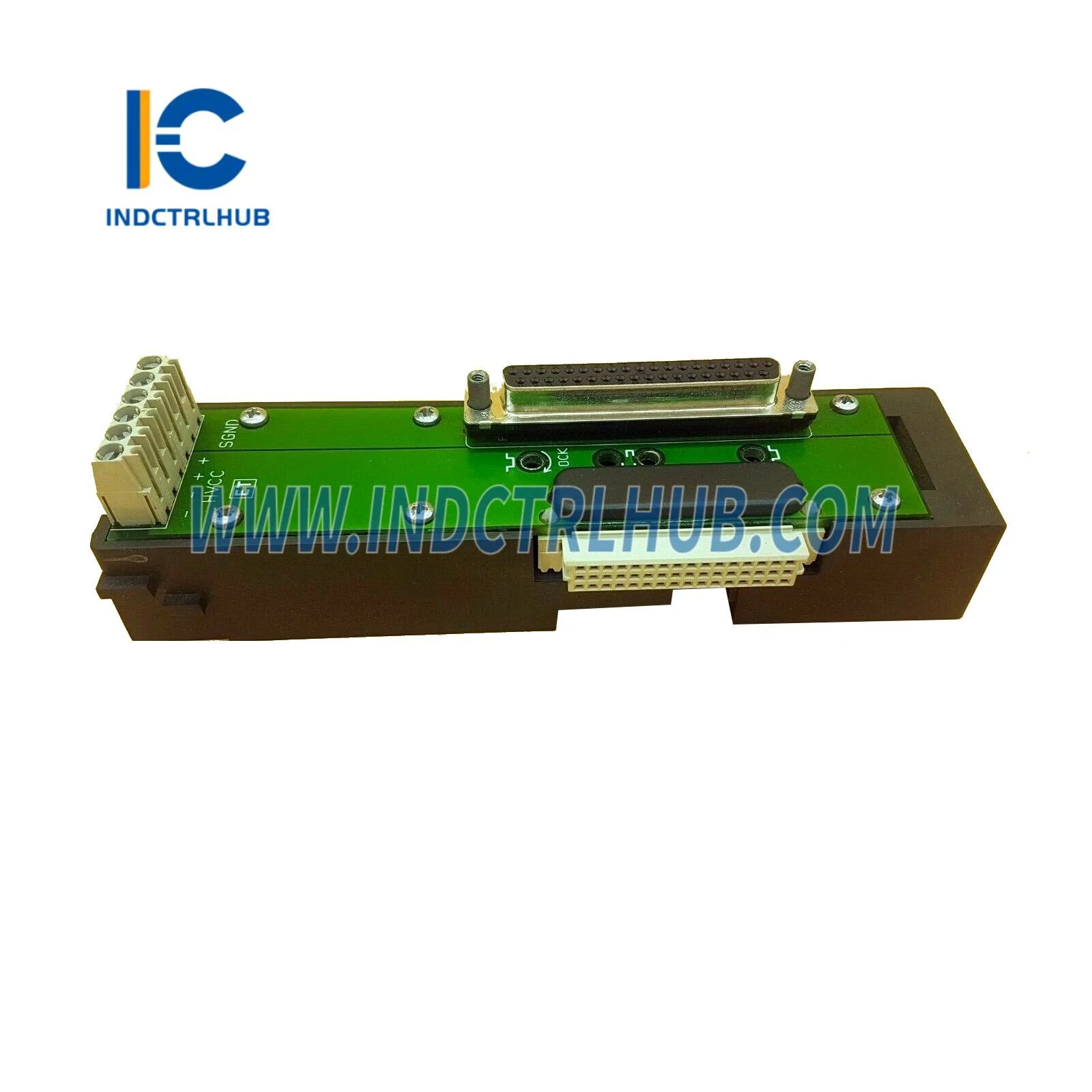

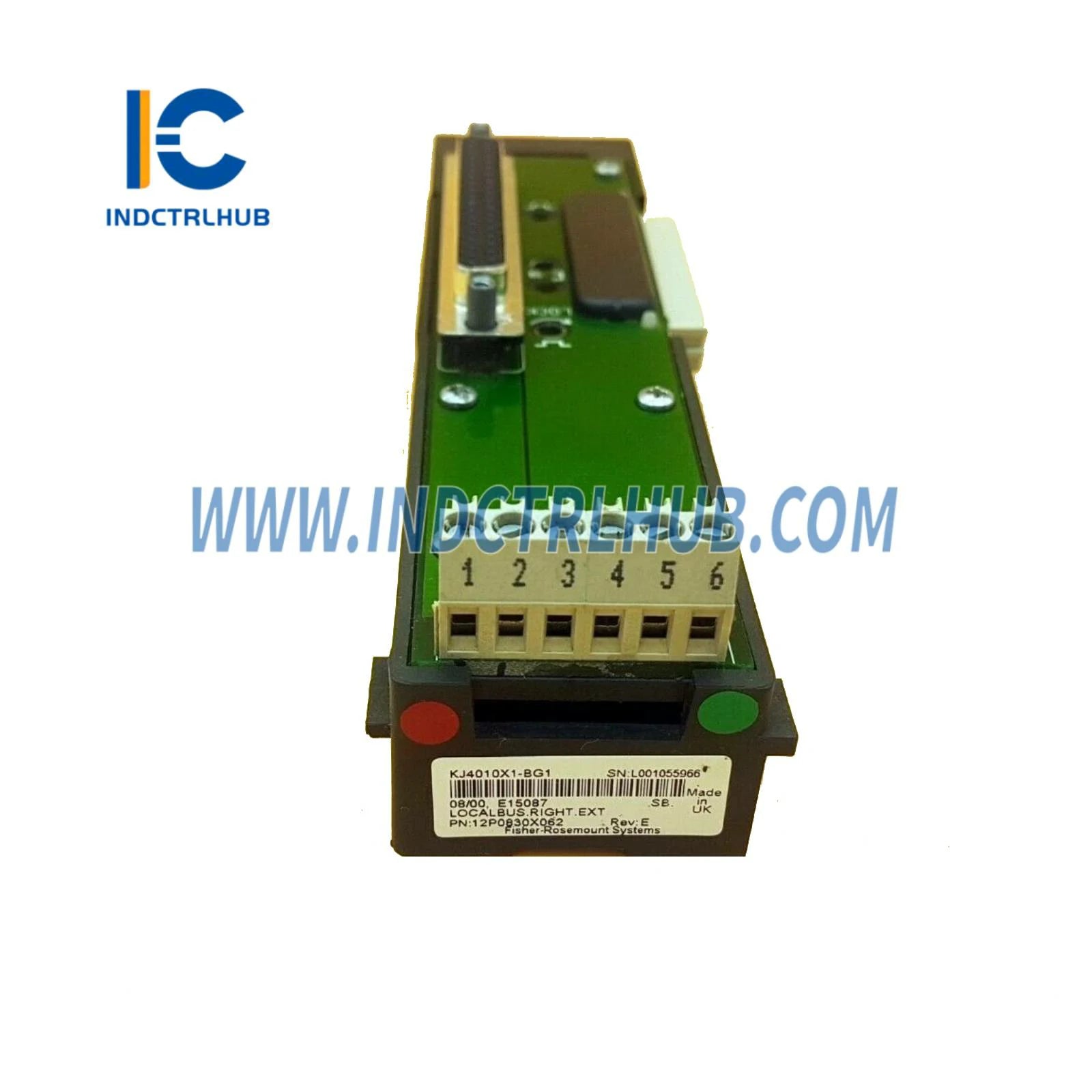

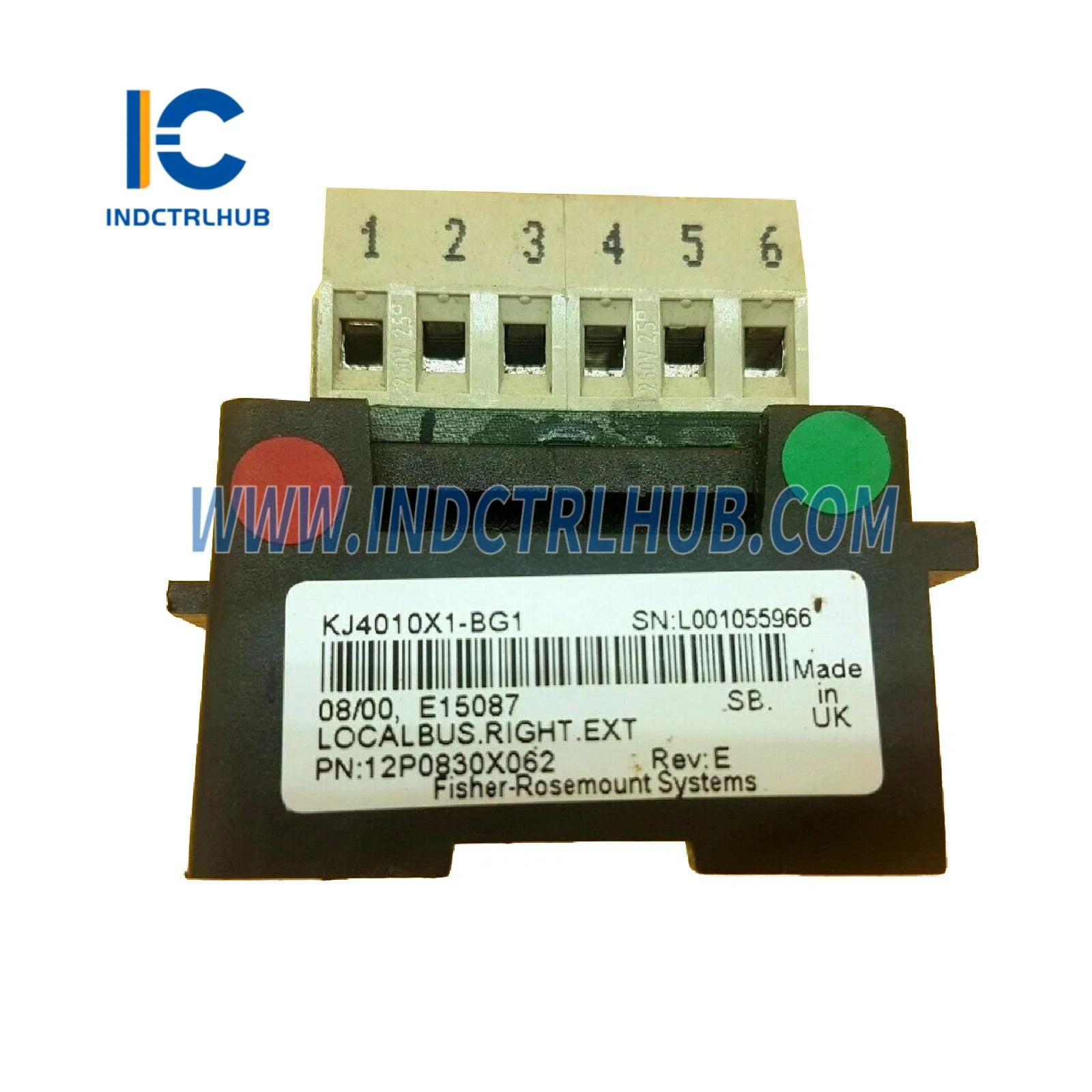

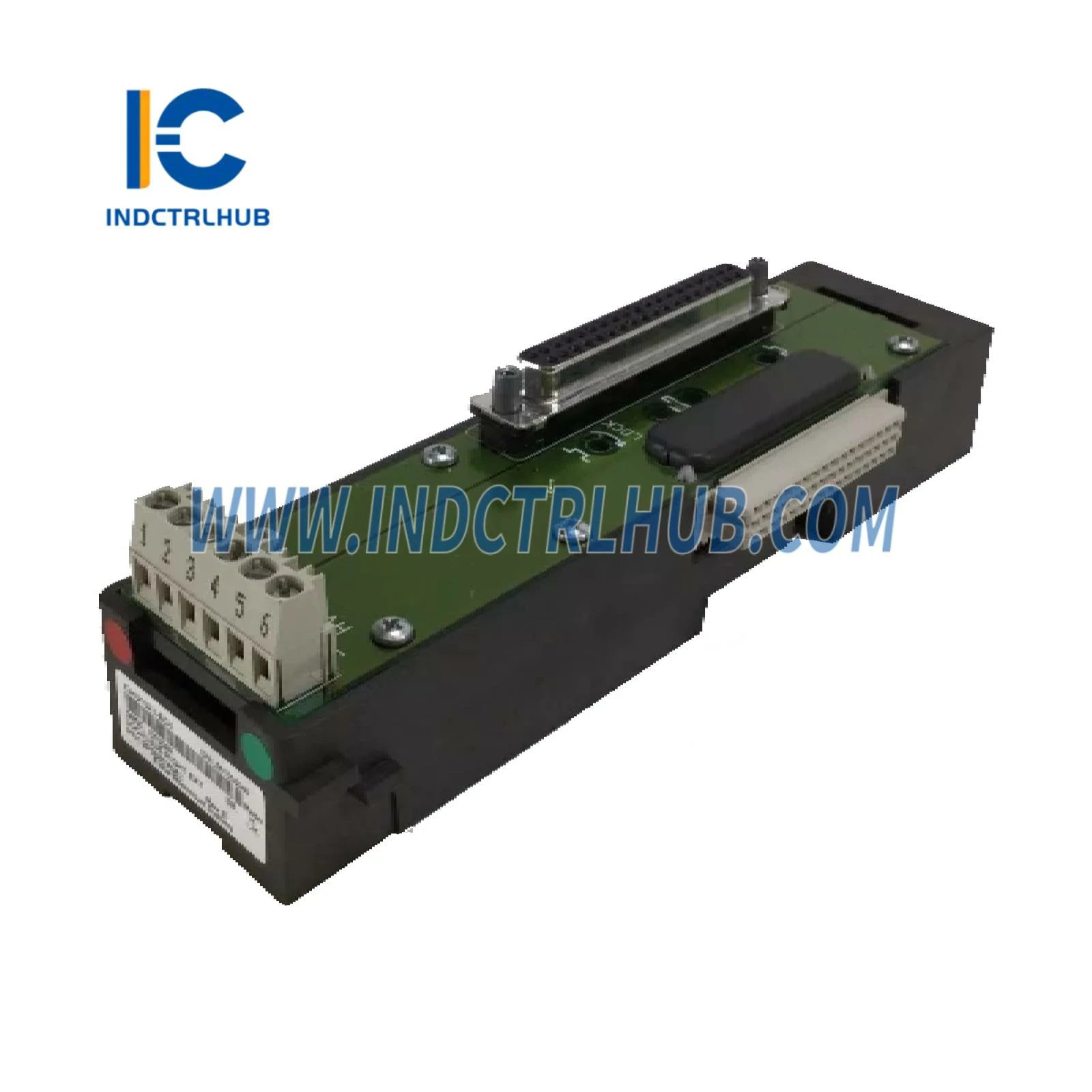

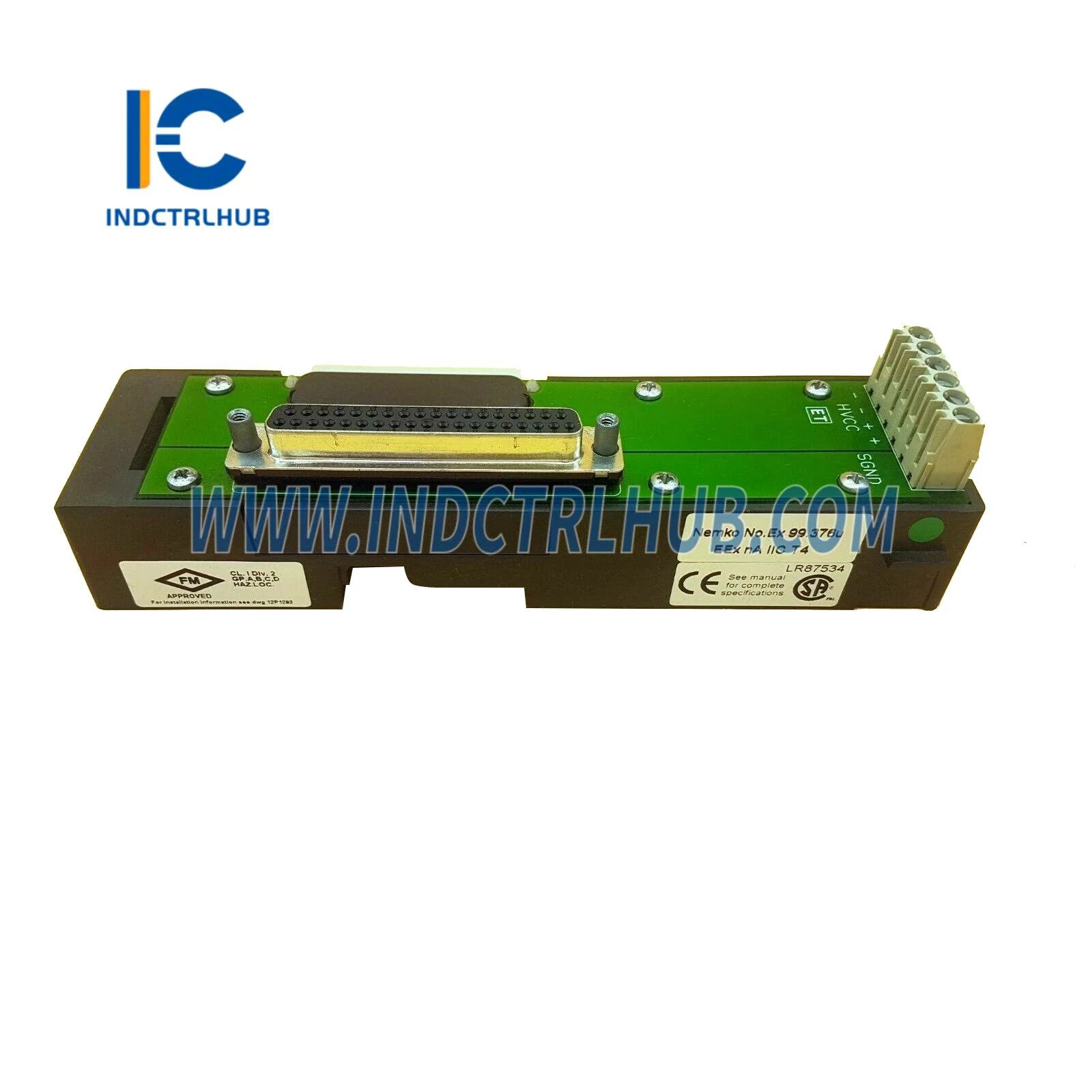

The Emerson KJ4010X1-BG1 (12P0830X062) Right LocalBus Extender Cable Assembly provides essential connectivity infrastructure for DeltaV distributed control systems, enabling flexible I/O carrier placement and cabinet layout optimization. This precision-engineered cable assembly delivers reliable LocalBus communication and power distribution across extended distances, supporting complex process automation architectures in oil & gas, chemical, pharmaceutical, and power generation facilities.

Core Technical Specifications

• Part Numbers: KJ4010X1-BG1, 12P0830X062 (interchangeable designations)
• Cable Type: Right LocalBus Extender (right-angle connector orientation)
• LocalBus Power: 12.6VDC at 8A capacity for I/O carrier power distribution
• Maximum System Length: 6.5 meters total (including all I/O carriers and extenders)
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Environmental Protection: IP20 rating with ISA-S71.04-1985 Class G3 conformal coating
• System Compatibility: DeltaV M-Series, S-Series controllers with LocalBus I/O architecture

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards
• Installation Documentation: Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions"

System Architecture Applications

Distributed I/O Cabinet Layouts: Enable flexible positioning of DeltaV I/O carriers across multiple enclosures or cabinet sections. The right-angle connector orientation optimizes cable routing in tight spaces, reducing bend radius stress and improving airflow management in densely populated marshalling cabinets.

Multi-Enclosure Installations: Connect I/O carriers located in separate cabinets or enclosures while maintaining LocalBus communication integrity. Critical for large-scale process units where field wiring termination points are distributed across multiple marshalling rooms or equipment skids.

Hazardous Area Segregation: Facilitate physical separation between Zone 2/Division 2 I/O equipment and non-classified control room equipment. Cables routed between enclosures must be installed in conduit per NEC/IEC requirements for hazardous area boundary crossings.

Retrofit & Expansion Projects: Add I/O capacity to existing DeltaV systems without controller replacement. LocalBus extender cables enable incremental system growth by connecting new I/O carriers to established control networks within the 6.5-meter total length constraint.

Skid-Mounted Equipment Integration: Connect process skid I/O carriers to central DCS cabinets in modular plant designs. The rugged cable construction withstands vibration from nearby rotating equipment and temperature extremes in outdoor installations.

LocalBus Architecture Fundamentals

Understanding DeltaV LocalBus topology ensures reliable system design:

Power Distribution: The LocalBus provides 12.6VDC at up to 8A to power I/O carriers, CHARM modules, and field devices. Proper cable sizing and length management prevent voltage drop that could cause I/O communication errors or module resets under high load conditions.

Communication Protocol: High-speed serial communication between controller and I/O carriers operates over the LocalBus cable. Signal integrity depends on maintaining total system length within 6.5 meters and using only genuine Emerson cable assemblies with controlled impedance characteristics.

Daisy-Chain Topology: I/O carriers connect in series using right and left extender cables to form a continuous LocalBus chain. The right extender cable (KJ4010X1-BG1) connects from one carrier's right port to the next carrier's left port, creating a unidirectional signal path.

System Length Calculation: Total LocalBus length includes controller-to-first-carrier cable, all inter-carrier extender cables, and carrier widths. Exceeding 6.5 meters causes communication timeouts, I/O faults, and potential process shutdowns.

Installation Requirements & Best Practices

Critical guidelines for reliable LocalBus operation:

Power De-Energization: LocalBus extender cables must NEVER be removed or inserted while system power is energized. Hot-swapping cables causes voltage transients that can damage I/O modules, corrupt controller memory, or trigger emergency shutdown sequences.

Conduit Protection: Cables routed between enclosures MUST be installed in metallic conduit for mechanical protection, EMI shielding, and hazardous area compliance. Exposed cables violate electrical codes and void safety certifications.

Connector Orientation: Right extender cables feature right-angle connectors designed for specific mounting orientations. Forcing incorrect cable types into ports causes connector damage and communication failures.

Cable Strain Relief: Secure cables to prevent tension on connectors during cabinet door operation or maintenance activities. Unsupported cables experience connector fatigue leading to intermittent faults.

Environmental Considerations: While rated for -40°C to +70°C, cables should be routed away from heat sources (power supplies, VFDs) and protected from direct sunlight in outdoor installations to maximize service life.

Environmental Specifications

System Design Considerations

Critical factors for successful DeltaV LocalBus implementation:

• Length Budget Management: Calculate total LocalBus length including controller cable, all extenders, and I/O carrier widths before ordering components
• Power Consumption Analysis: Verify total I/O carrier and CHARM module power draw does not exceed 8A LocalBus capacity
• Cable Inventory Planning: Stock both right (KJ4010X1-BG1) and left (KJ4010X1-BF1) extender cables for flexible system configuration
• Spare Parts Strategy: Maintain critical spares for rapid replacement in 24/7 process facilities where downtime costs exceed cable investment
• Documentation Requirements: Update as-built drawings showing exact cable routing, lengths, and part numbers for future troubleshooting

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV system components:

• ✓ 100% authentic OEM cable assemblies with full manufacturer traceability
• ✓ Expert DCS technical support from certified DeltaV system engineers
• ✓ Comprehensive inventory of current production and legacy LocalBus cables
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete system design assistance and cable length calculations

Related DeltaV LocalBus Components

Ordering Information & Accessories

• KJ4010X1-BG1 / 12P0830X062: Right LocalBus Extender Cable Assembly (this product)
• KJ4010X1-BF1 / 12P0831X062: Left LocalBus Extender Cable Assembly (complementary part)
• Conduit & Fittings: Required for inter-enclosure cable routing per NEC/IEC codes
• Cable Management: Strain relief clamps and cable ties for secure installation

Technical Documentation & Support

Complete installation instructions available in Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions" and "Installing Your DeltaV Automation System" manual. Our application engineering team provides system architecture consultation, LocalBus length calculations, power budget analysis, and hazardous area installation guidance.

Maintenance & Troubleshooting

• No User-Serviceable Parts: Cable assemblies are sealed units - do not attempt disassembly or repair
• Calibration Not Required: Digital communication cables require no periodic calibration or adjustment
• Fault Diagnosis: LocalBus communication errors typically indicate cable damage, excessive length, or loose connectors
• Replacement Procedure: Always de-energize system before cable replacement to prevent equipment damage
