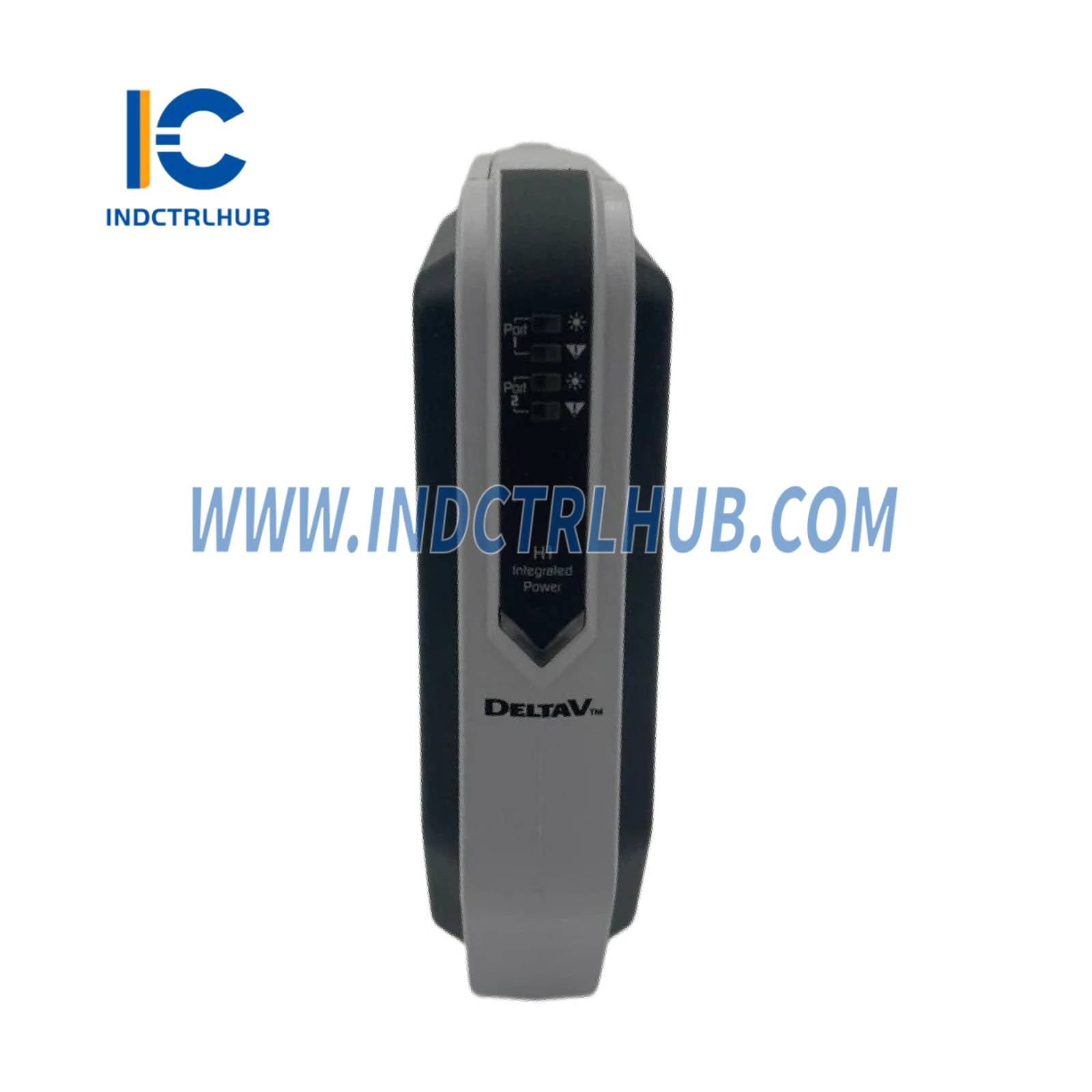

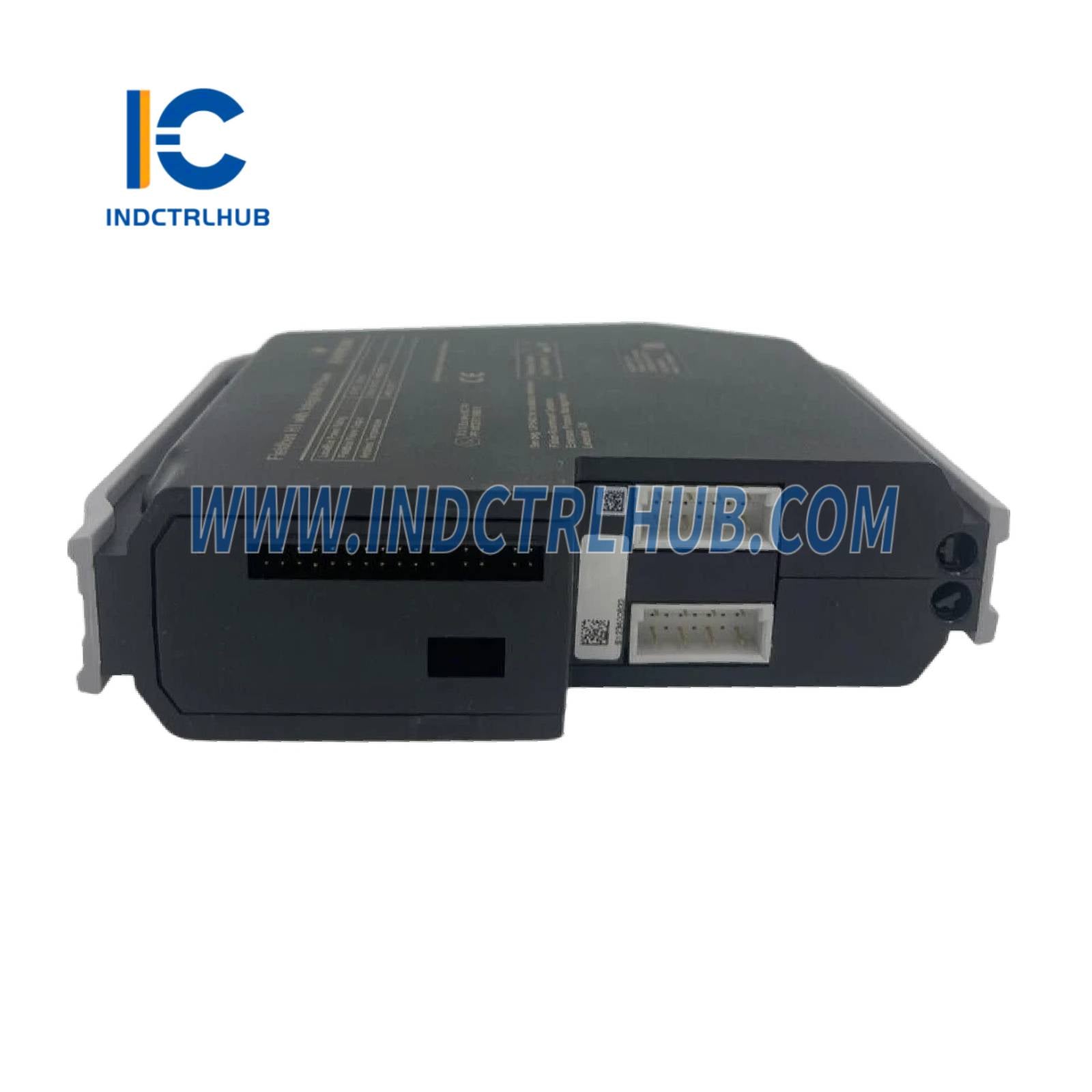

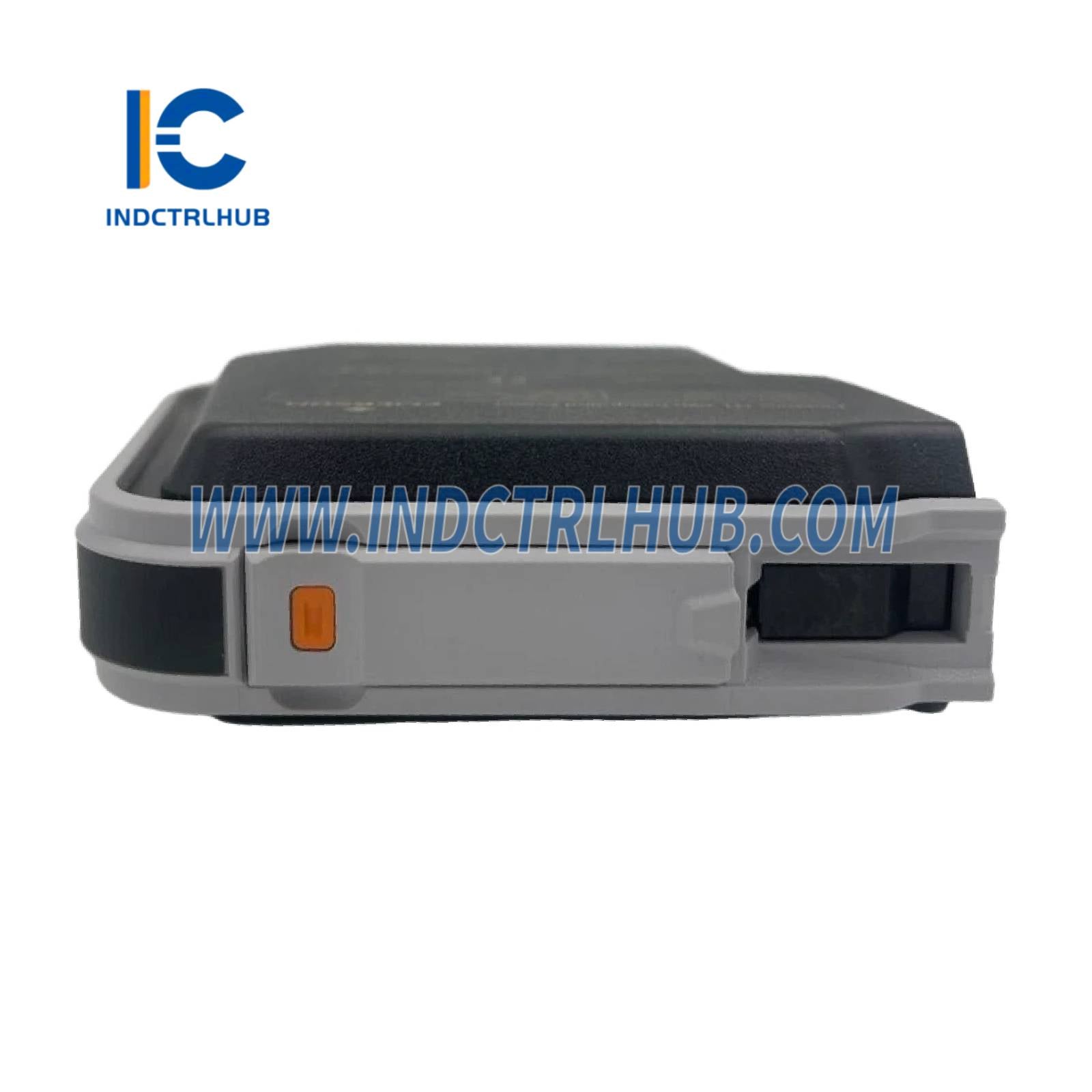

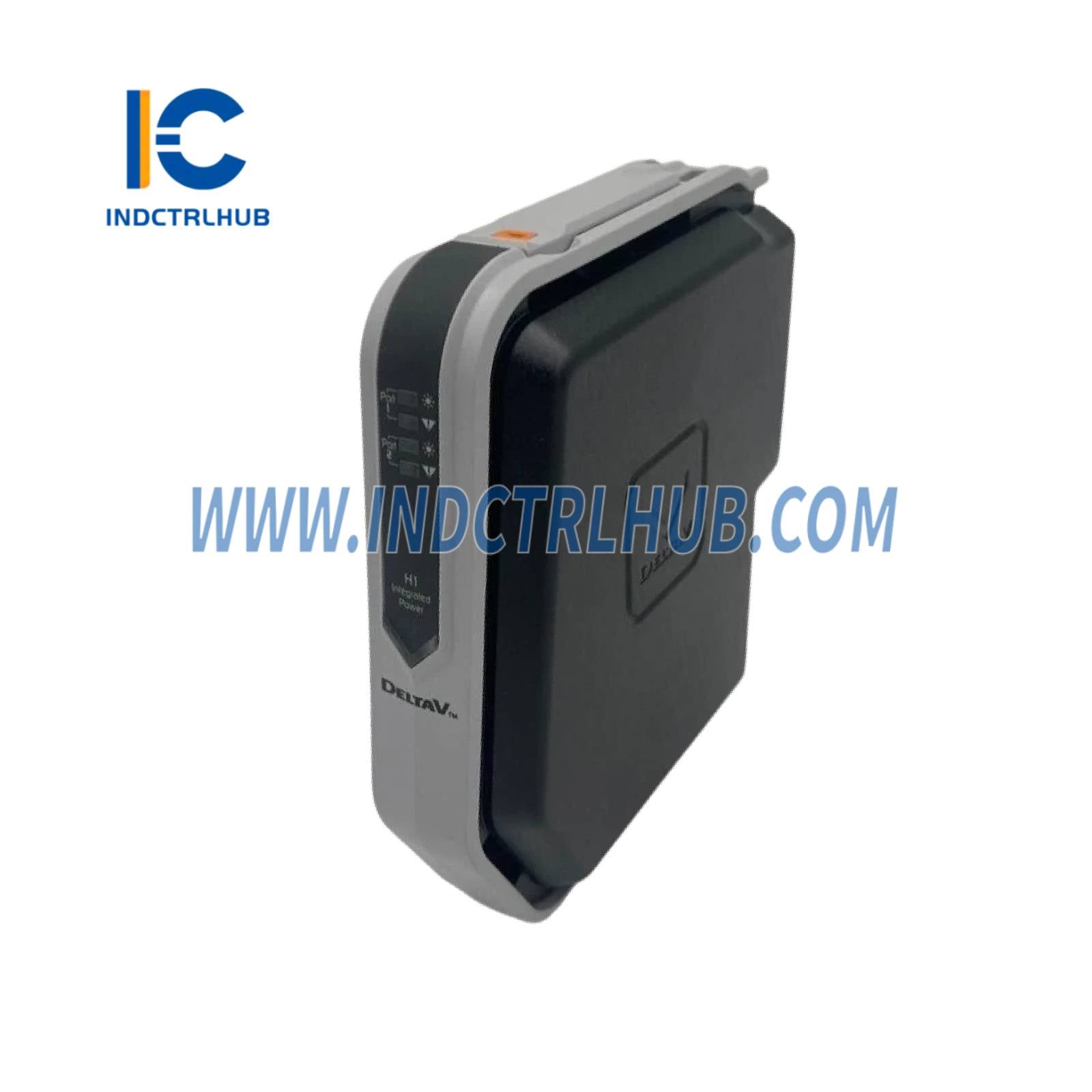

Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3246X1-BA1 |
|
Description |
S-Series H1 with Integrated Power |

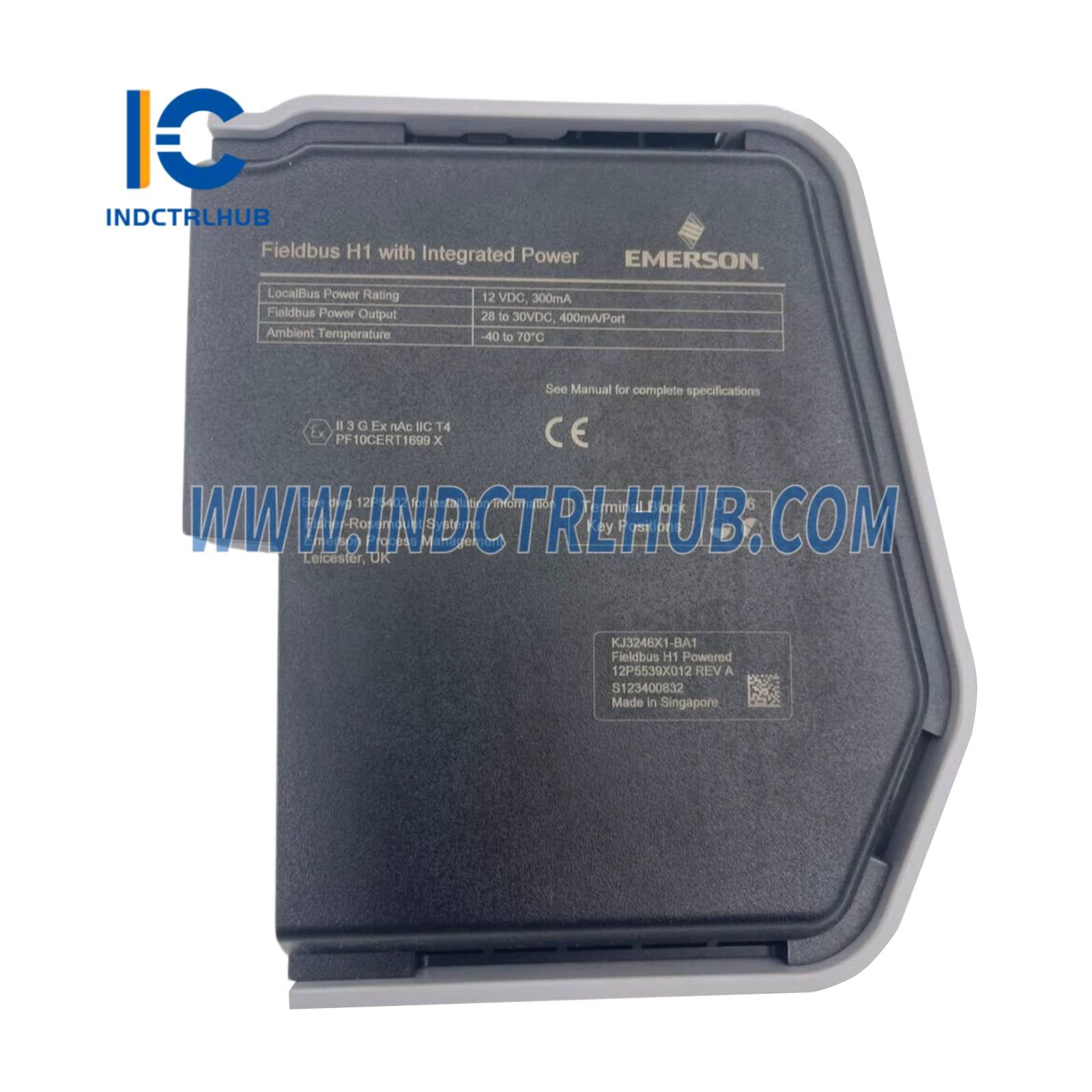

Power Specifications
|
Parameter |
Value |
|---|---|
|
LocalBus Power Rating |
12 VDC @ 300 mA |
|
Field Circuit Power Rating |
28 to 30 VDC @ 400 mA/port |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g ½ sinewave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% non-condensing |
|
Terminal Block Key Position |
D6 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P5404 (DeltaV™ S-Series Zone 2 Installation Instructions)
-
Additional guidance in DeltaV™ S-Series and CHARMs Hardware Installation Manual
-
Removal and Insertion:
-
Do not insert/remove while system power is energized
-
Equipped with a non-resettable keying system for terminal block compatibility
Maintenance and Adjustment
-
No user-serviceable parts
-
Disassembly is not permitted
-
Calibration is not required
