Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

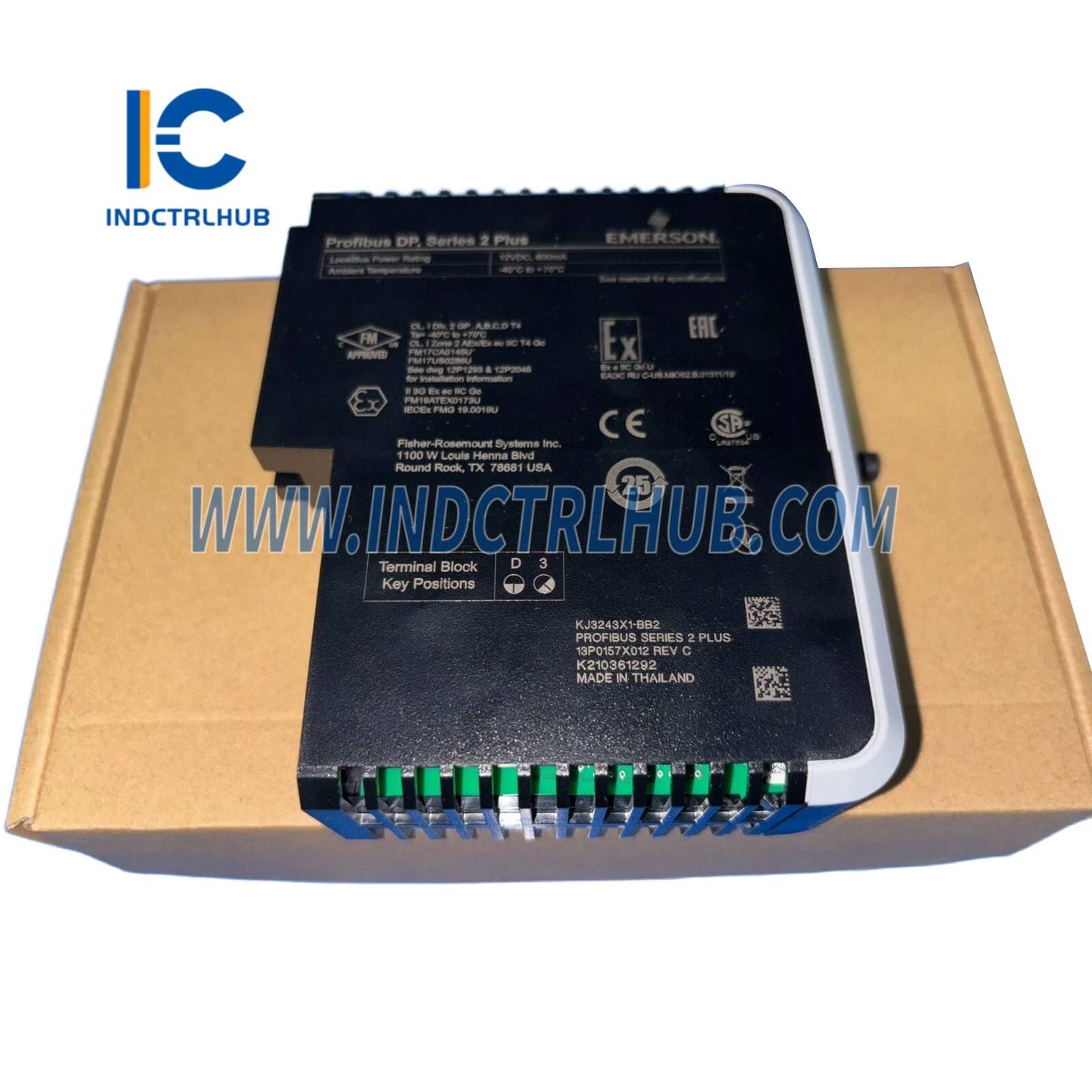

KJ3243X1-BB2 |
|
Description |

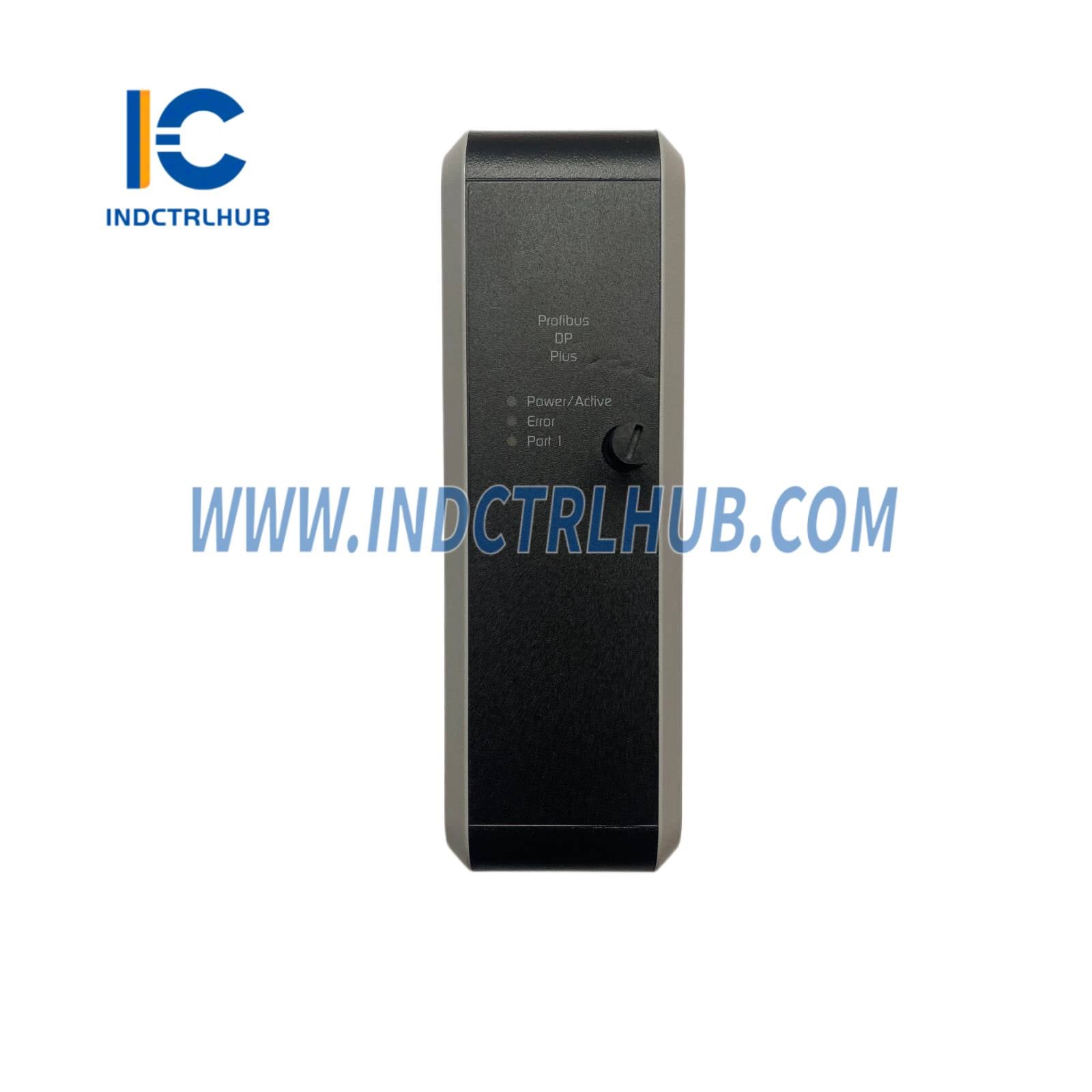

Profibus DP Interface Card S2 |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Local Bus Power |
12 VDC @ 600 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g ½ sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% non-condensing |
|
Terminal Block Key Position |
D3 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
-
Additional guidance in DeltaV™ M-Series Hardware Installation and Reference Manual
-
Removal and Insertion:
-
Do not insert/remove while system power is energized
-
Remove field power before disconnecting from field terminals or carrier
-
Features a rotary keying system to ensure compatibility with terminal blocks
Maintenance and Adjustment
-
No user-serviceable parts
-
Do not disassemble under any circumstances
-
Calibration not required
