Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|

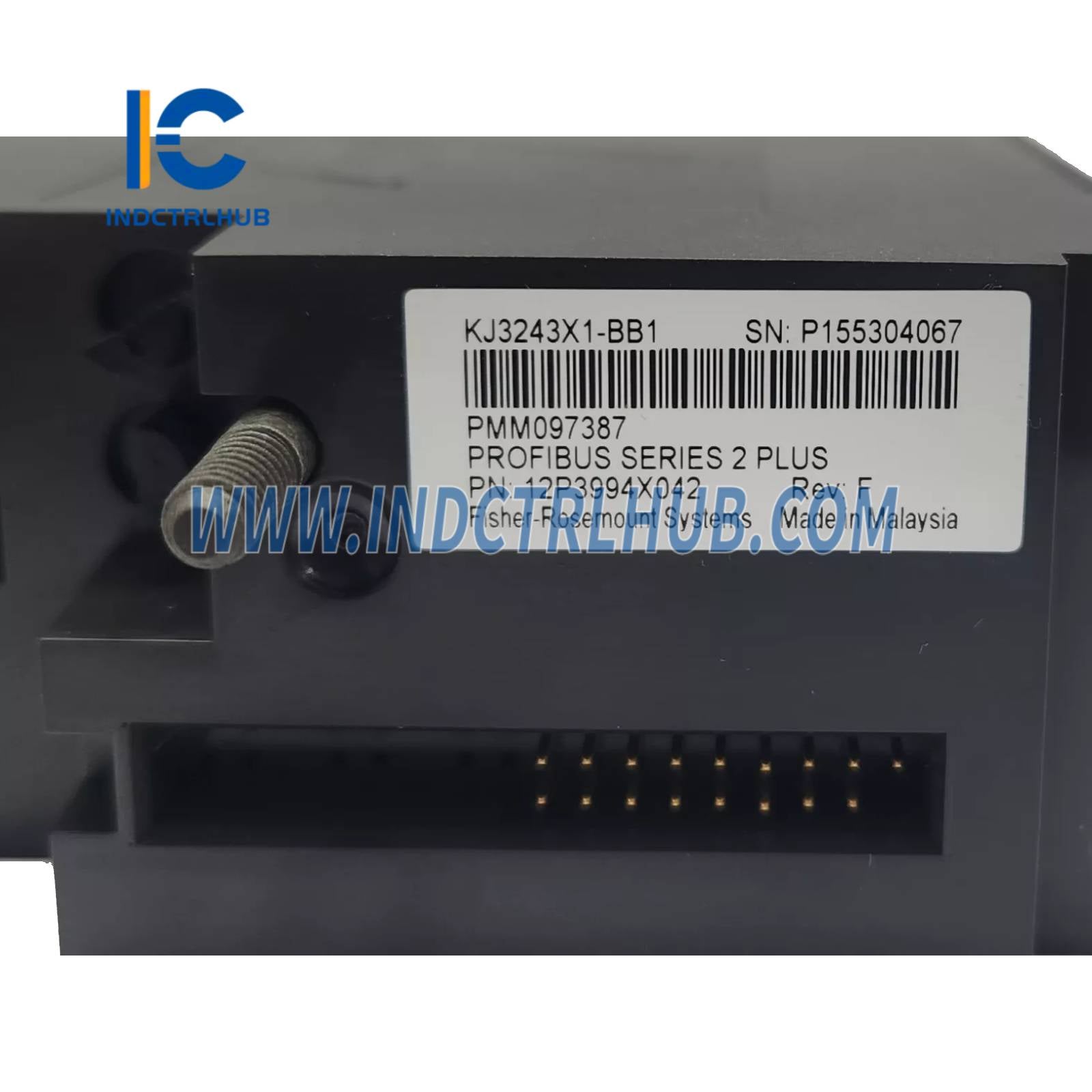

Model/Part Number |
KJ3243X1-BB1 / 12P3994X052 |
|
Description |

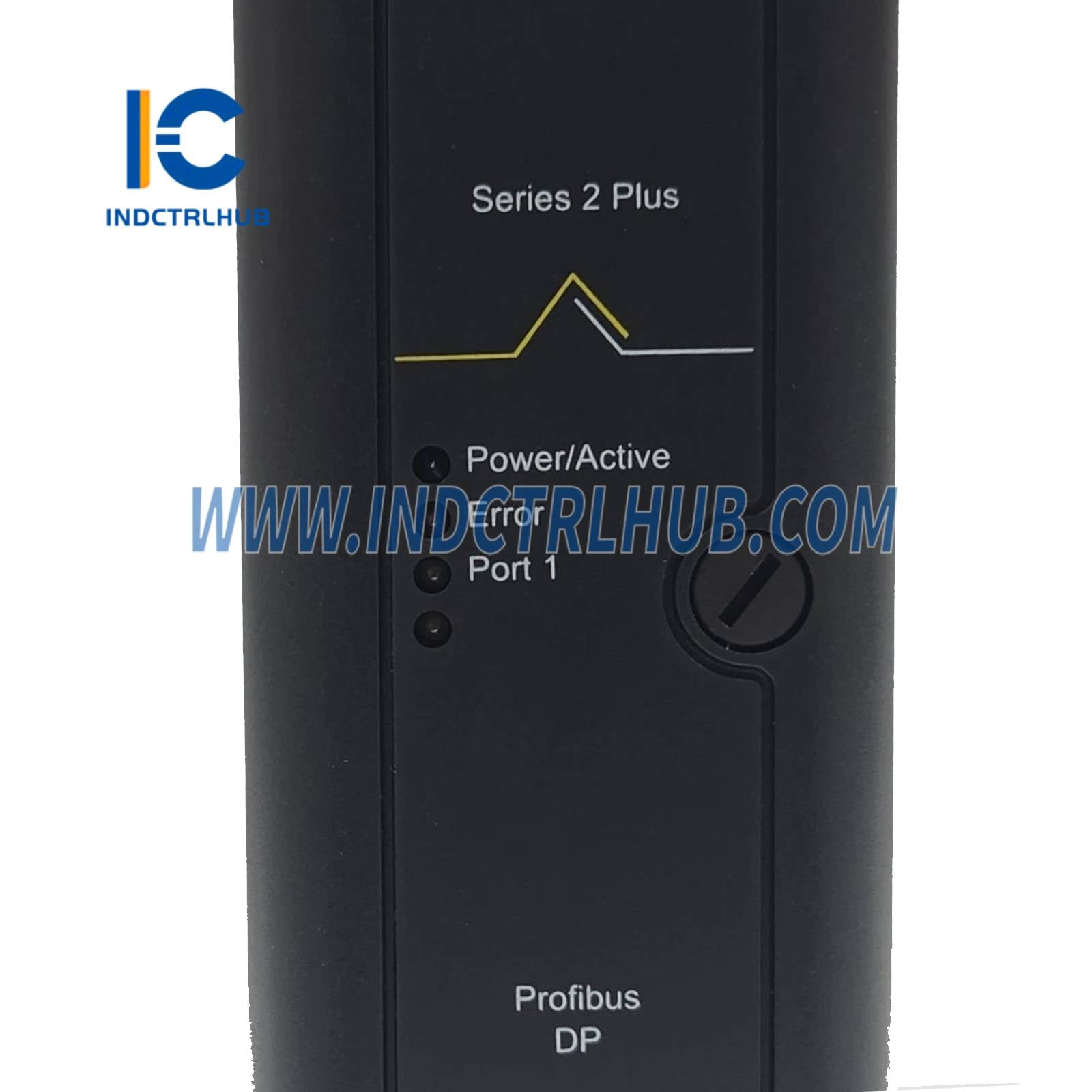

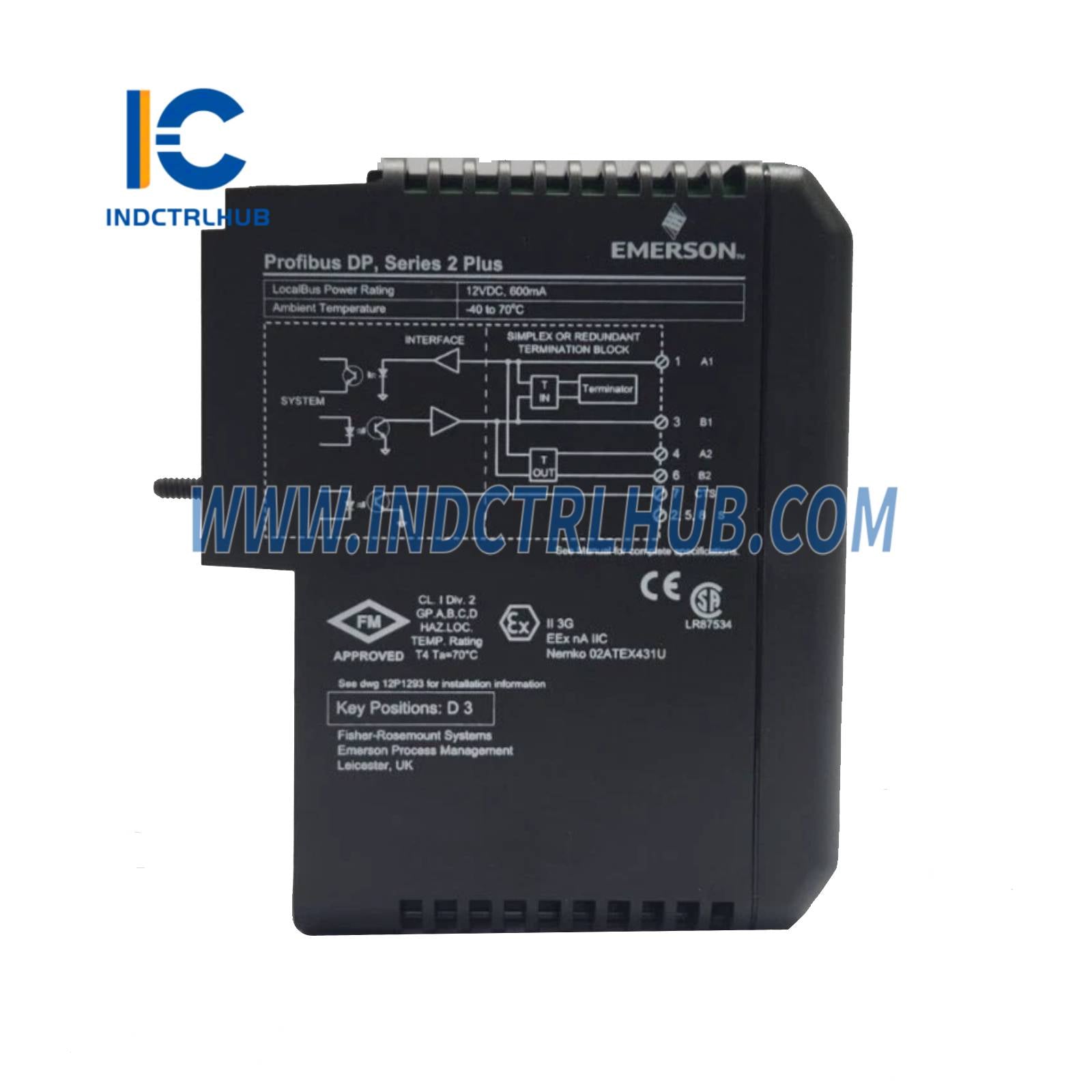

Series 2 Plus Profibus DP Card |
Power Specifications
|
Parameter |
Value |
|---|---|
|

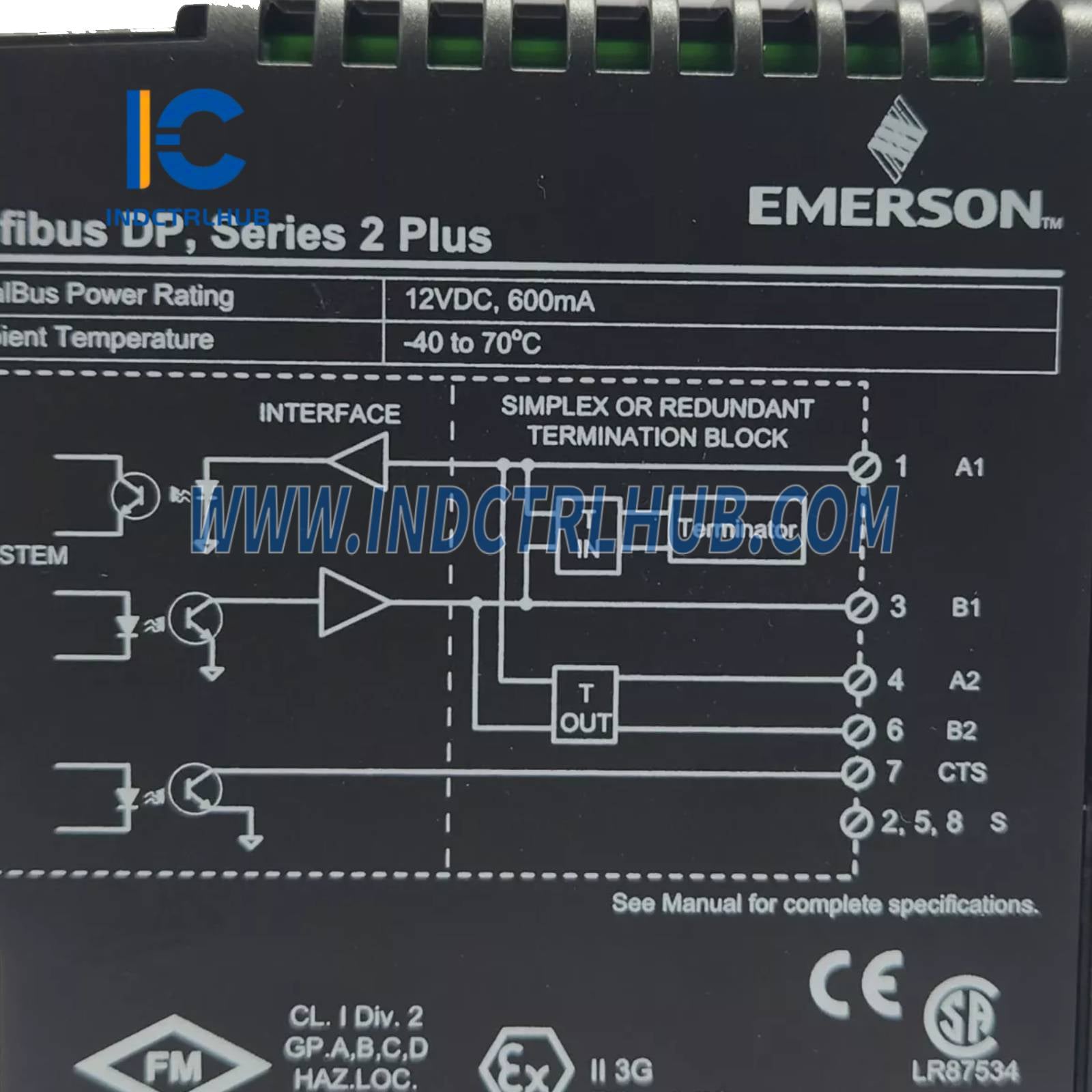

LocalBus Power Rating |
12 VDC @ 600 mA |
|
Field Circuit Power (Card) |
None |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g ½ sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% non-condensing |
|
Ingress Protection (IP) |
IP20 |
|

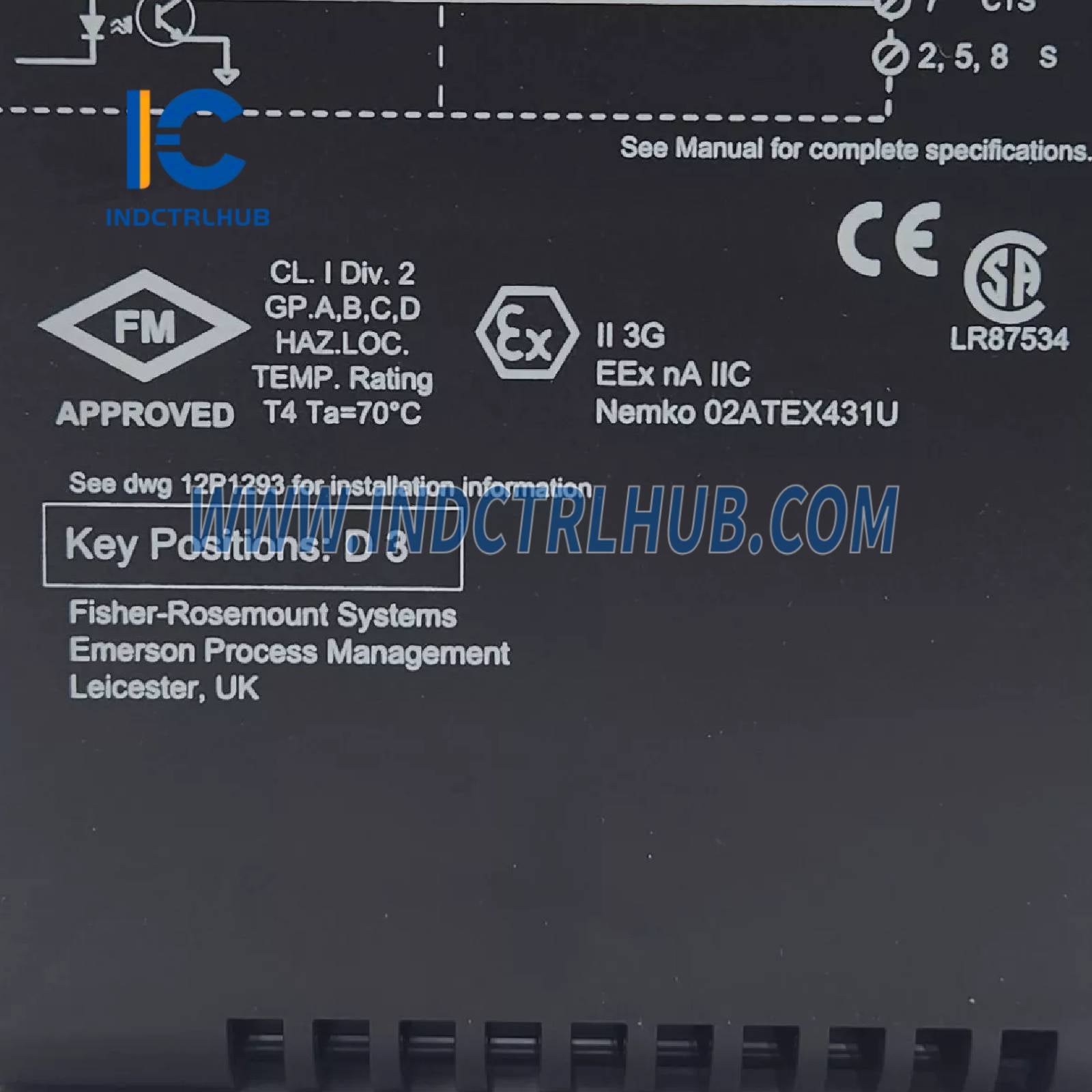

Terminal Block Key Position |
D3 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
-
Additional guidance in Installing Your DeltaV Automation System manual
-
Removal and Insertion:
-
This unit must not be inserted or removed with power energized
Maintenance and Adjustment
-
No user-serviceable parts
-
Do not disassemble
-
Calibration not required
