Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3241X1-BA2 |
|
Description |
Serial Interface Card |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Local Bus Power |
12 VDC @ 300 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g ½ sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% non-condensing |
|

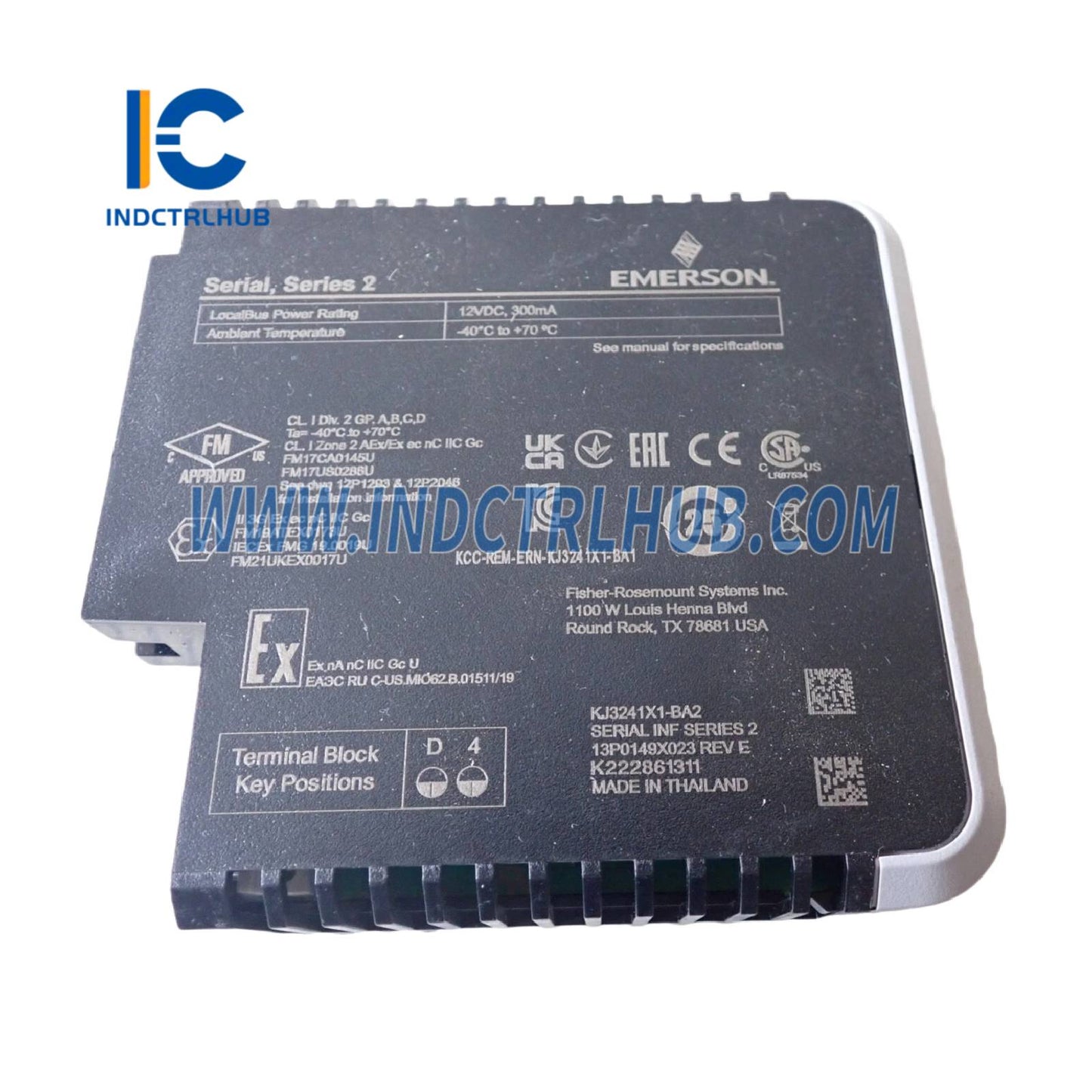

Terminal Block Key Position |
D4 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
-
Additional instructions in DeltaV™ S-Series Hardware Installation and Reference manual
-
Removal and Insertion:
-
Do not insert/remove with system power energized
-
Field power at the terminal or through carrier must be removed before servicing
-
A rotary keying system ensures compatibility between the I/O card and terminal block
Maintenance and Adjustment
-
No user-serviceable parts
-
Disassembly is not allowed
-
Calibration is not required
