Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

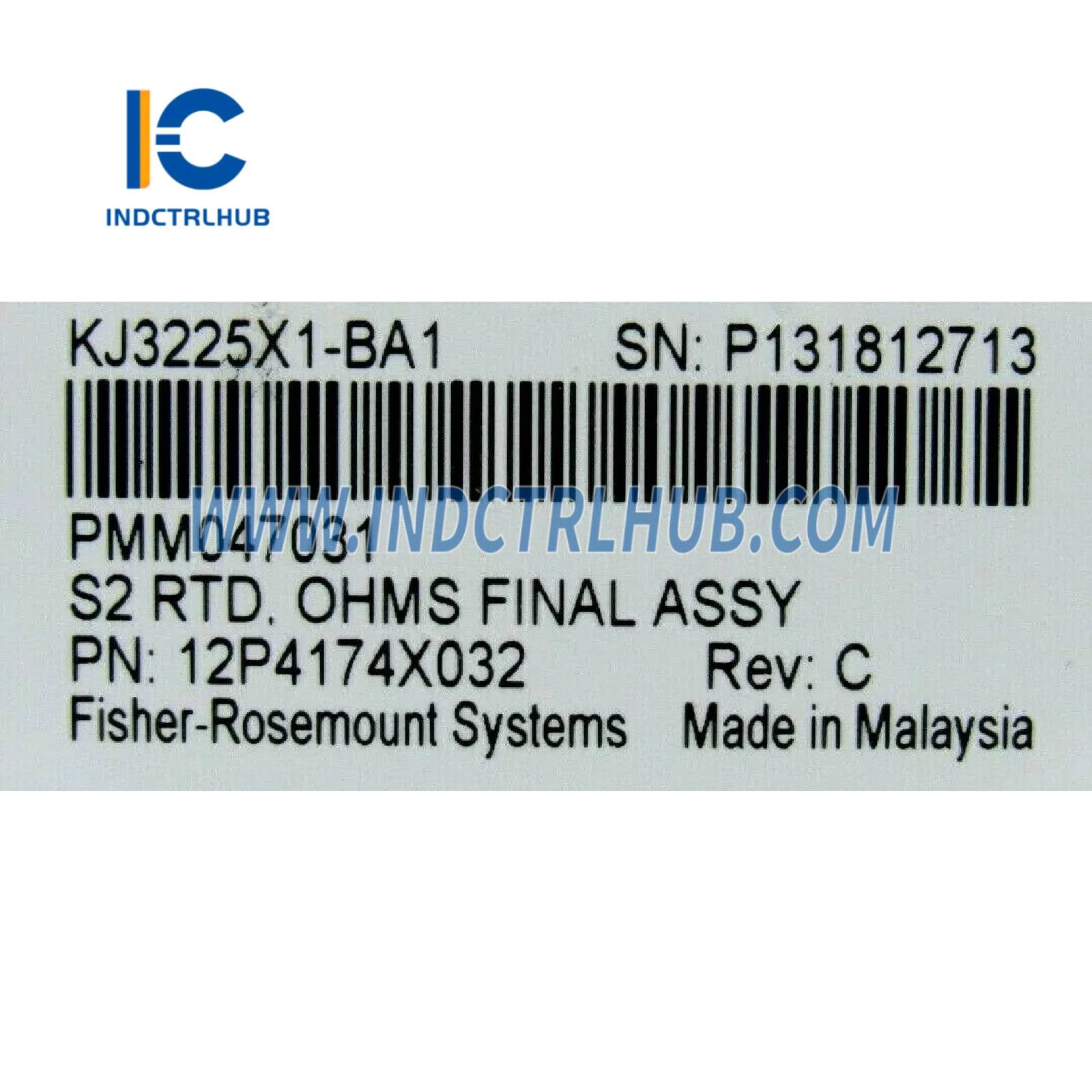

KJ3225X1-BA1 / 12P4174X032 |
|
Description |

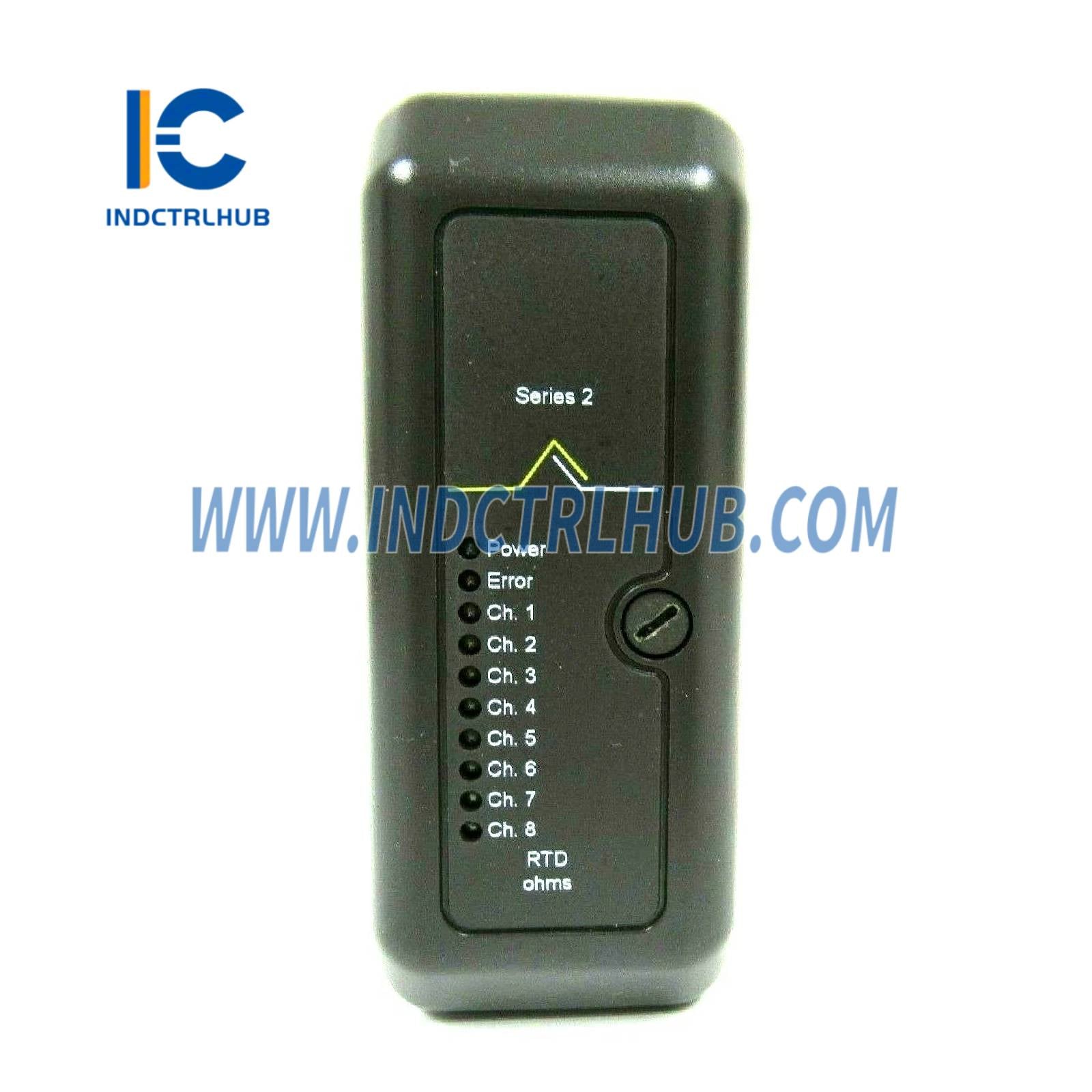

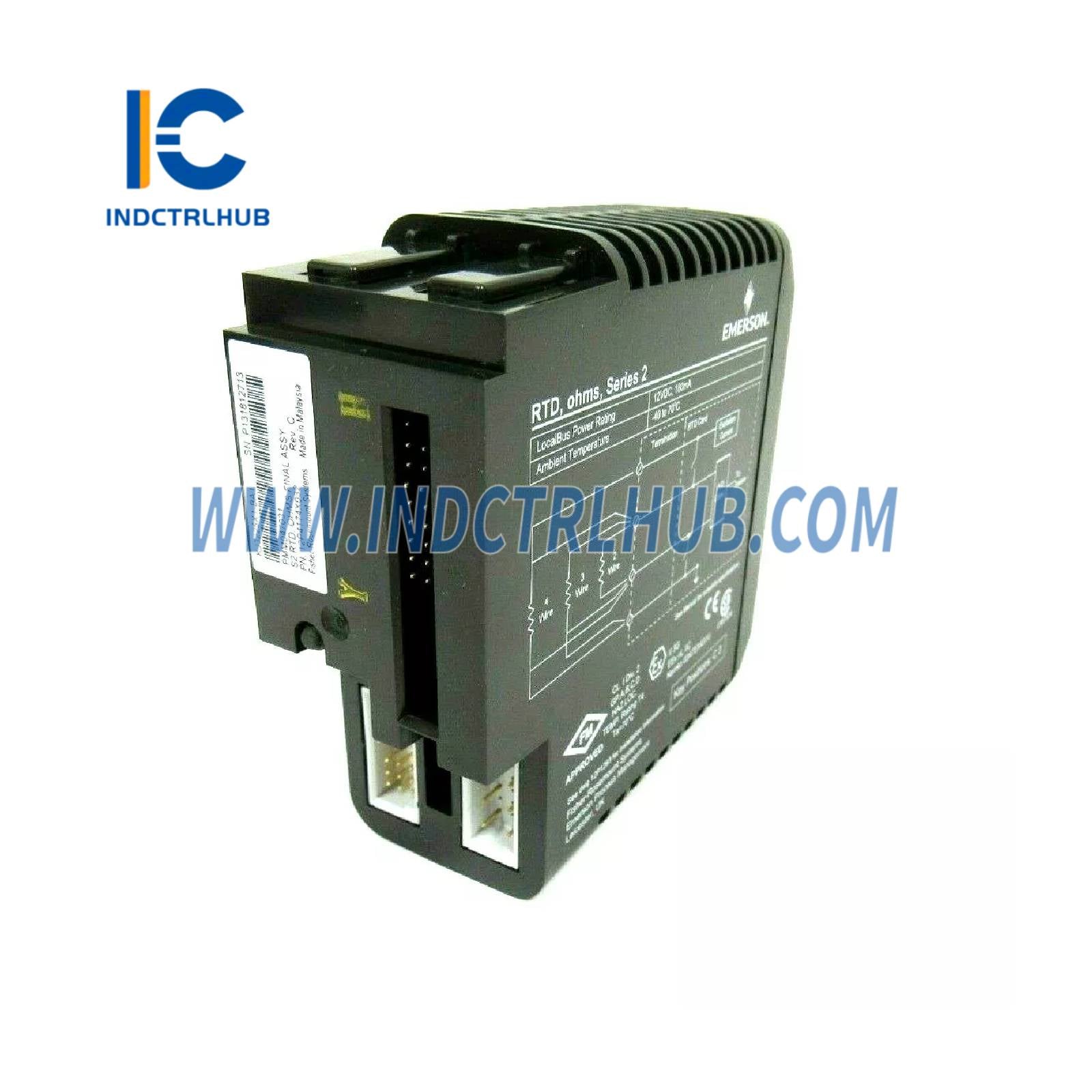

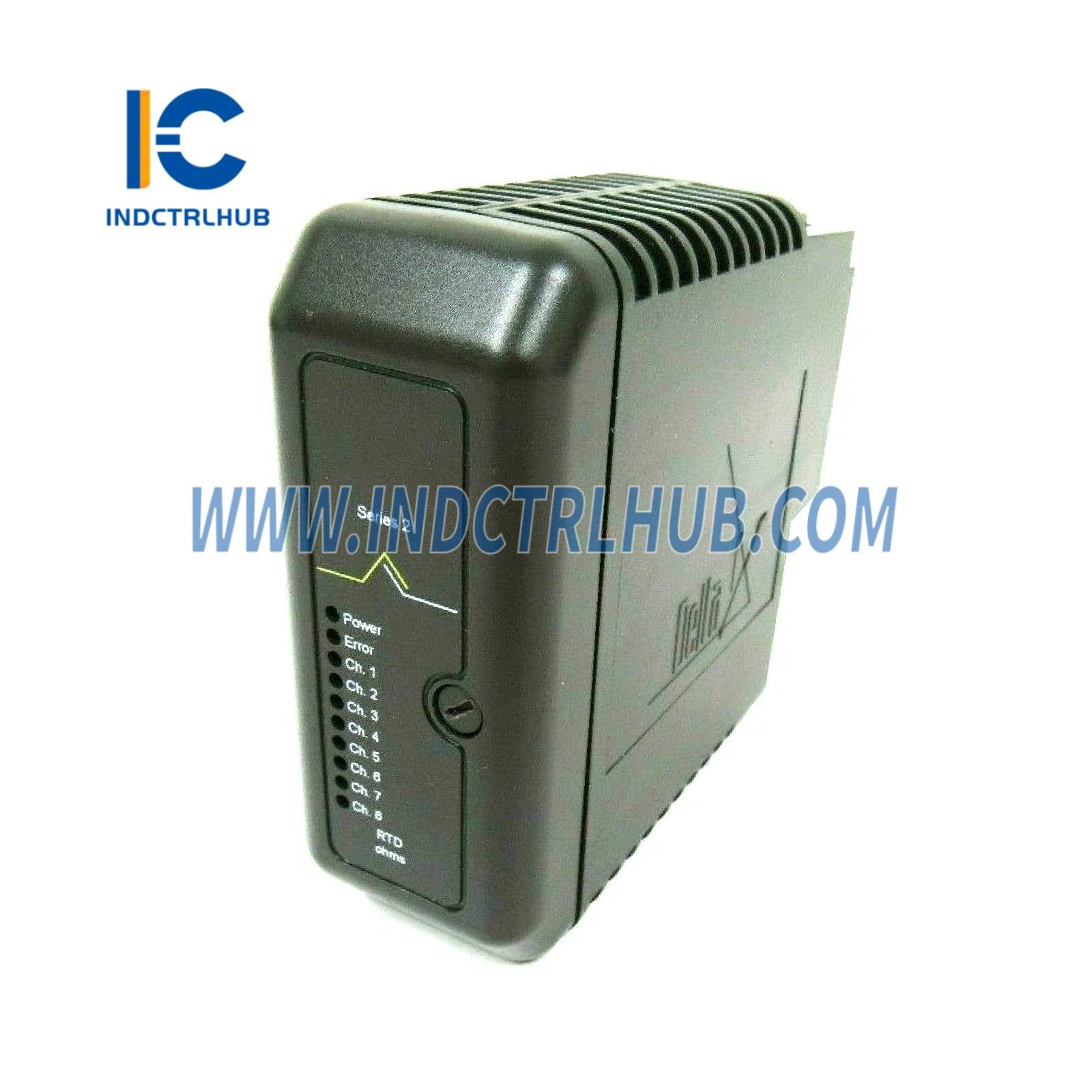

RTD / Resistance Input Card |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Local Bus Power |
12 VDC at 160 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g ½ sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Protection Rating |
IP20 |
|
Terminal Block Key Position |
C3 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
-
Additional guidance in DeltaV™ M-Series Hardware Installation and Reference manual
-
Removal and Insertion:
-
Do not insert/remove with system power energized unless the area is known to be non-hazardous
-
Only one unit at a time may be removed or inserted in powered state
-
For “nL” installations, I/O loop energy assessment is required
-
A rotary keying system ensures correct pairing of terminal blocks and I/O cards
Maintenance and Adjustment
-
No user-serviceable parts
-
Disassembly is not permitted
-
Calibration is not required
