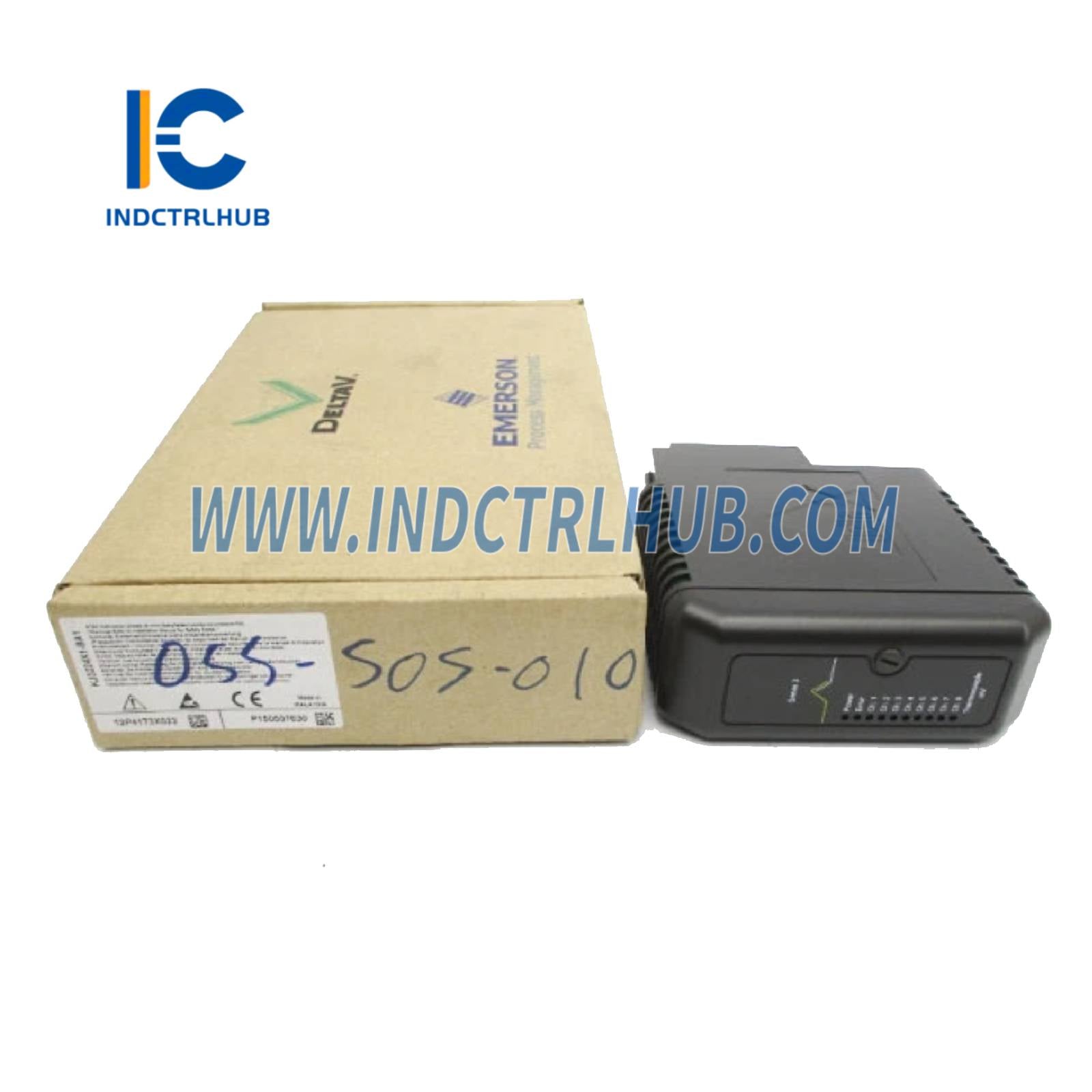

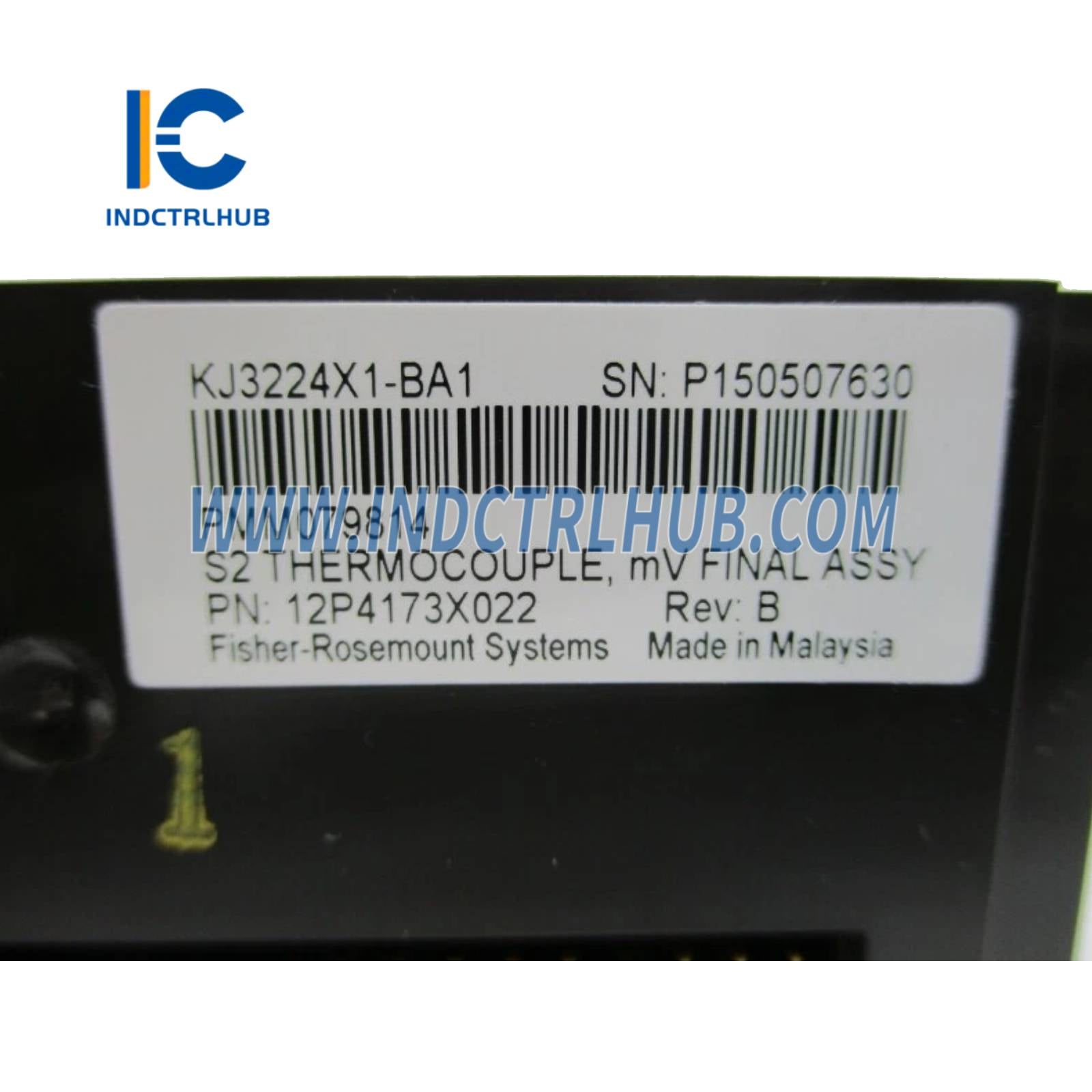

Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3224X1-BA1 |
|
Description |

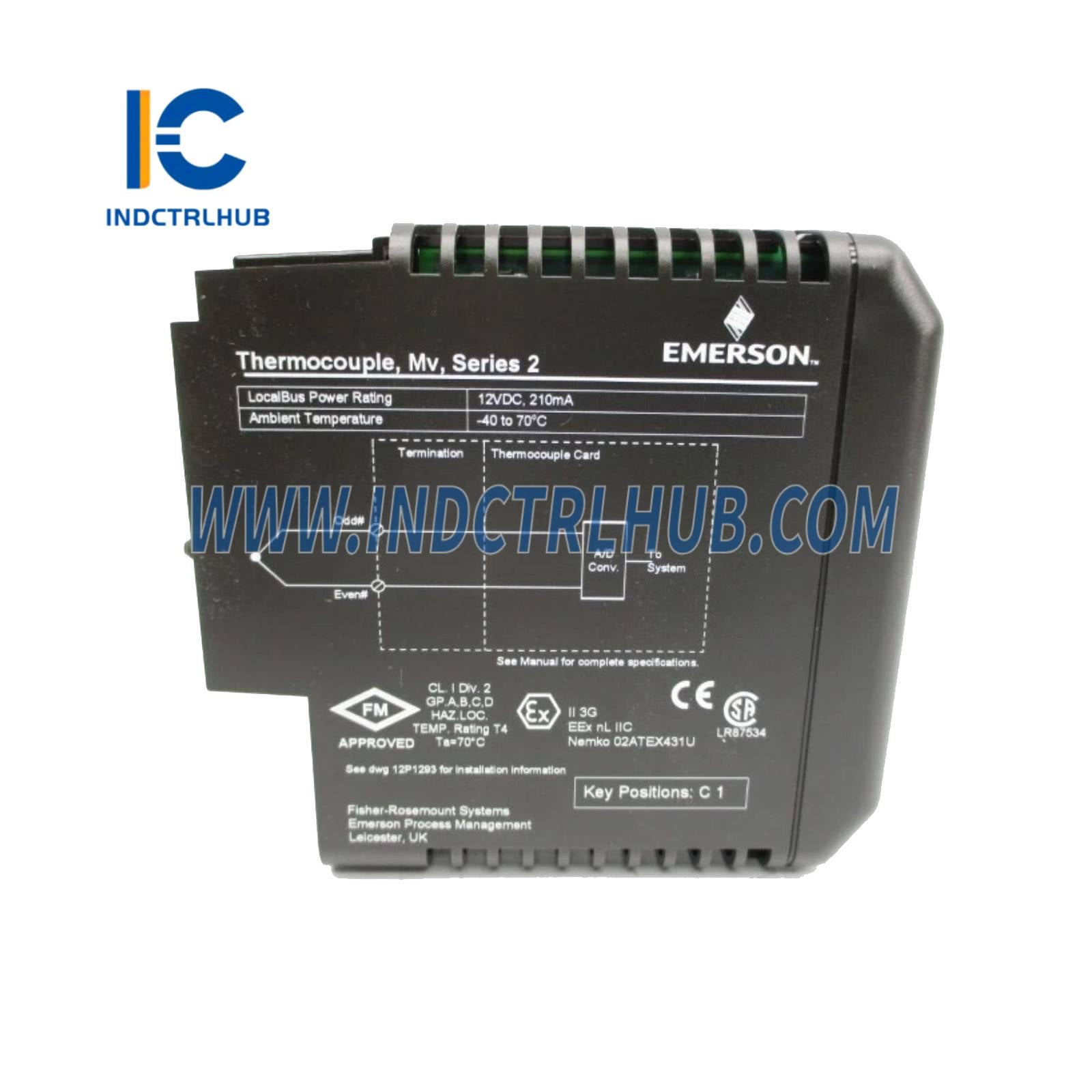

Thermocouple / mV Input Card |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Local Bus Power |
12 VDC at 210 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
C1 |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
-
Additional guidance in DeltaV™ S-series and CHARMs Hardware Installation manual
-
Removal and Insertion:
-
Do not insert/remove with system power energized
-
Field power must be removed from terminal or carrier prior to removal
-
I/O loop assessment required on energy-limited nodes
-
Rotary keying system ensures correct terminal block-to-card compatibility
Maintenance and Adjustment
-
No user-serviceable parts
-
Disassembly is not permitted
-
Calibration is not required
