Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

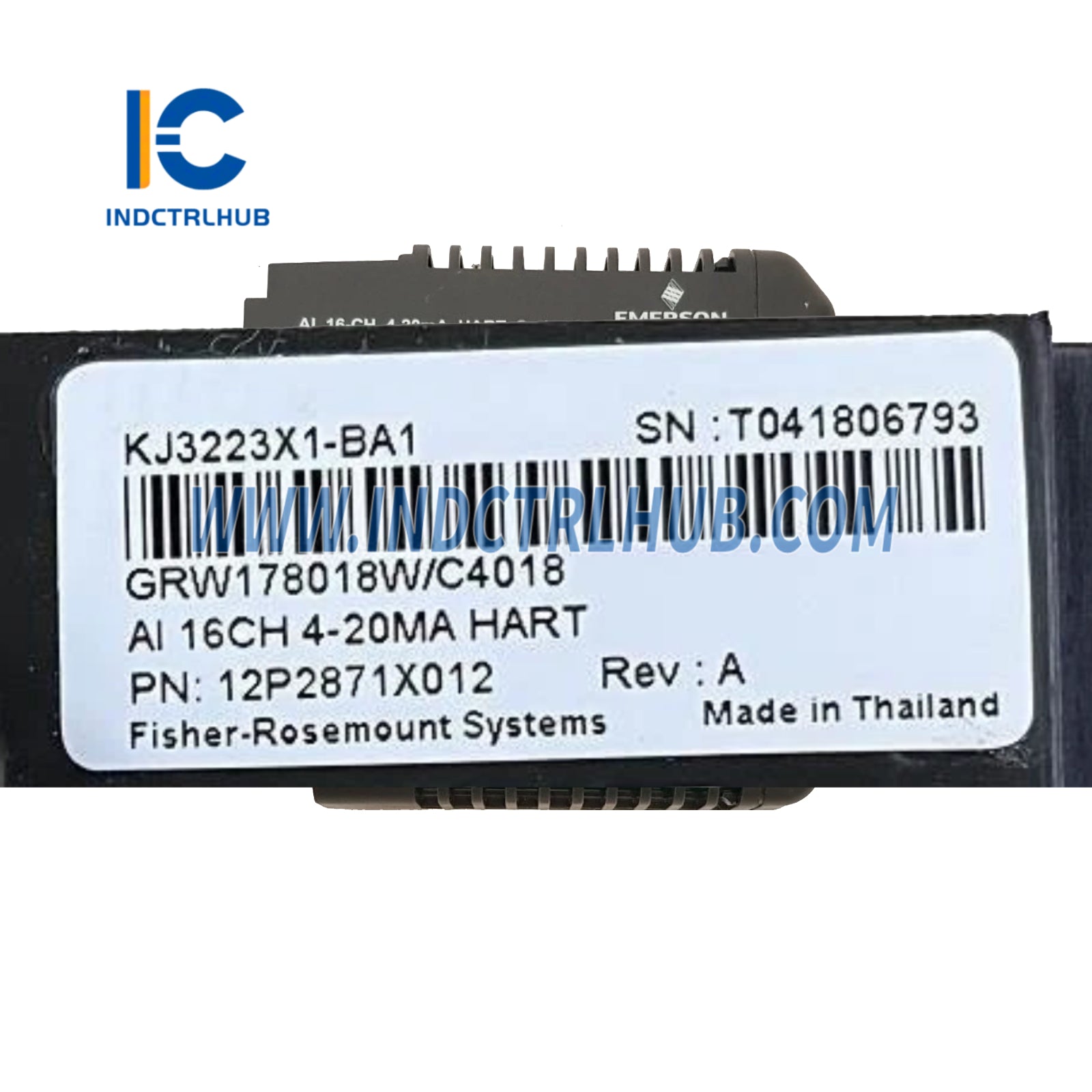

KJ3223X1-BA1 / 12P2871X012 |
|
Description |

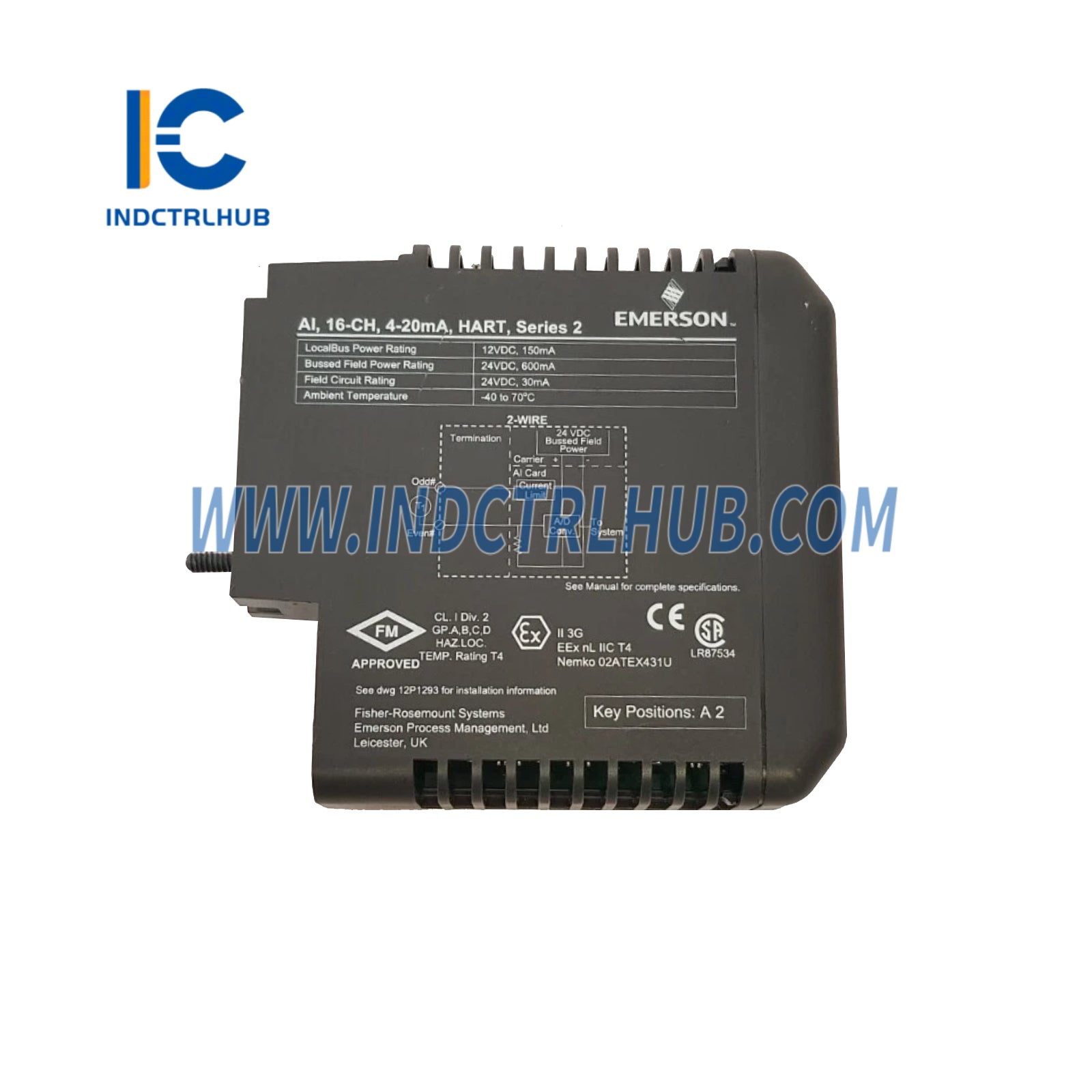

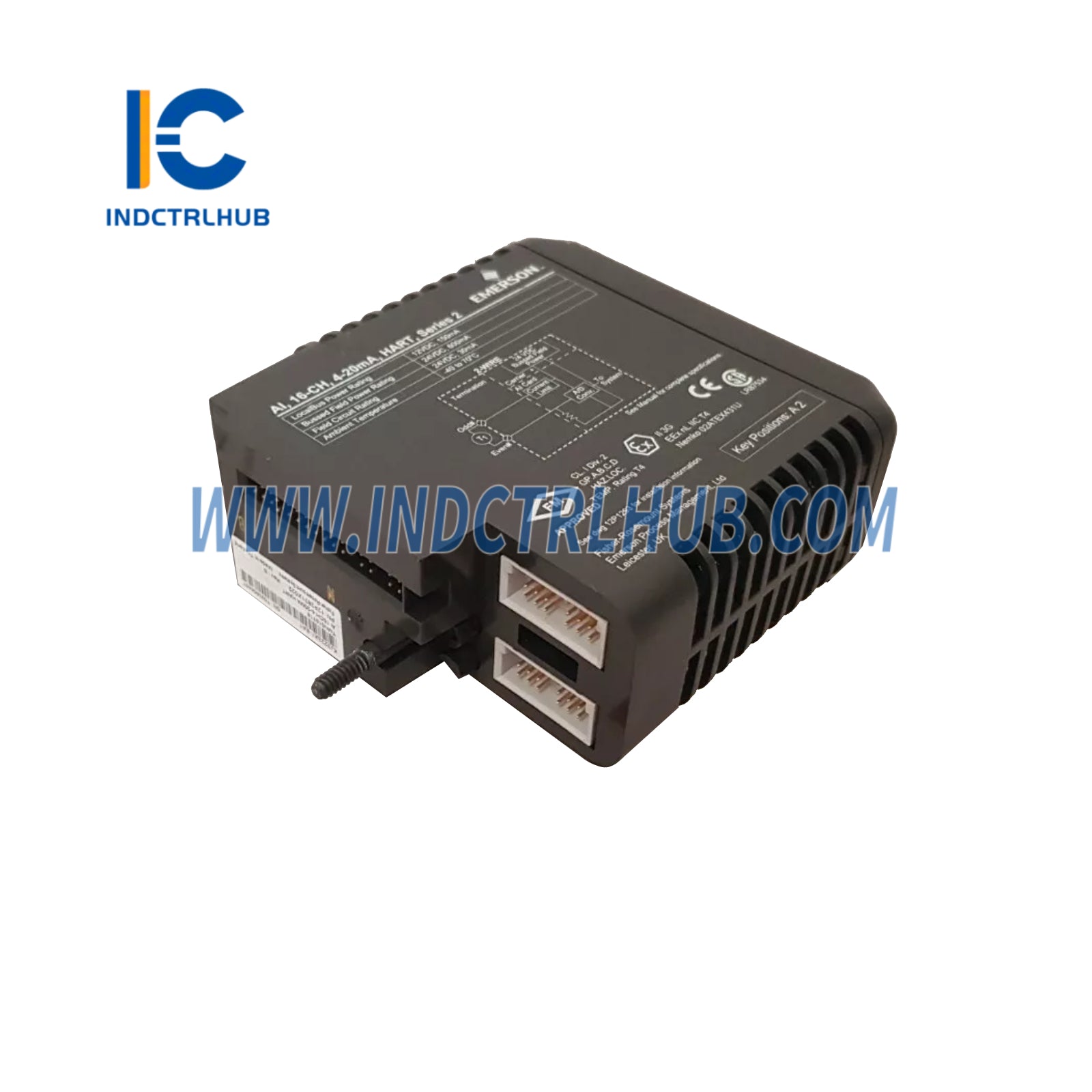

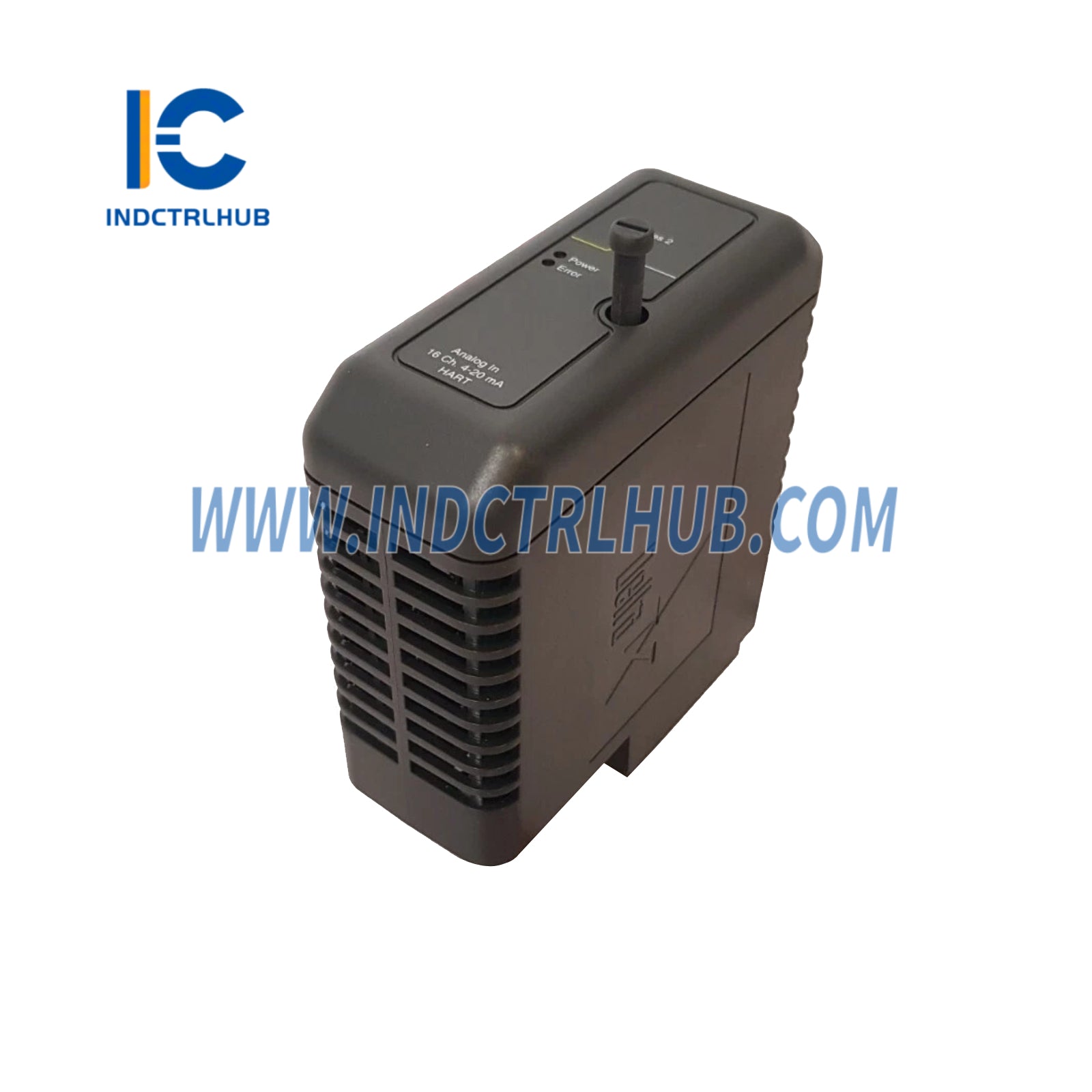

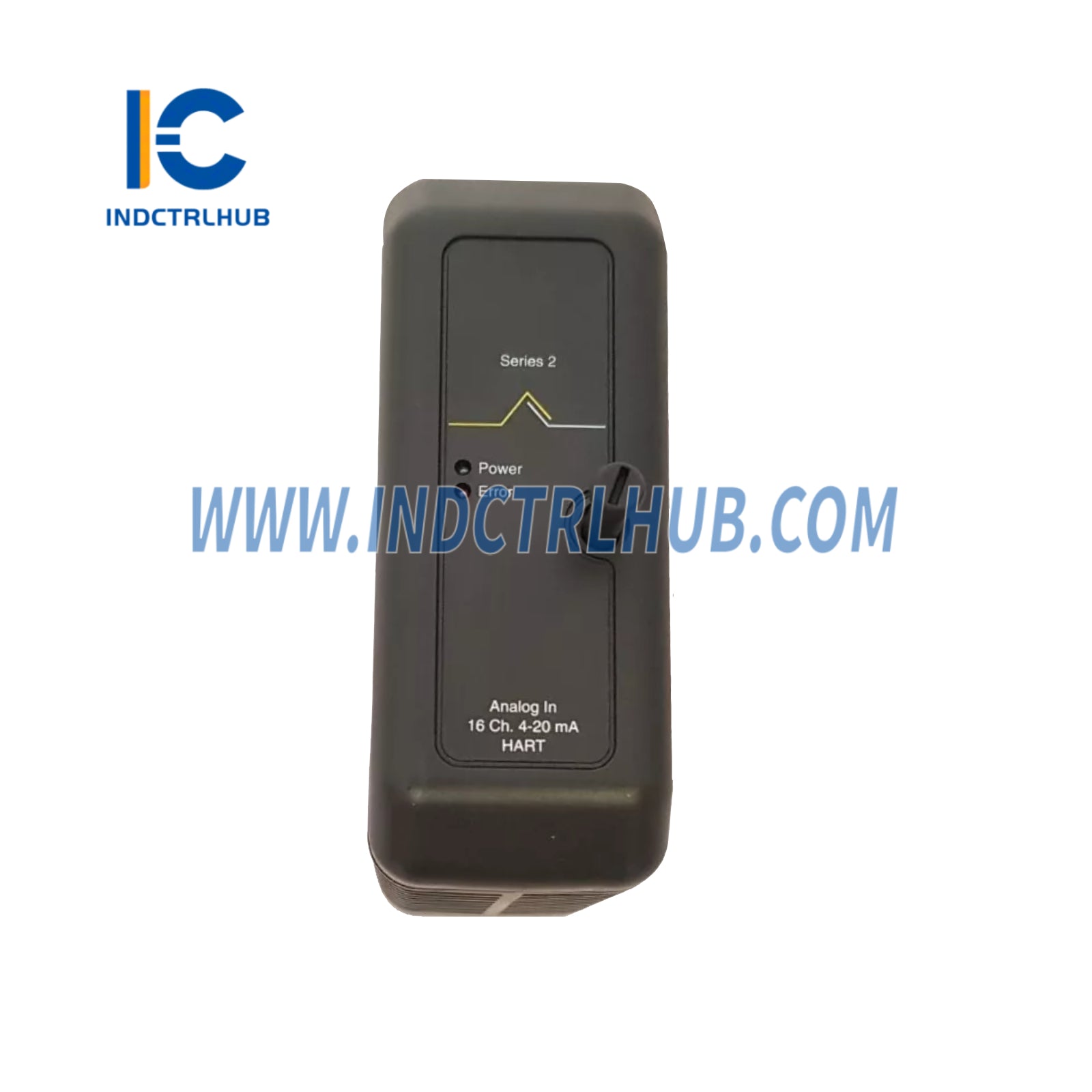

AI 16-Channel 4-20mA HART Input Card |
Power Specifications
|
Power Type |
Value |
|---|---|
|
Local Bus Power |
12 VDC @ 150 mA |
|
Bussed Field Power |
12 VDC @ 600 mA |
|
Field Circuit |
24 VDC @ 32 mA per channel |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
A2 |
Installation and Operation Notes
-
Hazardous Area Compliance:
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
and the DeltaV™ S-series and CHARMs Hardware Installation manual.
-
Removal and Insertion:
-
Field power must be removed before inserting or removing the device
-
Cannot be inserted/removed while powered
-
Rotary keying system ensures compatibility with terminal block
Maintenance and Adjustment
-
Contains no user-serviceable parts
-
Do not disassemble
-
No calibration required
