Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
VE4003S2B3 (KJ3222X1-BA1 + KJ4001X1-CC1, 12P2532X) |
|
Series |
DeltaV M-series |
|
Description |

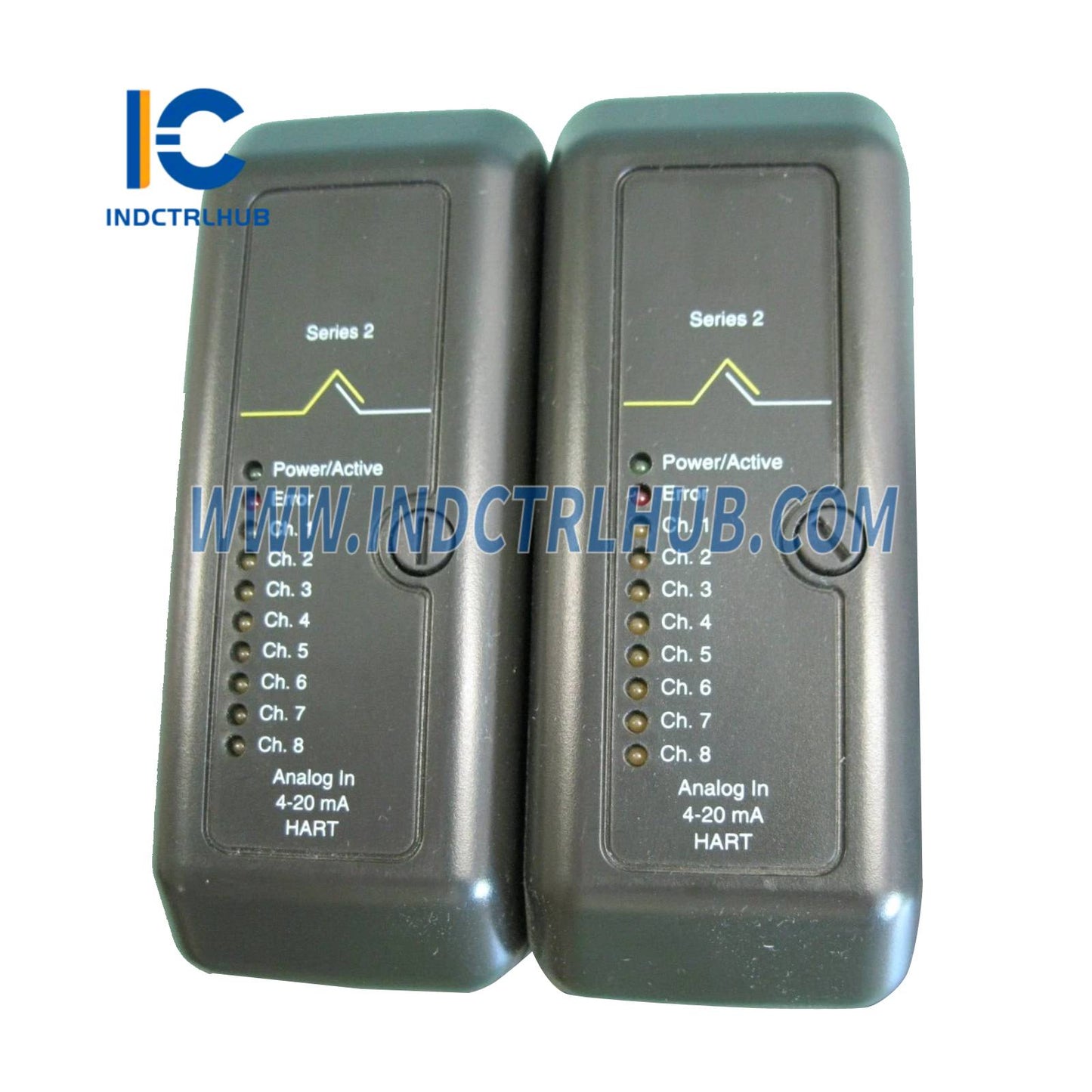

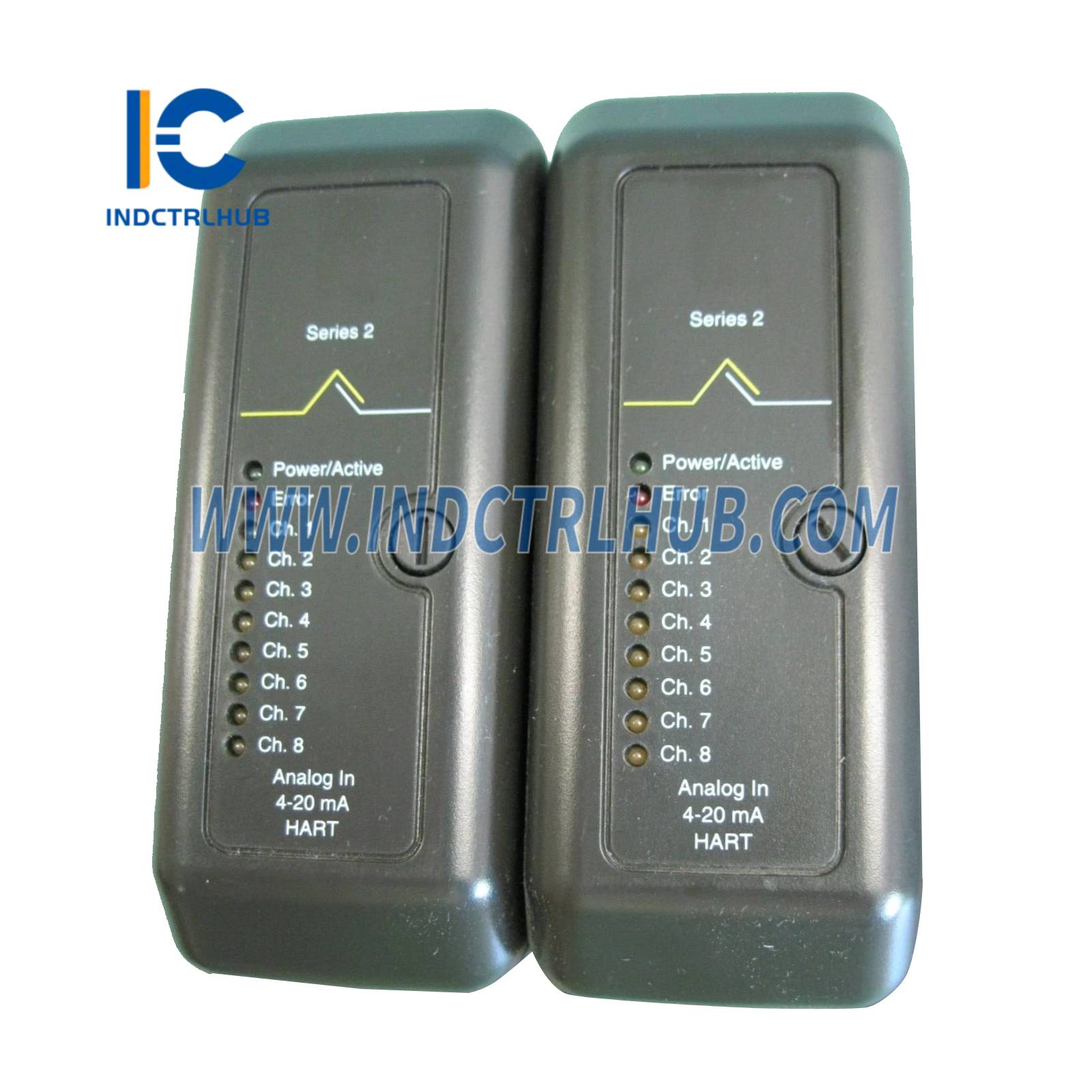

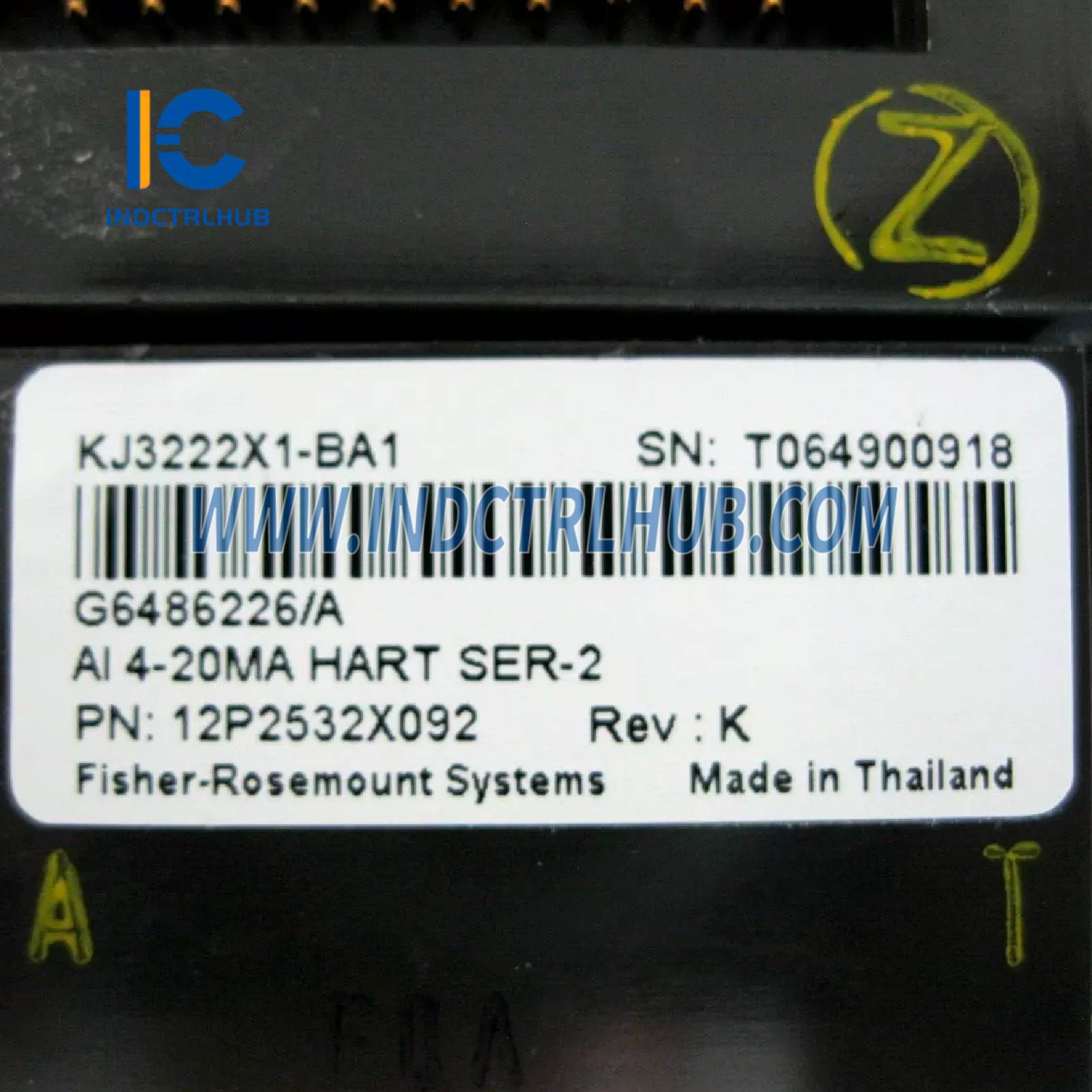

8-Channel Analog Input Module, 4ā20 mA, HART with 4-Wire I/O Termination Block |
|
Application |
Acquiring analog signals from transmitters and sensors for process control |
Ā
Ā
āļø
Technical Specifications
|
Specification |
Details |
|---|---|
|
Channels |
8 analog input channels |
|
Input Signal |
4ā20 mA with HART protocol |
|
Termination Type |

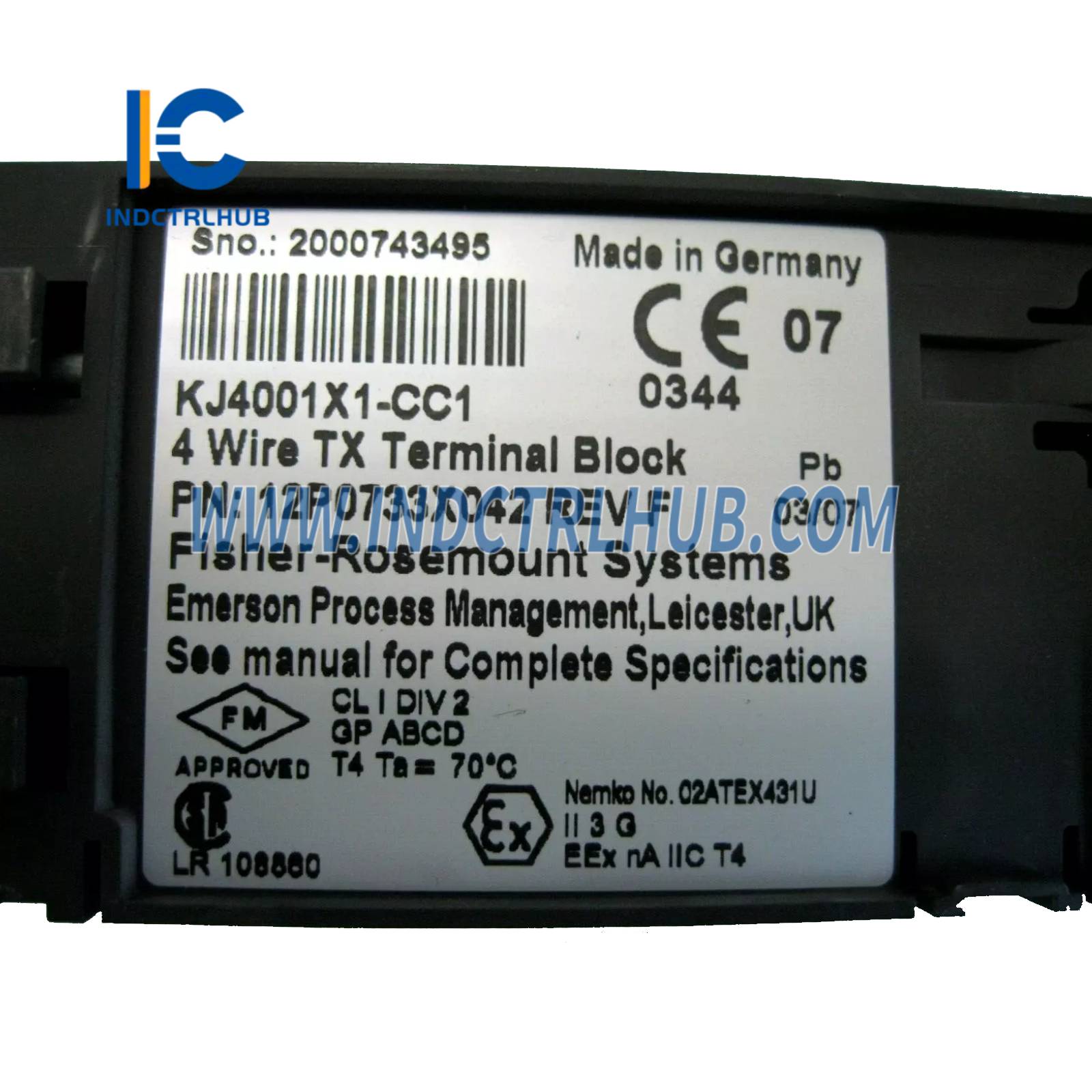

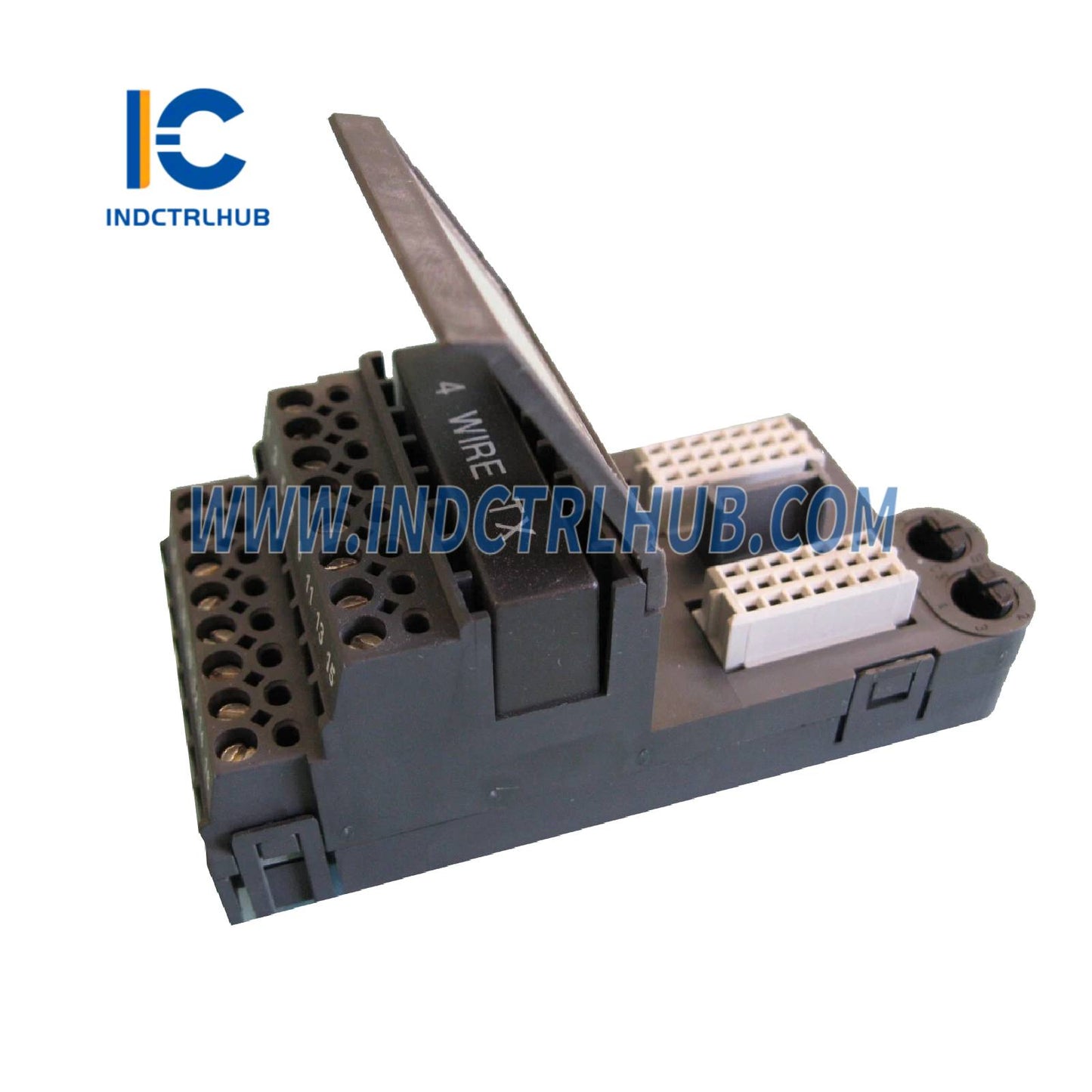

4-wire I/O termination block (KJ4001X1-CC1) |
|
LocalBus Power |
12 VDC at 150 mA |
|
Field Circuit Power |
24 VDC at 300 mA |
|
Weight |
0.4 kg |
|
Mounting |
T-type DIN rail (e.g., VE4050S2K1C0 carrier) |
|
Operating Temperature |
-40Ā°C to +70Ā°C |
|
Storage Temperature |
-40Ā°C to +85Ā°C |
|
Relative Humidity |
5% to 95% RH, non-condensing |
|
Protection Rating |
IP20 |
|
Contaminant Resistance |
ISA-S71.04-1985 Class G3 (conformal coated) |
|
System Compatibility |
DeltaV v10.3 or later |
|
Certifications |
CE, CSA, FM, ATEX, IECEx, ABS, DNV |
Ā
Ā
š”
Key Features
Ā
-
HART-enabled: Allows digital communication with smart field instruments.
-
4-Wire Termination: Facilitates clean and isolated wiring for 4-wire transmitters.
-
Hot-Swappable: Modules can be replaced or added without system shutdown.
-
Advanced Diagnostics: Detects open circuits, wiring faults, and supports live monitoring.
-
High Environmental Endurance: Operates reliably in extreme industrial environments.
Ā
Ā
š
Integration & Compatibility
Ā
-

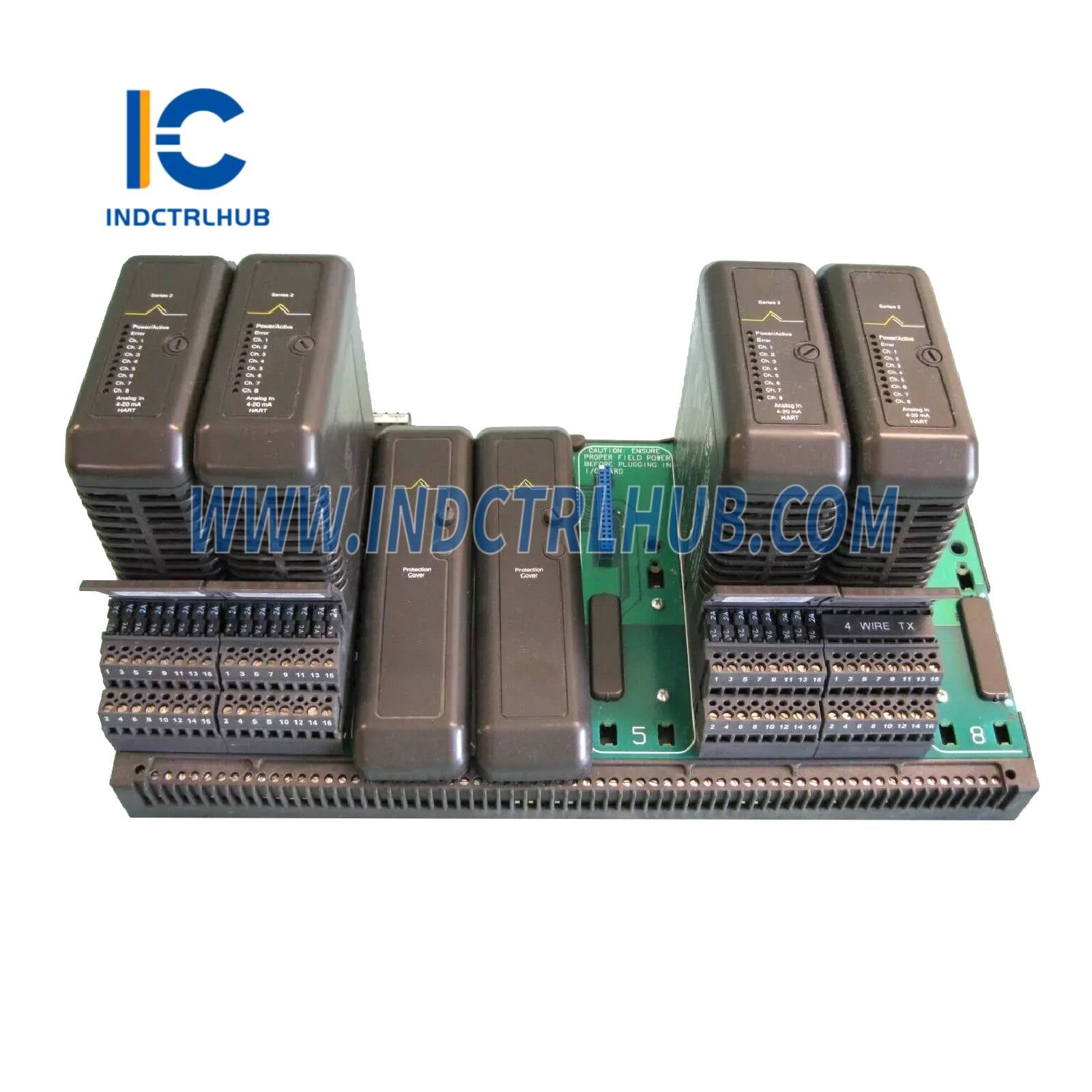

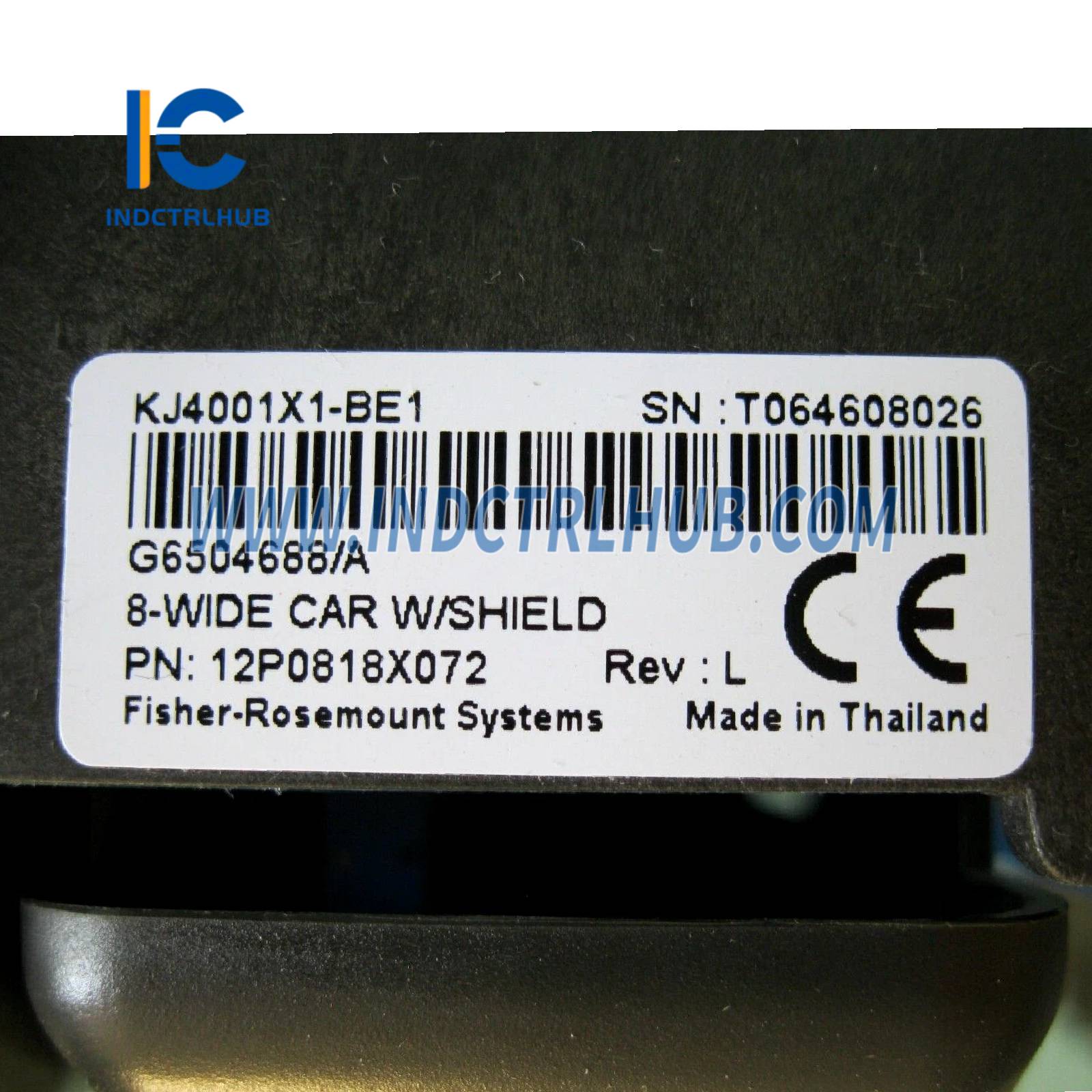

Mounts on DeltaVĀ T-type DIN rail carriersĀ likeĀ VE4050S2K1C0.
-
Fully integrated intoĀ DeltaV M-seriesĀ architecture.
-
SupportsĀ DeltaV ExplorerĀ andĀ Control StudioĀ configuration tools.
-
Easily assignable input channels usingĀ CHARM-style drag-and-drop mapping.
Ā
Ā
š¦
Availability & Usage
Ā
-
Available new or refurbishedĀ with typical 1-year warranty.
-
Widely used inĀ oil & gas, chemicals, power generation, and other demanding industrial sectors.
-
Compatible withĀ HART devices, enablingĀ remote configuration and diagnosticsĀ via DeltaV.
Ā
