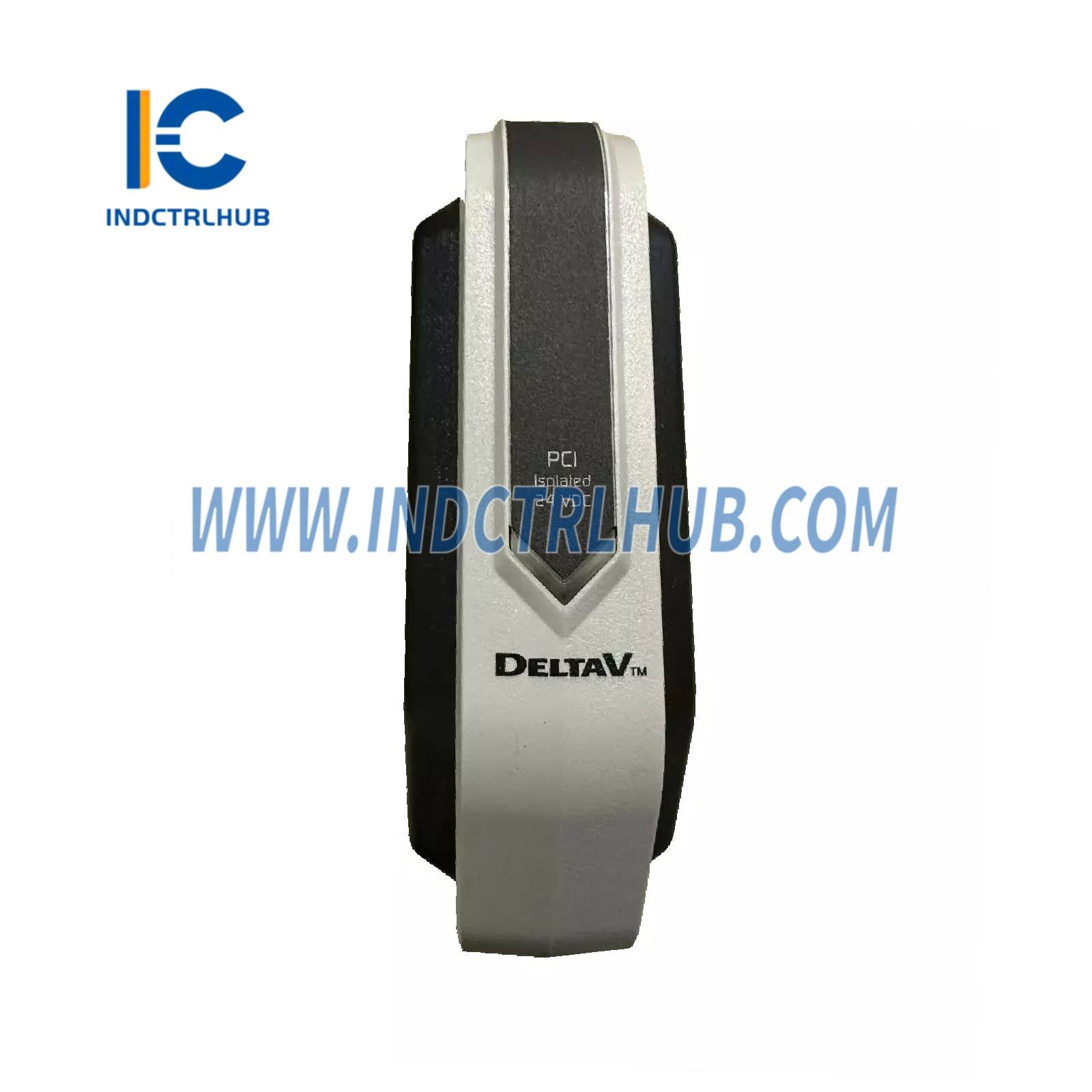

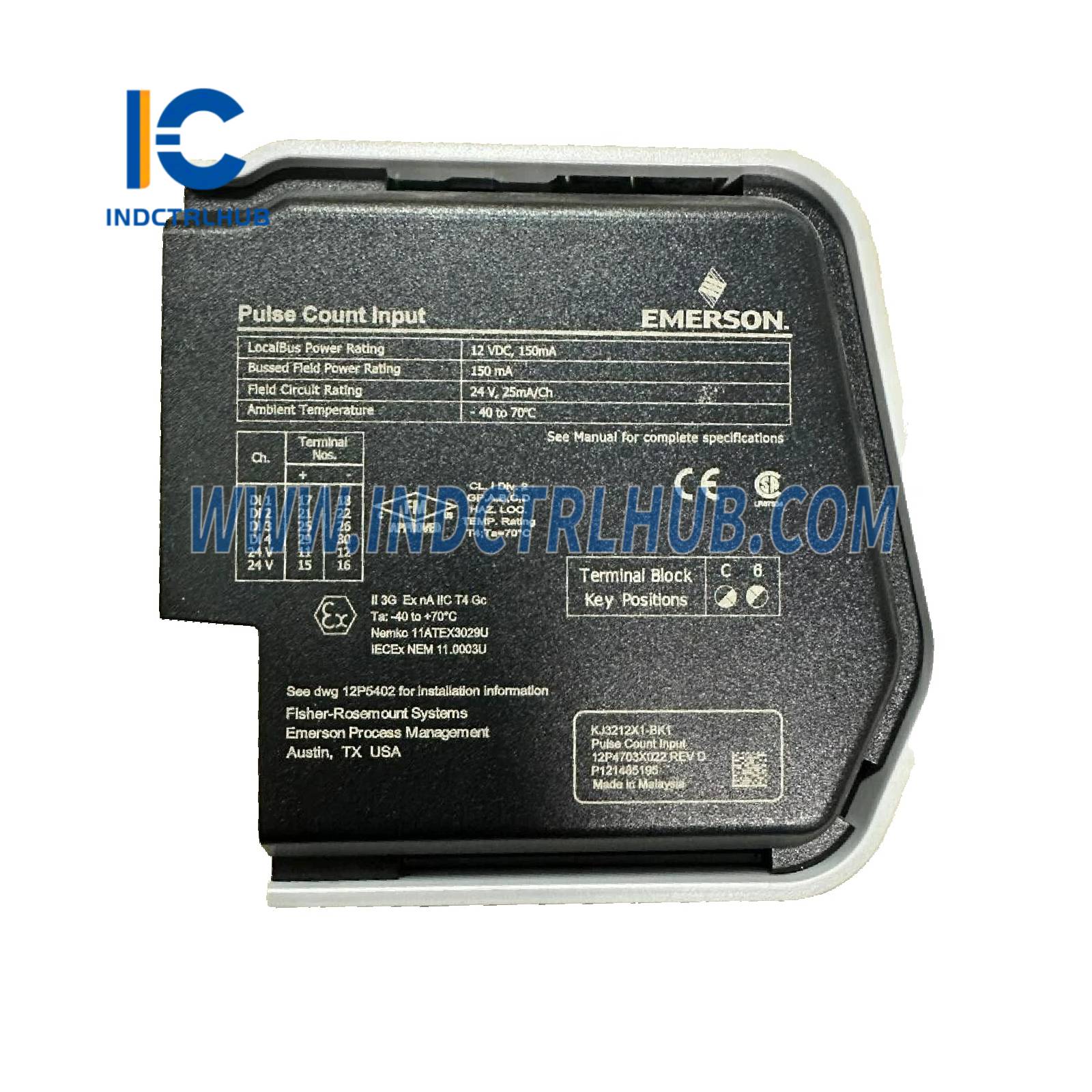

Emerson ___J3212X1-BK1 S-Series Pulse Count Input Card
Emerson ___J3212X1-BK1 S-Series Pulse Count Input Card
Manufacturer: Emerson
Product No.: KJ3212X1-BK1
Condition:1000 in stock
Product Type: S-Series Pulse Count Input Card
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3212X1-BK1 |
|
Description |
S-Series Pulse Count Input Card |
_
_
Power Specifications
|
Power Type |
Value |
|---|---|
|
Local Bus Power |
12 VDC @ 150 mA |
|
Bussed Field Power |
24 VDC @ 150 mA |
|
Field Circuit |
24 VDC @ 25 mA per channel |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2_13.2 Hz); 0.7 g (13.2_150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 _1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
C6 |
_
_
Installation and Operation Notes
_
-
Hazardous Area Compliance:
Refer to_Document 12P5404_(DeltaV_ S-Series Digital Automation System Zone 2 Installation Instructions)
and the_DeltaV_ S-Series and CHARMs Hardware Installation_manual.
-
Removal and Insertion:
_
-
Field power must be removed_before inserting or removing the device
-
Cannot be inserted/removed while powered
-
Rotary keying system_ensures compatibility with terminal block
_
_
Maintenance and Adjustment
_
-
Contains_no user-serviceable parts
-
Do not disassemble
-
No calibration required
_
