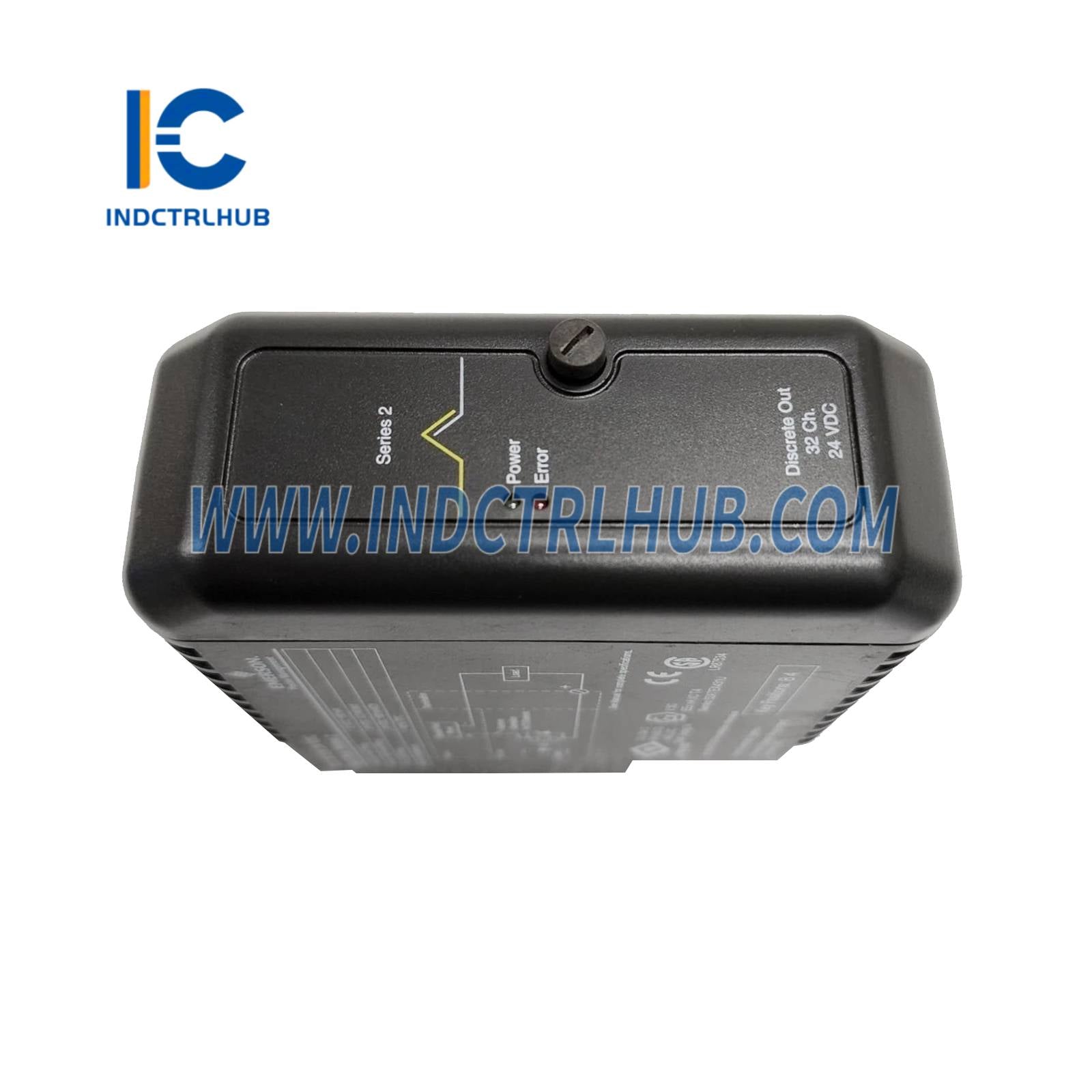

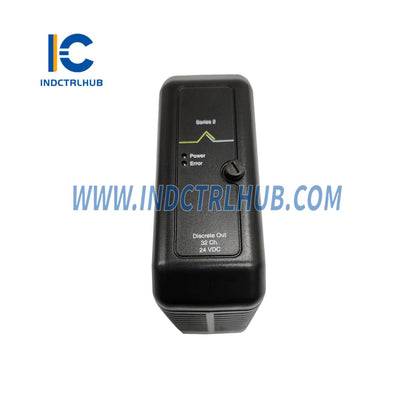

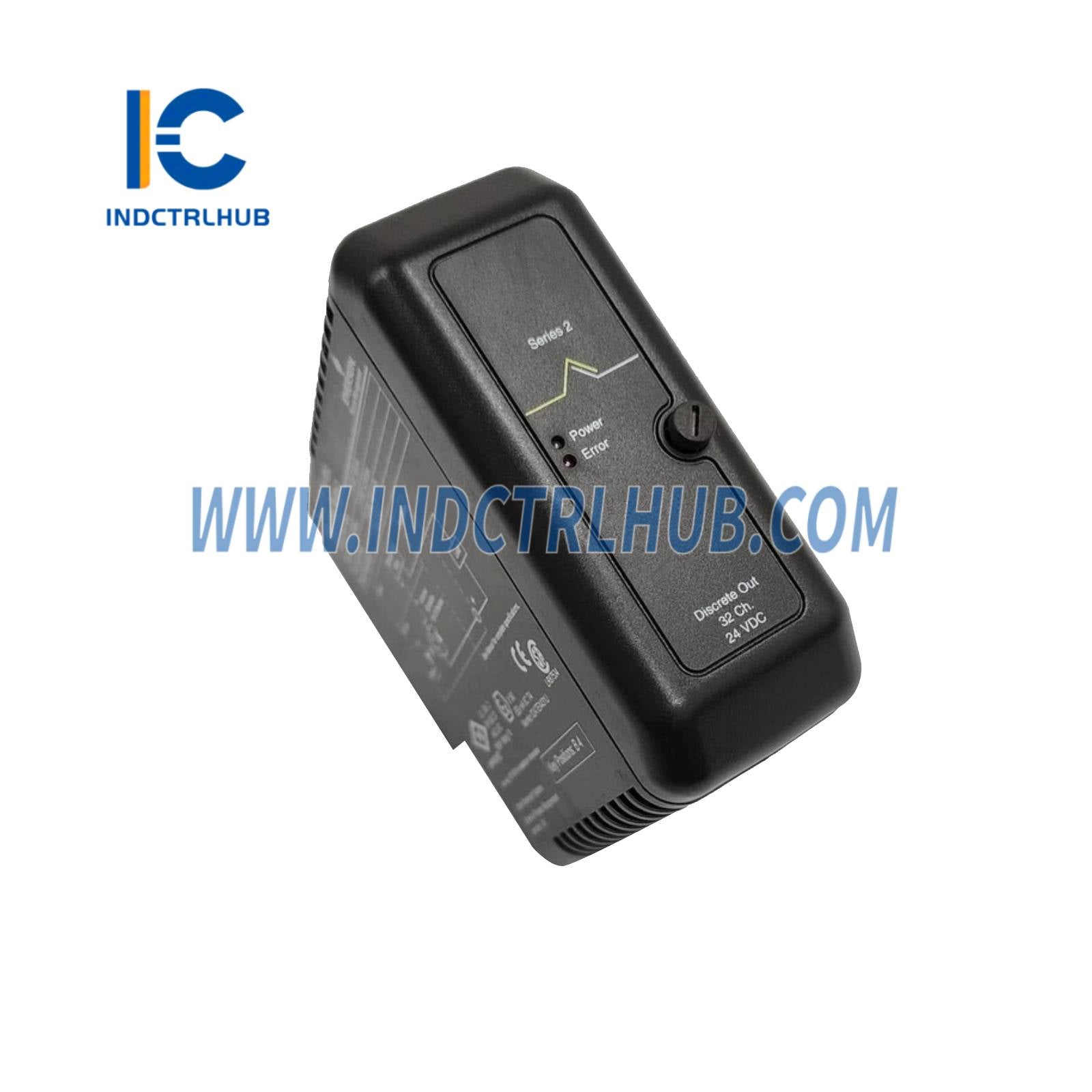

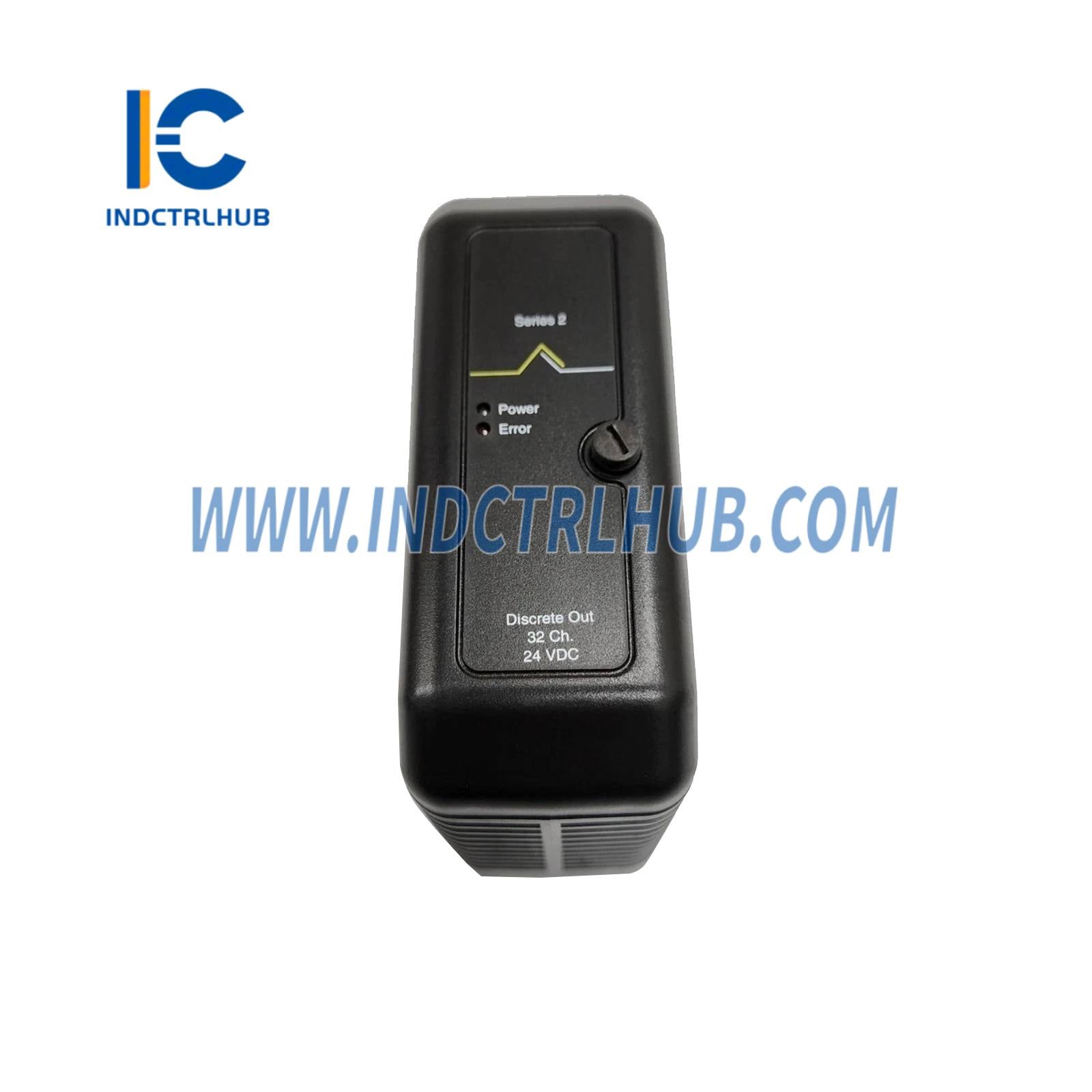

Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

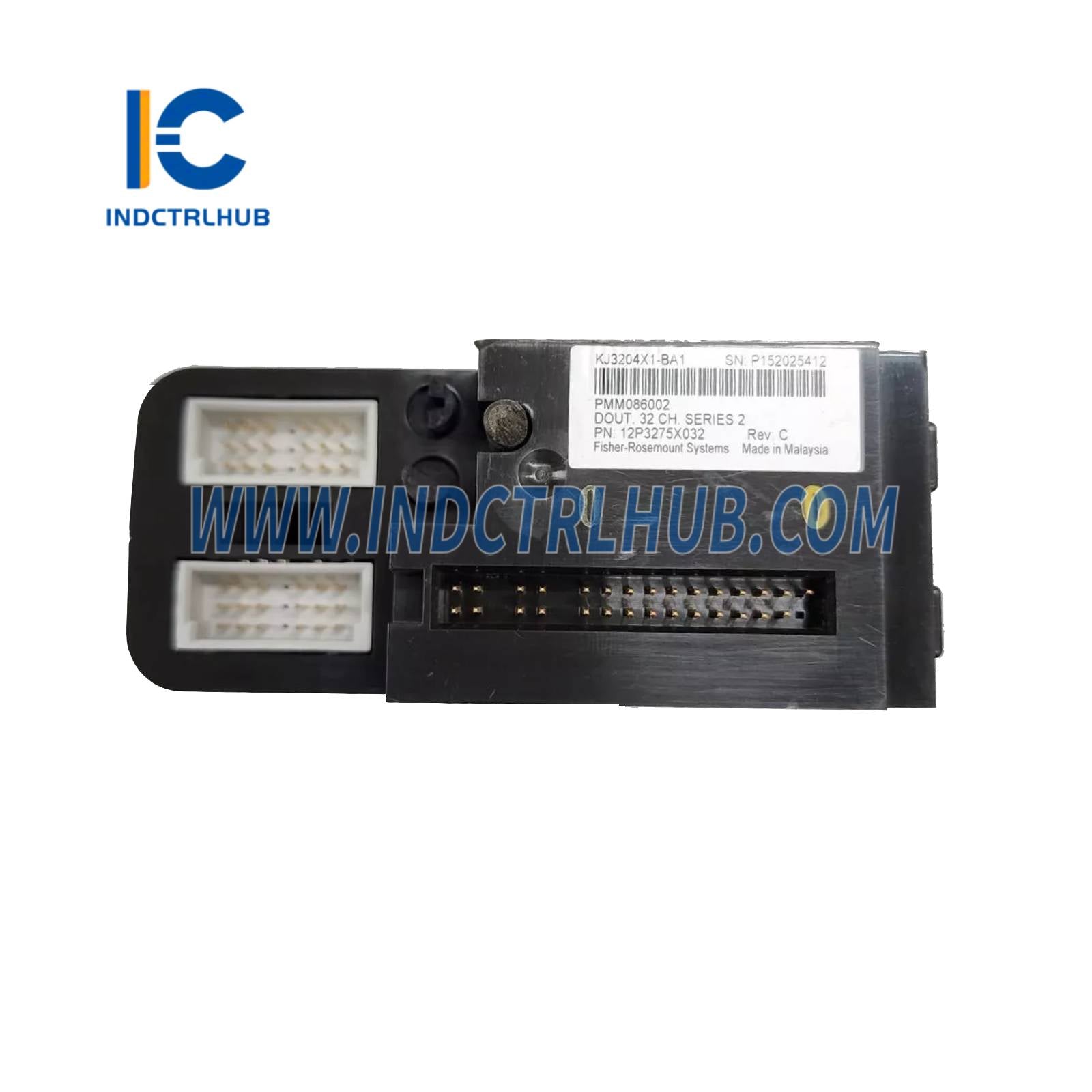

KJ3204X1-BA1 12P3275X032 |
|
Description |

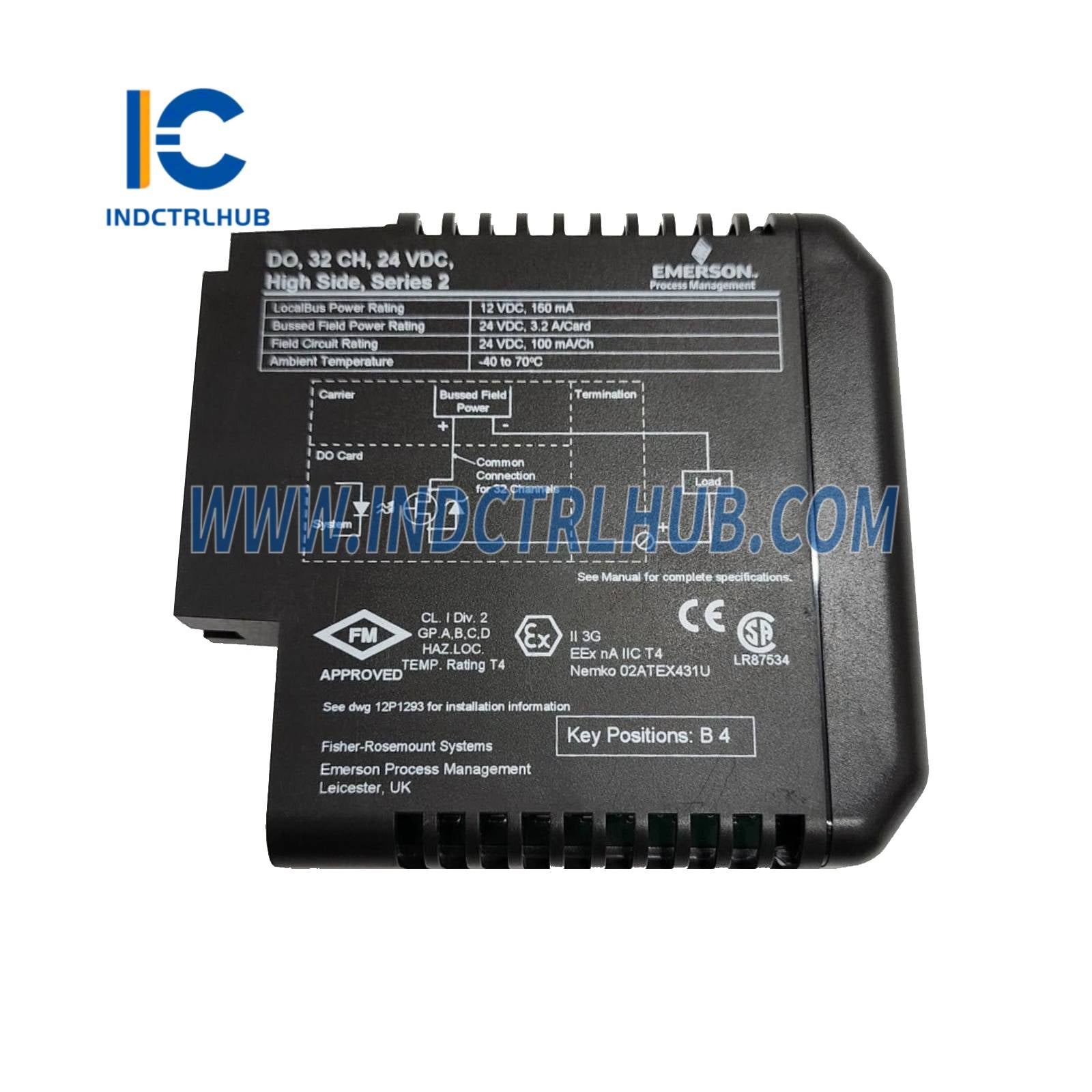

24 VDC High-Side Series 2 Card |
Power Specifications
|
Power Type |
Value |
|---|---|
|
Local Bus Power |
12 VDC at 150 mA |
|
Bussed Field Power |
24 VDC at 3.2 A per card |
|
Field Circuit Power |
24 VDC at 100 mA per channel |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP 20 |
|
Terminal Block Key Position |
B4 |
Installation and Operation Notes
-
Hazardous Area Compliance:
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions)
and the Installing Your DeltaV Automation System manual.
-
Removal and Insertion:
-
When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on 24 VDC or 12 VDC input.
-
The primary circuit wiring inductance must be less than 23 µH, or use a certified supply with Ui = 12.6 VDC and Lo < 23 µH.
-
Field power must be removed before inserting or removing the device
-
May be removed/inserted while system power is energized under certain conditions (Only one unit at a time).
-
Non-sparking field circuits must be de-energized before removal or insertion.
-
Rotary Keying System:
Ensures compatibility between I/O cards and terminal blocks after installation. The terminal block must have the keys set for the I/O card.
Maintenance and Adjustment
-
Contains no user-serviceable parts.
-
Do not disassemble.
-
No calibration required.
