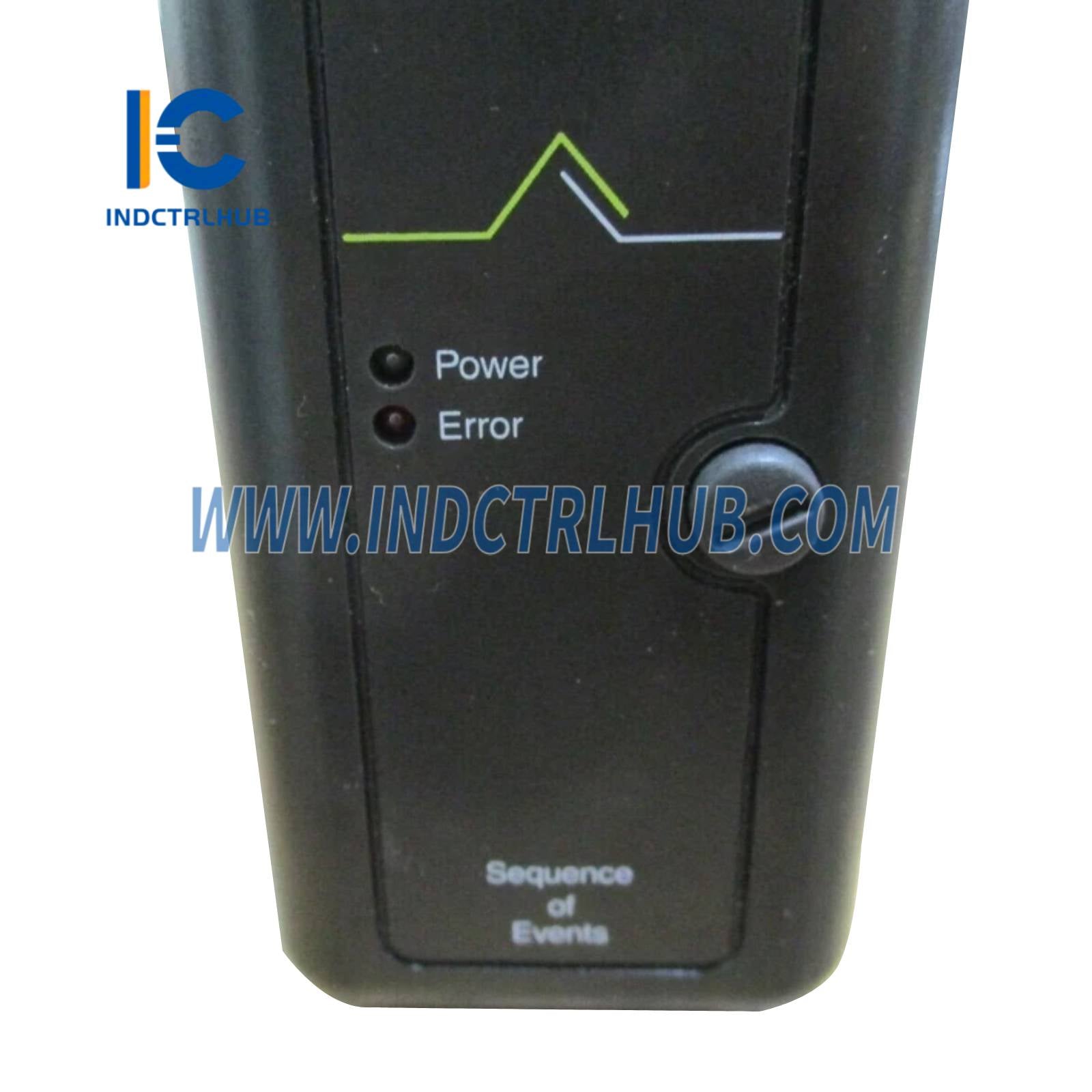

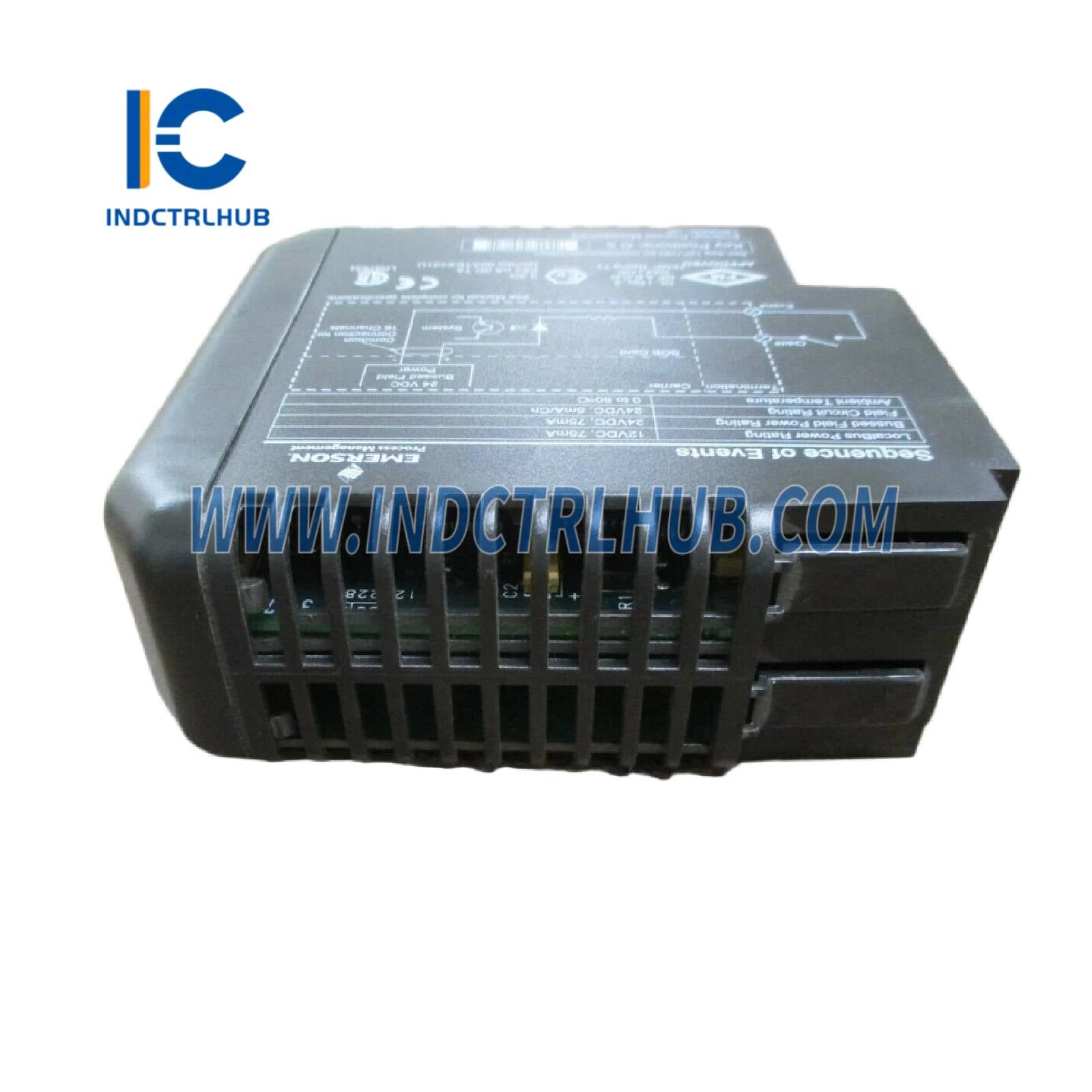

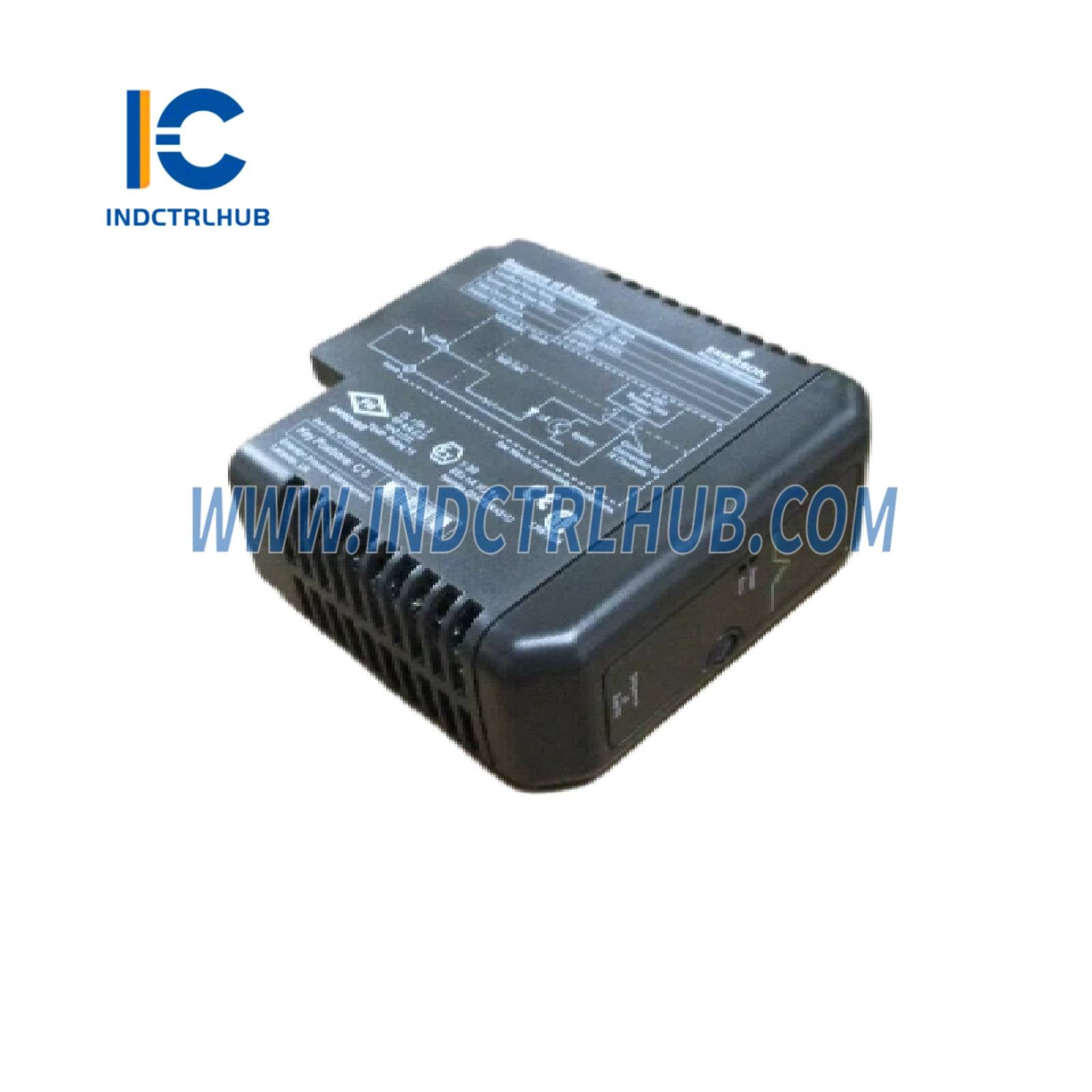

Emerson KJ3008X1-BA1 12P2293X052 SOE (Sequence of Events) Card
Emerson KJ3008X1-BA1 12P2293X052 SOE (Sequence of Events) Card
Manufacturer: Emerson
Product No.: KJ3008X1-BA1
Condition:1000 in stock
Product Type: SOE (Sequence of Events) Card
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3008X1-BA1 12P2293X052 |
|
Description |
SOE (Sequence of Events) Card |
_
_

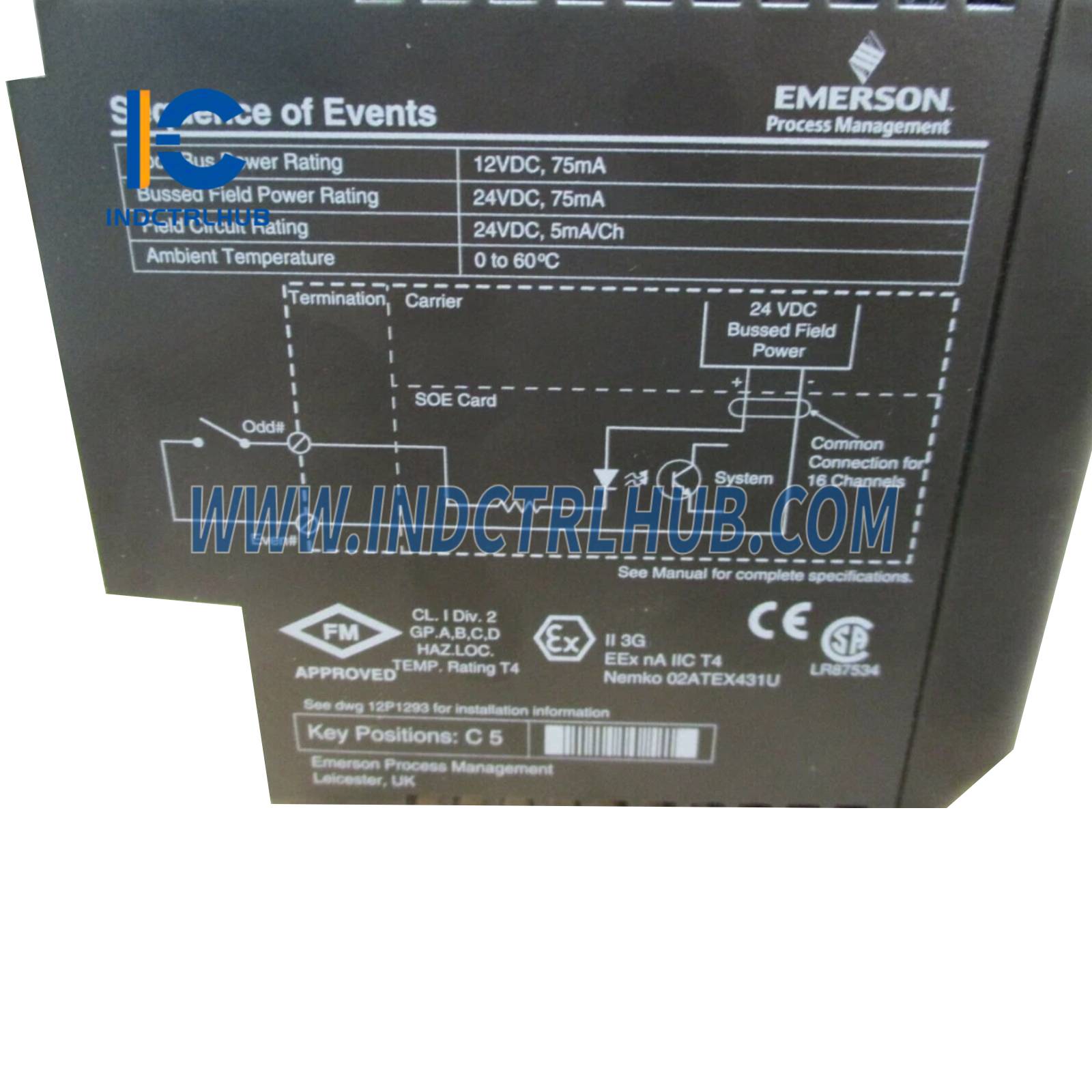

Power Specifications
|
Power Type |
Value |
|---|---|
|
Local Bus Power |
12 VDC at 75 mA |
|
Bussed Field Power |
24 VDC at 75 mA |
|
Field Circuit Power |
24 VDC at 5 mA per channel |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
0°C to +60°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5_16 Hz); 0.5 g (16_150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 _1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP 20 |
|
Terminal Block Key Position |
C5 |
_
_
Installation and Operation Notes
_
-
Hazardous Area Compliance:
Refer to_Document 12P2046_(DeltaV_ Scalable Process System Zone 2 Installation Instructions)
and the_Installing Your DeltaV Automation System_manual.
-
Removal and Insertion:
_
-
Used with_KJ1501X1-BC1 System Dual DC/DC Power Supply_(24 VDC or 12 VDC input).
-
Primary circuit wiring inductance <_23 µH, or use a certified supply (Ui = 12.6 VDC, Lo < 23 µH).
-
Field power must be removed_before inserting or removing the device.
-
Can be removed/inserted while system power is energized_if the following are met:
_
-
Non-sparking field circuits must be de-energized_prior to removal/insertion.
-
Rotary Keying System:
Ensures the terminal block only connects with the correct I/O card. Key position for this card is_C5.
_
_
Maintenance and Adjustment
_
-
No user-serviceable parts inside.
-
Do not disassemble_the unit.
-
Calibration not required.
_
_
