Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3007X1-EA1 |
|
Description |

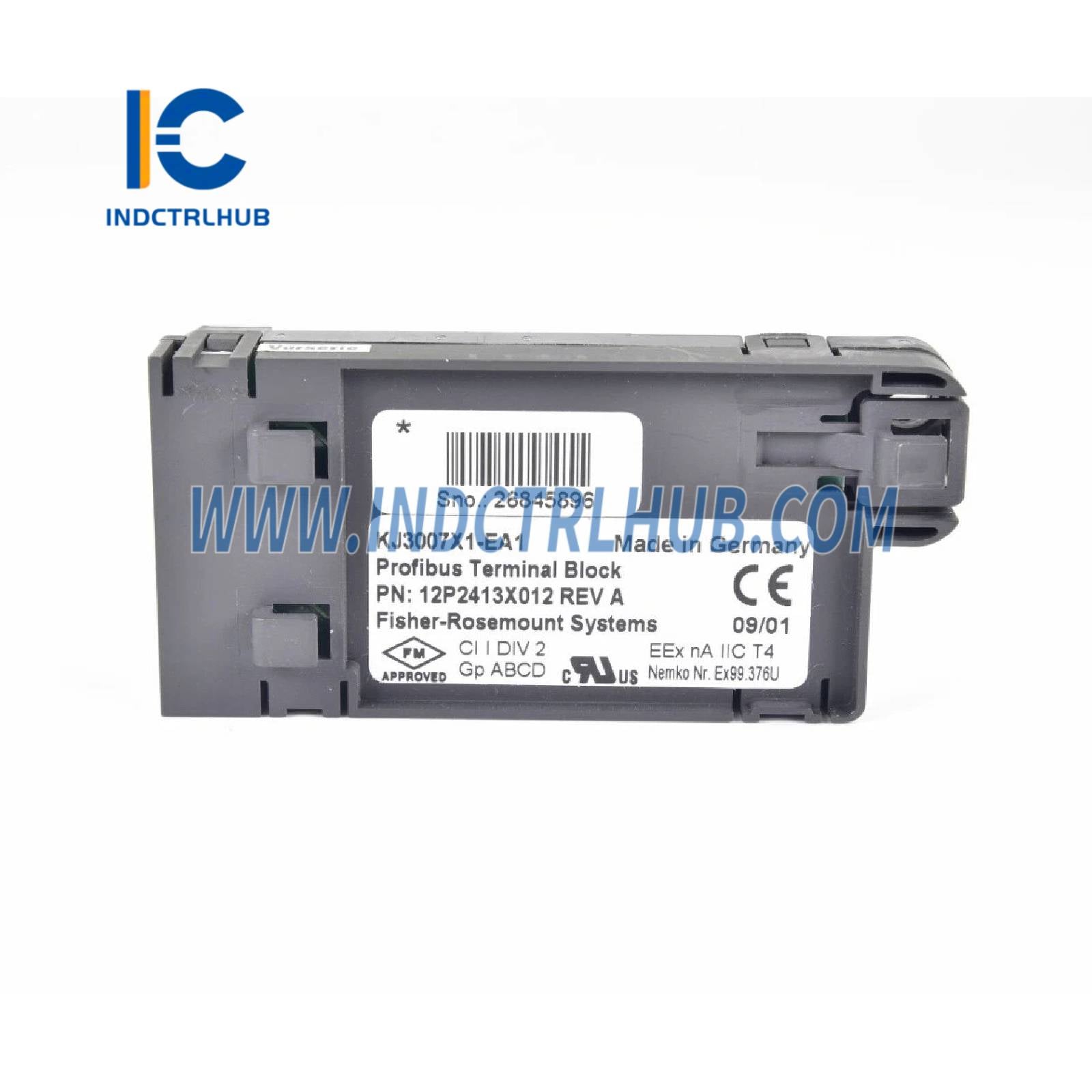

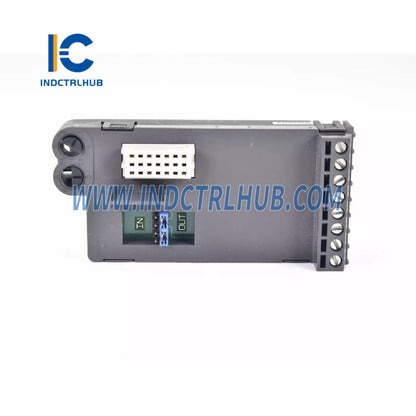

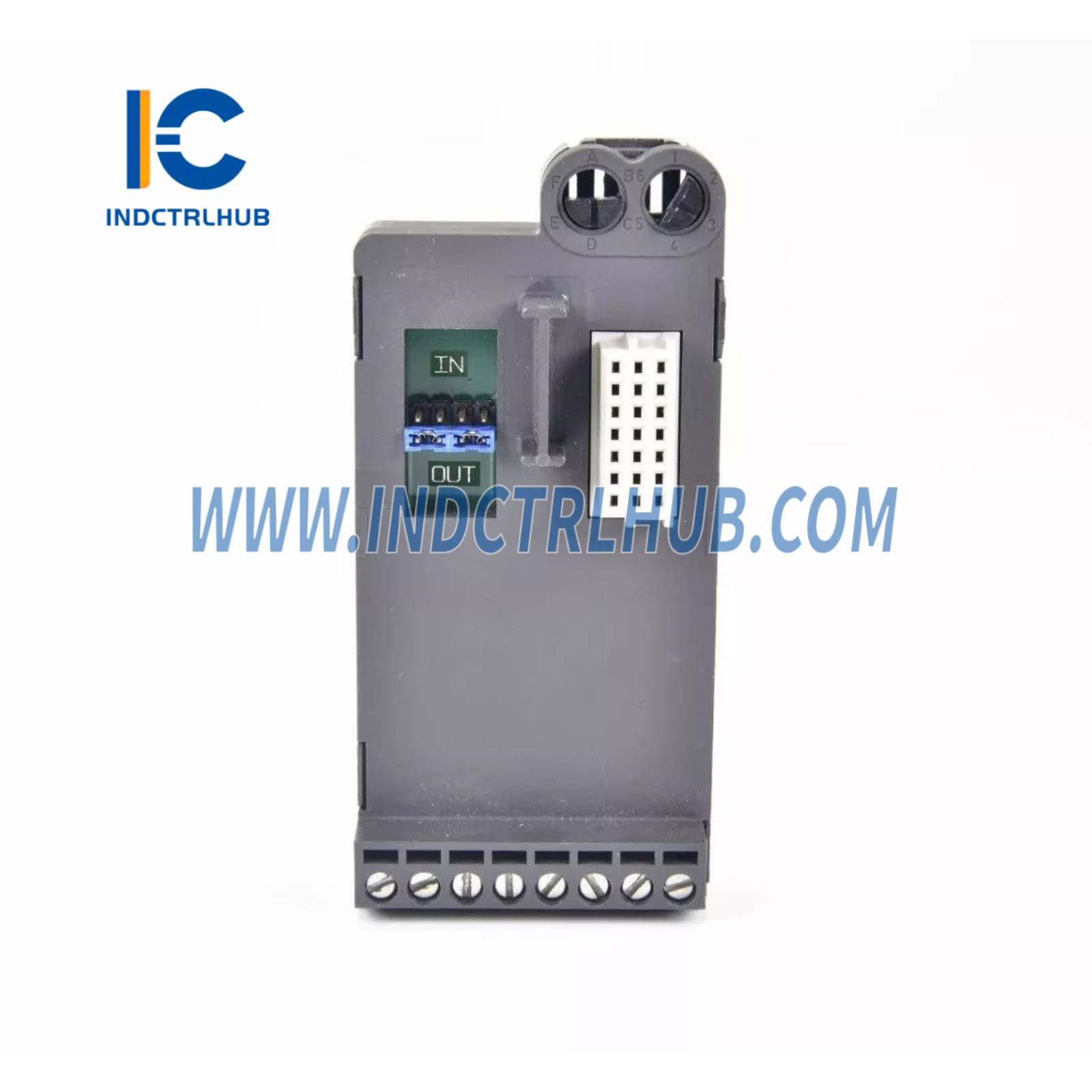

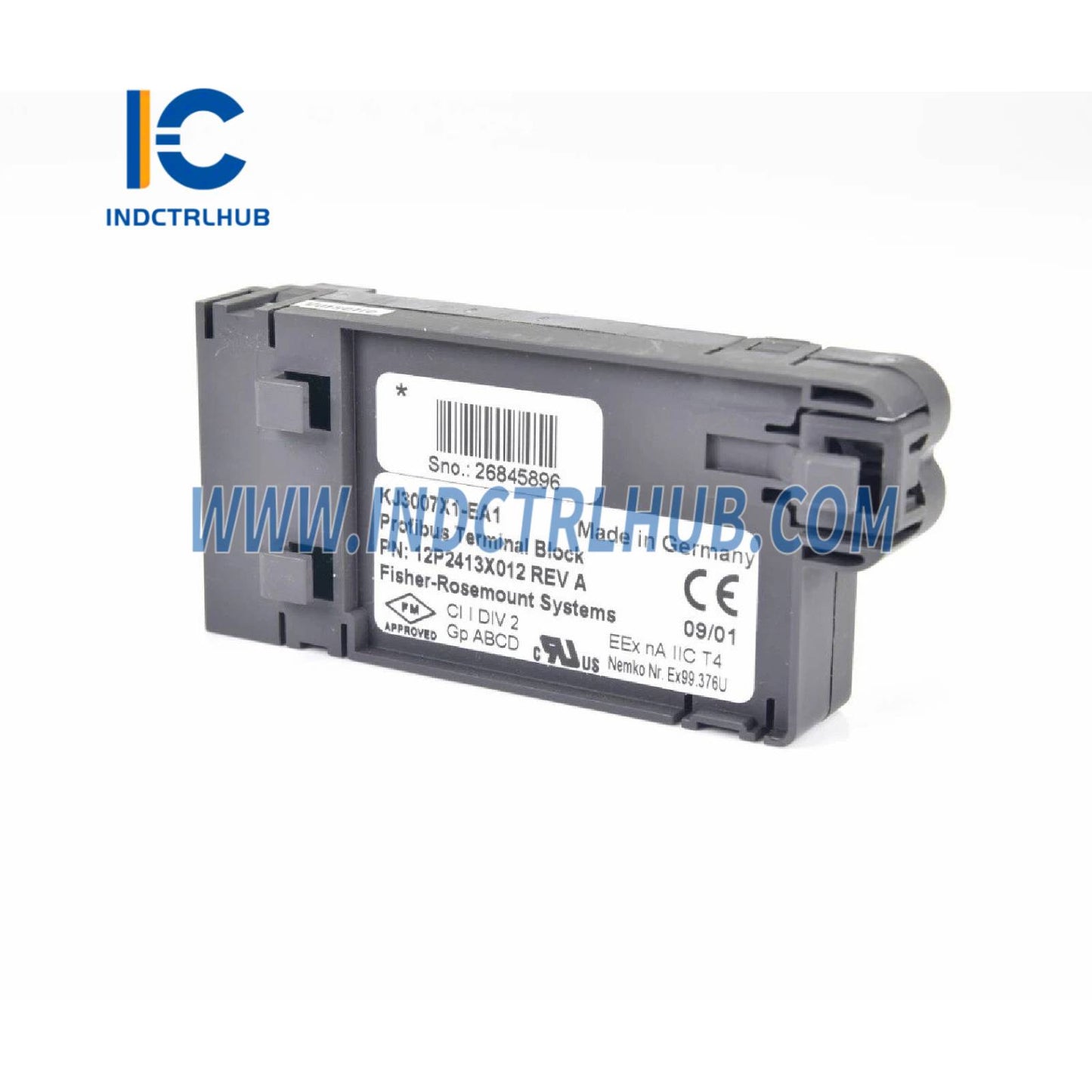

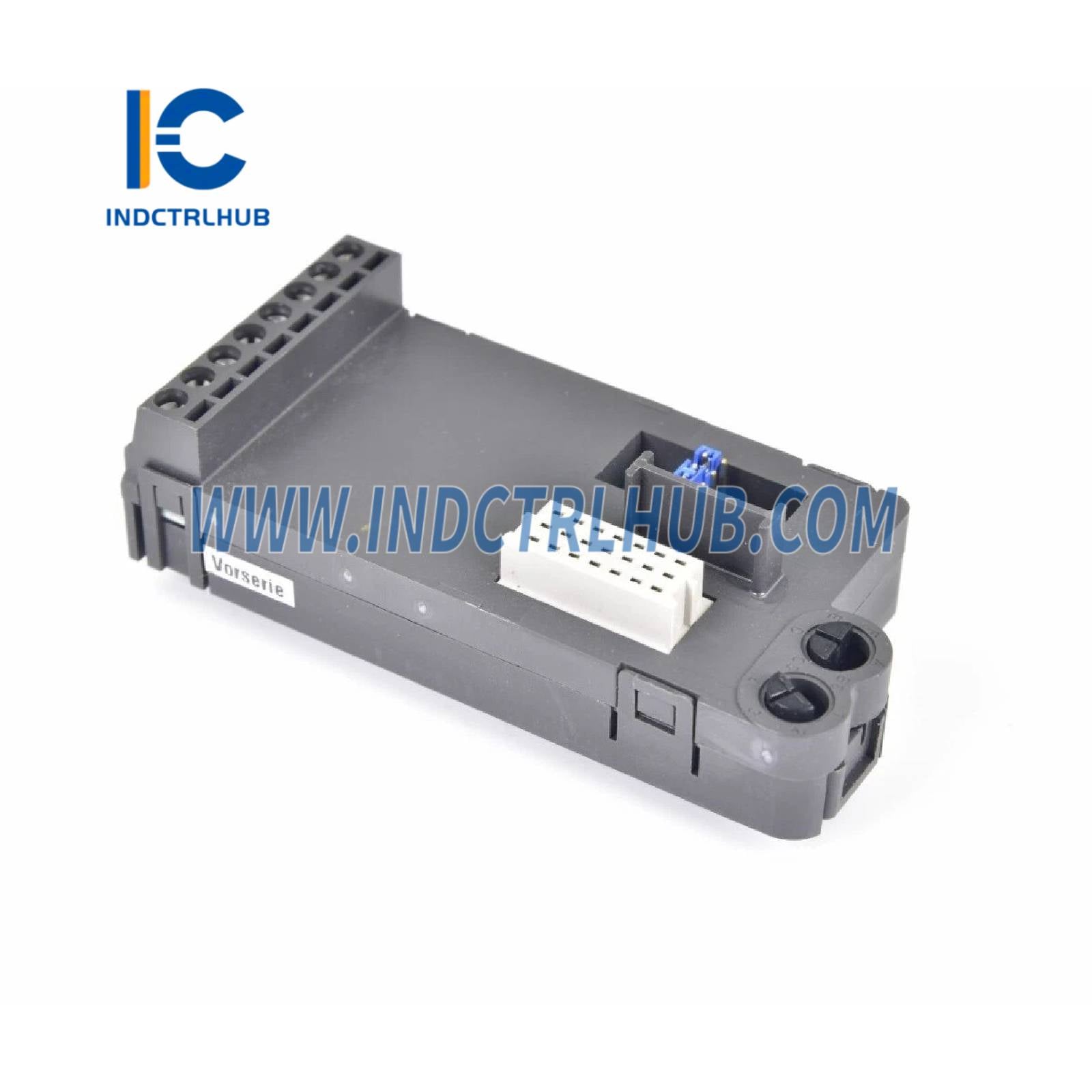

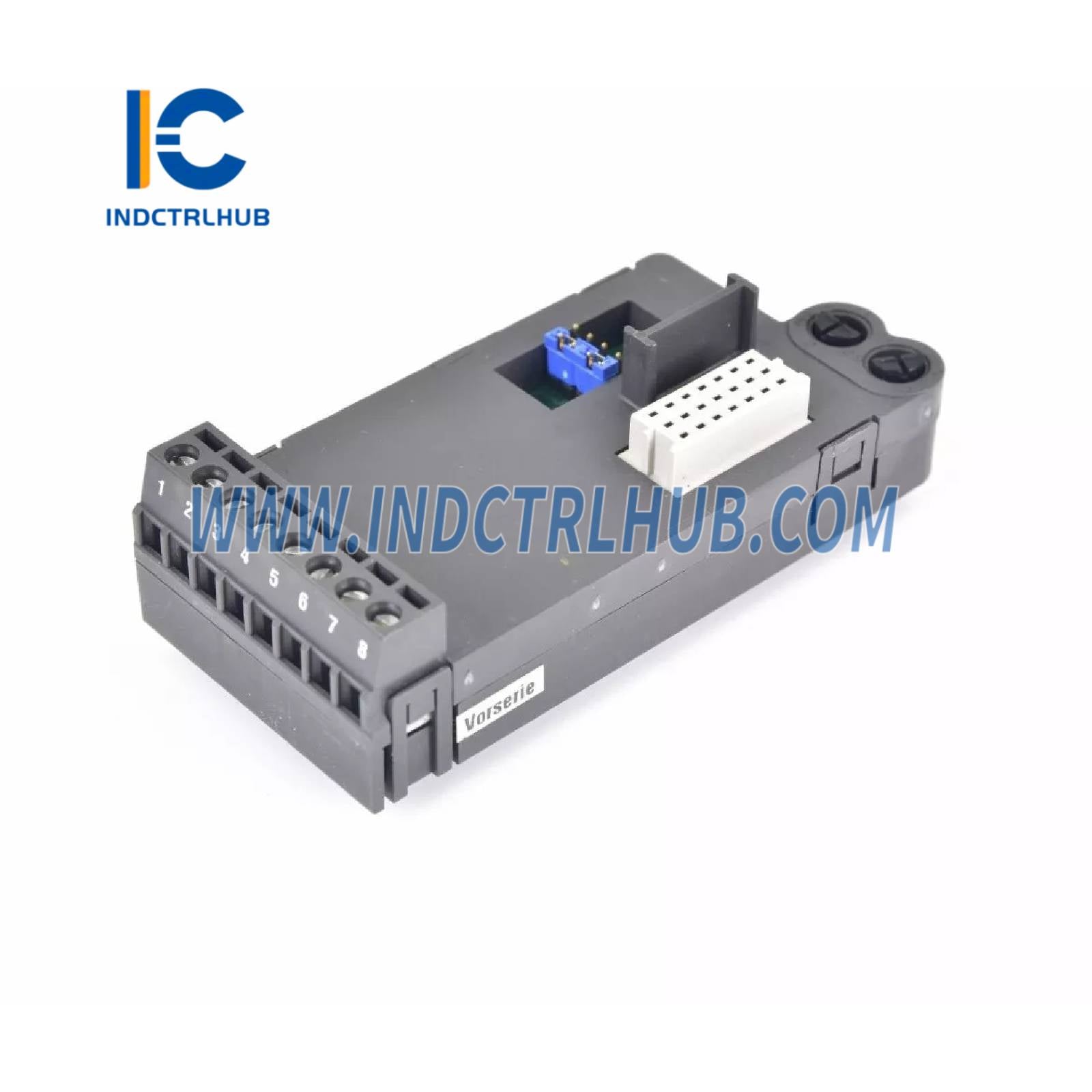

ProfibusDP Terminal Block |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Voltage Rating |
5 VDC |
|
Max Current |
100 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
0°C to +60°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP 20 |
Installation and Operation Notes
-
Hazardous Area Compliance:
Follow Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions) and the Installing Your DeltaV Automation System manual.
-
Rotary Keying System:
Ensures proper matching between terminal blocks and I/O cards. Terminal block keys must be set correctly for the corresponding I/O card.
Maintenance and Adjustment
-
No user-serviceable parts.
-
Do not disassemble.
-
Calibration not required.
