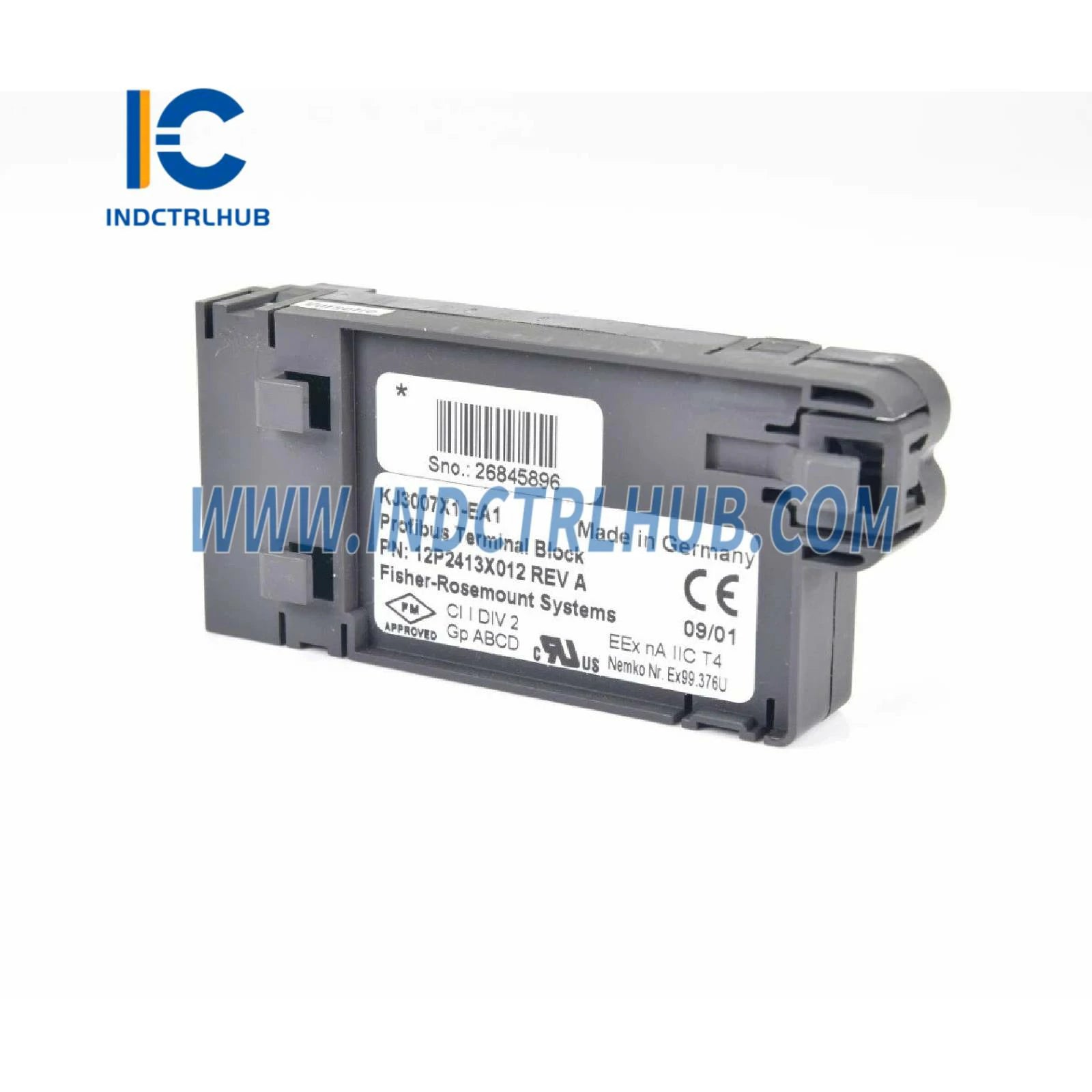

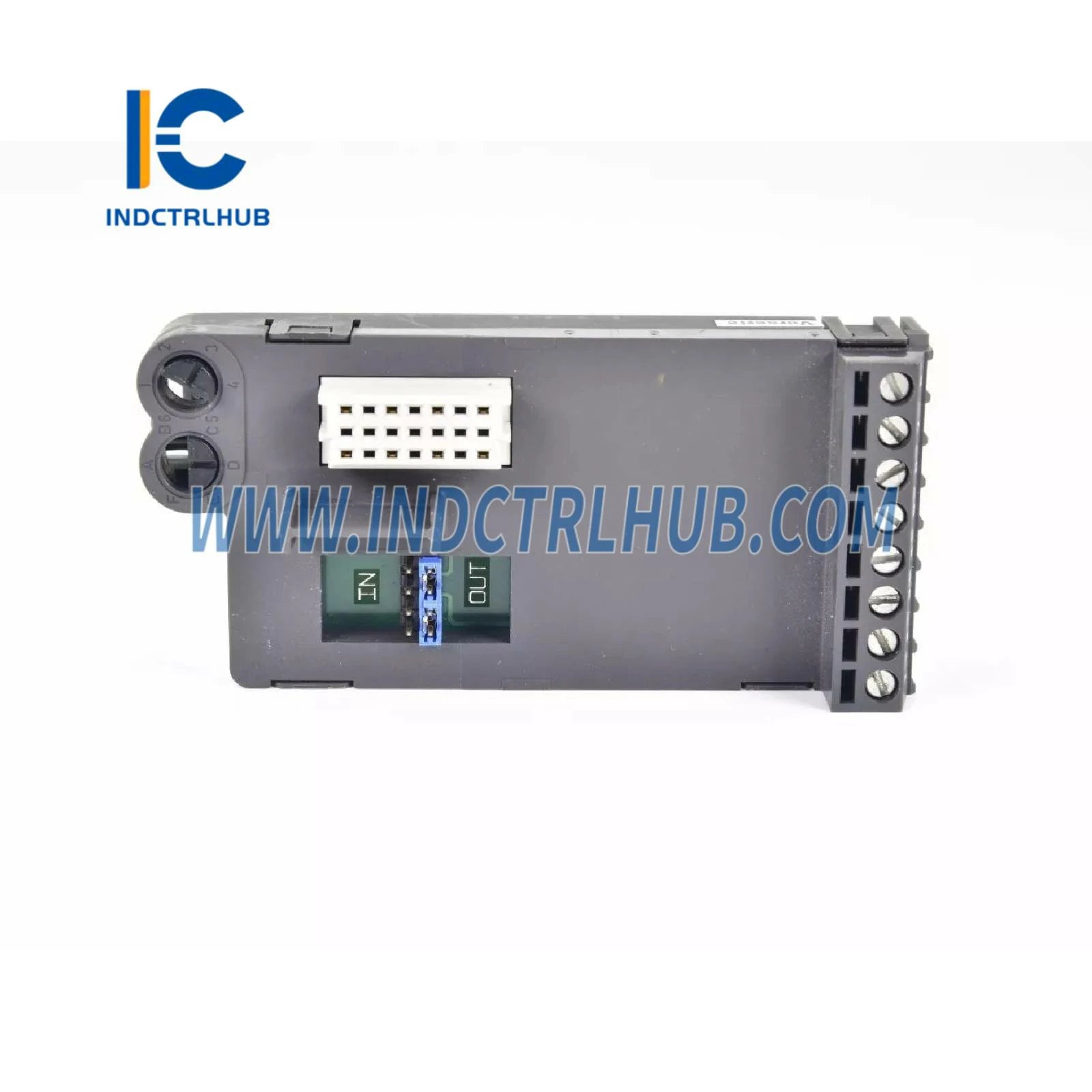

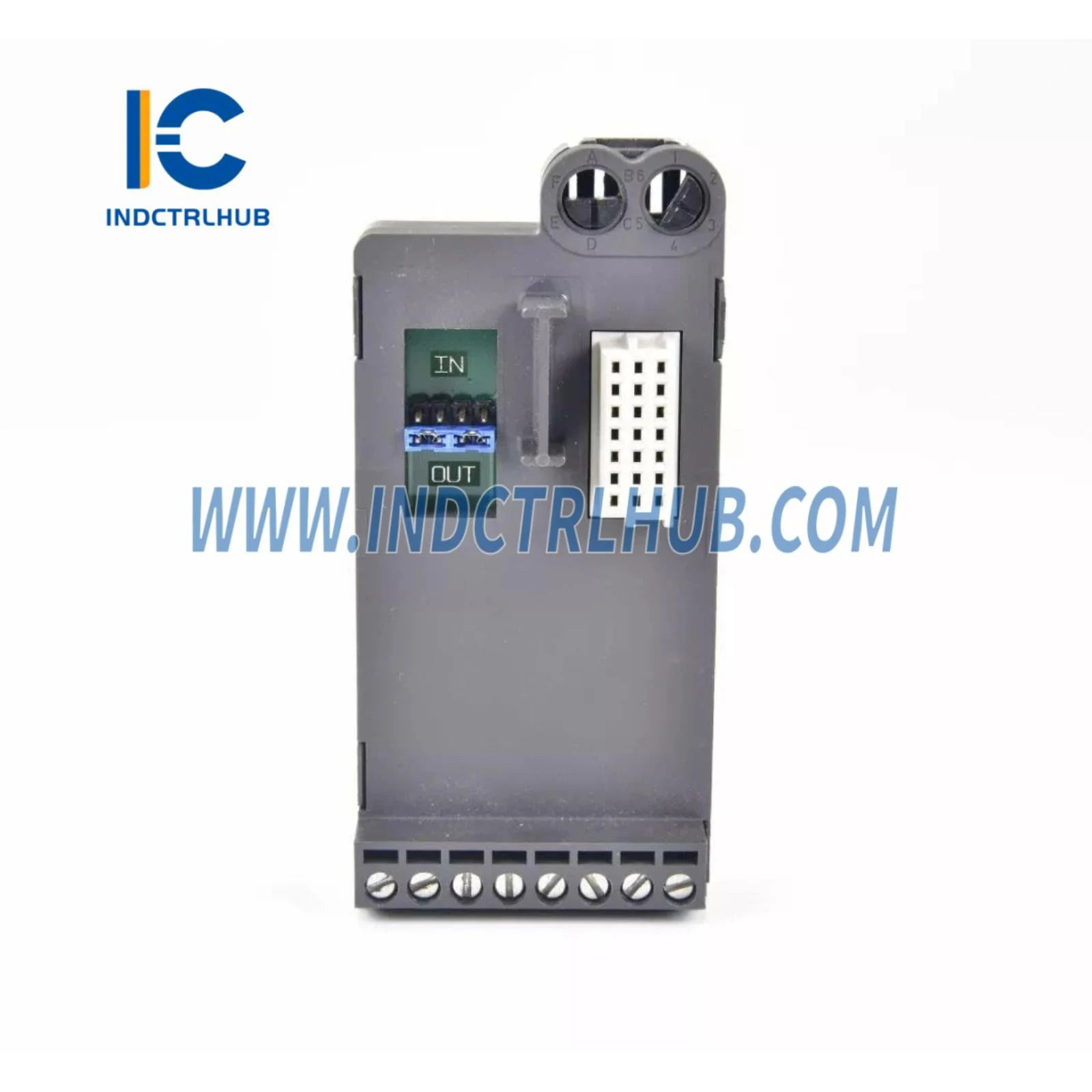

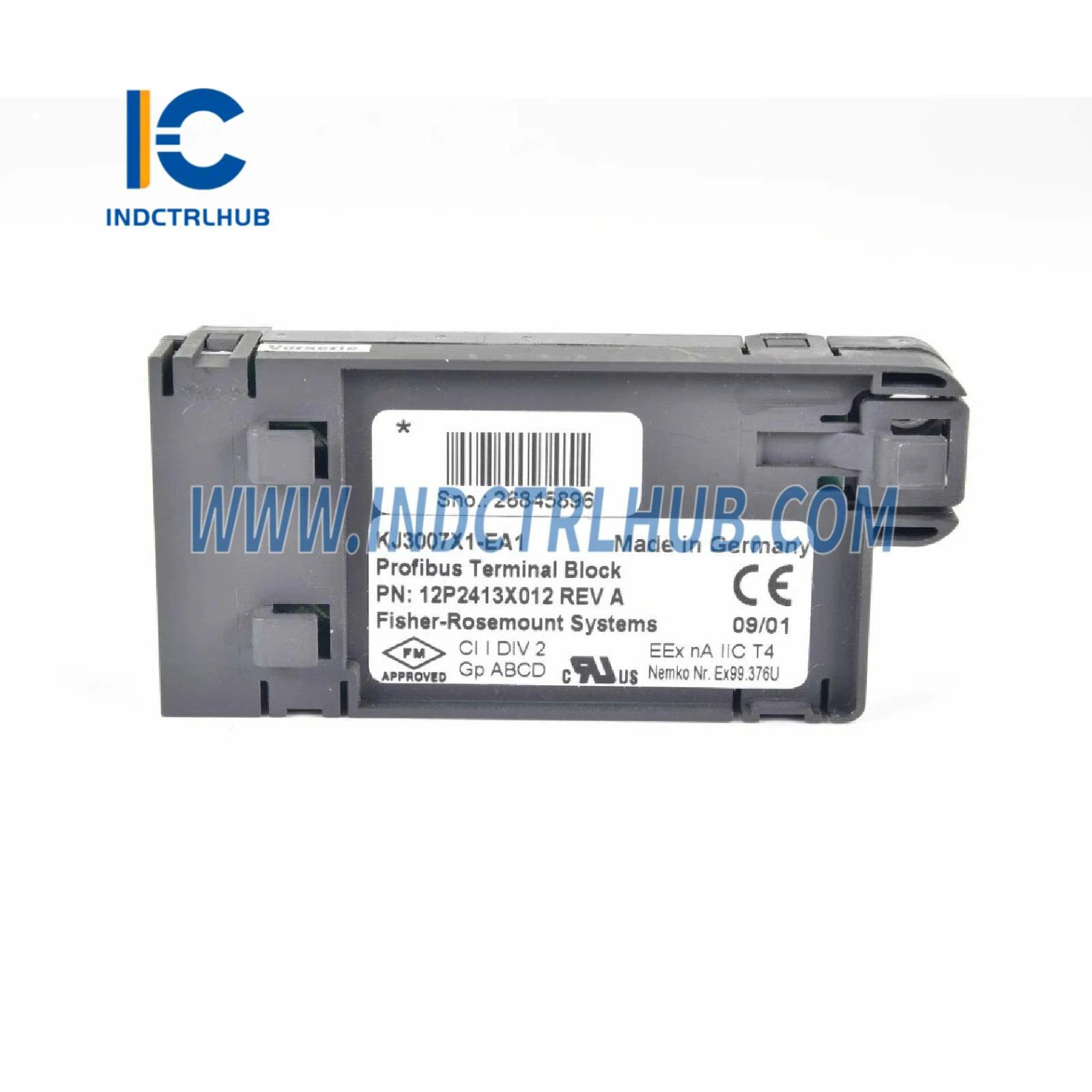

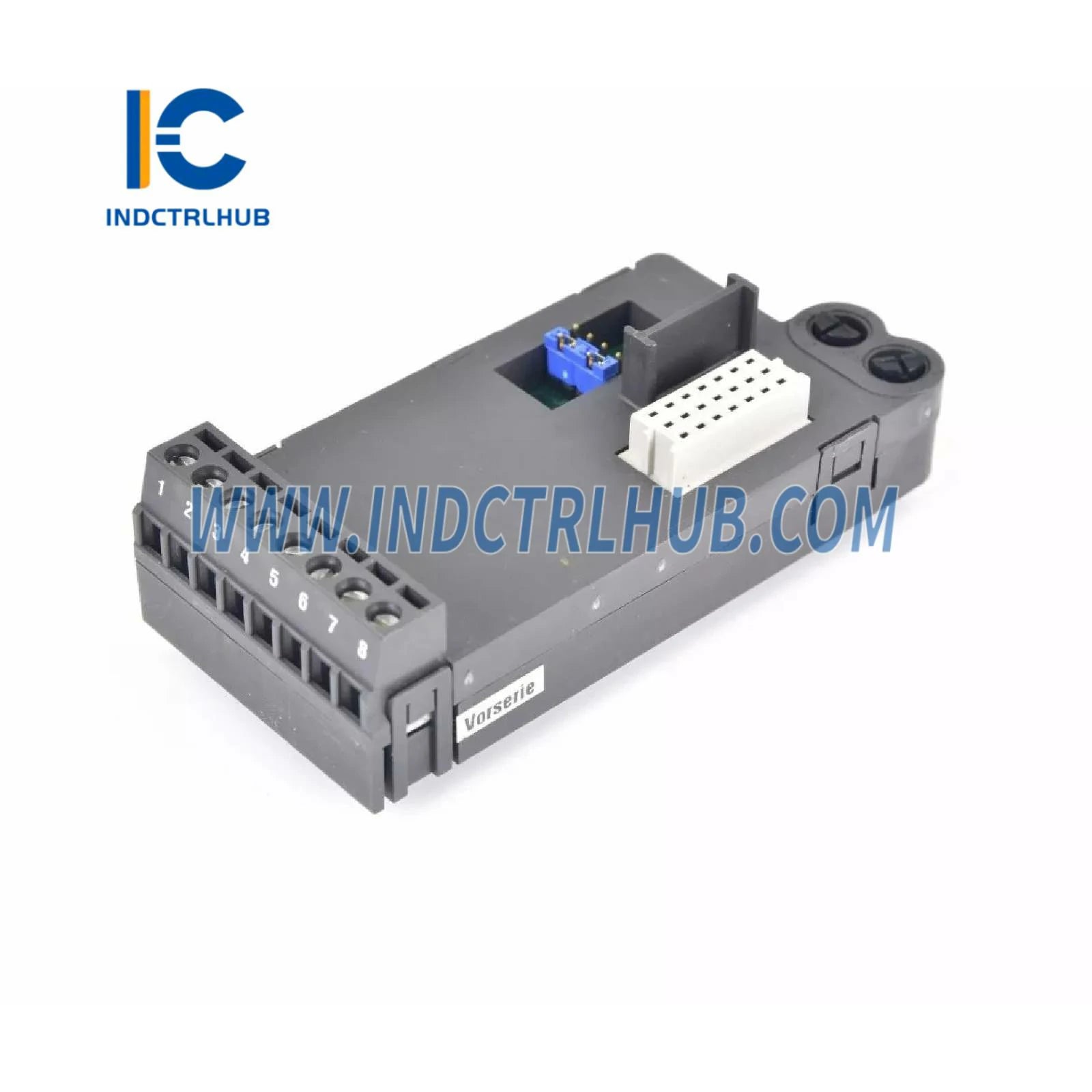

Emerson KJ3007X1-EA1 Profibus DP Terminal Block

Emerson KJ3007X1-EA1 Profibus DP Terminal Block - DeltaV Fieldbus Communication Interface

The Emerson KJ3007X1-EA1 Profibus DP Terminal Block provides critical field wiring termination for DeltaV Profibus DP communication modules, enabling seamless integration of third-party Profibus DP devices into DeltaV distributed control systems. This precision-engineered terminal block features a rotary keying system for foolproof I/O card matching, supporting 5VDC at 100mA for reliable fieldbus communication across oil & gas, chemical, pharmaceutical, and manufacturing facilities.

Core Technical Specifications

• Model Number: KJ3007X1-EA1
• Application: Profibus DP fieldbus communication interface
• Voltage Rating: 5VDC for Profibus DP signal levels
• Maximum Current: 100mA per terminal block
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Keying System: Rotary keying for I/O card matching and error prevention
• Environmental Protection: IP20 rating with ISA-S71.04-1985 Class G3 conformal coating
• System Compatibility: DeltaV M-series controllers with Profibus DP communication cards

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Industrial Profibus DP Applications

Third-Party Device Integration: Connect Profibus DP-enabled field devices from manufacturers like Siemens, ABB, Endress+Hauser, and Yokogawa to DeltaV control systems. The KJ3007X1-EA1 terminal block provides the physical interface for Profibus DP communication cables, enabling DeltaV to acquire process data from intelligent transmitters, valve positioners, motor drives, and analytical instruments that communicate via Profibus DP protocol.

Variable Frequency Drive Control: Interface DeltaV with Profibus DP-enabled VFDs for precise motor speed control in pumping, compression, and material handling applications. The terminal block supports bidirectional communication, allowing DeltaV to send speed setpoints and control commands while receiving drive status, current, voltage, and diagnostic information for predictive maintenance and energy optimization.

Analytical Instrument Networks: Integrate process analyzers including gas chromatographs, mass spectrometers, pH meters, and dissolved oxygen sensors that communicate via Profibus DP. The 5VDC signal level and 100mA current capacity ensure reliable data transmission from analytical instruments located in remote analyzer shelters or sample conditioning systems back to the central DeltaV control room.

Packaging Line Automation: Connect Profibus DP-based packaging equipment including filling machines, labelers, case packers, and palletizers to DeltaV batch control systems. The terminal block enables recipe management, production tracking, and quality data collection from packaging lines while maintaining synchronization with upstream batch reactors and downstream warehouse management systems.

Power Generation Auxiliary Systems: Interface Profibus DP-enabled balance-of-plant equipment including boiler feedwater pumps, condensate polishing systems, and cooling tower controls with DeltaV power plant automation systems. The terminal block supports high-speed cyclic data exchange required for coordinated startup, load following, and emergency shutdown sequences.

Rotary Keying System Advantages

Foolproof I/O card matching prevents costly installation errors:

• Mechanical Coding: Rotary key positions physically prevent incorrect I/O card insertion into terminal blocks
• Error Prevention: Eliminates risk of connecting Profibus DP cards to incompatible terminal blocks (analog, discrete, etc.)
• Simplified Commissioning: Visual key position verification accelerates cabinet checkout and reduces startup delays
• Maintenance Safety: Prevents technicians from accidentally installing wrong card type during emergency repairs
• Field Reconfiguration: Keys can be manually adjusted to change terminal block function when repurposing I/O carriers

Profibus DP Protocol Overview

Understanding Profibus DP communication characteristics:

Communication Speed: Profibus DP supports baud rates from 9.6 kbps to 12 Mbps, with typical industrial installations operating at 1.5 Mbps for optimal balance between speed and cable length. The KJ3007X1-EA1 terminal block accommodates all standard Profibus DP baud rates through proper DeltaV configuration.

Network Topology: Profibus DP uses RS-485 physical layer with bus topology, supporting up to 32 devices per segment without repeaters (126 devices with repeaters). The terminal block provides screw terminal connections for the two-wire shielded twisted pair Profibus DP cable, with proper shield grounding critical for noise immunity.

Cyclic Data Exchange: Profibus DP operates on a master-slave principle where DeltaV acts as the DP master, cyclically polling slave devices for process data. Typical cycle times range from 1-10ms depending on network configuration, enabling real-time control of fast processes like motor drives and high-speed packaging equipment.

Acyclic Services: In addition to cyclic I/O data, Profibus DP supports acyclic services for parameter setting, diagnostics, and alarm retrieval. The terminal block facilitates these extended services, allowing DeltaV to perform remote device configuration and advanced diagnostics without field visits.

Installation Requirements & Best Practices

Critical guidelines for reliable Profibus DP operation:

Cable Specifications: Use Profibus DP-certified cable (Type A for standard applications) with characteristic impedance of 135-165Ω. Cable shield must be grounded at both ends for optimal EMC performance, with shield continuity maintained through the terminal block to the I/O card.

Termination Resistors: Install 220Ω termination resistors at both physical ends of the Profibus DP segment. The terminal block provides connections for external termination resistors, which must be activated for the first and last devices on the network to prevent signal reflections.

Grounding & Shielding: Maintain proper cabinet grounding with low-impedance connection to facility ground grid. Profibus DP cable shields should be terminated in 360-degree shield clamps at cable entries, with shield continuity through the terminal block to the I/O card for maximum noise immunity.

Rotary Key Setting: Verify rotary key position matches the I/O card type before installation. Keys are automatically set during initial terminal block installation but can be manually adjusted if repurposing the terminal block for a different I/O card type. Incorrect key position will prevent I/O card insertion.

Environmental Specifications

Hazardous Area Installation Requirements

Critical safety guidelines for classified locations:

• Installation Documentation: Refer to Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions" and "Installing Your DeltaV Automation System" manual
• Rotary Key Verification: Confirm key position matches I/O card type before energizing system in hazardous areas
• Cable Entry Sealing: Use appropriate cable glands or conduit seals for Profibus DP cables entering hazardous area enclosures
• Grounding Compliance: Follow area classification requirements for shield grounding and equipotential bonding

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV terminal blocks
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, wiring diagrams, and configuration assistance

Complementary DeltaV Terminal Blocks

Ordering Information & System Planning

• KJ3007X1-EA1: Profibus DP Terminal Block (this product)
• Compatible I/O Cards: DeltaV Profibus DP communication cards (verify part numbers in DeltaV documentation)
• Required Accessories: Profibus DP cable (Type A), termination resistors (220Ω), cable glands or conduit fittings
• System Planning: Verify Profibus DP network topology, baud rate, and device addressing before installation

Technical Documentation & Support

Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions), "Installing Your DeltaV Automation System," and Profibus DP configuration guides available upon request. Our application engineering team provides Profibus DP network design consultation, device integration assistance, and troubleshooting support for complex multi-vendor fieldbus implementations.

Maintenance & Service Life

• No User-Serviceable Parts: Terminal block is a passive wiring interface with no active components requiring maintenance
• No Calibration Required: Mechanical keying system requires no adjustment or calibration
• Do Not Disassemble: Terminal block disassembly may damage rotary keying mechanism or screw terminals
• Inspection Criteria: Periodically inspect screw terminals for tightness and check for signs of overheating or corrosion
• Replacement Criteria: Replace if physical damage, cracked housing, or damaged keying mechanism is observed
