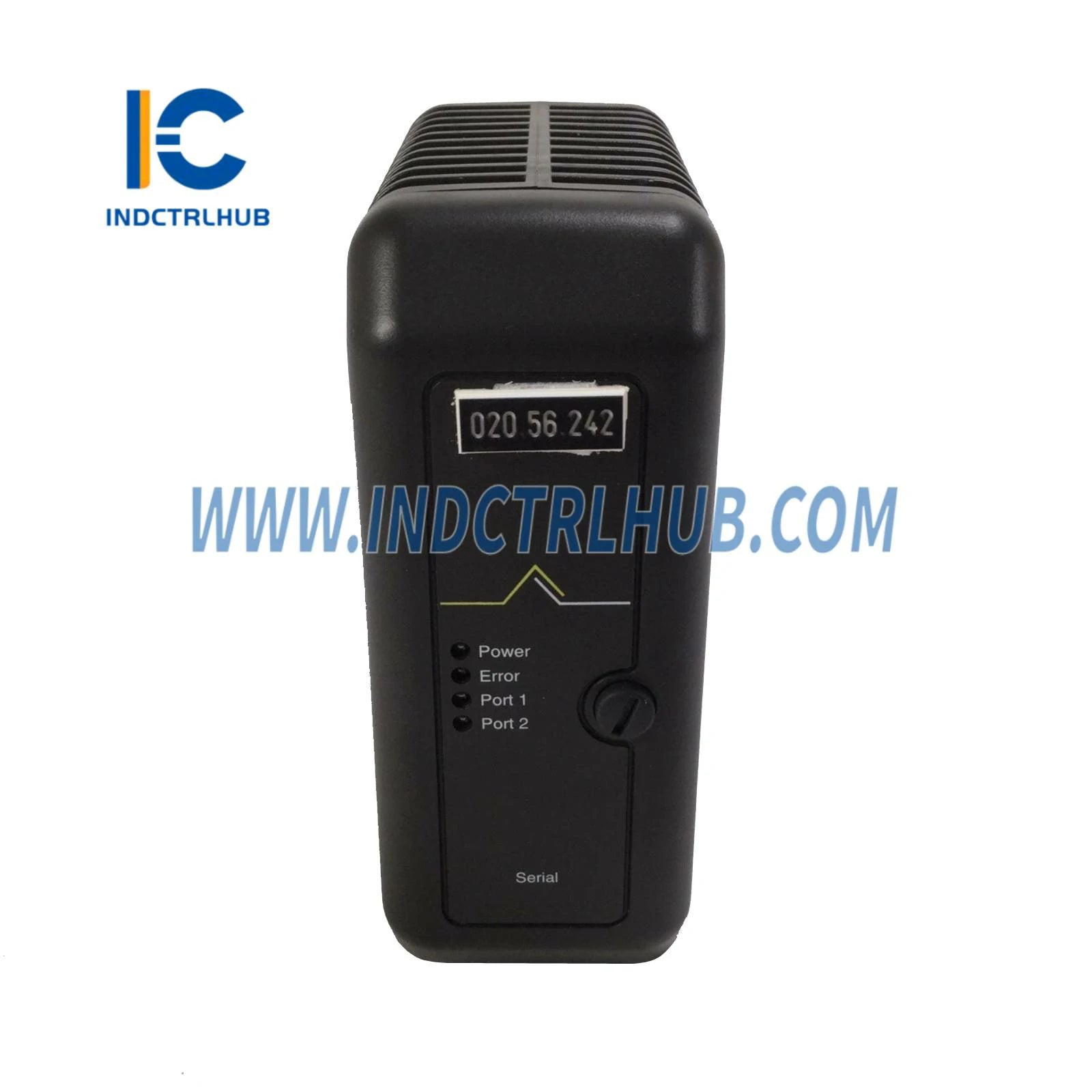

Emerson KJ3003X1-BA1 Serial Interface Card for DeltaV
Emerson KJ3003X1-BA1 Serial Interface Card for DeltaV
Manufacturer: Emerson
Product No.: KJ3003X1-BA1
Condition:1000 in stock
Product Type: Serial Interface Card
Product Origin: 6954789023458
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson KJ3003X1-BA1 Serial Interface Card – Multi-Protocol Communication for DeltaV Systems
The Emerson KJ3003X1-BA1 Serial Interface Card delivers robust RS-232/RS-485 serial communication capabilities for DeltaV distributed control systems, enabling seamless integration with legacy SCADA platforms, Modbus RTU devices, third-party analyzers, and proprietary industrial equipment. Engineered for high-reliability process environments, this interface card supports full-duplex and half-duplex modes with configurable baud rates up to 115.2 kbps.
Key Technical Features
- Protocol Support: Modbus RTU, ASCII, custom serial protocols via DeltaV function blocks
- Physical Interfaces: RS-232 (DB9 connector), RS-485 (2-wire/4-wire terminal block)
- Baud Rate Range: 300 bps to 115,200 bps with auto-detection capability
- Data Format: 7/8 data bits, 1/2 stop bits, even/odd/no parity
- Electrical Isolation: 1500 VDC channel-to-bus isolation for ground loop protection
- Communication Distance: RS-232 up to 15 meters; RS-485 up to 1200 meters
- Power Consumption: 3.5W typical via DeltaV carrier backplane
- Diagnostic LEDs: TX/RX activity, fault indication, link status
- Operating Environment: -40°C to +70°C, 5% to 95% RH non-condensing
- Certifications: UL/cUL, CE, ATEX Zone 2, IECEx for hazardous locations
Industrial Application Solutions
Legacy System Integration: Bridge DeltaV controllers with existing PLC networks, RTU stations, and supervisory systems without costly infrastructure replacement. The KJ3003X1-BA1 translates proprietary protocols into DeltaV-compatible data streams for unified HMI visualization.
Analytical Instrument Connectivity: Interface with gas chromatographs, mass spectrometers, pH analyzers, and moisture meters that output serial data. Automate calibration sequences and alarm management through DeltaV control modules.
Modbus Device Networks: Aggregate data from Modbus RTU flowmeters, energy meters, variable frequency drives, and smart transmitters into centralized DeltaV databases. Supports multi-drop configurations with up to 32 slave devices per RS-485 segment.
Barcode Scanner & RFID Integration: Enable material tracking and batch genealogy by connecting industrial barcode readers and RFID interrogators to DeltaV batch management systems for pharmaceutical and food processing compliance.
Configuration & Deployment Advantages
Pre-configured function blocks in DeltaV Control Studio accelerate commissioning—simply assign communication parameters, device addresses, and polling intervals through intuitive graphical interfaces. The card's onboard buffer (2 KB TX/RX) prevents data loss during network congestion or controller scan delays.
Hot-swappable design allows field replacement without system shutdown, critical for continuous process industries. Built-in surge protection (±15 kV ESD immunity) and watchdog timers ensure fault-tolerant operation in electrically harsh environments.
System Architecture & Compatibility
Mounts directly into DeltaV S-series and M-series carriers (VE4006P2, VE4014, VE4022) with automatic hardware recognition. Compatible with DeltaV software versions 10.3 through 15.1 LTS. Supports redundant controller configurations with automatic failover for mission-critical communication links.
Integrates with DeltaV AMS Device Manager for remote diagnostics, firmware updates, and performance trending. HART-over-serial passthrough enables advanced device management without additional gateways.
Related Communication Products
| Product Model | Function | Product Link |
|---|---|---|
| Emerson KJ3241X1-BK1 | DeltaV Serial Interface Card (Enhanced) | View Product |
| Emerson KJ2101X1-BA1 | DeltaV PROVOX I/O Interface Module | View Product |
| Emerson KJ1611X1-FD1 | DeltaV Network Switch for Control Network | View Product |
Quality & Warranty
Factory-calibrated and tested per Emerson's ISO 9001 quality standards. Each unit ships with test certificates and configuration documentation. Backed by a 12-month warranty covering defects in materials and workmanship. Global technical support available for protocol troubleshooting and integration assistance.
