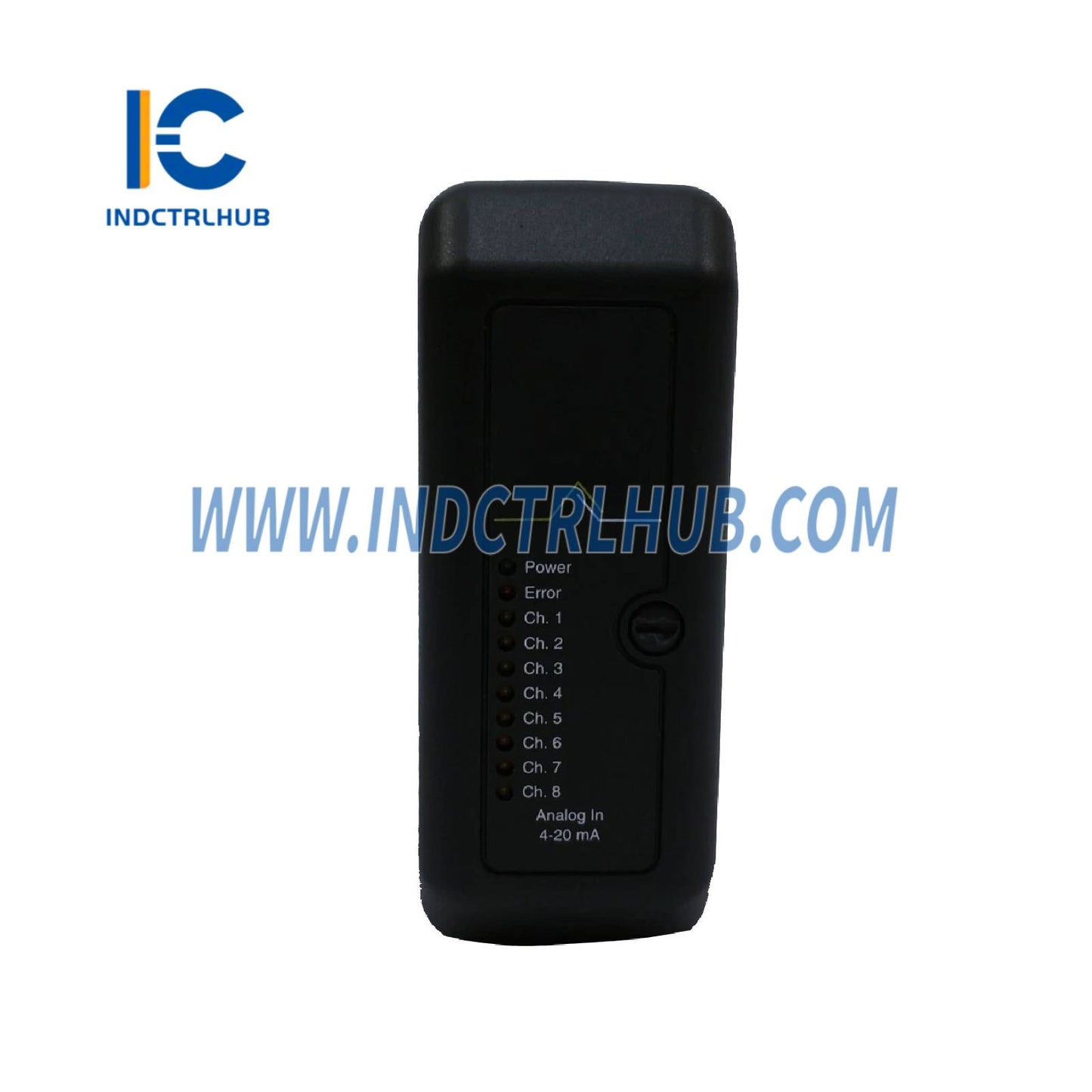

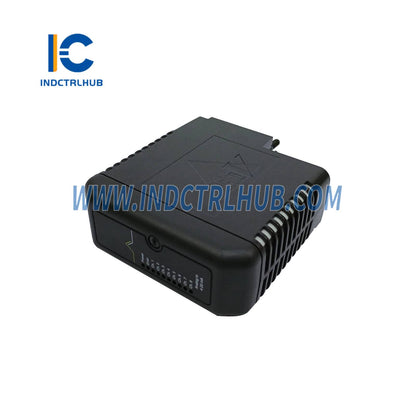

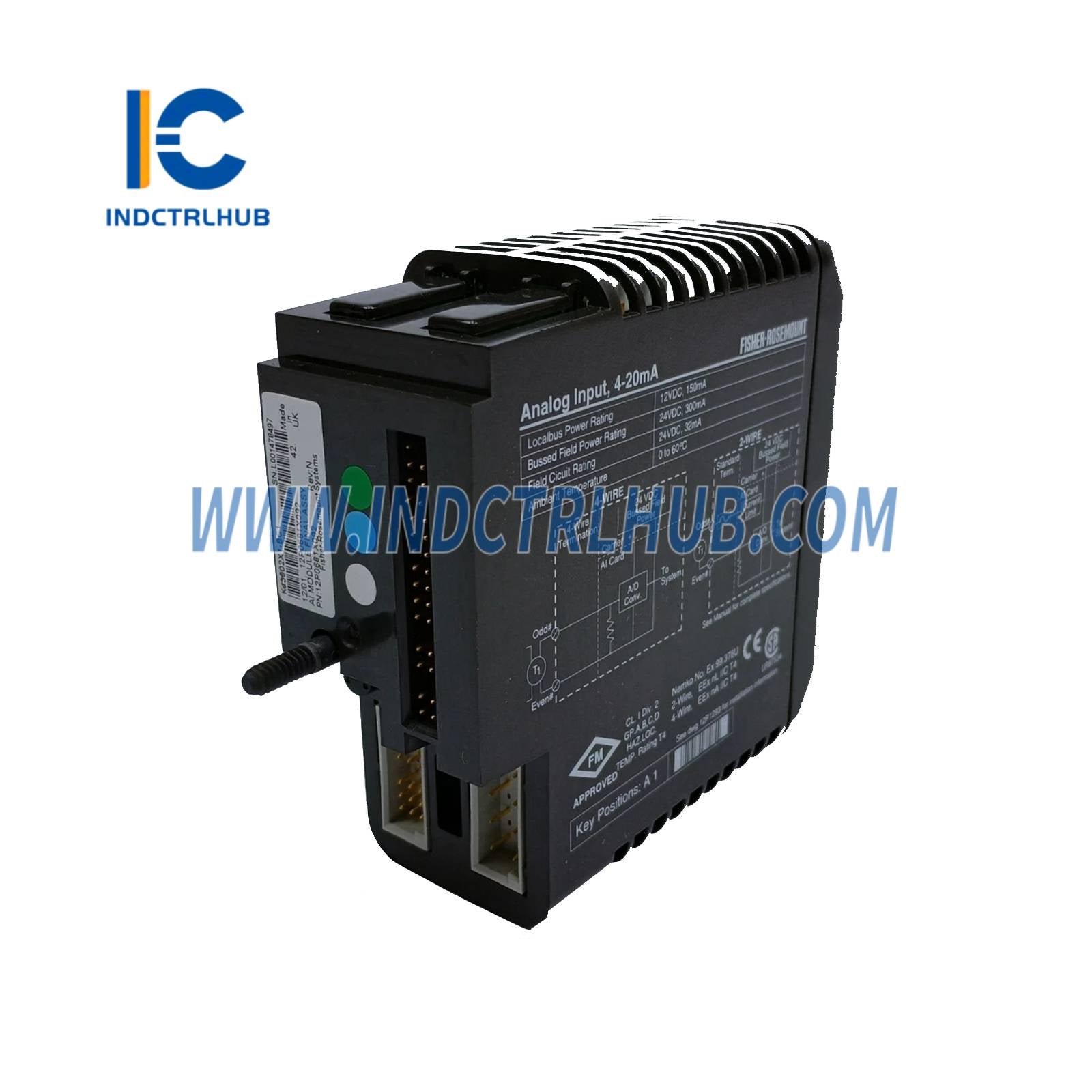

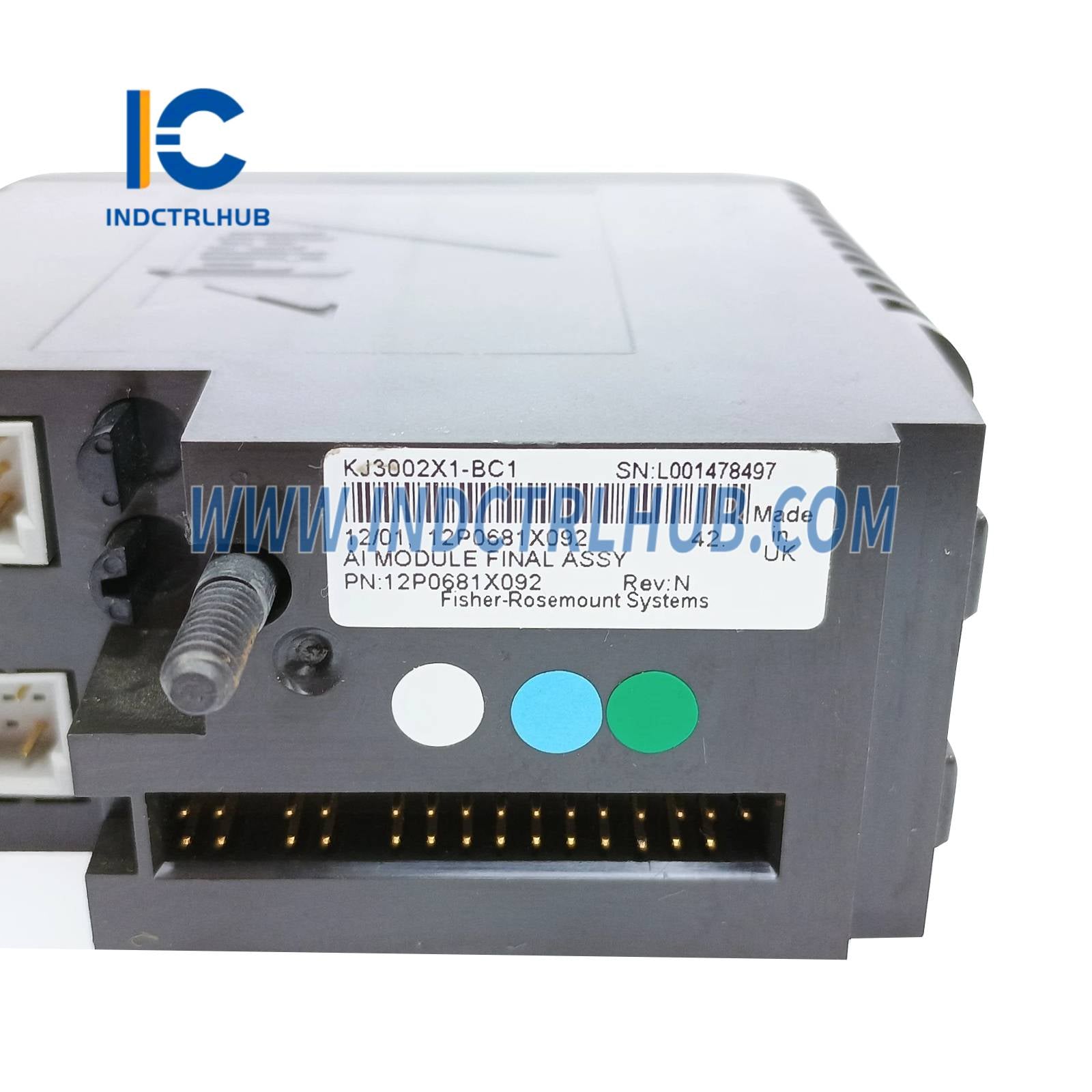

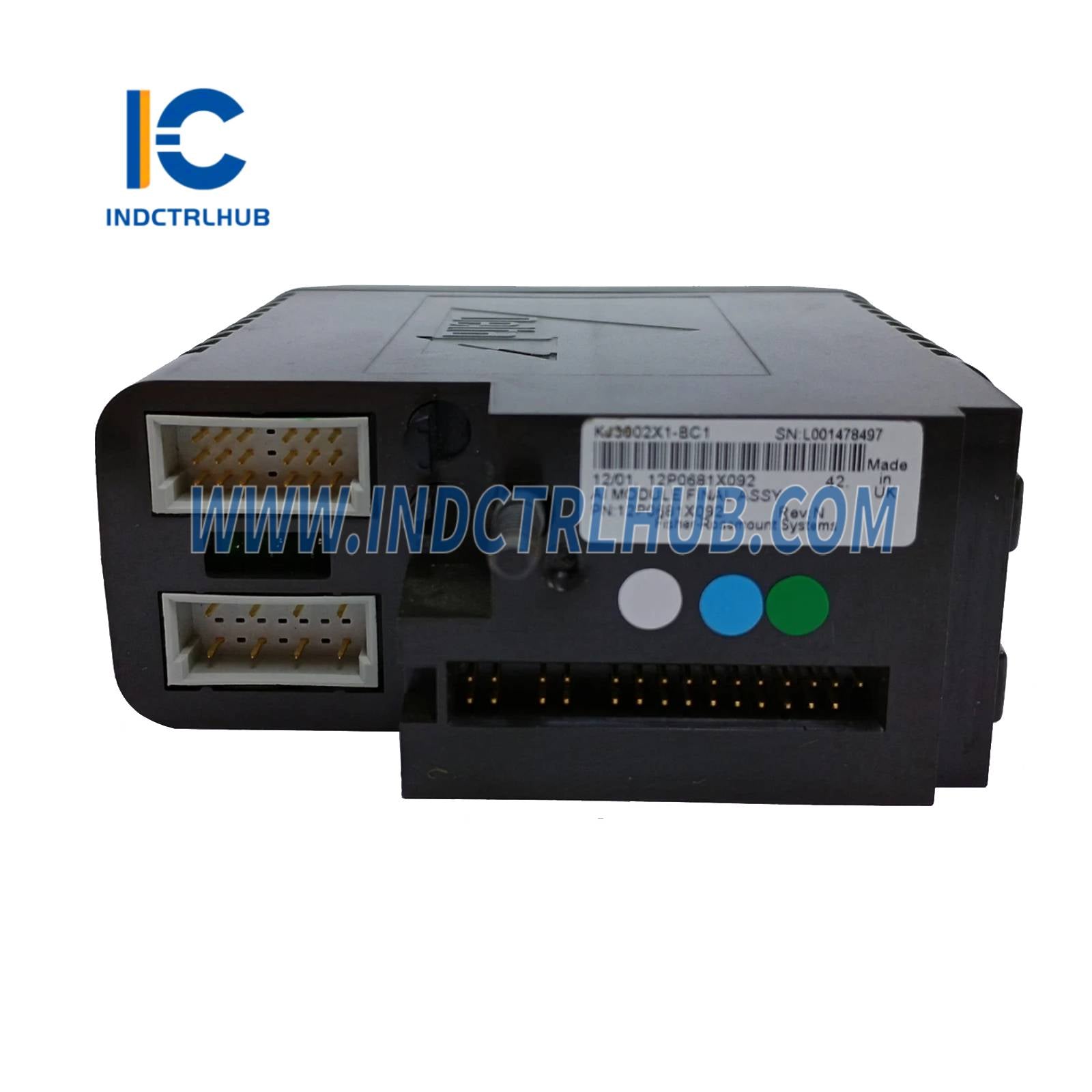

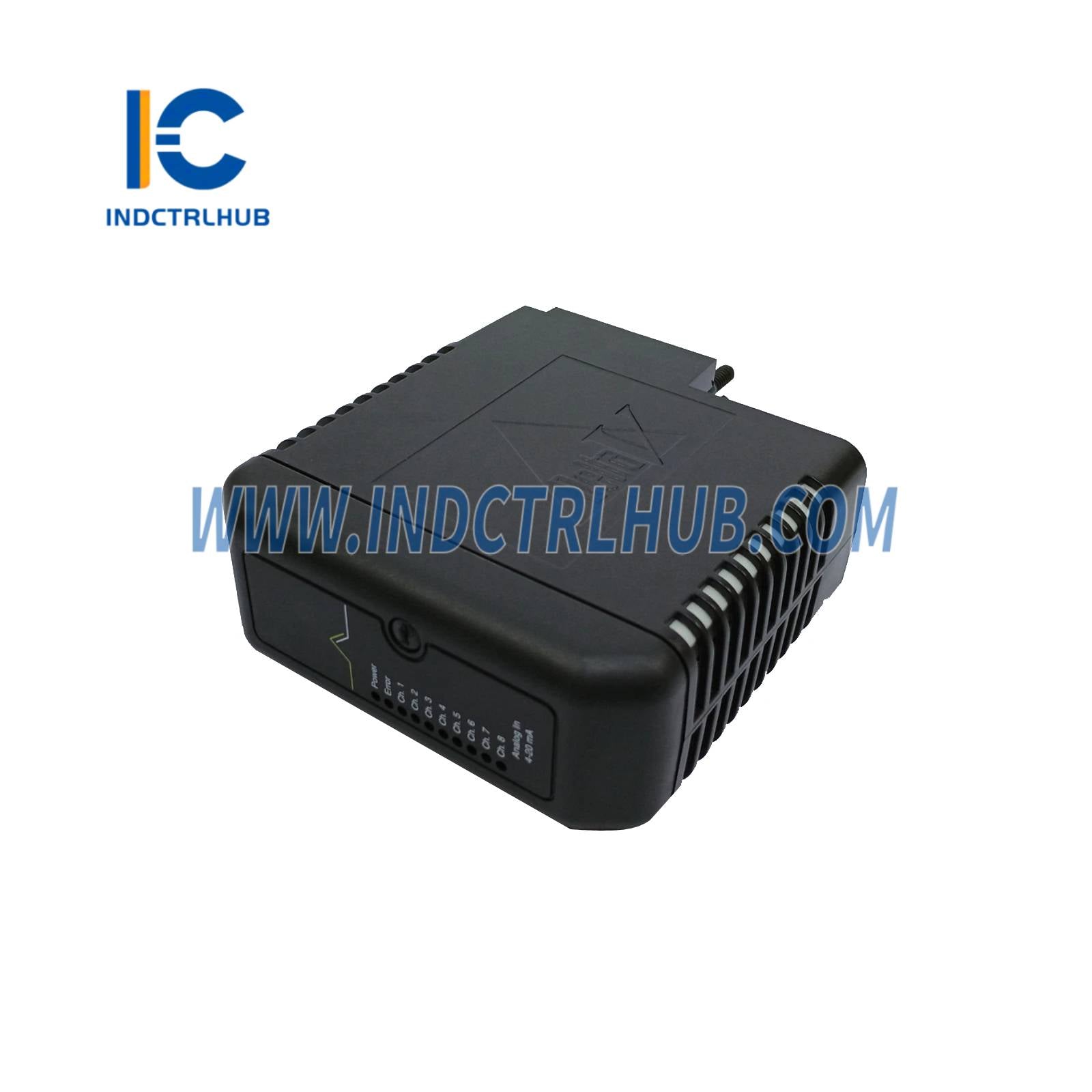

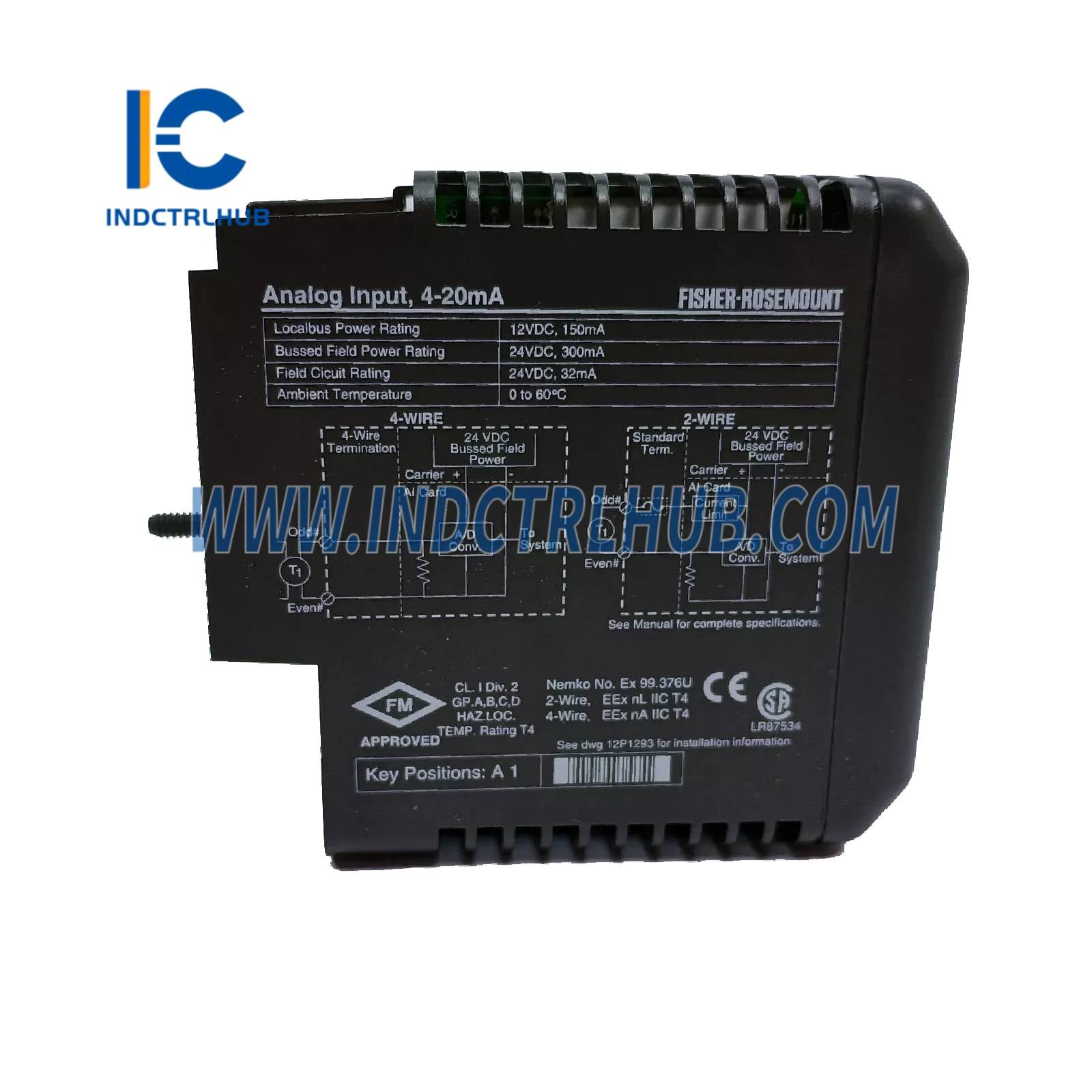

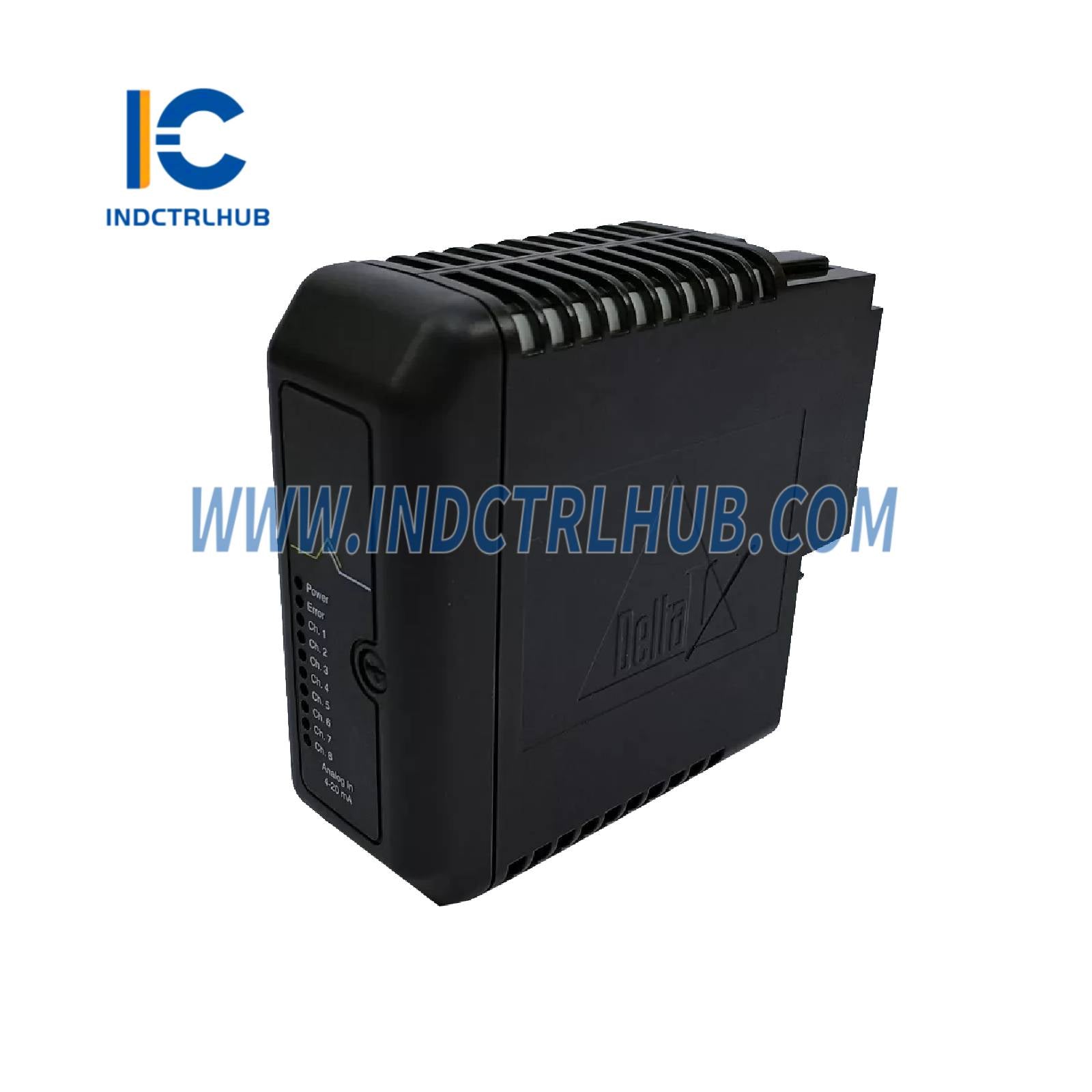

Emerson KJ3002X1-BC1 12P0681X092 2-Wire Analog Input Card, 8-Channel, 4_20 mA
Emerson KJ3002X1-BC1 12P0681X092 2-Wire Analog Input Card, 8-Channel, 4_20 mA
Manufacturer: Emerson
Product No.: KJ3002X1-BC1
Condition:1000 in stock
Product Type: 2-Wire Analog Input Card, 8-Channel, 4_20 mA
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3002X1-BC1 / 12P0681X092 |
|
Description |
2-Wire Analog Input Card, 8-Channel, 4_20 mA |
_
_
Power Specifications
|
Parameter |
Value |
|---|---|
|
LocalBus Power Rating |
12 VDC at 150 mA |
|
Bussed Field Power Rating |
12 VDC at 300 mA |
|
Field Circuit Rating |
24 VDC at 32 mA |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
0°C to +60°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5_16 Hz); 0.5 g (16_150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 _1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP 20 |
|
Terminal Block Key Position |
A1 |
_
_
Installation and Operation Notes
_
-
Hazardous Area Compliance:
Refer to_Document 12P2046_(DeltaV_ Scalable Process System Zone 2 Installation Instructions) and the_Installing Your DeltaV Automation System_manual.
-
Removal/Insertion Conditions:
_
-
Used with KJ1501X1-BC1 System Dual DC/DC Power Supply (24 VDC or 12 VDC input).
-
Input circuit wiring inductance < 23 µH.
-
Or certified supply: Ui = 12.6 VDC, Lo < 23 µH (including wiring).
-
Field power_must be_removed_before connecting or removing the card.
-
May be hot-swapped_(only one unit at a time)_if:
_
-
I/O loop assessment required for all_energy-limited nodes.
-
Fuse in terminal block_must not_be removed while_field power is energized_for non-sparking circuits.
-
Terminal block keying system ensures compatibility with I/O cards.
_
_
Maintenance and Adjustment
_
-
No user-serviceable parts
-
Do not disassemble
-
Calibration not required
_
