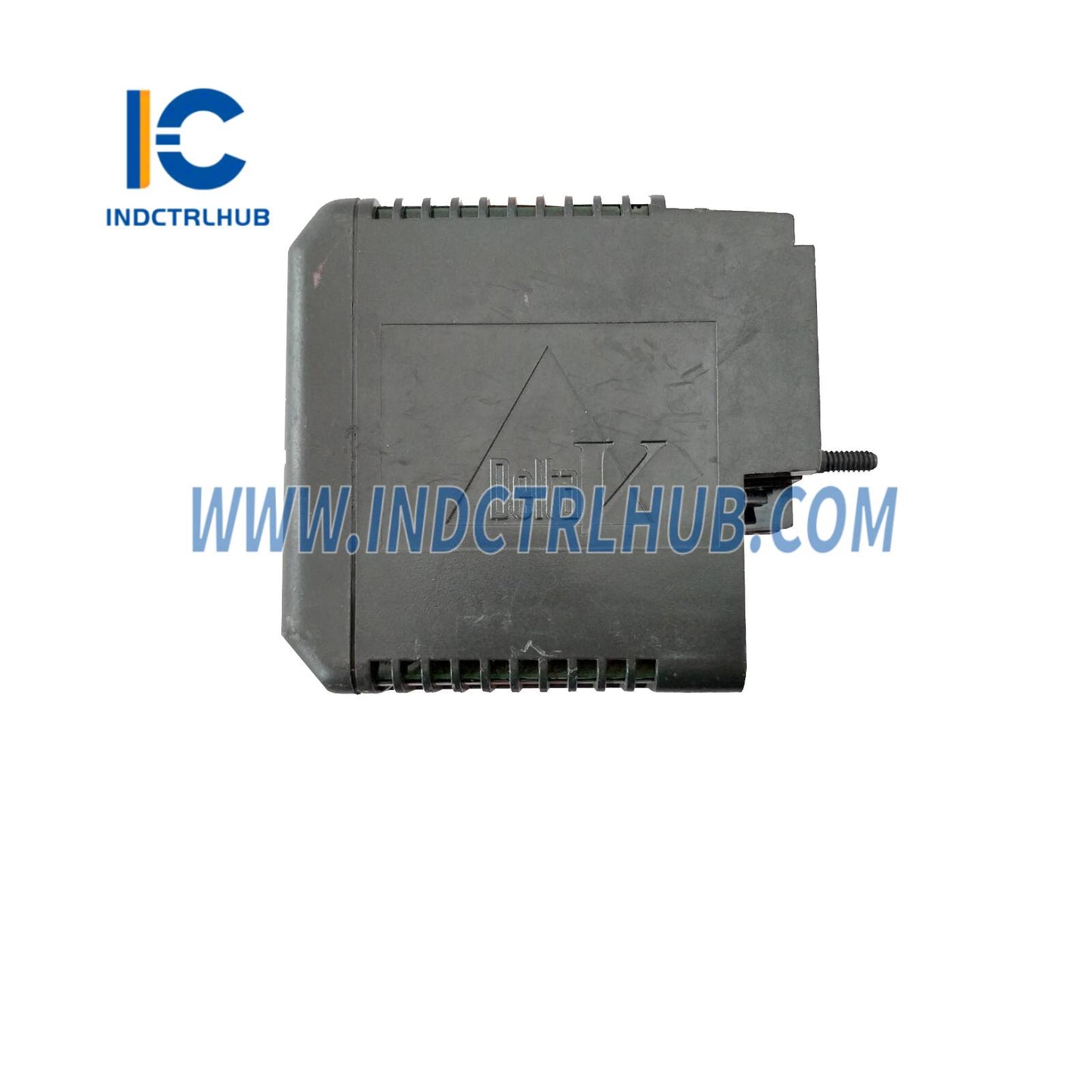

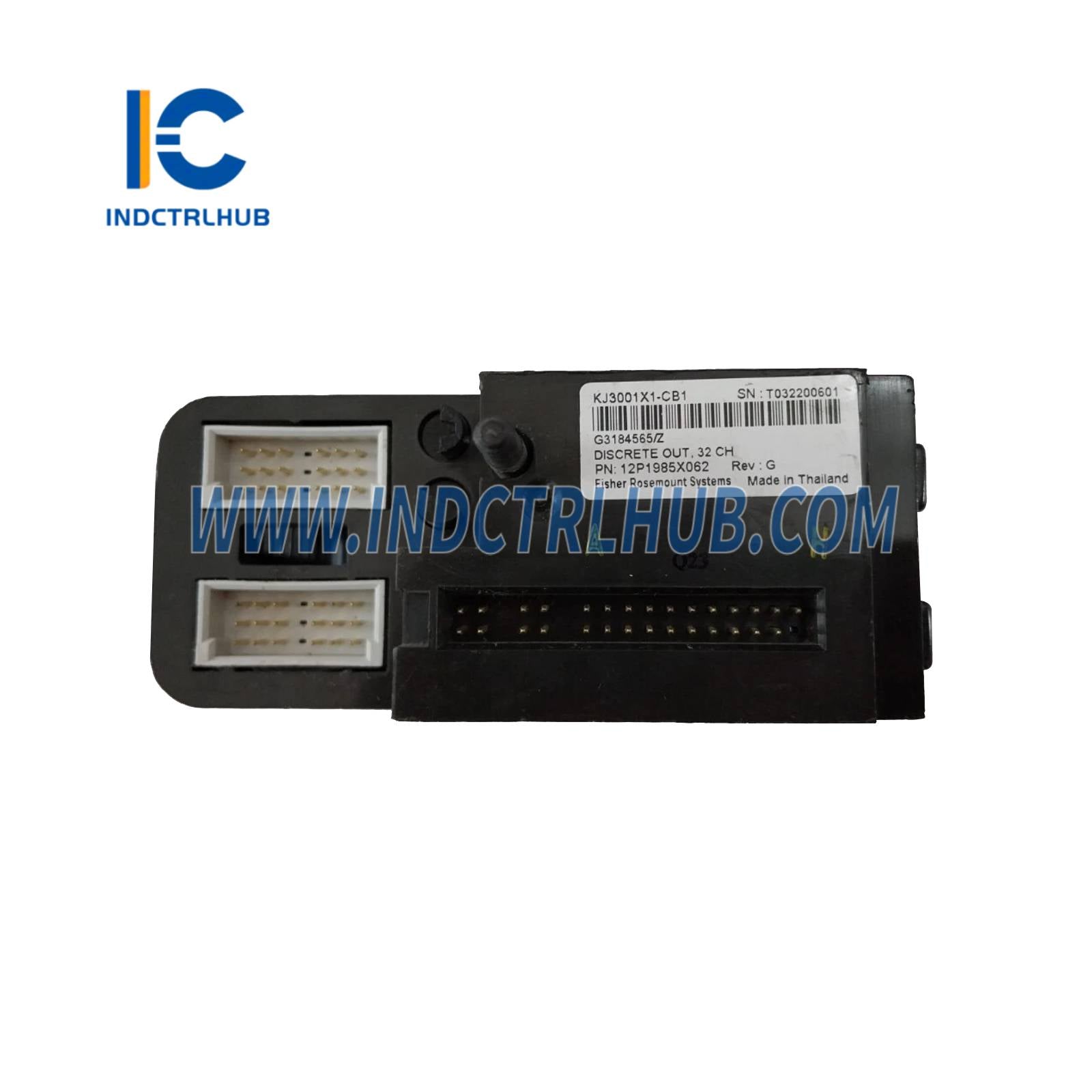

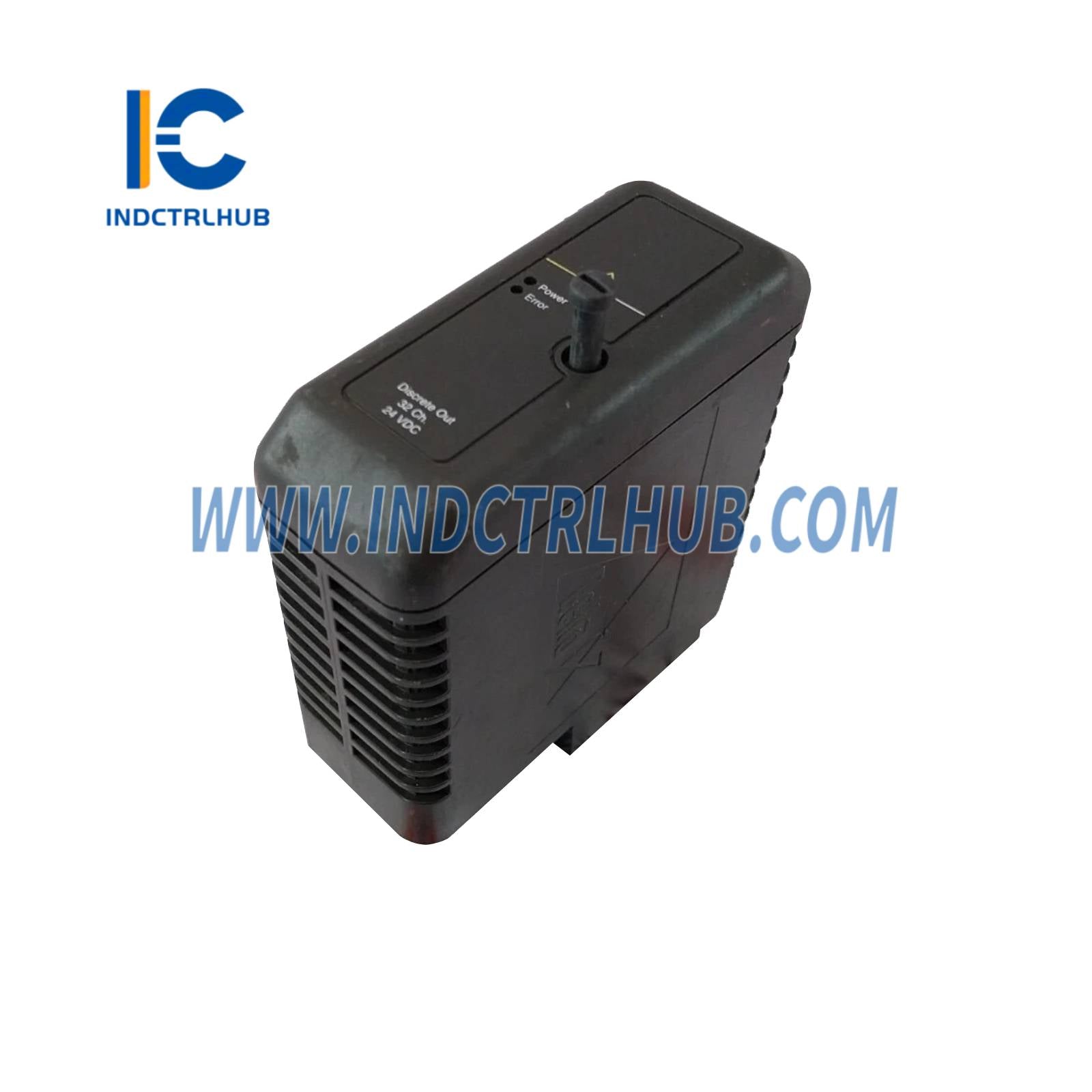

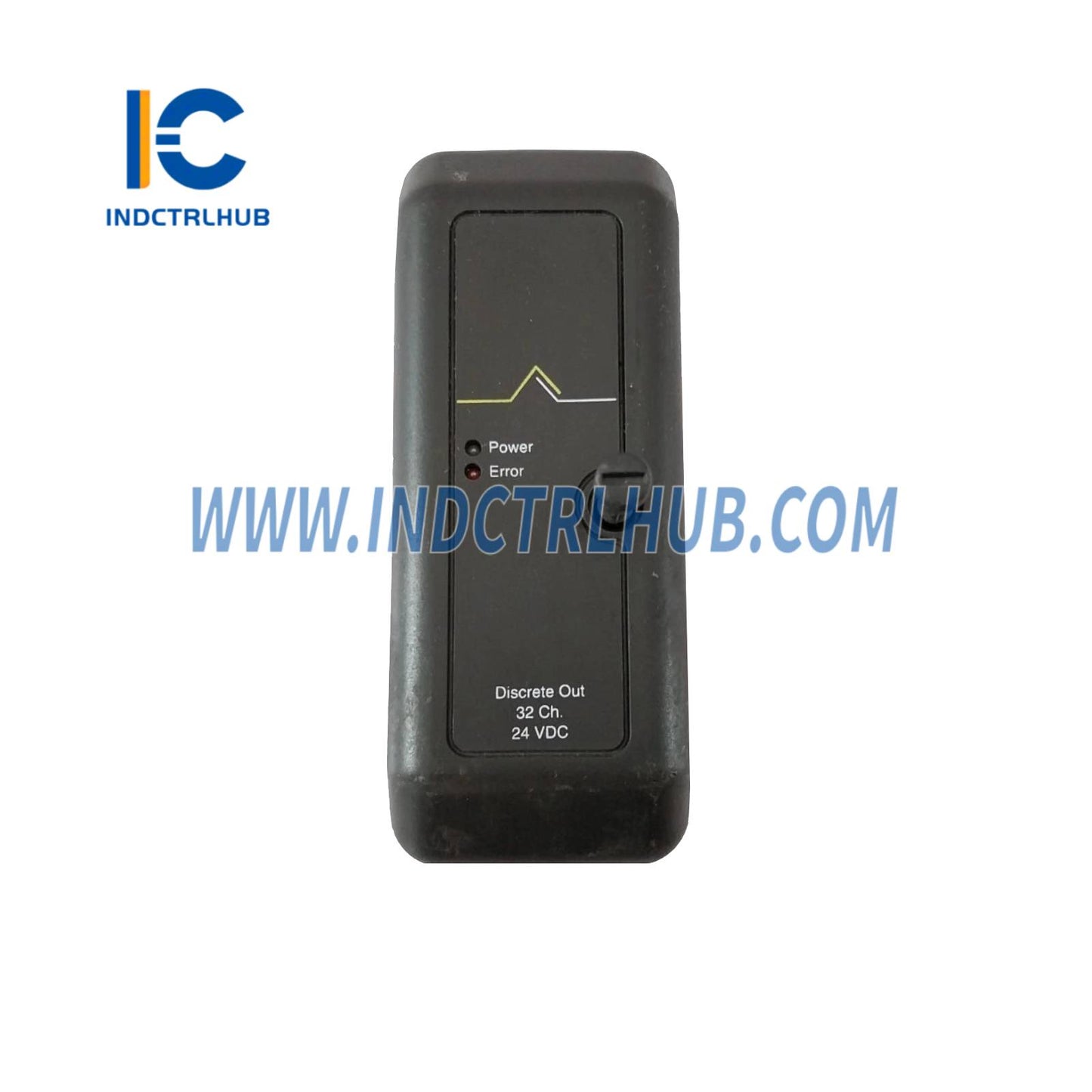

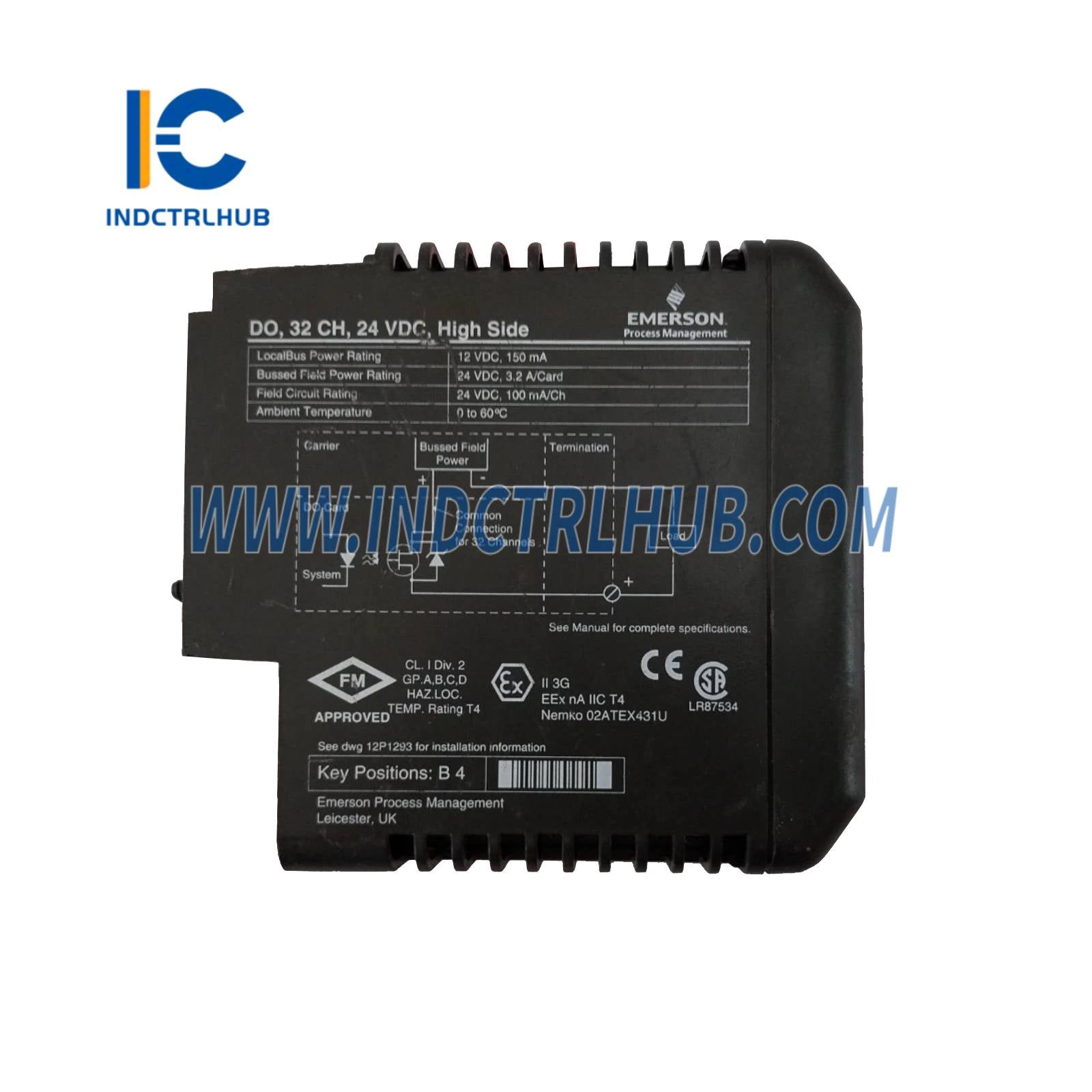

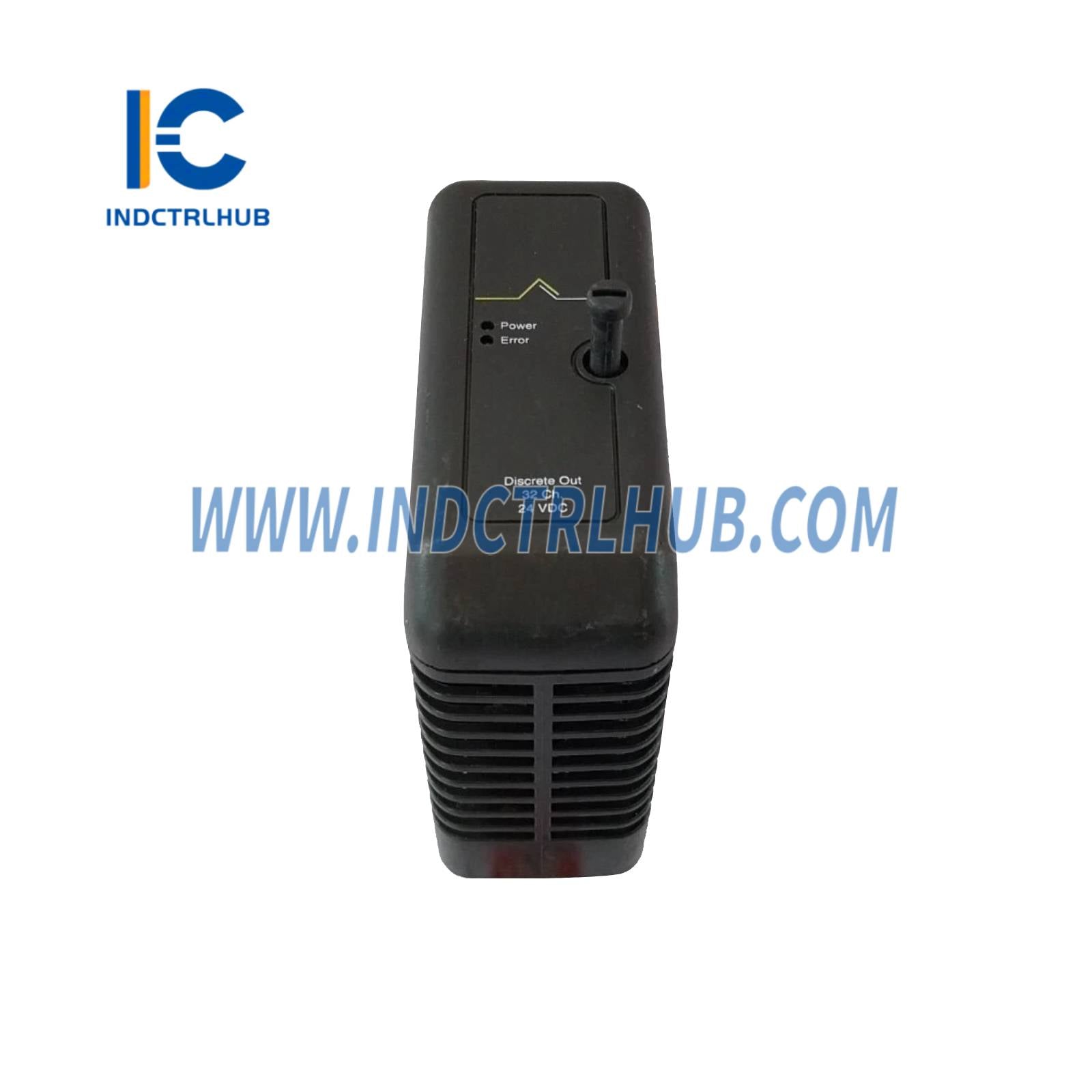

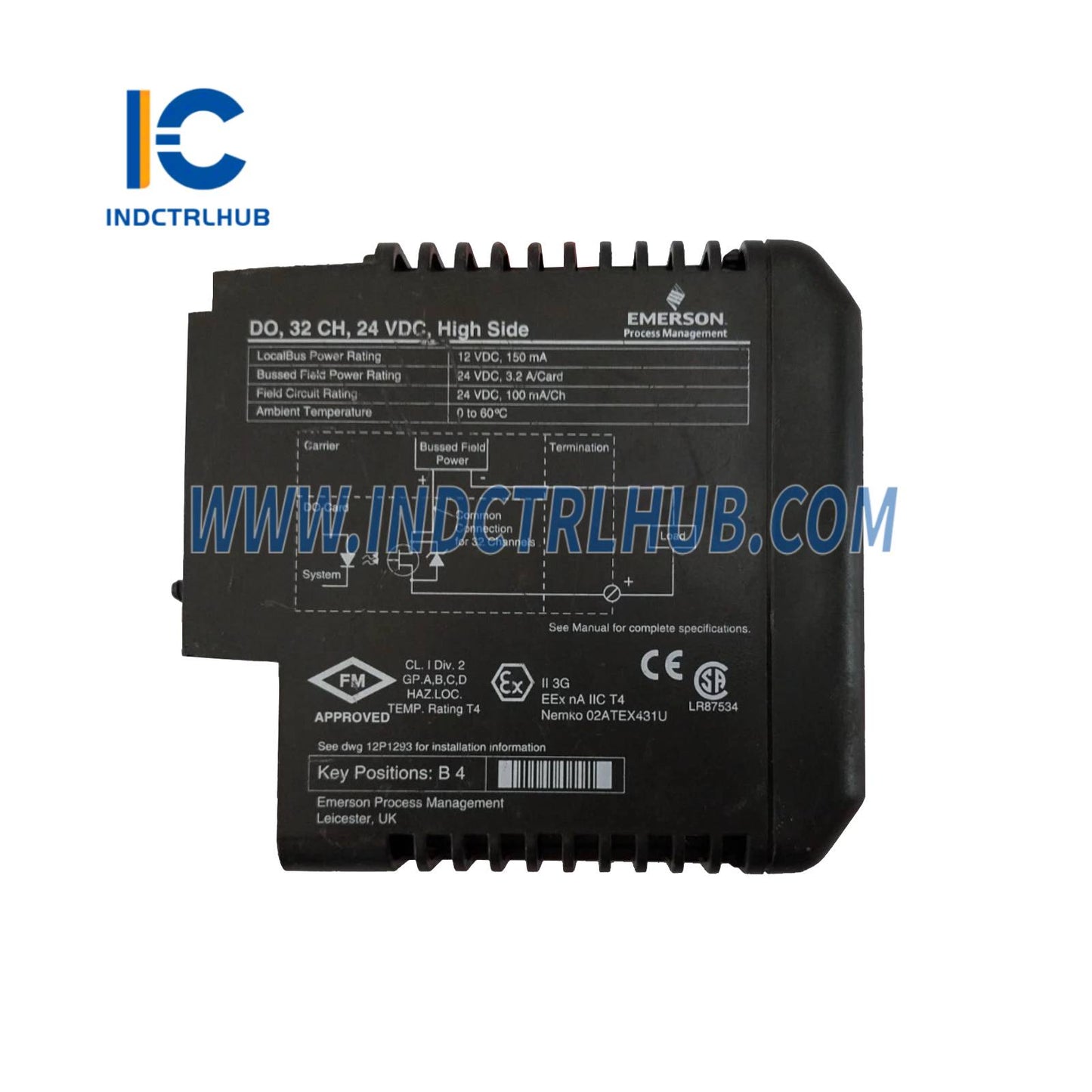

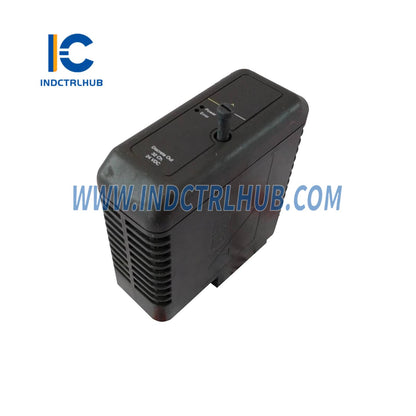

Emerson KJ3001X1-CB1 Digital Output Card
Emerson KJ3001X1-CB1 Digital Output Card
Manufacturer: Emerson
Product No.: KJ3001X1-CB1
Condition:1000 in stock
Product Type: Digital Output Card
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3001X1-CB1 |
|
Description |
Digital Output Card, 32-Channel, 24 VDC, HighSide |
_
_
Power Specifications
|
Parameter |
Value |
|---|---|
|
LocalBus Power Rating |
12 VDC at 150 mA |
|
Bussed Field Power Rating |
24 VDC at 3.2 A per card |
|
Field Circuit Rating |
24 VDC at 100 mA/channel |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
0°C to +60°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5_16 Hz); 0.5 g (16_150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 _1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP 20 |
|
Terminal Block Key Position |
B4 |
_
_
Installation and Operation Notes
_
-
Hazardous Area Compliance:
Refer to_Document 12P2046_(DeltaV_ Scalable Process System Zone 2 Installation Instructions) and the_Installing Your DeltaV Automation System_manual.
-
Removal/Insertion Guidelines:
_
-
Only_one card at a time.
-
Must use_KJ1501X1-BC1_Dual DC/DC Power Supply (24 or 12 VDC).
-
Input wiring inductance must be < 23 µH.
-
Alternatively, use a certified supply with_Ui = 12.6 VDC_and_Lo < 23 µH_(including wire).
-
Non-sparking field circuits must be de-energized_before any operation.
-
Field power must be removed_before connecting or disconnecting the card.
-
Hot-swapping allowed_under strict conditions:
_
-
Rotary Keying:
_
-
Terminal block must match key position_B4_for proper compatibility.
_
_
Maintenance and Adjustment
_
-
No user-serviceable parts
-
Disassembly not allowed
-
Calibration not required
_
