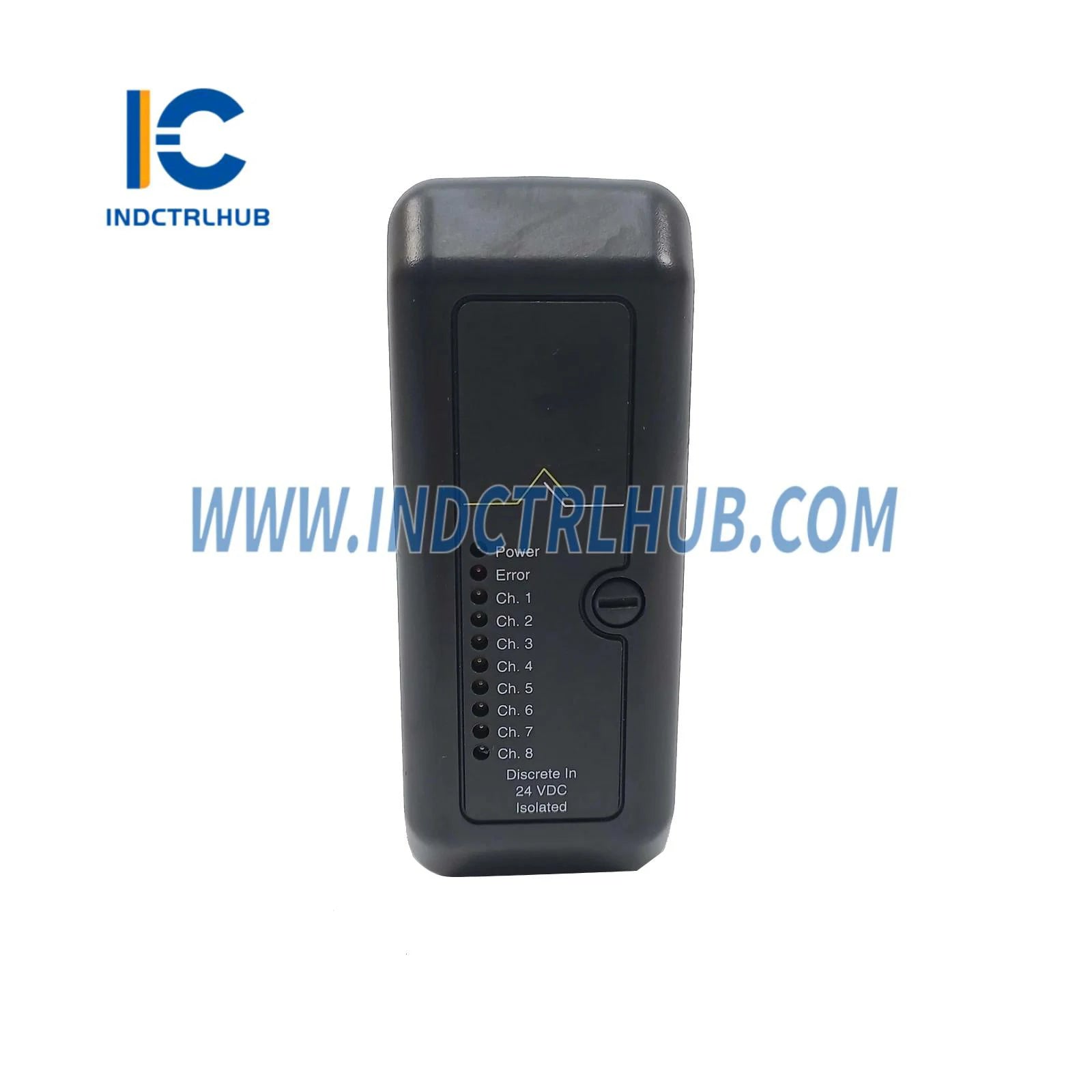

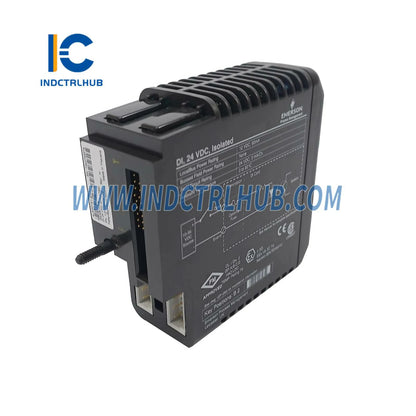

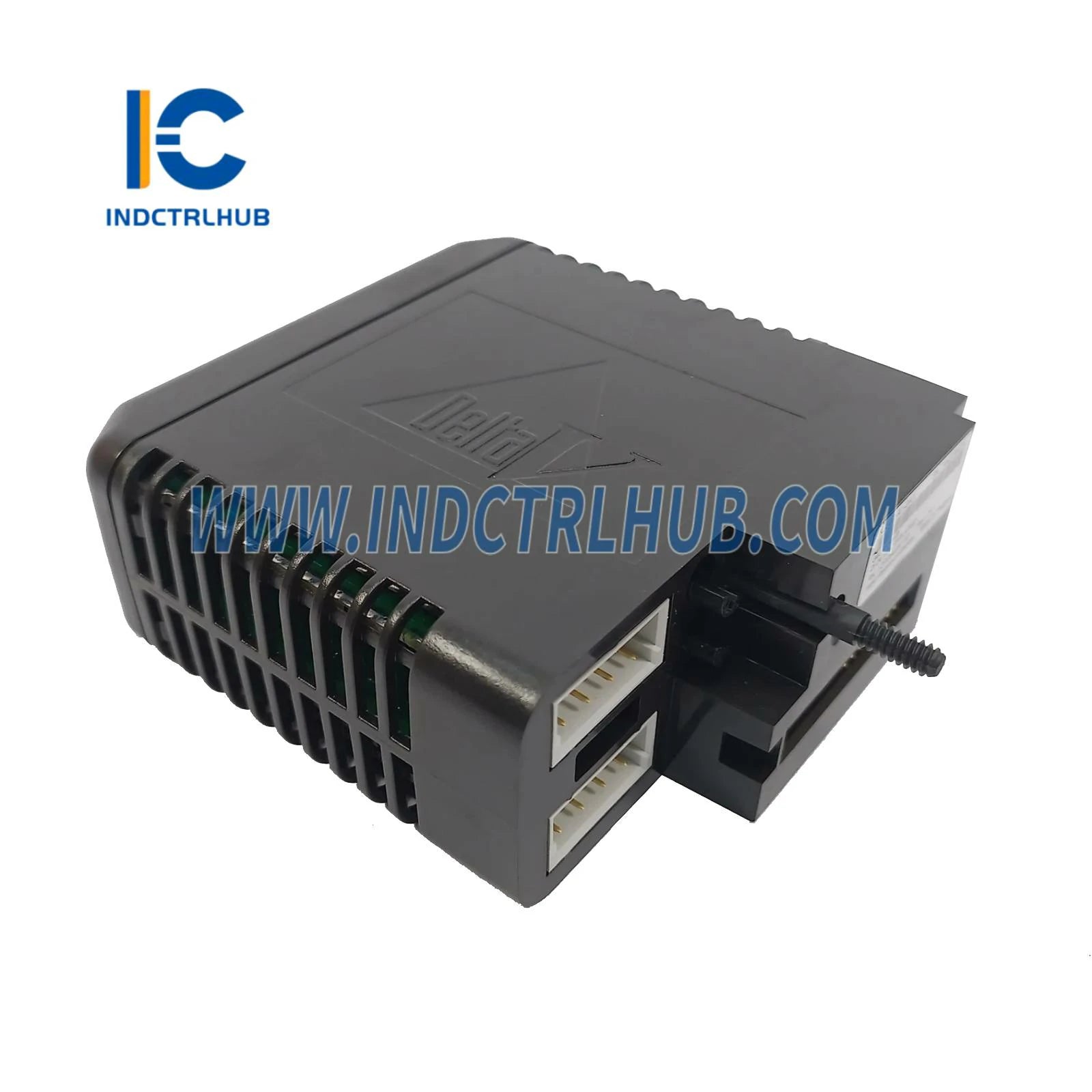

Emerson KJ3001X1-BA1 8-Channel Digital Input Card 24VDC
Emerson KJ3001X1-BA1 8-Channel Digital Input Card 24VDC
Manufacturer: Emerson
Product No.: KJ3001X1-BA1
Condition:1000 in stock
Product Type: DeltaV I/O Card
Product Origin: 8962993127683
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson KJ3001X1-BA1 8-Channel Digital Input Card - Isolated Discrete Monitoring for DeltaV Systems
The Emerson KJ3001X1-BA1 8-Channel Digital Input Card provides galvanically isolated discrete signal monitoring for DeltaV M-series distributed control systems. This 24VDC isolated input module delivers reliable status detection from limit switches, proximity sensors, push buttons, and relay contacts across oil & gas, chemical, pharmaceutical, and power generation facilities requiring electrical isolation and noise immunity in harsh industrial environments.
Core Technical Specifications
- Model Number: KJ3001X1-BA1
- Channel Count: 8 isolated digital input channels per card
- Input Type: 24VDC isolated discrete inputs
- Isolation: Galvanic isolation per channel for electrical noise immunity
- Field Circuit Rating: 24VDC at 5mA per channel
- LocalBus Power: 12VDC at 100mA
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Terminal Block Key: B2 position for proper card identification
- System Compatibility: DeltaV M-series controllers and I/O carriers
Global Hazardous Area Certifications
Certified for deployment in classified industrial environments worldwide:
- FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
- ATEX Europe: Zone 2 certified for explosive atmosphere installations per Document 12P2046
- IECEx International: Compliant with global hazardous area standards
- Marine Certification: DNV and ABS approved for offshore platforms and maritime installations
Industrial Process Monitoring Applications
Valve Position Confirmation: Monitor limit switch contacts from motor-operated valves (MOVs), pneumatic actuators, and manual isolation valves. The galvanic isolation per channel prevents ground loops and electrical noise from corrupting position feedback signals, ensuring accurate valve status indication critical for process safety and interlock logic execution.
Equipment Status Monitoring: Track motor starter auxiliary contacts, circuit breaker positions, and thermal overload relay states for pumps, compressors, fans, and agitators. Isolated inputs protect the DCS from electrical transients generated by motor starter contactors and high-power switching events, maintaining control system integrity in electrically noisy industrial environments.
Safety Interlock Verification: Interface with emergency stop buttons, safety gate switches, and guard door interlocks in machinery protection systems. The electrical isolation ensures that ground faults or wiring errors in safety circuits cannot propagate to the control system, maintaining separation between safety-critical inputs and process control logic.
Level Switch Detection: Monitor float switches, capacitance probes, and vibrating fork level sensors in tanks, vessels, and separators. Isolated inputs eliminate common mode voltage issues when level switches are installed in grounded metal vessels or when multiple switches share common wiring, preventing false alarms and improving measurement reliability.
Alarm Panel Integration: Connect fire alarm systems, gas detection panels, and process alarm annunciators to DeltaV for centralized monitoring and historian logging. Galvanic isolation prevents ground loops between third-party alarm systems and the DCS, ensuring clean signal transmission and eliminating nuisance alarms caused by electrical interference.
Galvanic Isolation Architecture Advantages
Critical benefits of channel-level electrical isolation:
- Ground Loop Elimination: Isolation prevents circulating currents between field devices and DCS when ground potentials differ
- Common Mode Noise Rejection: Isolated inputs reject electrical noise from VFDs, welders, and high-power equipment
- Electrical Fault Protection: Isolation protects DCS from field wiring faults, overvoltage transients, and accidental shorts
- Multi-Source Compatibility: Accept signals from devices with different ground references without signal degradation
- Enhanced Reliability: Electrical isolation improves system uptime by preventing fault propagation between channels
Hot-Swap Capability & Installation Requirements
Critical guidelines for safe card replacement and system operation:
Hot-Swap Conditions: The KJ3001X1-BA1 supports hot-swapping (removal and insertion while system is energized) under strict conditions. Only one unit may be removed or inserted at a time with system power energized. Field power MUST be removed before handling the device. Non-sparking circuits must be de-energized before any operation to comply with Zone 2 installation requirements.
Power Supply Requirements: Must use KJ1501X1-BC1 Dual DC/DC Power Supply (12/24VDC) or certified equivalent with Ui = 12.6VDC and Lo < 23µH. Input wiring inductance must be less than 23µH (including wire) to meet intrinsic safety requirements for classified area installations.
Terminal Block Keying: Terminal block key must match card type, set to position B2. The rotary keying system prevents incorrect card insertion and ensures field wiring matches the installed card type, reducing commissioning errors and preventing damage to field devices or card electronics.
Fuse Protection: Fuses must NOT be removed when power is energized in non-sparking zones. Field power must be removed before any fuse replacement or terminal block maintenance to prevent arcing hazards in classified areas and protect card electronics from overcurrent damage.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Shock Resistance | 10g half-sine wave for 11ms |
| Vibration Tolerance | 1mm peak-to-peak (5-16 Hz); 0.5g (16-150 Hz) |
| Humidity Range | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 protection |
| IP Rating | IP20 (control room environment) |
Input Signal Characteristics
Critical electrical specifications for field device interfacing:
Input Current: Each channel draws 5mA at 24VDC nominal voltage. This low current draw is compatible with standard proximity sensors, limit switches, and relay contacts without requiring external signal conditioning or amplification.
Voltage Threshold: Input channels recognize logic high (ON) state at approximately 15-30VDC and logic low (OFF) state below 5VDC. The wide threshold hysteresis provides noise immunity and prevents chattering from marginal signal levels or contact bounce.
Response Time: Typical input response time is 5-10 milliseconds from field signal change to DCS recognition. This speed is adequate for most process control applications including valve position feedback, motor status monitoring, and alarm panel integration.
Isolation Voltage: Each channel features galvanic isolation tested to 1000VDC or higher, providing protection against ground potential differences, common mode noise, and electrical transients common in industrial installations with long cable runs and multiple grounding points.
Why Choose Industrial Control Hub?
Your specialized source for genuine Emerson DeltaV automation components:
- ✓ 100% authentic OEM products with full manufacturer traceability and warranty
- ✓ Expert DCS technical support from certified automation engineers
- ✓ Extensive inventory of current production and legacy DeltaV I/O cards
- ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
- ✓ Competitive pricing with volume discounts for project quantities
- ✓ Complete documentation, wiring diagrams, and configuration assistance
Complementary DeltaV I/O Components
| Product Model | Description | Link |
|---|---|---|
| KJ2003X1-BA2 | 32-Channel Digital Input Module 24VDC for high-density discrete monitoring | View Product |
| KJ3203X1-BK1 | 32-Channel Digital Input Card 24VDC for S-Series I/O systems | View Product |
| VE4002S1T1B2 | Discrete Input Module with Fused Terminal (KJ3001X1-BG1) for overcurrent protection | View Product |
Ordering Information & System Planning
- KJ3001X1-BA1: 8-Channel Digital Input Card, 24VDC Isolated (this product)
- Required Power Supply: KJ1501X1-BC1 Dual DC/DC Power Supply or certified equivalent
- Terminal Block: B2 key position terminal block (sold separately)
- Spare Parts Strategy: Maintain spare cards for critical applications to minimize downtime during failures
Technical Documentation & Support
Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "Installing Your DeltaV Automation System" available upon request. Our application engineering team provides wiring diagram review, isolation testing procedures, hot-swap procedure guidance, and troubleshooting assistance for complex DeltaV discrete input applications.
Maintenance & Service Life
- No User-Serviceable Parts: Factory-sealed electronics require no field maintenance or adjustment
- No Calibration Required: Digital input detection requires no periodic calibration or verification
- Do Not Disassemble: Card disassembly voids warranty and may damage isolation barriers or sensitive electronics
- Replacement Criteria: Replace card if input channels fail to detect signals, isolation breakdown occurs, or diagnostic LEDs indicate internal faults
- Expected Service Life: 10+ years in typical control room environments with proper power supply and environmental conditions
