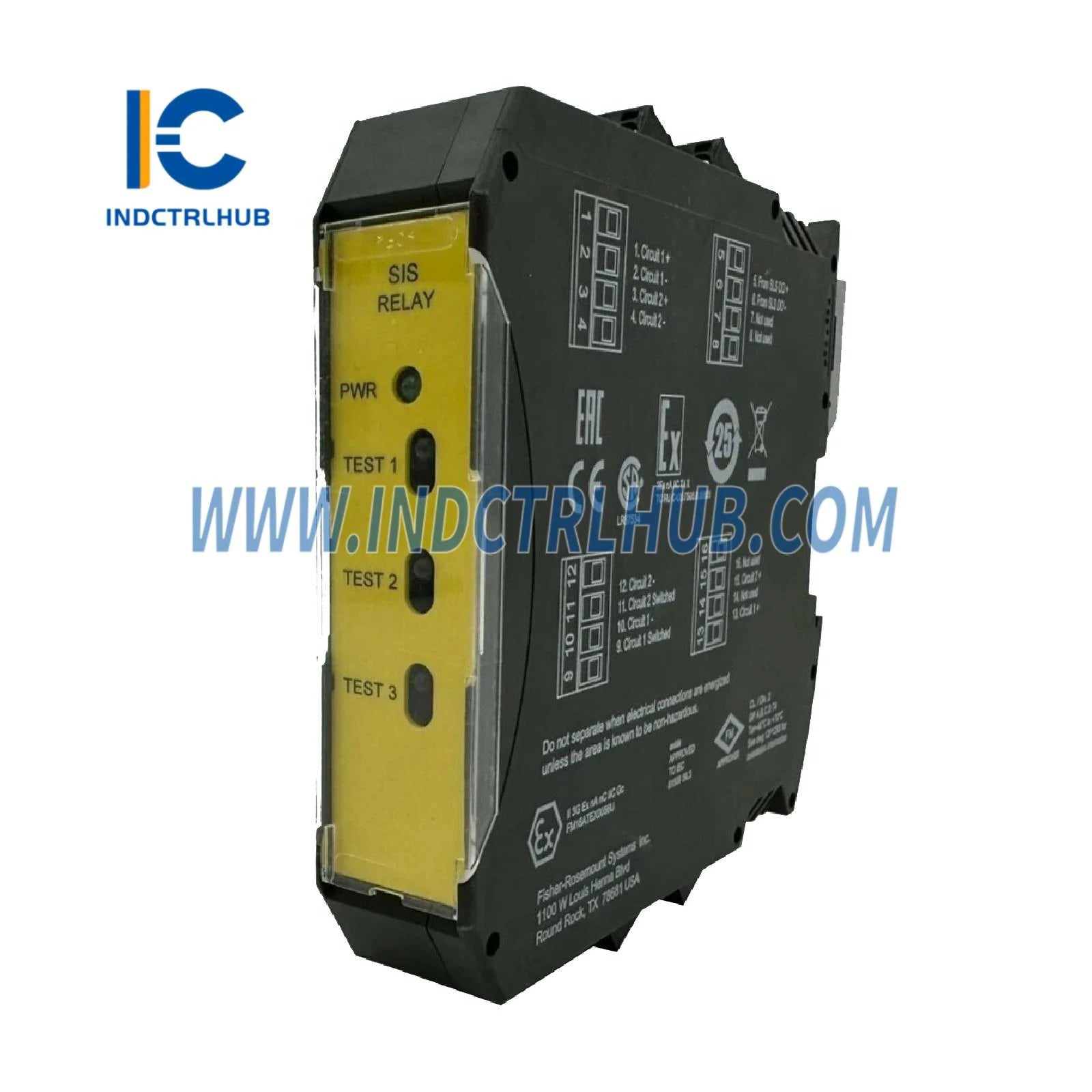

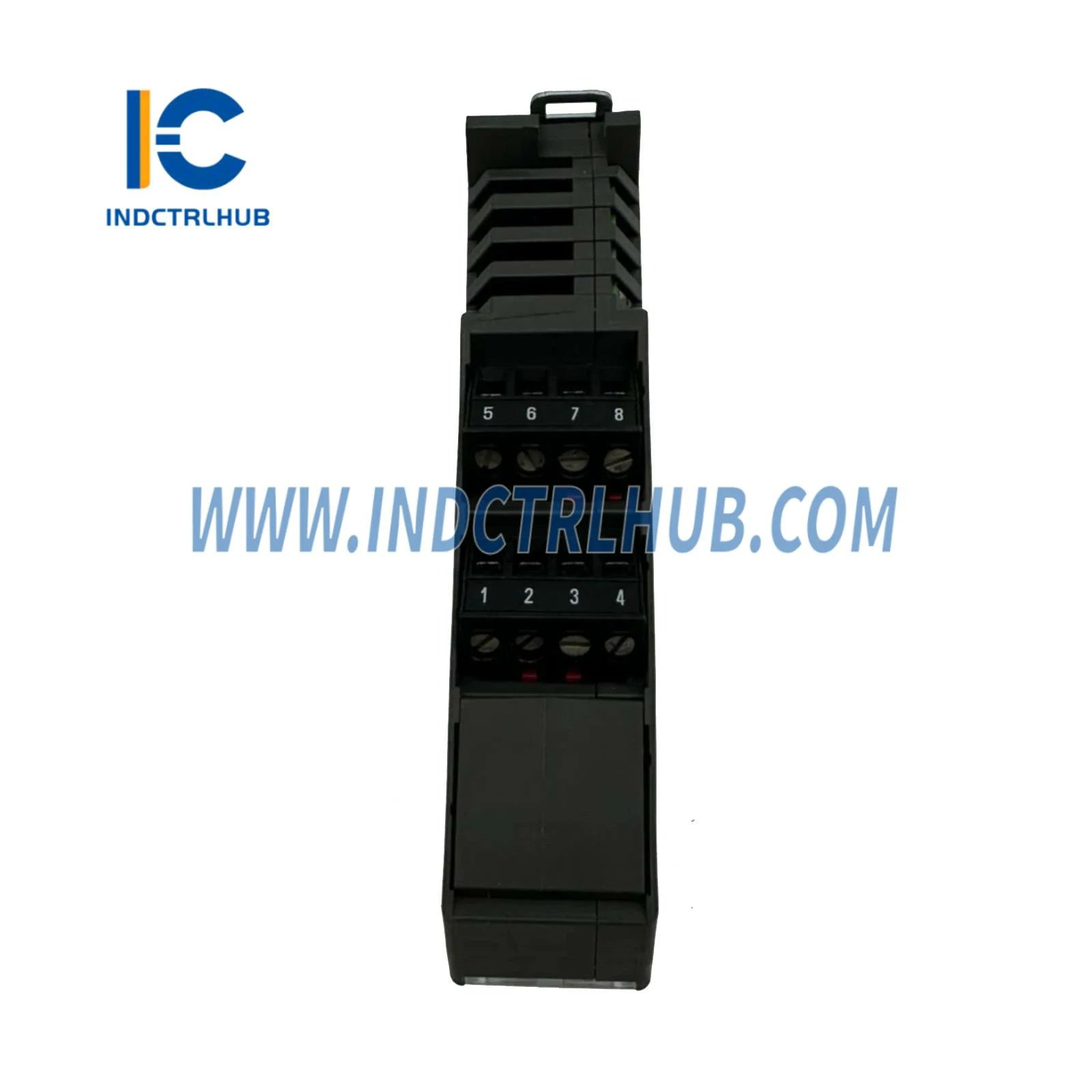

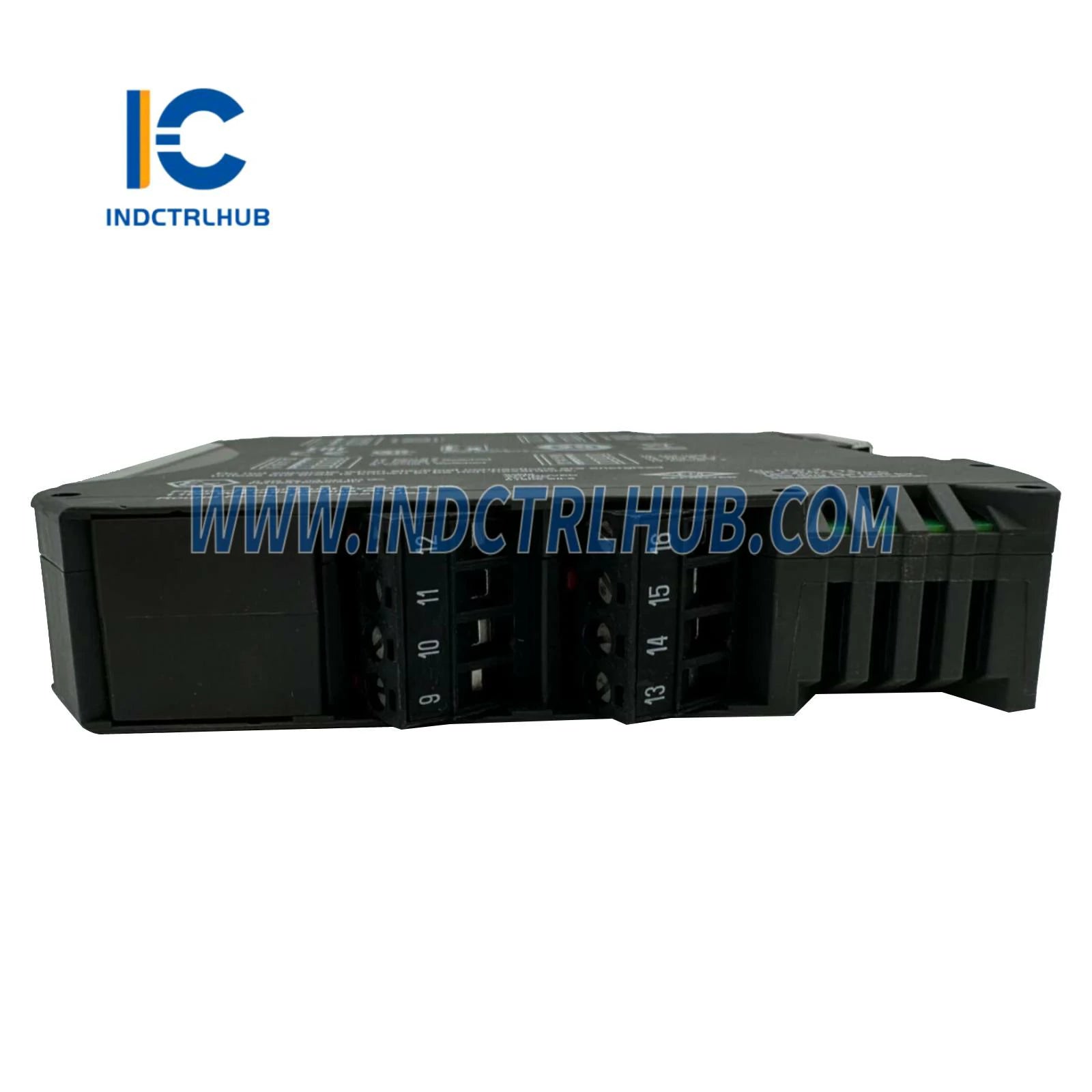

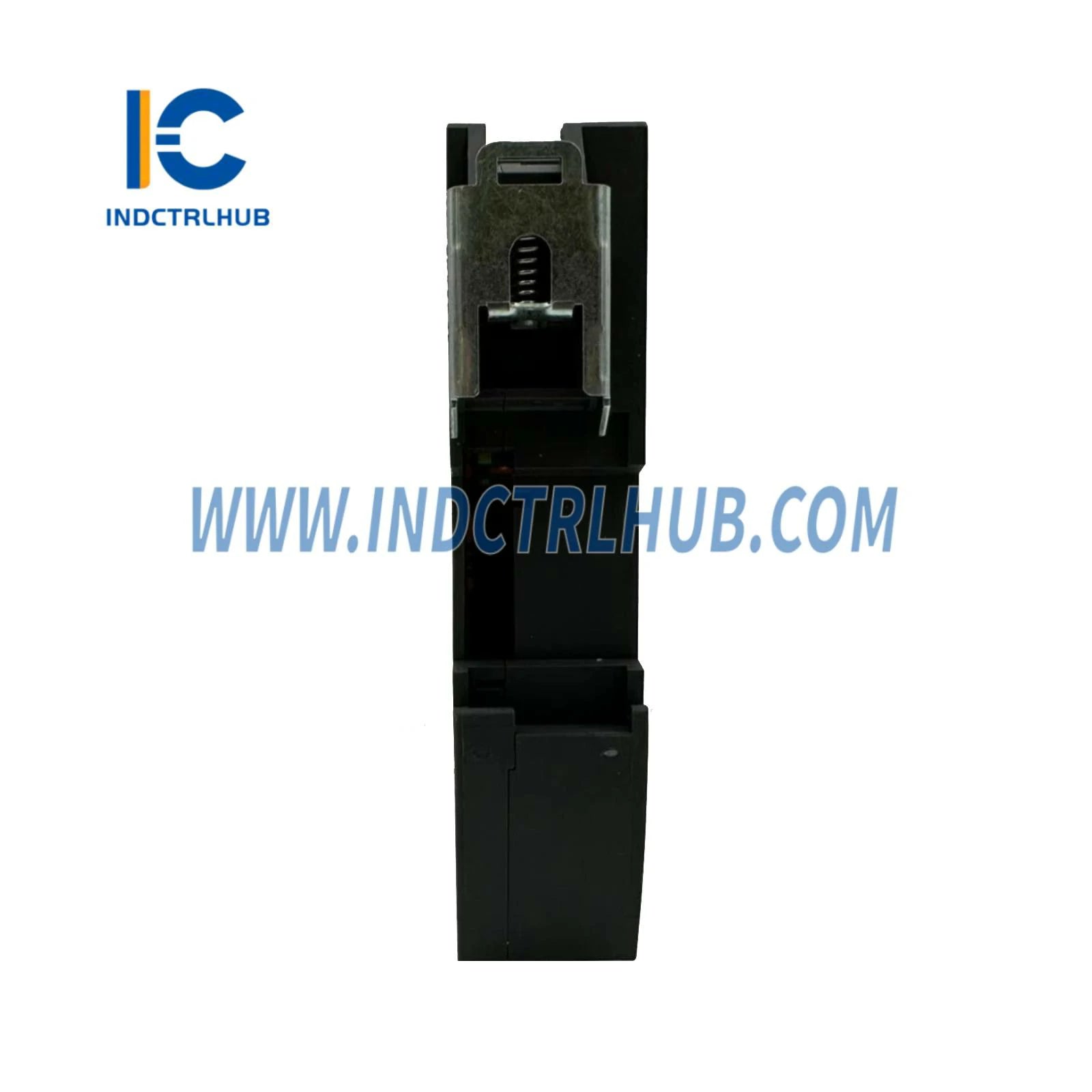

Emerson KJ2231X1-EA1 SIS Relay Module

Emerson KJ2231X1-EA1 SIS Relay Module - Safety-Critical Interface for DeltaV Safety Instrumented Systems

The Emerson KJ2231X1-EA1 Safety Instrumented System (SIS) Relay Module provides certified safety-rated relay outputs for DeltaV SIS applications requiring hardwired final element control. This SIL-certified module delivers reliable interface between DeltaV safety logic solvers and critical shutdown devices including emergency isolation valves, fire suppression systems, and process shutdown equipment across oil & gas, chemical, pharmaceutical, and power generation facilities.

Core Technical Specifications

• Model Number: KJ2231X1-EA1
• Application: Safety Instrumented System (SIS) relay output interface

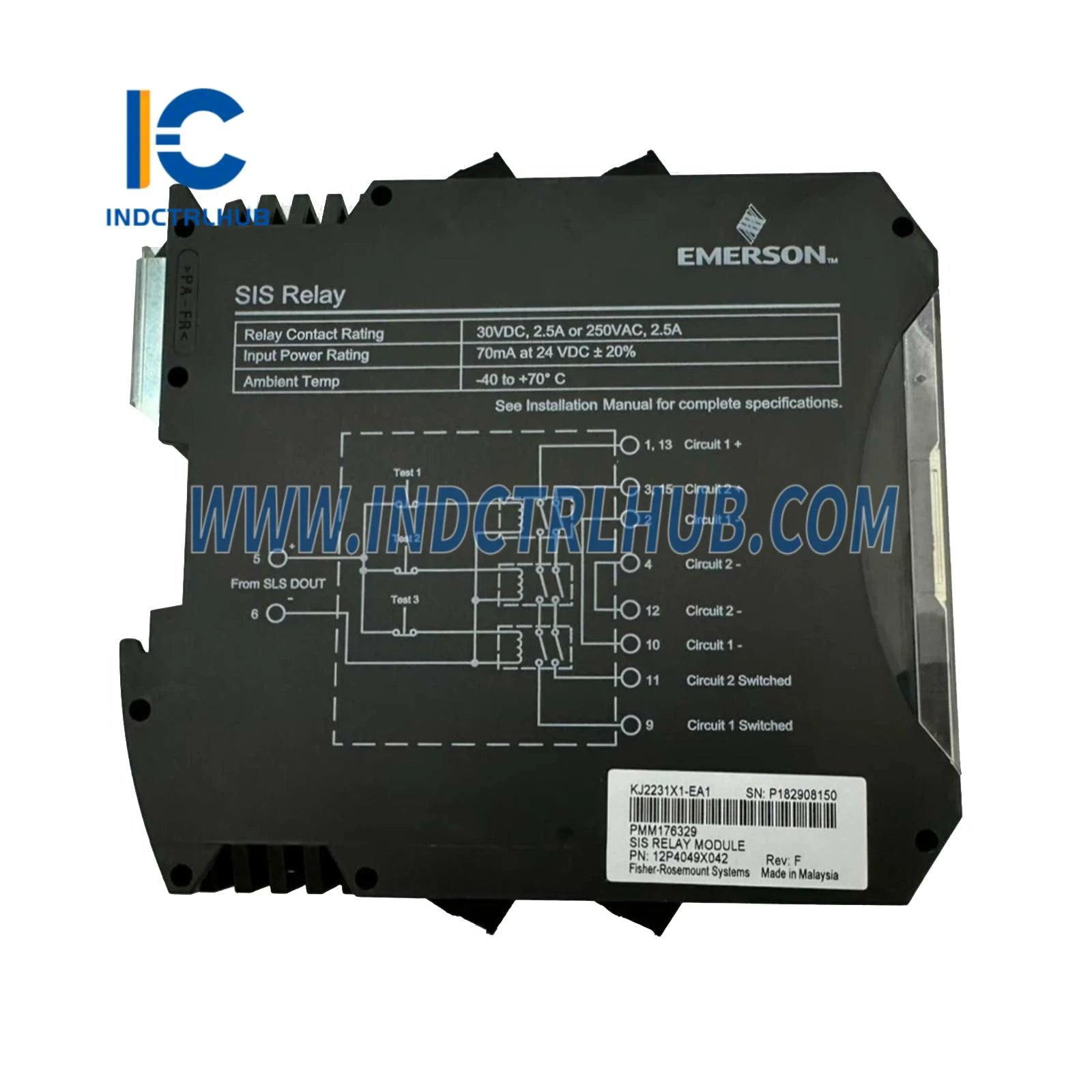

• Relay Contact Rating: 30VDC at 2.5A / 250VAC at 2.5A
• Input Power: 24VDC at 70mA
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Safety Integrity Level: SIL 2/3 certified for safety applications
• System Compatibility: DeltaV SIS Smart Logic Solvers (SLS)
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating

Global Safety & Hazardous Area Certifications

Certified for deployment in safety-critical and classified industrial environments:

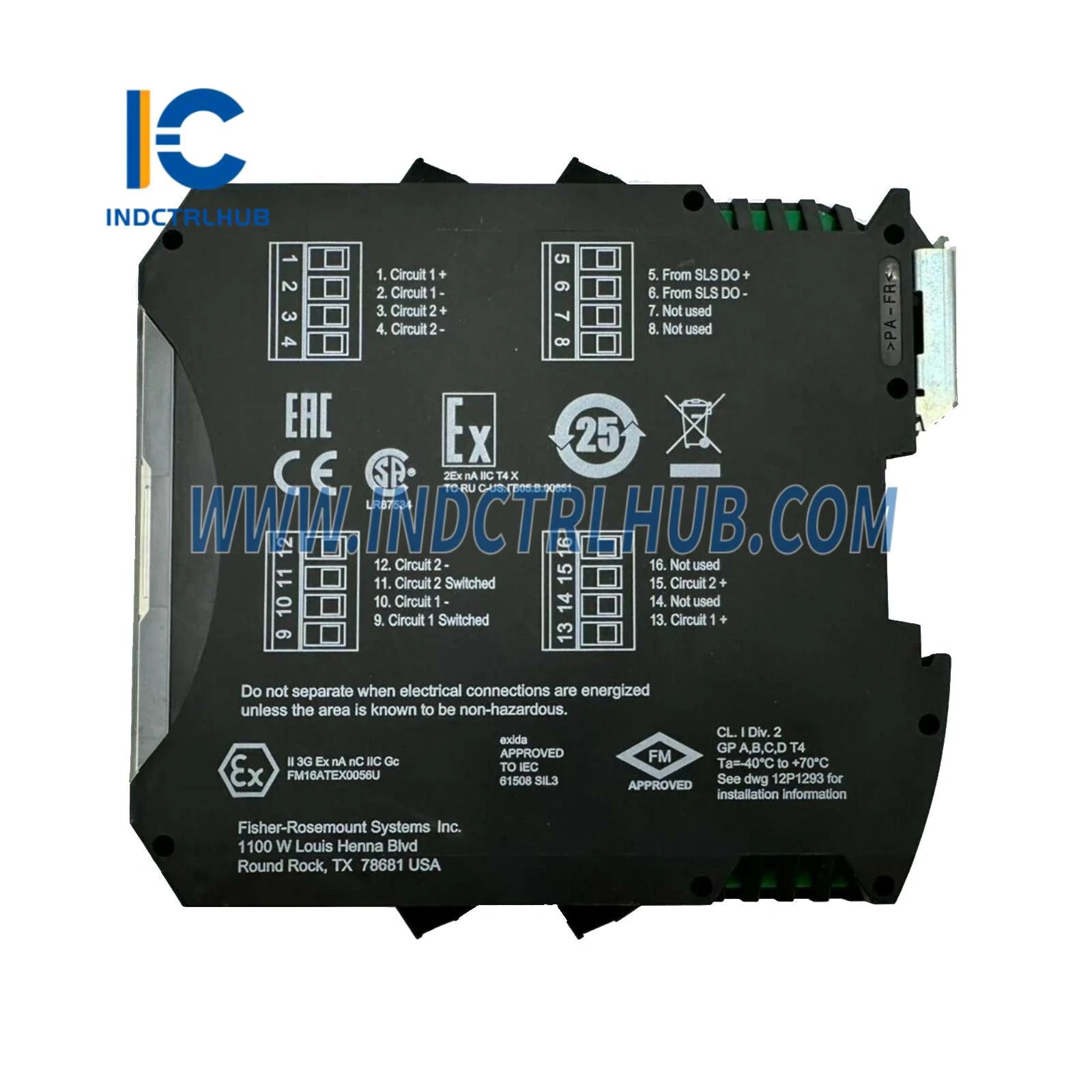

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• IEC 61508: SIL 2/3 certified for functional safety applications
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Safety Instrumented System Applications

Emergency Shutdown (ESD) Systems: Interface DeltaV SIS logic solvers with pneumatic shutdown valves, motor-operated isolation valves, and emergency depressurization systems. The relay module provides hardwired, fail-safe outputs that de-energize upon safety system activation, ensuring valves move to their safe state (typically closed) during emergency conditions such as high pressure, high temperature, or toxic gas detection.

Fire & Gas Detection Systems: Actuate fire suppression deluge valves, foam system activation, and emergency ventilation dampers in response to fire or combustible gas detection. The 2.5A relay contacts drive solenoid valves controlling water deluge systems, CO2 flooding systems, and foam concentrate injection valves, providing the critical interface between detection logic and suppression equipment.

Burner Management Systems (BMS): Control fuel gas isolation valves, pilot gas valves, and ignition systems in fired heaters, boilers, and process furnaces. The SIL-certified relay outputs ensure fuel supply is positively isolated during unsafe conditions including flame failure, low combustion air pressure, or high furnace pressure, preventing explosive atmospheres and equipment damage.

High Integrity Pressure Protection Systems (HIPPS): Actuate fast-acting isolation valves protecting downstream equipment from overpressure conditions. The relay module provides the final voting element in 1oo2 or 2oo3 architectures, ensuring valve closure occurs within the required response time to prevent pressure vessel rupture or pipeline failure.

Turbine Overspeed Protection: Trip steam turbines, gas turbines, and compressor trains during overspeed conditions. The relay contacts interrupt fuel supply, activate emergency braking systems, and close steam admission valves, protecting rotating equipment from catastrophic failure due to governor malfunction or load rejection.

SIL-Certified Safety Architecture

Critical features ensuring functional safety compliance:

• Proven-in-Use Technology: Relay contact technology with decades of field history in safety applications
• Positive Mechanical Action: Force-guided relay contacts ensure predictable failure modes
• Diagnostic Coverage: Integrated diagnostics detect relay coil failures and contact welding
• Fail-Safe Design: De-energize-to-trip architecture ensures safe state upon power loss or module failure
• Systematic Capability: SIL 3 systematic capability per IEC 61508 for use in SIL 2/3 applications

Installation Requirements & Safety Guidelines

Critical requirements for maintaining safety integrity:

Hazardous Area Installation: Module removal or insertion MUST NOT occur while system power is energized UNLESS the area is verified as non-hazardous. This requirement protects against sparking hazards in classified areas and ensures safety system integrity is not compromised during maintenance activities.

Proof Testing Requirements: Periodic proof testing must be performed according to the safety instrumented function (SIF) proof test interval calculated during SIL verification. Proof tests verify relay contact operation, coil resistance, and diagnostic functionality to detect dangerous undetected failures and maintain the required safety integrity level.

Wiring Segregation: Safety relay outputs must be wired separately from non-safety circuits to prevent common cause failures. Use dedicated conduit, cable trays, and terminal blocks for SIS wiring to maintain independence from basic process control system (BPCS) circuits and prevent inadvertent cross-connections.

Documentation Requirements: Maintain complete as-built drawings, proof test procedures, and maintenance records as required by IEC 61511 for process industry safety instrumented systems. Document all module replacements, proof test results, and any deviations from design specifications to support safety lifecycle management.

Environmental Specifications

Relay Contact Specifications

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV SIS components:

• ✓ 100% authentic OEM products with full manufacturer traceability and safety certifications
• ✓ Expert SIS technical support from certified functional safety engineers
• ✓ Extensive inventory of current production and legacy DeltaV SIS modules
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation including safety manuals and proof test procedures

Complementary DeltaV SIS Components

Ordering Information & Safety Lifecycle Support

• KJ2231X1-EA1: SIS Relay Module (this product)
• Safety Certification: IEC 61508 SIL 2/3 certified, suitable for SIL 1/2/3 applications
• Proof Test Procedures: Available upon request for safety lifecycle documentation
• Spare Parts Strategy: Maintain tested spares for critical SIF applications per IEC 61511 requirements

Technical Documentation & Functional Safety Support

Complete safety manuals including Document 12P2046 (Zone 2 Installation Instructions), "DeltaV M-Series Hardware Installation and Reference," and IEC 61508 safety manual available upon request. Our functional safety engineers provide SIL verification support, proof test procedure development, safety lifecycle consulting, and failure mode analysis for complex DeltaV SIS implementations.

Maintenance & Functional Safety Requirements

• No User-Serviceable Parts: Factory-sealed safety-certified module requires no field maintenance beyond proof testing
• No Calibration Required: Relay contact operation requires no periodic calibration or adjustment
• Do Not Disassemble: Module disassembly voids safety certification and may compromise SIL rating
• Proof Test Interval: Establish based on SIL verification calculations and required PFDavg (typically 1-3 years)
• Replacement Criteria: Replace module if proof test failures occur, diagnostic alarms activate, or relay contacts show degradation
