Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

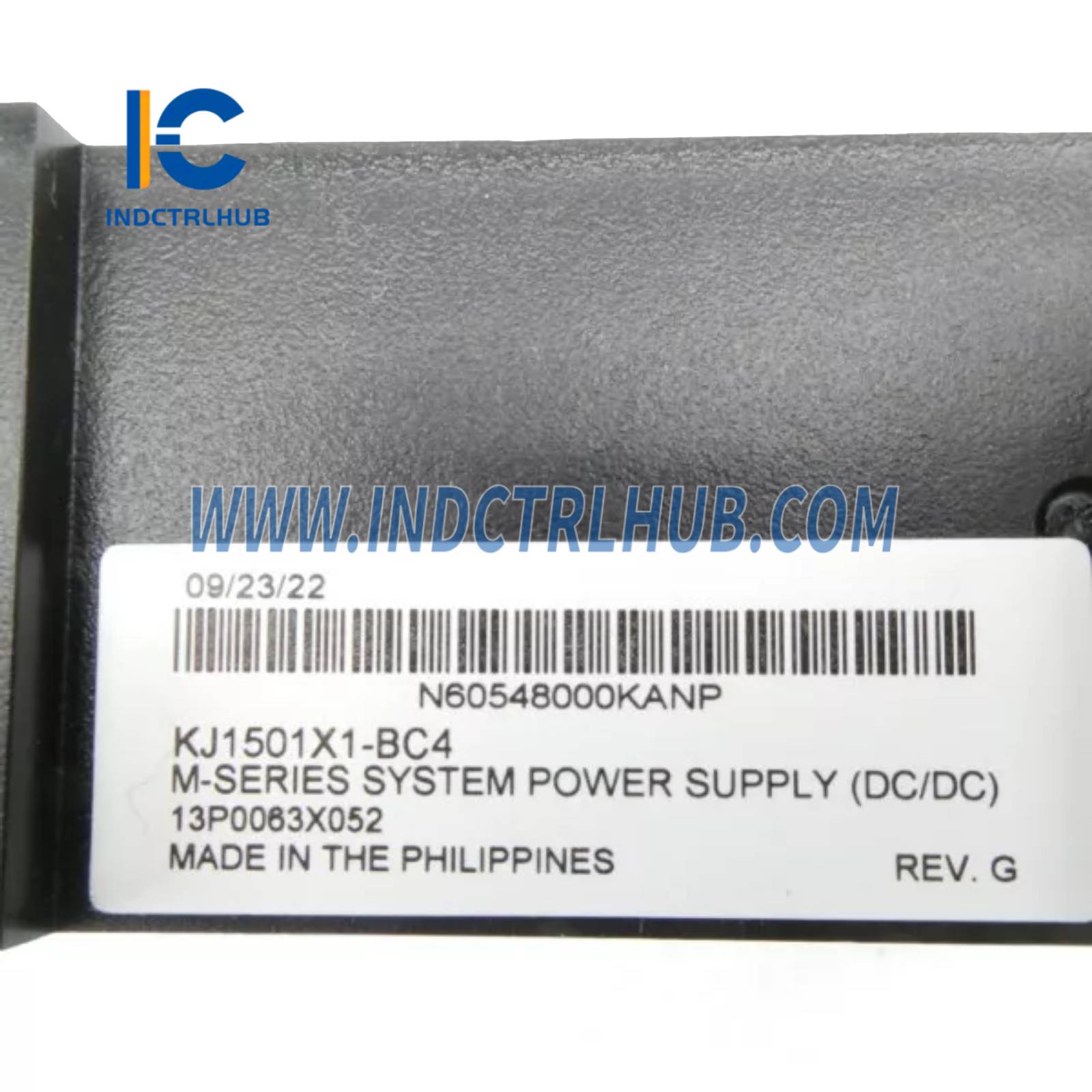

KJ1501X1-BC4 |
|
Description |

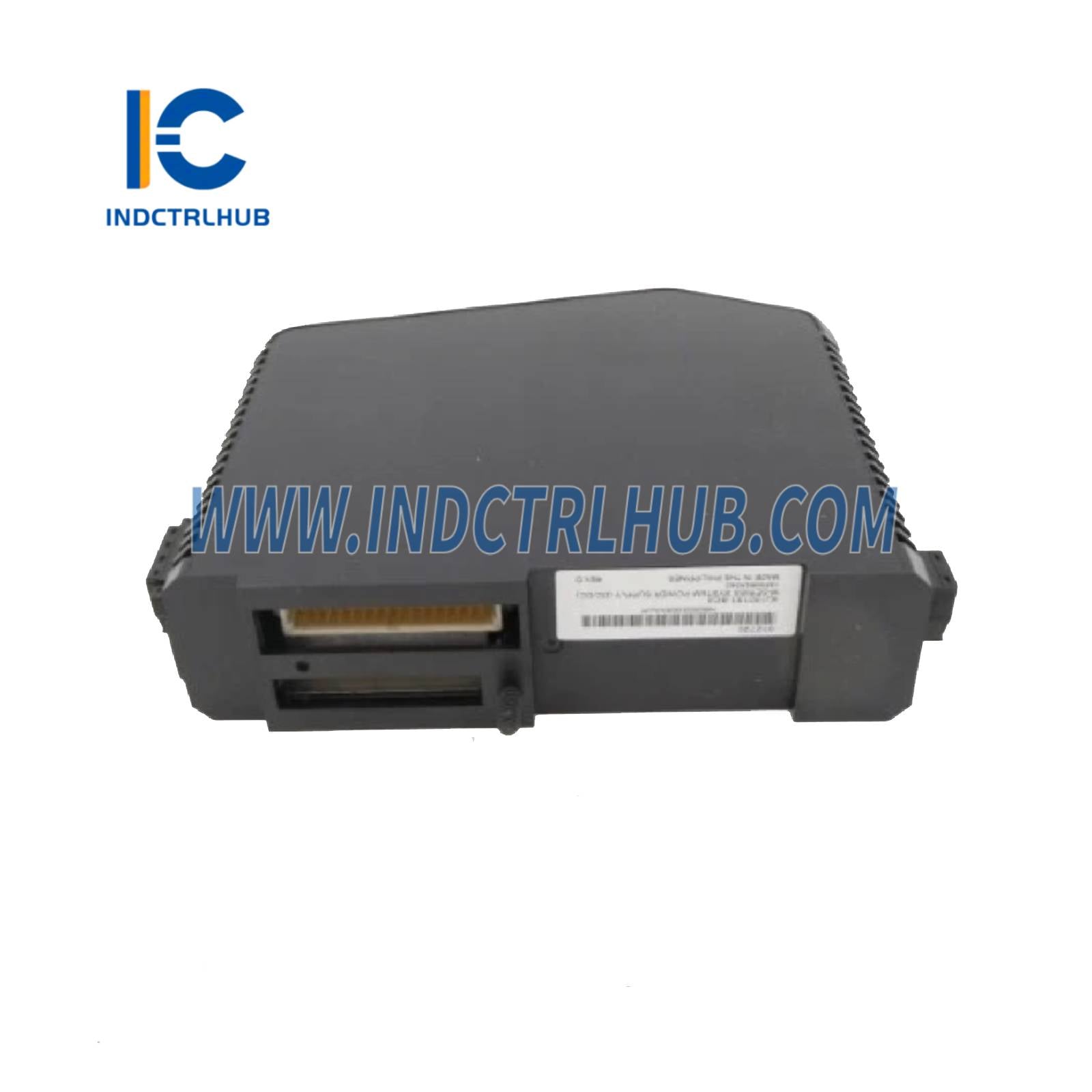

System Dual DC Power Supply |
Power Specifications
|
Specification |
Output |
|---|---|
|
12 VDC Output Power |
14.8 A |
|
24 VDC Output Power |
6.1 A |
|
12 VDC Output (at 12 VDC input) |
13 A |
|
12 VDC Output (at 24 VDC input) |
8 A |
|
5.1 VDC Output |
2.0 A |
|
3.4 VDC Output |
2.0 A |
|
Combined +5.1 VDC & +3.4 VDC Power |
10.2 W (total) |
Note:
In 12 VDC passthrough mode:
-
Voltage must not exceed 12.6 VDC
-
Maximum supply current: 16 A
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
–40°C to +70°C |
|
Shock |
10 G ½-sinewave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ Scalable Process System Zone 2 Installation Instructions).
-
Additional reference: DeltaV™ S-Series and CHARMs Hardware Installation manual.
-
Removal/Insertion:
-
Do not remove or insert with system power energized.
Maintenance and Adjustment
-
No user-serviceable parts
-
Do not disassemble
-
Calibration not required
