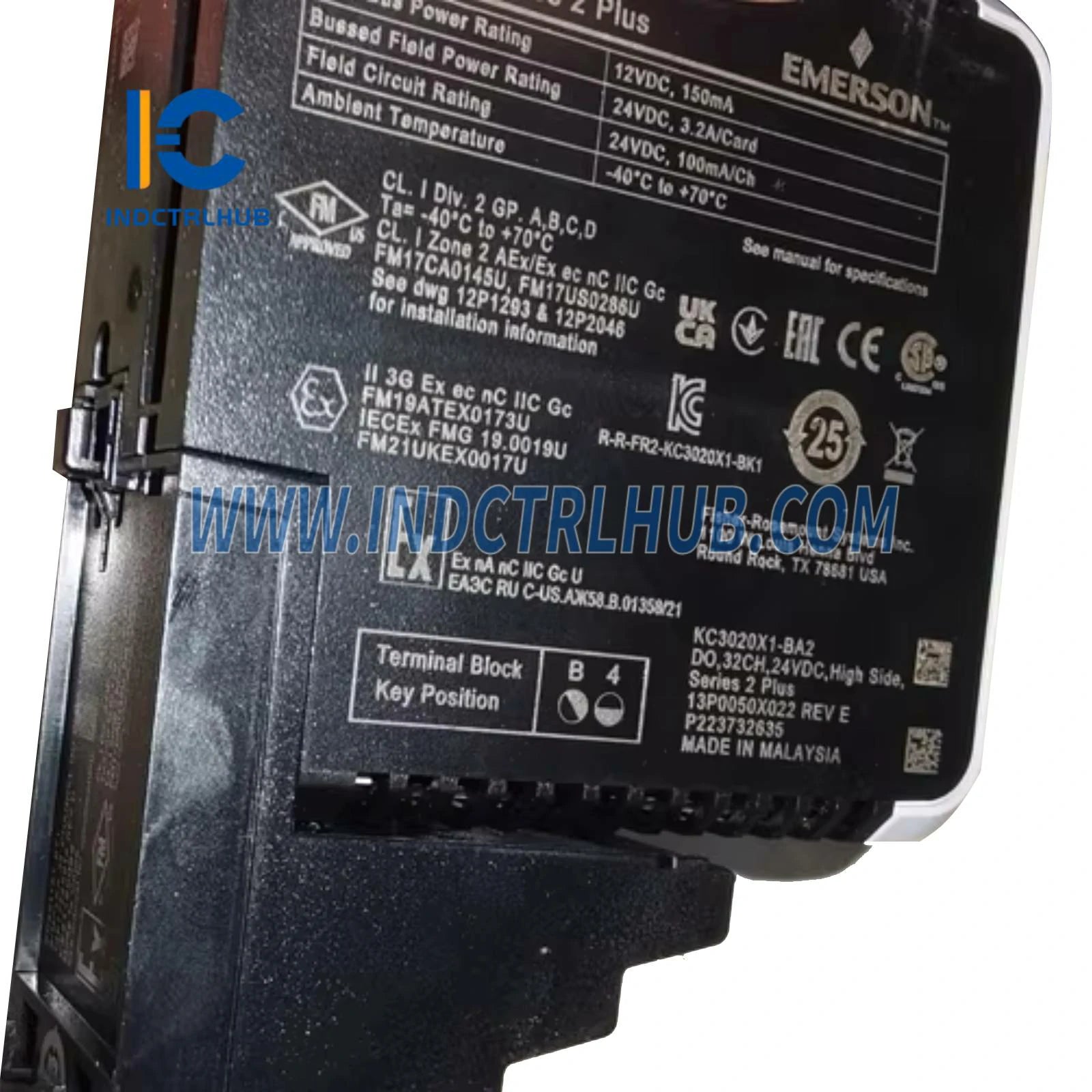

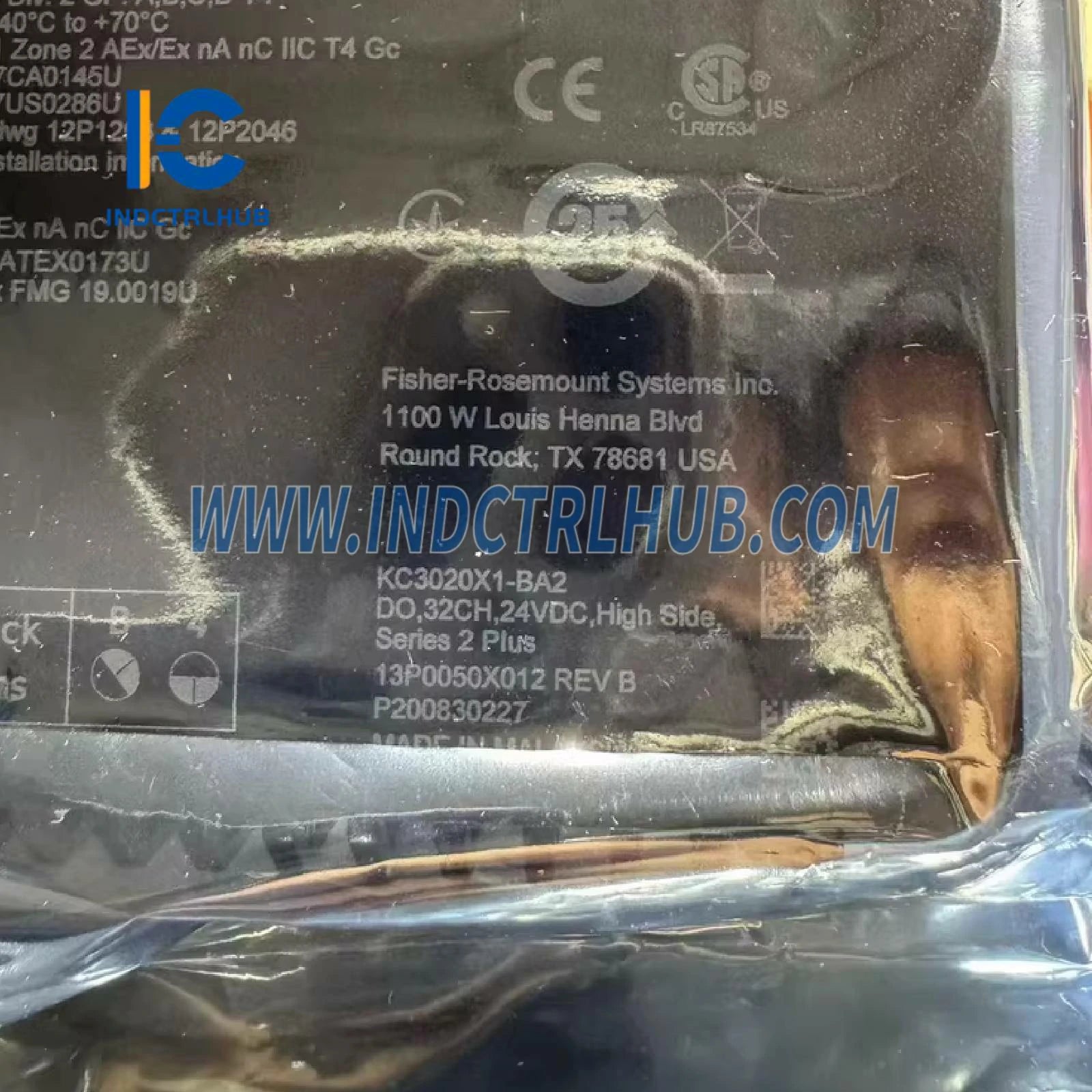

Emerson KC3020X1-BA2 DeltaV 32-Channel 24VDC Digital Output Card
Emerson KC3020X1-BA2 DeltaV 32-Channel 24VDC Digital Output Card
Manufacturer: Emerson
Product No.: KC3020X1-BA2
Condition:1000 in stock
Product Type: DO 32-Channel 24VDC High-Side Plus Card
Product Origin: 8520147396013
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson KC3020X1-BA2 DeltaV 32-Channel Digital Output Card
The Emerson KC3020X1-BA2 is a high-density digital output module engineered for DeltaV distributed control systems, delivering precise 24VDC switching control across 32 independent channels. Designed for demanding industrial environments, this high-side driver card provides reliable solenoid valve control, motor starters, and indicator lamp actuation in process automation applications.
Core Technical Specifications
- Output Channels: 32 independently controlled digital outputs
- Output Type: High-side 24VDC switching (positive logic)
- Current Rating: 0.5A continuous per channel, 2A surge (10ms)
- Voltage Range: 18-30 VDC nominal operating range
- Isolation: 1500 VDC channel-to-backplane isolation
- Protection: Per-channel short-circuit detection and thermal shutdown
- Response Time: <5ms turn-on/turn-off propagation delay
- Diagnostic LEDs: Individual channel status indicators for rapid troubleshooting
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting: Hot-swappable in DeltaV I/O carrier modules
Industrial Application Scenarios
Valve Manifold Control: In chemical processing plants, the KC3020X1-BA2 excels at controlling pneumatic valve banks for batch reactors, blending systems, and material transfer operations. The high channel density reduces cabinet footprint while individual channel diagnostics enable predictive maintenance by detecting coil failures before process disruptions occur.
Motor Starter Interfacing: Interface directly with 24VDC motor starter coils in conveyor systems, agitators, and pump applications. Short-circuit protection safeguards the card when starter contacts weld or wiring faults develop, while thermal shutdown prevents damage during sustained overload conditions.
Annunciator Panel Driving: Drive alarm indicator lamps and audible warning devices in control rooms and field junction boxes. The card's fast response time ensures immediate visual feedback during process upsets, critical for operator situational awareness in refineries and power generation facilities.
Interlock Logic Execution: Implement safety interlocks and permissive logic for equipment protection sequences. The deterministic scan time guarantees repeatable timing for critical shutdown chains, while the high-side switching architecture provides fail-safe operation—outputs de-energize upon card failure or power loss.
Engineering Solutions & Integration
The KC3020X1-BA2 installs in standard DeltaV I/O carriers with automatic configuration discovery through the DeltaV system database. Engineers assign I/O tags and configure alarm limits using DeltaV Explorer, with real-time channel diagnostics accessible through operator workstations and mobile devices.
Wiring Efficiency: Terminal blocks accept 14-22 AWG wire with spring-clamp or screw terminations, supporting both point-to-point wiring and pre-assembled cable harnesses. Common return terminals reduce wiring complexity in high-density installations.
Diagnostic Capabilities: Built-in diagnostics continuously monitor output current, detecting open loads (broken wires), short circuits, and excessive voltage drop. Alarm conditions trigger immediate notifications through DeltaV's alarm management system, with historical trending available for reliability analysis.
Redundancy Support: Deploy in redundant I/O configurations for critical control loops requiring zero downtime. Automatic failover occurs within one scan cycle, maintaining process continuity during card replacement or maintenance activities.
Performance & Reliability Features
Constructed with industrial-grade MOSFETs and conformal-coated PCBs, the KC3020X1-BA2 withstands vibration, humidity, and electrical noise typical of process industry environments. Hot-swap capability allows module replacement without powering down the I/O carrier, minimizing maintenance windows and production interruptions.
Each output channel features inductive load suppression to protect against voltage spikes from solenoid coils and relay coils. The card's thermal management system distributes heat evenly across the module, ensuring reliable operation even when all 32 channels operate simultaneously at maximum current.
Why Choose Industrial Control Hub
Industrial Control Hub supplies factory-sealed Emerson KC3020X1-BA2 modules with full traceability documentation and manufacturer warranties. Our technical specialists provide application support for I/O configuration, wiring diagrams, and troubleshooting assistance. We maintain ready stock for immediate global shipment, with expedited logistics available for critical outage situations.
Related DeltaV I/O & Control Components
| Product | Description | Link |
|---|---|---|
| Emerson VE3008 DeltaV MQ Controller | High-performance main controller for complex process control applications | View Product |
| Emerson DST1401I DeltaV System Controller | Redundant system controller with integrated I/O for critical processes | View Product |
| Emerson KJ4110X1-EB1 DeltaV IS Extender | Intrinsically safe I/O extender for hazardous area installations | View Product |
