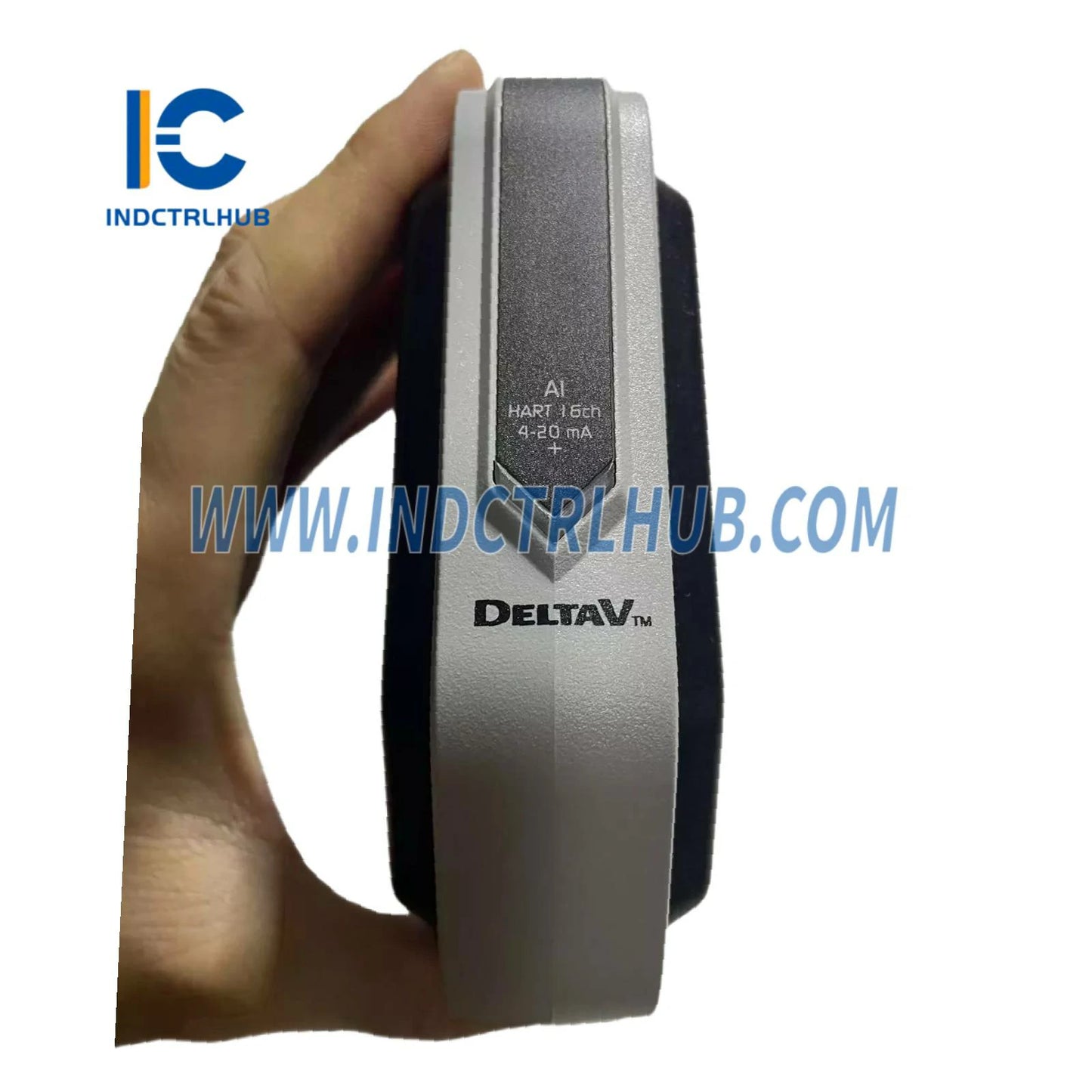

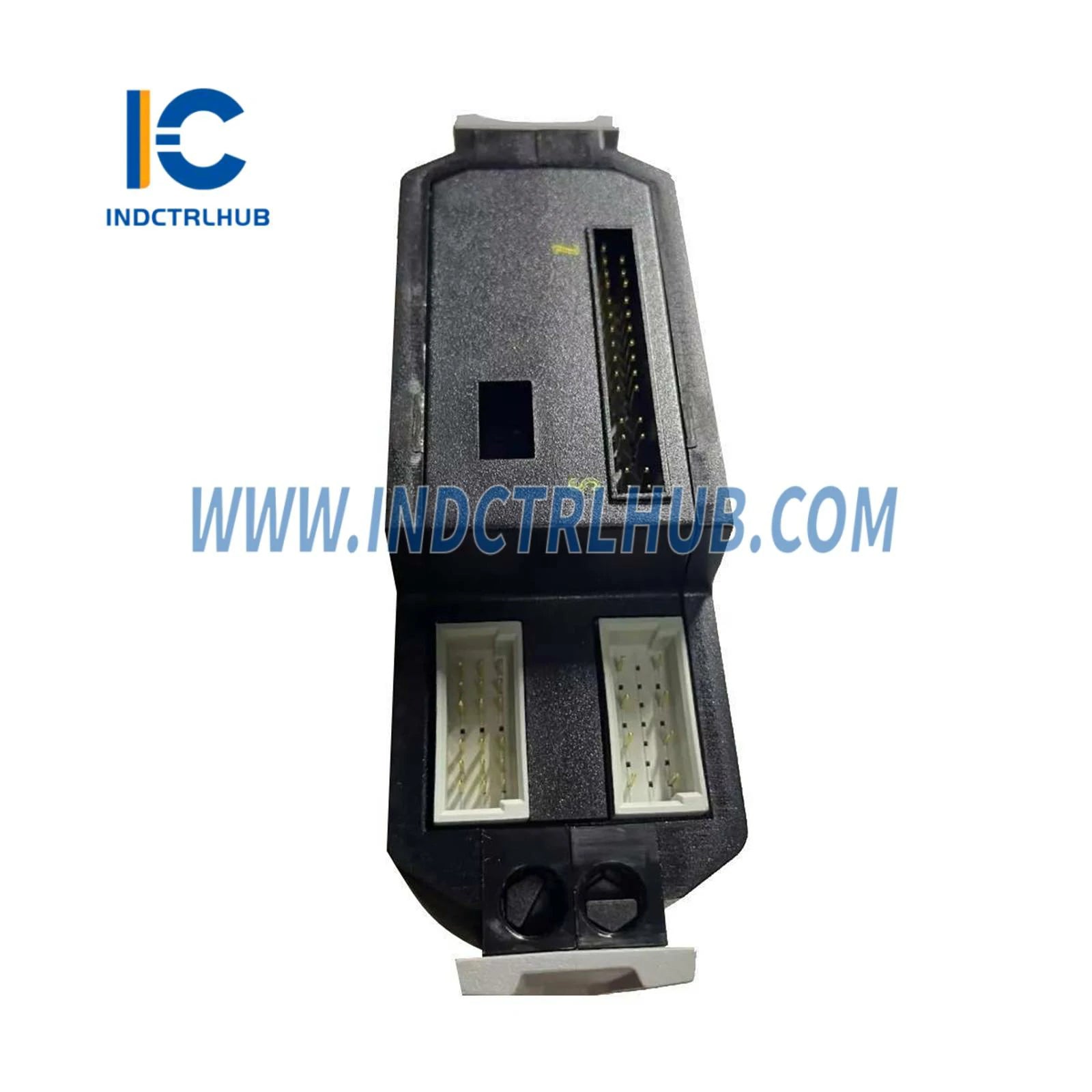

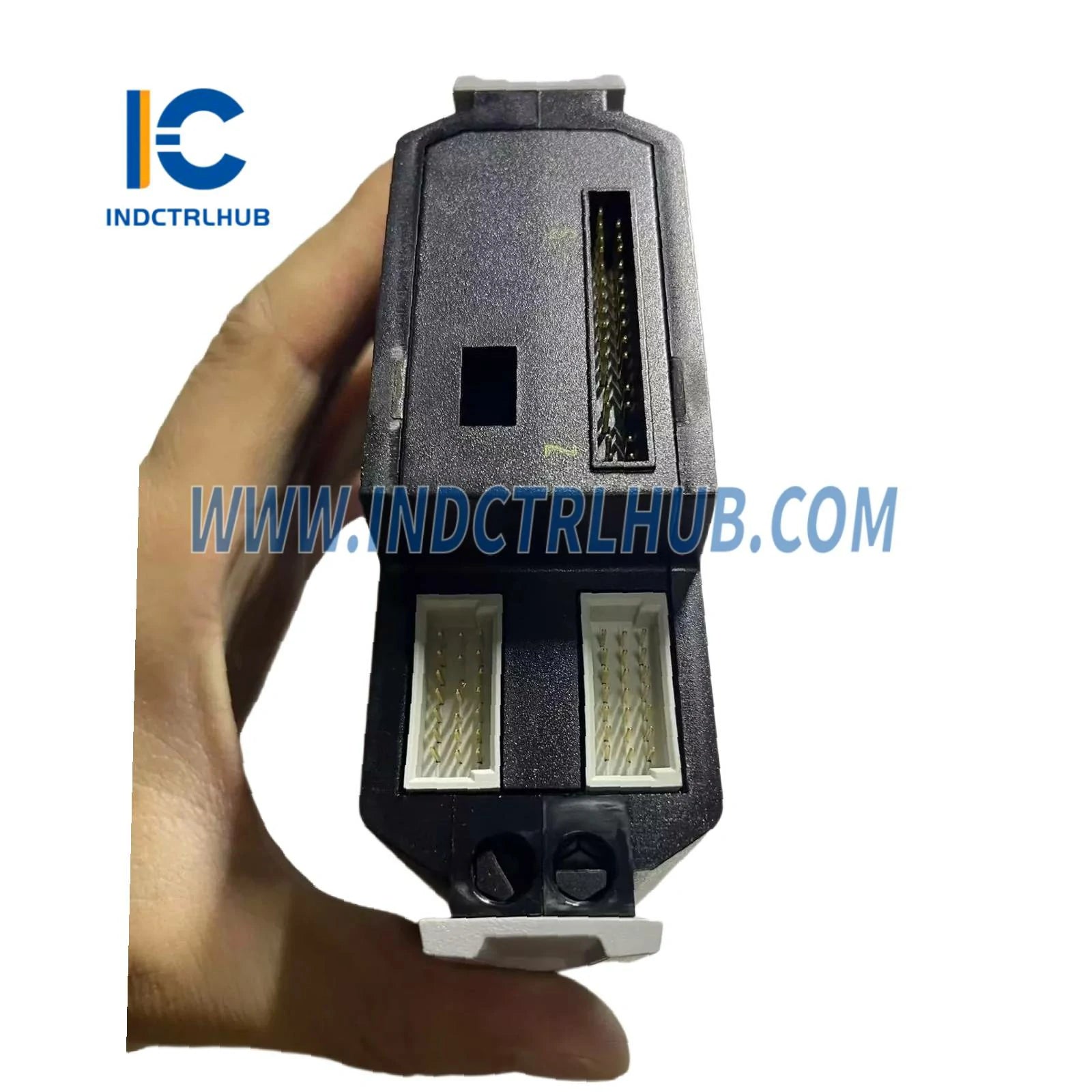

Emerson KC3010X1-BK1 16-Channel 4-20mA HART Plus AI Card

Emerson KC3010X1-BK1 16-Channel 4-20mA HART Plus Analog Input Card - Advanced Process Measurement for DeltaV S-Series

The Emerson KC3010X1-BK1 16-Channel 4-20mA HART Plus Analog Input Card represents the next generation of process measurement technology for DeltaV S-series distributed control systems. This high-performance analog input module combines precision 4-20mA signal acquisition with advanced HART digital communication capabilities, delivering exceptional measurement accuracy and comprehensive device diagnostics for oil & gas, chemical, pharmaceutical, and power generation facilities.

Core Technical Specifications

• Model Number: KC3010X1-BK1
• Channel Count: 16 analog input channels per card
• Signal Range: 4-20mA with HART digital communication overlay
• Field Power: 24VDC at 30mA per channel for 2-wire transmitters
• Bussed Field Power: 24VDC at 500mA per card
• LocalBus Power: 12VDC at 150mA
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)

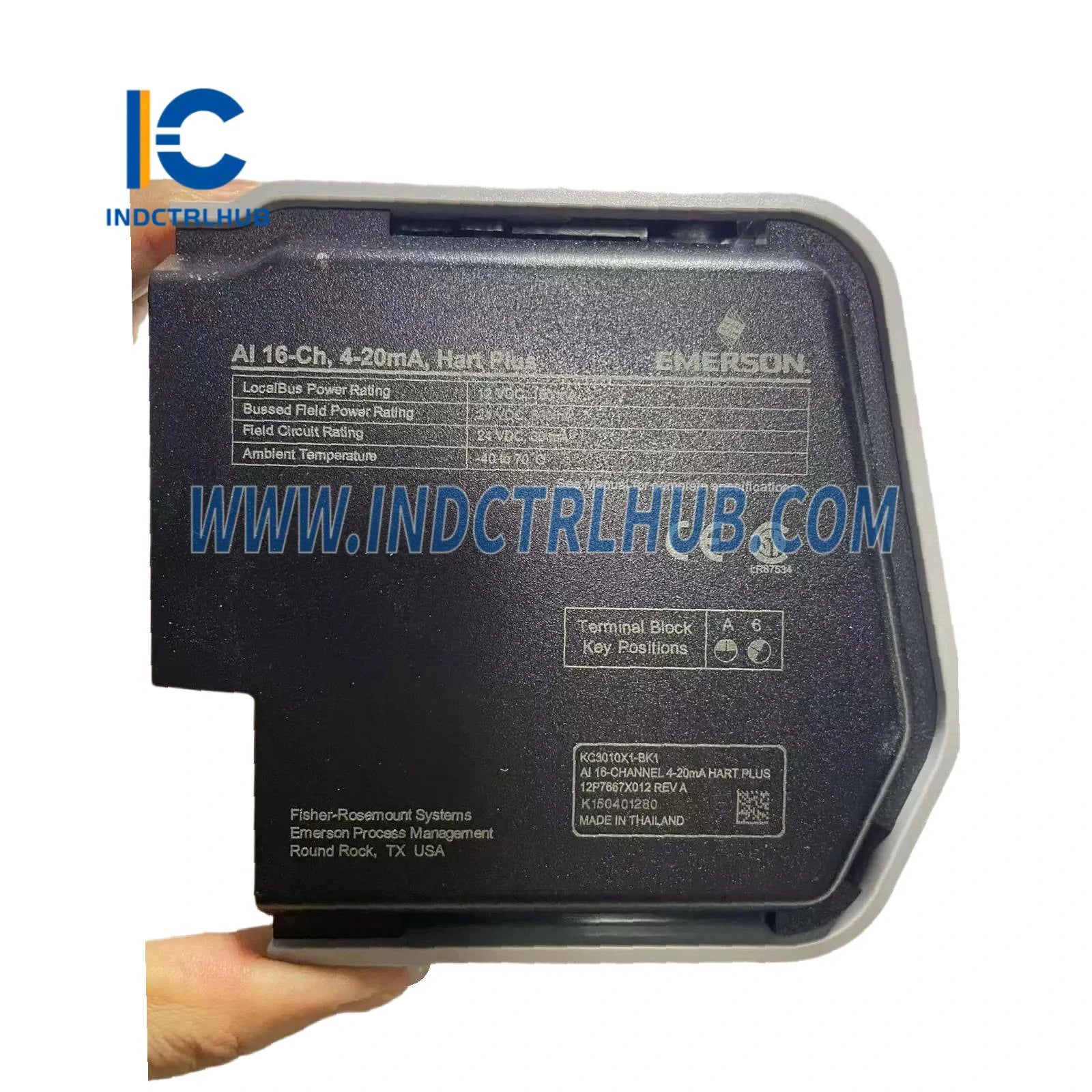

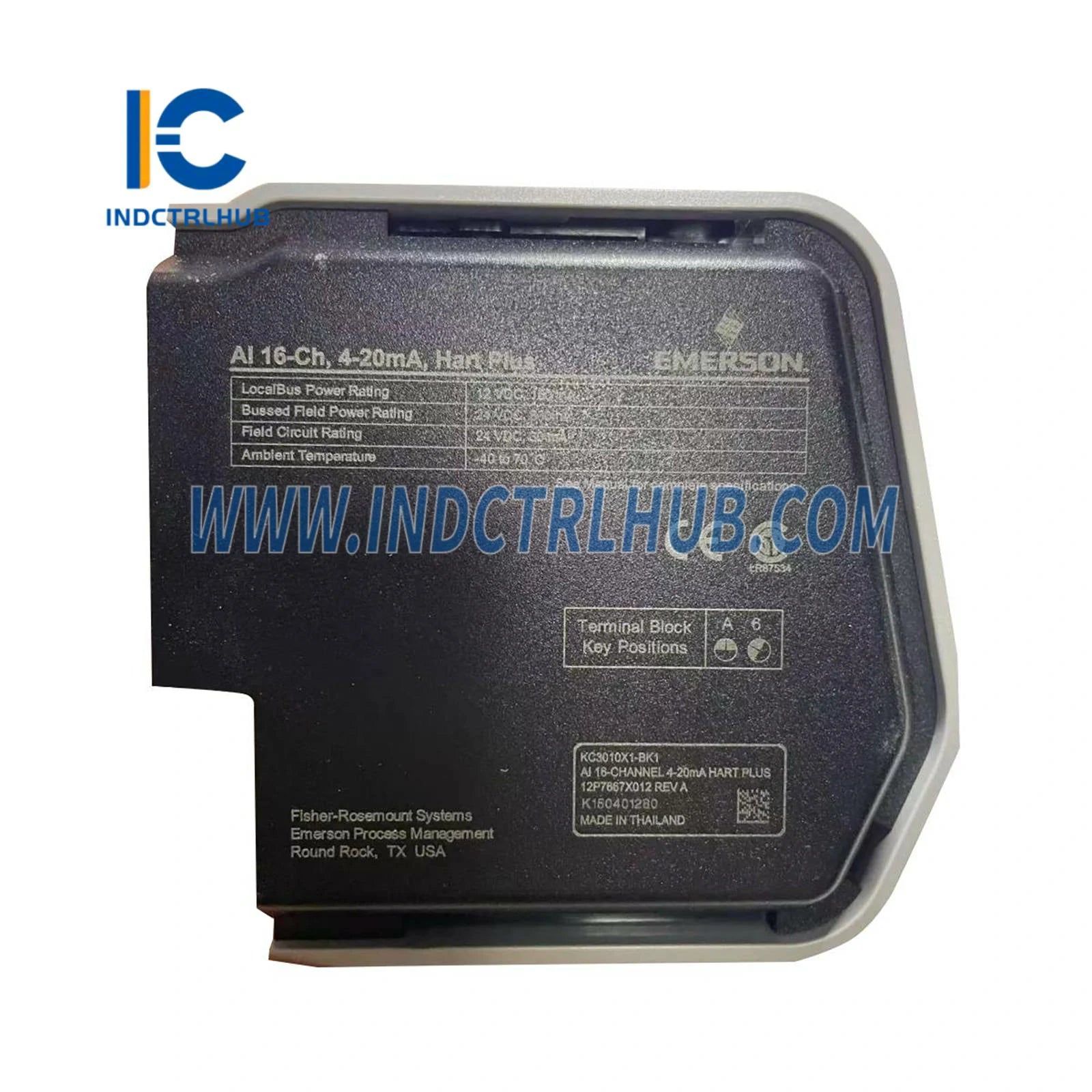

• Terminal Block Key: A6 position for proper card identification
• System Compatibility: DeltaV S-series controllers and I/O carriers

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations per Document 12P5404
• IECEx International: Compliant with global hazardous area standards
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Industrial Process Measurement Applications

Pressure & Differential Pressure Measurement: Interface with smart differential pressure transmitters for flow measurement in pipelines, level monitoring in vessels, and filter differential pressure tracking. The HART Plus capability enables simultaneous access to primary process variable (PV), secondary variables (temperature, static pressure), and advanced diagnostics without consuming additional I/O points.

Flow Metering Systems: Connect to electromagnetic, vortex, Coriolis, and ultrasonic flowmeters for precise custody transfer, batch control, and process optimization. Multi-variable HART data provides density compensation, totalizer values, and diagnostic alerts directly to the DCS, eliminating the need for separate analog inputs for secondary measurements.

Level Measurement: Acquire signals from radar, ultrasonic, guided wave radar, and hydrostatic pressure transmitters for tank farm management, reactor level control, and separator interface detection. HART diagnostics provide early warning of sensor fouling, coating buildup, or measurement degradation before process upsets occur.

Analytical Instrumentation: Interface with pH meters, conductivity analyzers, dissolved oxygen sensors, turbidity meters, and gas chromatographs in water treatment, pharmaceutical, and food & beverage applications. HART communication enables remote calibration, sensor health monitoring, and regulatory compliance documentation without field visits.

Temperature Measurement: Connect to smart temperature transmitters with RTD or thermocouple inputs for reactor temperature profiling, heat exchanger monitoring, and furnace control. Access transmitter diagnostics including sensor drift detection, wiring fault identification, and calibration status through HART protocol integration with AMS Device Manager.

HART Plus Technology Advantages

Advanced features beyond standard HART communication:

• Multi-Variable Access: Simultaneously read primary variable, secondary variables, tertiary variables, and quaternary variables from multi-parameter transmitters
• Fast Update Rates: HART data refreshes faster than 1 second for critical process variables (dependent on device type and communication loading)
• Device Diagnostics: Access transmitter health status, calibration drift alerts, process condition warnings, and maintenance recommendations
• Remote Configuration: Adjust transmitter parameters, perform zero/span calibration, configure damping, and set alarm limits from the control room
• Asset Management Integration: Seamless integration with AMS Device Manager for predictive maintenance and asset performance monitoring

Installation Requirements & Best Practices

Critical guidelines for reliable DeltaV S-series operation:

Field Power Removal Requirement: Field power MUST be removed before card removal or insertion. The KC3010X1-BK1 CANNOT be removed or inserted while system power is energized, even in non-hazardous areas. This requirement protects card electronics from damage and prevents unintended transmitter power cycling during maintenance.

I/O Loop Assessment: All energy-limited nodes require I/O loop assessment before hot-swapping operations. Verify that field circuits meet intrinsic safety requirements for Zone 2 installations, including maximum cable capacitance and inductance limits specified in Document 12P5404.

Terminal Block Keying: Terminal block must match key position A6 for proper card compatibility. The rotary keying system prevents incorrect card insertion and ensures field wiring matches the installed card type, reducing commissioning errors and preventing damage to field transmitters.

Power Budget Management: Calculate total transmitter power consumption to ensure combined load remains within the 24VDC at 500mA bussed field power capacity. Each channel provides up to 30mA for 2-wire transmitters, but total card consumption must not exceed 500mA. For applications requiring higher power, distribute transmitters across multiple cards.

Grounding & Shielding: Maintain proper cabinet grounding and signal cable shielding throughout the installation. Use twisted-pair shielded cable for all 4-20mA connections to minimize electromagnetic interference from VFDs, motor starters, and high-power equipment. Ground shields at one end only (typically at the DCS cabinet) to prevent ground loops.

Environmental Specifications

HART Communication Capabilities

Comprehensive device integration and diagnostics:

• HART Protocol Support: Full HART 7 protocol implementation with backward compatibility to HART 5 and HART 6 devices
• Device Description (DD) Support: Automatic device recognition and parameter access through HART Device Descriptions
• Burst Mode: Continuous HART data streaming for applications requiring high-speed secondary variable updates
• Multi-Drop Configuration: Support for multi-drop HART networks (up to 15 devices per channel) for applications requiring digital-only communication
• Diagnostic Alerts: Automatic propagation of transmitter diagnostic status to DeltaV control strategies for alarm generation and maintenance notifications

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV I/O cards
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, HART configuration guides, and integration assistance

Complementary DeltaV I/O Components

Ordering Information & System Planning

• KC3010X1-BK1: 16-Channel 4-20mA HART Plus Analog Input Card (this product)
• Terminal Block: A6 key position terminal block (sold separately)
• HART Configuration: AMS Device Manager license required for full HART device management
• Spare Parts Strategy: Maintain spare cards for critical measurement loops to minimize downtime

Technical Documentation & Support

Complete installation manuals including Document 12P5404 (DeltaV S-series Zone 2 Installation Instructions) and "DeltaV S-series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides HART configuration assistance, loop calibration support, AMS Device Manager integration guidance, and troubleshooting for complex multi-variable transmitter applications.

Maintenance & Service Life

• No User-Serviceable Parts: Factory-sealed electronics require no field maintenance or adjustment
• No Calibration Required: Digital signal processing eliminates drift and periodic calibration requirements
• Do Not Disassemble: Card disassembly voids warranty and may damage sensitive electronics
• Replacement Criteria: Replace card if input channels fail, HART communication errors persist, or diagnostic LEDs indicate internal faults
• Expected Service Life: 15+ years in typical control room environments with proper power supply and environmental conditions
