Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KC3010X1-BA2 |
|
Description |

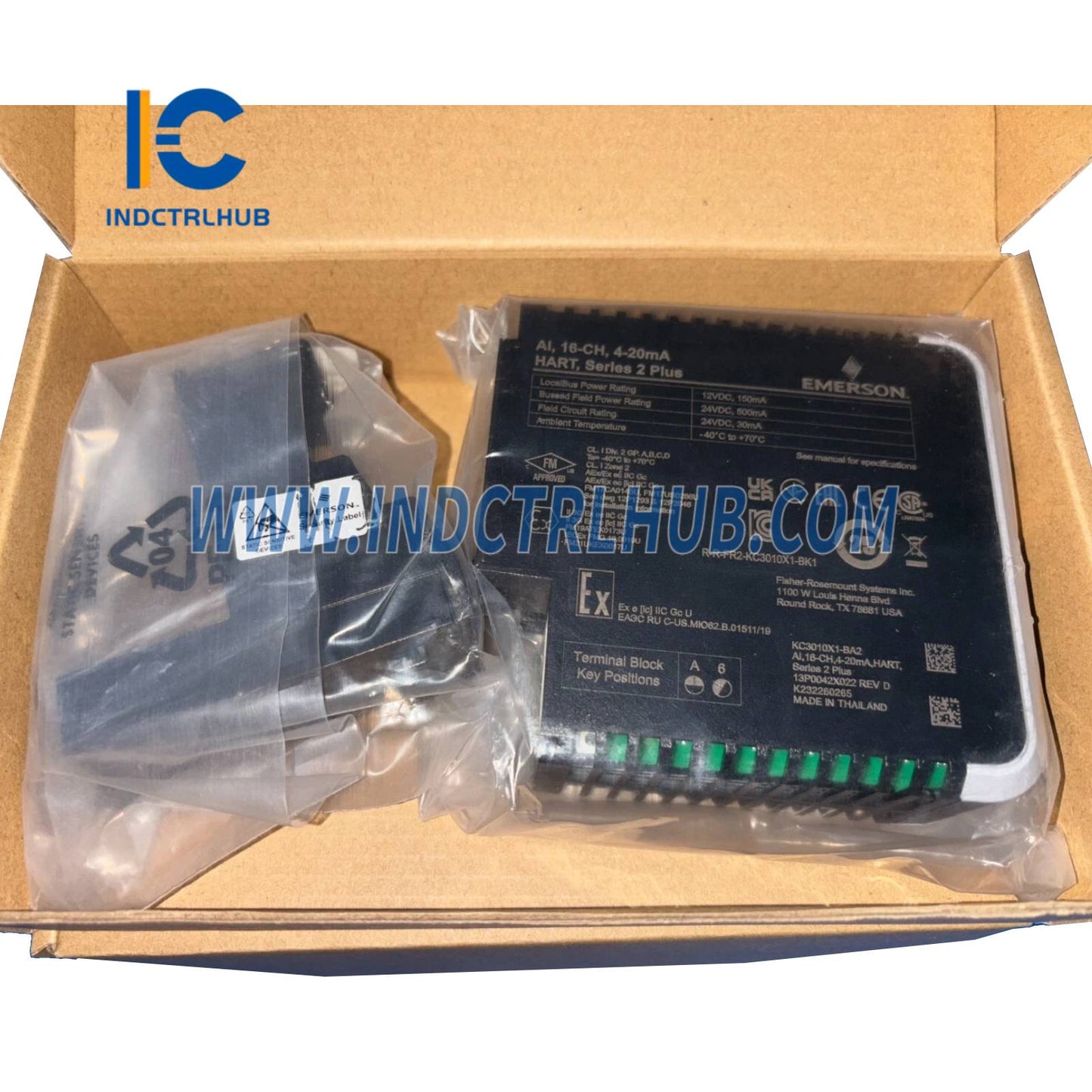

AI 16-Channel 4-20mA HART Plus Card |
Power Specifications
|
Specification |
Detail |
|---|---|
|
Local Bus Power |
12 VDC at 150 mA |
|
Bussed Field Power |
24 VDC at 500 mA |
|
Field Circuit |
24 VDC at 30 mA per Channel |
Environmental Specifications
|
Specification |
Detail |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g, half-sine wave for 11 milliseconds |
|
Vibration |
1 mm peak-to-peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz) |
|
Airborne Contaminants |
ISA-S71.04-1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
A6 |
Special Instructions & Notes
-
Hazardous Area Installation:
Refer to document 12P2046: “DeltaV™ Scalable Process System Zone 2 Installation Instructions”.
More installation details available in the “DeltaV™ S-Series and CHARMs Hardware Installation” manual.
-
Removal and Insertion:
-
Field power (from field terminal or carrier) must be disconnected before removing/connecting the device.
-
I/O loop assessment is required for all energy-limited nodes.
-
Cannot be inserted or removed with system power energized.
-
Correct rotary keying must be used on terminal blocks for proper compatibility.
-
Maintenance and Adjustment:
-
No user-serviceable parts inside.
-
Do not disassemble the unit.
-
Calibration is not required.
