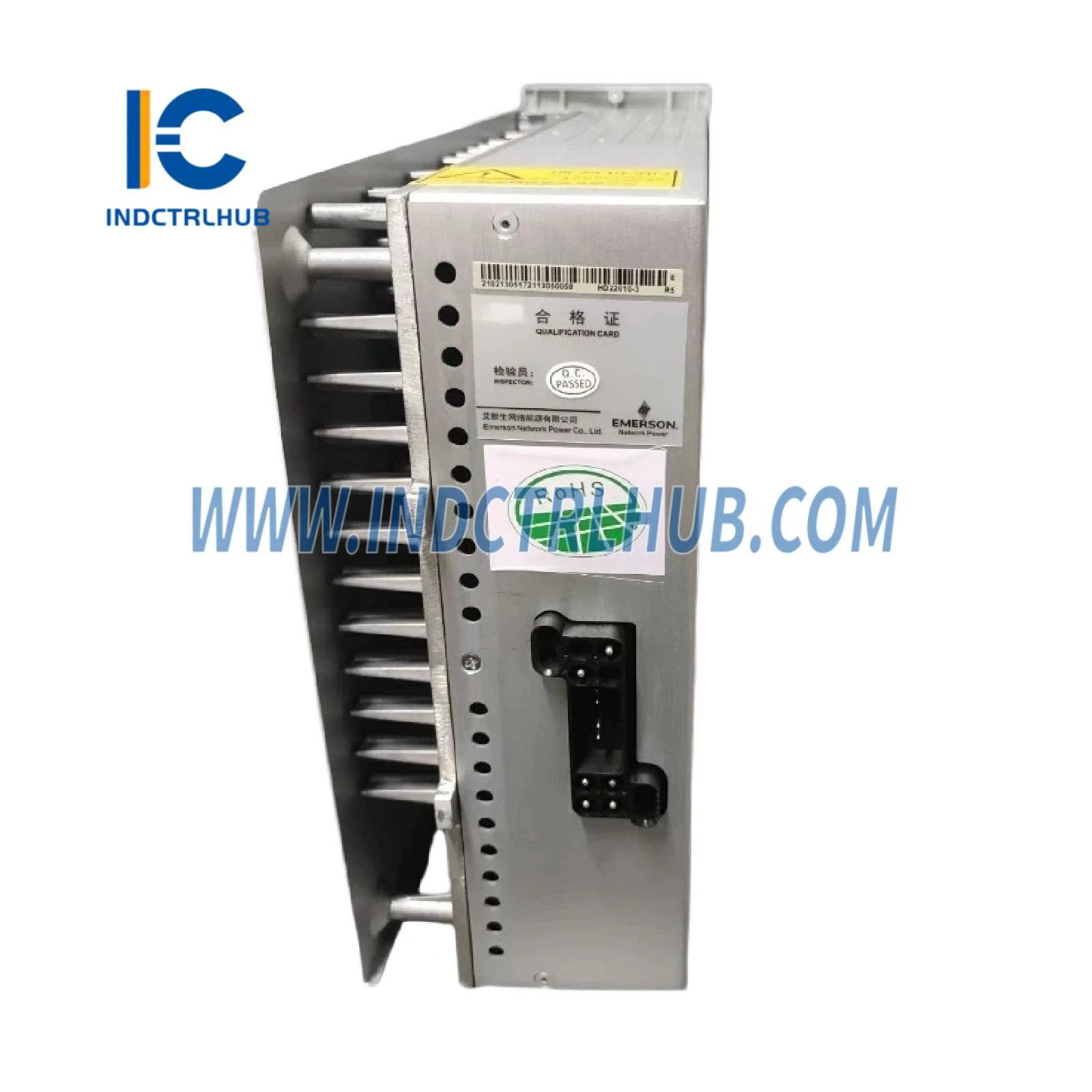

Emerson HD22010-3 10A 220VDC Rectifier Module

Emerson HD22010-3 10A 220VDC High-Frequency Switching Rectifier Module - Reliable DC Power for Telecom & Industrial Applications

The Emerson HD22010-3 Rectifier Module delivers high-efficiency DC power conversion for telecommunications infrastructure, industrial control systems, and utility substations. This 10-ampere, 220VDC output module combines advanced high-frequency switching technology with three-phase passive power factor correction, achieving >0.94 power factor while maintaining compliance with stringent EMI/EMC standards for mission-critical power distribution applications.

Core Technical Specifications

• Model Number: HD22010-3
• Output Rating: 220VDC nominal (176-320VDC range), 10A continuous current
• Input Voltage: 323-475VAC, 3-phase, 3-wire system, 45-65Hz
• Power Factor: >0.94 with 3-phase passive PFC circuit
• Efficiency: High-frequency switching topology for maximum energy conversion
• Communication: RS485 port for remote monitoring and control
• Display: 3-digit LED (voltage ±0.3V, current ±0.2A accuracy)
• Dimensions: 413mm (L) x 110mm (W) x 257mm (H)
• Weight: Approximately 8kg

Global Compliance & Certifications

Certified for deployment in telecommunications and industrial power systems worldwide:

• CE Marking: European conformity for electromagnetic compatibility and safety
• RoHS Compliant: Restriction of Hazardous Substances directive compliance
• FCC Certified: Federal Communications Commission electromagnetic interference standards
• EMI/EMC Standards: GB/T 17794.2.2-2003, DL/T781-2001 compliance

Industrial & Telecommunications Applications

Telecommunications Base Stations: Provide reliable DC power for cellular base stations, microwave relay stations, and fiber optic network equipment. The 220VDC output supports standard telecom battery banks and critical communication infrastructure requiring uninterruptible power supply (UPS) backup. High power factor (>0.94) reduces utility costs and minimizes harmonic distortion on the AC grid.

Utility Substation Control Systems: Power SCADA equipment, protective relays, and remote terminal units (RTUs) in electrical substations. The wide input voltage range (323-475VAC) accommodates grid voltage fluctuations common in utility environments, while the rugged construction withstands the harsh electromagnetic environment near high-voltage switchgear and transformers.

Industrial DC Distribution Panels: Serve as charging modules in DC power distribution systems for manufacturing facilities, chemical plants, and oil & gas installations. The RS485 communication interface enables integration with building management systems (BMS) and supervisory control networks for centralized power monitoring and predictive maintenance.

Railway Signaling & Control: Supply DC power for railway signaling systems, track circuits, and interlocking equipment. The module's wide operating temperature range (-25°C to +55°C) accommodates outdoor equipment shelters and trackside installations subject to extreme weather conditions.

Data Center Infrastructure: Support legacy 220VDC power distribution architectures in telecommunications data centers and carrier hotels. The high-frequency switching design minimizes heat generation and acoustic noise (<55dB), critical for installations in occupied equipment rooms and colocation facilities.

Advanced Power Conversion Architecture

Sophisticated design for maximum efficiency and reliability:

Three-Phase Passive PFC: The input stage employs a three-phase passive power factor correction circuit that rectifies and filters AC input while maintaining power factor >0.94. This design eliminates the need for active PFC components, improving reliability and reducing electromagnetic interference. Compliance with GB/T 17794.2.2-2003 and DL/T781-2001 ensures compatibility with utility grid requirements.

High-Frequency DC/DC Converter: The output stage utilizes pulse-width modulation (PWM) control to deliver stable, regulated DC voltage across the full load range. High-frequency switching (typically 50-100kHz) enables compact transformer design and fast transient response to load changes, critical for maintaining voltage stability during equipment startup and fault conditions.

Intelligent Fan Control: Temperature and load-dependent fan speed control optimizes cooling efficiency while minimizing acoustic noise and extending fan service life. The fan operates at three speeds: stopped (light load/low temperature), half-speed (moderate load), and full-speed (heavy load/high temperature), reducing energy consumption and noise pollution in occupied spaces.

Diagnostic & Monitoring Features

Comprehensive status indication and remote management capabilities:

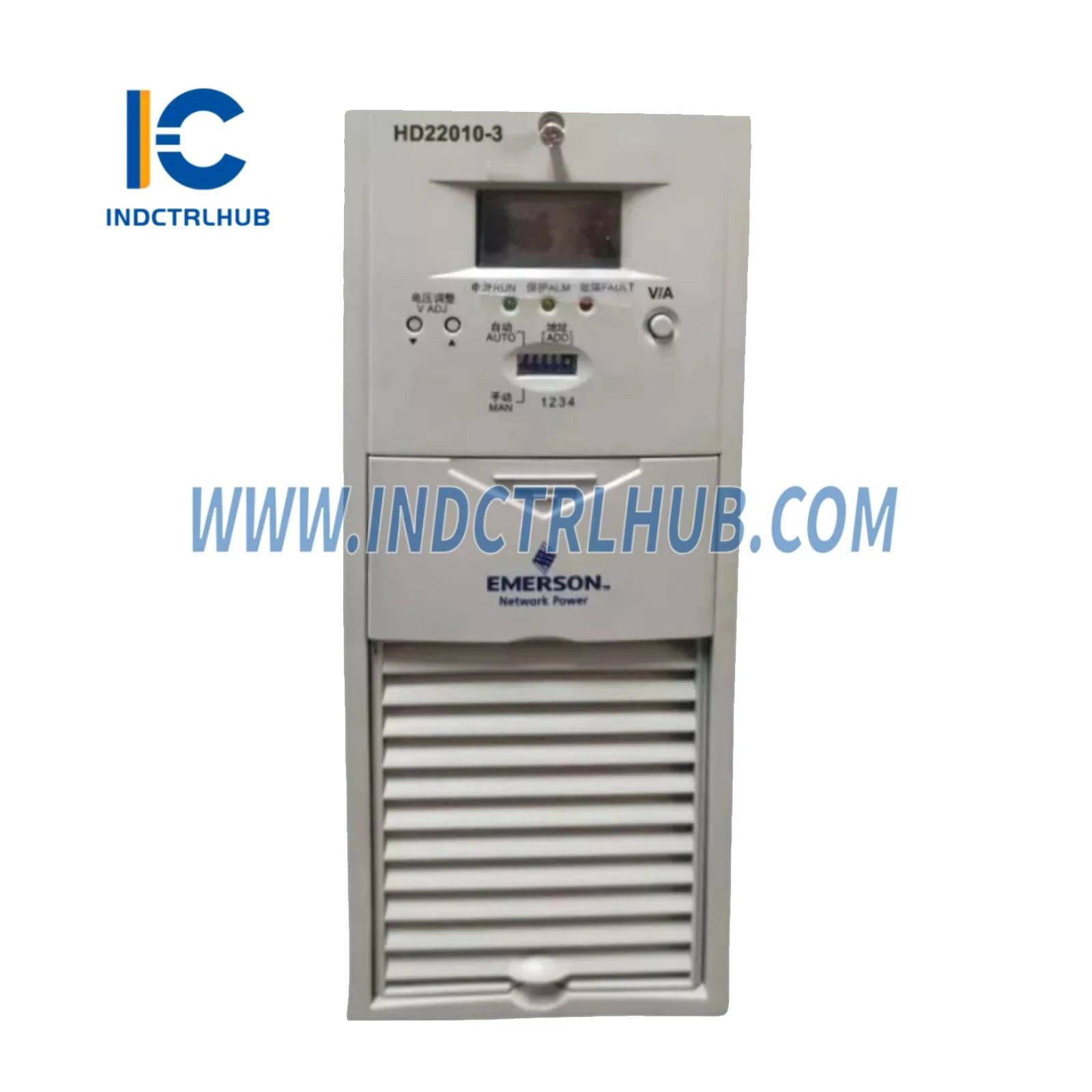

• LED Status Indicators: RUN (green) for normal operation, ALM (yellow) for warnings, Fault (red) for critical failures
• Front Panel Display: 3-digit LED shows output voltage and current with A/V button to toggle display modes
• Fault Code Display: Diagnostic fault codes displayed on LED for rapid troubleshooting and maintenance
• RS485 Communication: Real-time monitoring of voltage, current, temperature, and alarm status via Modbus RTU or proprietary protocol
• Remote Control: Adjust output voltage setpoint, enable/disable module, and reset alarms through communication interface

Environmental Specifications

Installation & System Integration

Designed for efficient deployment in DC power distribution systems:

• Standard 19-inch rack-mountable design for telecom equipment racks and industrial control cabinets
• Hot-swappable capability enables module replacement without system shutdown (when configured in redundant N+1 architecture)
• Front-access design allows maintenance and monitoring without rear cabinet access
• Parallel operation support for scalable power capacity and N+1 redundancy configurations
• Current sharing circuitry ensures balanced load distribution across multiple modules

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson power conversion equipment:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert technical support from certified power systems engineers
• ✓ Extensive inventory of current production and legacy rectifier modules
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, commissioning guides, and integration assistance

Complementary Power System Components

Ordering Information & System Planning

• HD22010-3: 10A, 220VDC High-Frequency Switching Rectifier Module (this product)
• Input Requirements: 323-475VAC, 3-phase, 3-wire system, 45-65Hz
• Mounting: Standard 19-inch rack-mount chassis (rack rails sold separately)
• Redundancy Planning: N+1 configuration recommended for mission-critical applications
• Battery Compatibility: Designed for 220VDC lead-acid or VRLA battery systems

Technical Documentation & Support

Complete installation manuals, commissioning procedures, RS485 communication protocols, and system integration guides available upon request. Our power systems engineering team provides load calculations, redundancy architecture design, battery sizing assistance, and troubleshooting support for complex DC power distribution deployments.

Maintenance & Service Life

• No User-Serviceable Parts: Factory-sealed electronics require no field maintenance beyond periodic inspection
• Fan Replacement: Cooling fans are field-replaceable components with typical 5-year service life
• Preventive Maintenance: Annual inspection of connections, cleaning of air filters, and verification of output voltage recommended
• Expected Service Life: 10+ years in typical telecom and industrial environments with proper ventilation and maintenance
• Spare Parts Strategy: Maintain spare modules for critical applications to minimize downtime during failures
