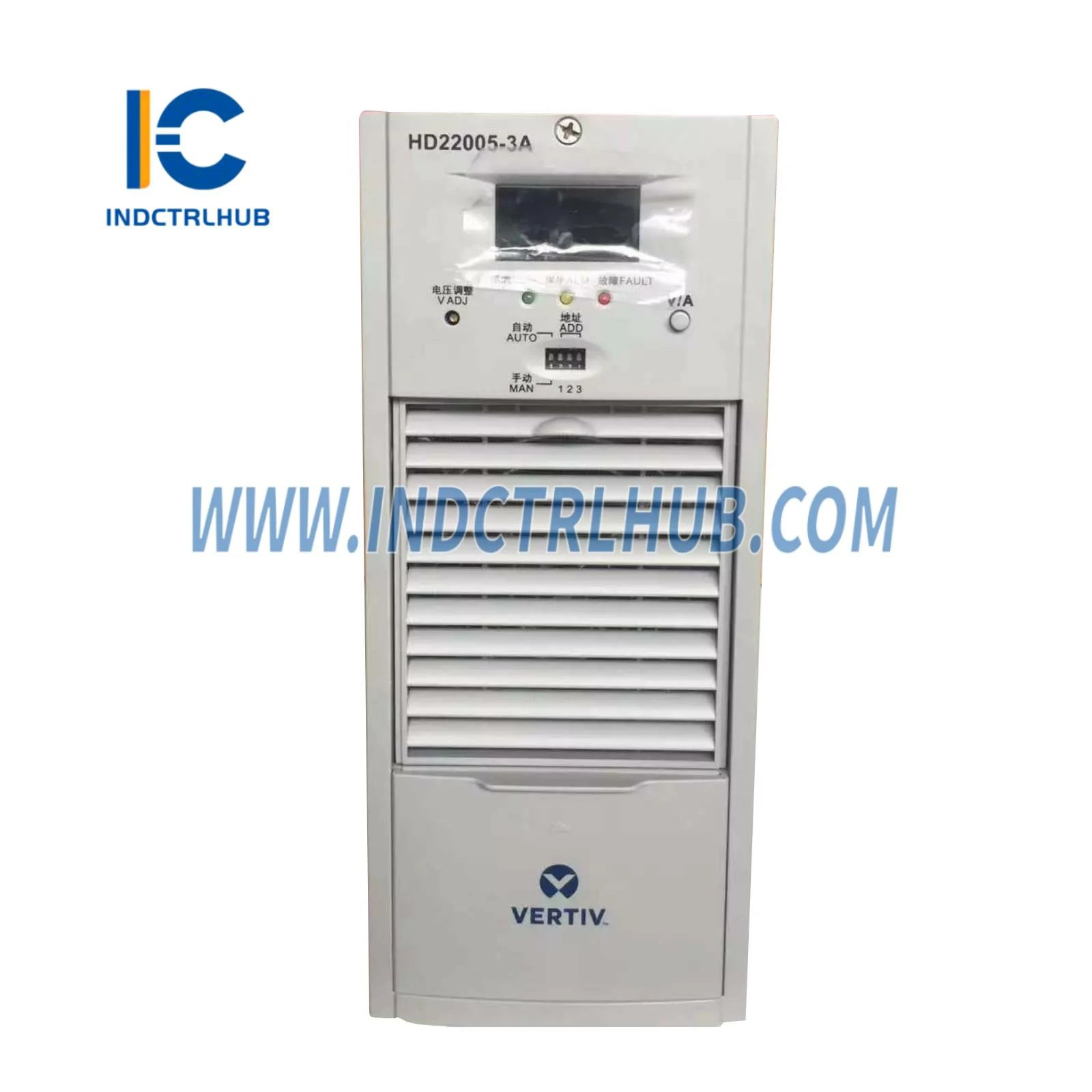

Emerson HD22005-3A 220VDC Rectifier Module

Emerson HD22005-3A 220VDC Rectifier Module - High-Efficiency Power Conversion for Industrial & Telecom Applications

The Emerson HD22005-3A High-Frequency Switching Rectifier Module delivers reliable 220VDC power conversion for telecommunications infrastructure, industrial DC power systems, and critical power distribution applications. This advanced rectifier module combines soft-switching technology with 3-phase passive power factor correction to achieve >91% efficiency and >0.94 power factor, making it ideal for data centers, telecom central offices, substations, and industrial control rooms requiring dependable DC power.

Core Technical Specifications

• Model Number: HD22005-3A
• Output Power: 220VDC at 5A rated current (176-320VDC adjustable range)
• Input Voltage: 323-475 VAC, 3-phase, 3-wire system, 45-65 Hz
• Power Factor: >0.94 with 3-phase passive PFC circuit
• Efficiency: >91% using soft-switching technology
• Display: 3-digit LED (voltage accuracy ±0.3V, current accuracy ±0.2A)
• Communication: RS485 port for remote monitoring and control
• Cooling: Natural cooling <30% load, temperature-controlled air cooling >30% load
• Dimensions: 413mm (L) x 110mm (W) x 257mm (H)
• Weight: Approximately 7 kg

Global Safety & EMC Certifications

Certified for deployment in industrial and telecommunications environments worldwide:

• CE Marking: European conformity for electrical safety and EMC compliance
• RoHS Compliant: Restriction of Hazardous Substances directive compliance
• FCC Certified: Federal Communications Commission electromagnetic interference standards
• EMI/EMC Standards: GB/T 17794.2.2-2003, DL/T781-2001 compliance

Industrial & Telecommunications Applications

Telecommunications Central Offices: Provide reliable 220VDC power for telecom switching equipment, transmission systems, and network infrastructure. The high power factor (>0.94) reduces utility costs and meets stringent telecom power quality requirements. RS485 communication enables integration with building management systems (BMS) for centralized monitoring of rectifier status, output voltage, current, and fault conditions.

Data Center DC Power Systems: Support critical IT infrastructure with stable 220VDC distribution for servers, storage arrays, and network equipment. The >91% efficiency reduces heat generation and cooling requirements, lowering total cost of ownership (TCO). Temperature-controlled cooling automatically adjusts fan speed based on load and ambient temperature, minimizing acoustic noise during light-load operation.

Electrical Substation Control Power: Supply DC power for protection relays, SCADA systems, circuit breaker controls, and substation automation equipment. The wide input voltage range (323-475 VAC) accommodates utility voltage variations without requiring external voltage regulators. Phase failure protection automatically derates output to 2.5A at 260V when one input phase is lost, maintaining critical system operation during utility faults.

Industrial Battery Charging Systems: Charge lead-acid, VRLA, or lithium-ion battery banks in UPS systems, emergency lighting, and backup power applications. The adjustable output voltage range (176-320VDC) accommodates different battery chemistries and charging profiles. Current limiting at 40% of rated output protects batteries from overcharge damage during bulk charging phases.

Railway Signaling & Control: Power railway signaling equipment, interlocking systems, and train control infrastructure requiring 220VDC nominal voltage. The rugged design withstands vibration, temperature extremes (-25°C to +55°C operating range), and electrical transients common in railway environments. Conformal coating protects electronics from moisture, dust, and corrosive atmospheres.

Advanced Power Electronics Architecture

Sophisticated design for maximum efficiency and reliability:

3-Phase Passive PFC: The input stage features a 3-phase passive power factor correction circuit that rectifies and filters incoming AC power while maintaining power factor >0.94. This design eliminates harmonic distortion, reduces reactive power consumption, and complies with utility power quality standards without requiring active PFC components that increase complexity and failure modes.

Soft-Switching DC/DC Converter: The main power conversion stage employs soft-switching topology (zero-voltage switching or zero-current switching) that minimizes switching losses and electromagnetic interference. High-frequency transformation (typically 50-100 kHz) enables compact magnetic components while achieving >91% overall efficiency. PWM control maintains tight output voltage regulation across varying load conditions.

Multi-Stage Protection: Comprehensive protection circuits safeguard the rectifier and connected loads from fault conditions. Over-voltage and under-voltage protection monitors input AC and output DC voltages, shutting down the module if thresholds are exceeded. Output over-voltage protection prevents damage to sensitive DC loads. Short-circuit current limiting restricts fault current to 40% of rated output, allowing safe operation during temporary overloads while protecting internal components.

Intelligent Monitoring & Control Features

Advanced diagnostics and remote management capabilities:

• Front-Panel LED Display: 3-digit LED shows real-time voltage (±0.3V accuracy) and current (±0.2A accuracy) with A/V button to toggle between modes
• Status Indicators: RUN (green) indicates normal operation, ALM (yellow) signals warnings, Fault (red) indicates critical errors requiring attention
• Fault Code Display: Numeric fault codes on LED display identify specific failure modes for rapid troubleshooting
• RS485 Communication: Modbus RTU or proprietary protocol enables remote monitoring of voltage, current, temperature, fault status, and operating hours
• SCADA Integration: Connect multiple rectifiers to supervisory control systems for centralized power system management

Environmental Specifications

Protection Features & Fault Handling

Comprehensive safeguards ensure system reliability:

• Over/Under-Voltage Protection: Monitors input AC voltage and shuts down if outside acceptable range
• Output Over-Voltage Protection: Prevents damage to DC loads from voltage spikes or regulator failures
• Short-Circuit Current Limiting: Restricts fault current to 40% of rated output (2A for 5A module)
• Phase Failure Protection: Automatically derates to 2.5A at 260V when one input phase is lost
• Over-Temperature Protection: Thermal sensors monitor internal temperature and reduce output or shut down to prevent component damage
• Automatic Restart: Module automatically restarts after fault conditions clear (configurable)

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson power conversion products:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert power systems technical support from certified engineers
• ✓ Extensive inventory of current production and legacy rectifier modules
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, installation manuals, and commissioning assistance

Complementary Power System Components

Installation & System Integration

• Mounting: Standard 19-inch rack mount or wall mount installation (mounting brackets included)
• Input Wiring: 3-phase, 3-wire connection (L1, L2, L3) with ground terminal
• Output Terminals: Positive (+) and negative (-) DC output terminals rated for 5A continuous
• Communication Port: RS485 interface with RJ45 or terminal block connection
• Ventilation: Minimum 50mm clearance on sides and rear for adequate airflow

Ordering Information & System Planning

• HD22005-3A: 220VDC 5A High-Frequency Switching Rectifier Module (this product)
• Input Requirements: 323-475 VAC, 3-phase, 3-wire, 45-65 Hz
• Output Capacity: 176-320 VDC adjustable, 5A rated current
• Redundancy: Multiple modules can be paralleled for N+1 redundancy configurations
• Battery Charging: Compatible with lead-acid, VRLA, and lithium-ion battery systems

Technical Documentation & Support

Complete installation manuals, wiring diagrams, RS485 communication protocols, and commissioning procedures available upon request. Our application engineering team provides system design consultation, load calculations, battery sizing assistance, and integration support for complex DC power systems requiring multiple rectifier modules.

Maintenance & Service Life

• MTBF: >100,000 hours at 25°C ambient temperature and 50% load
• Preventive Maintenance: Inspect air filters quarterly, clean fan annually, verify output voltage/current monthly
• Replacement Parts: Cooling fans, electrolytic capacitors, and power semiconductors available as spare parts
• Expected Service Life: 10-15 years in typical telecom/industrial environments with proper maintenance
