Product Description
Product Details
• Manufacturer: Emerson
• Model/Part Number: CON011/916-120+PR6426/010-110

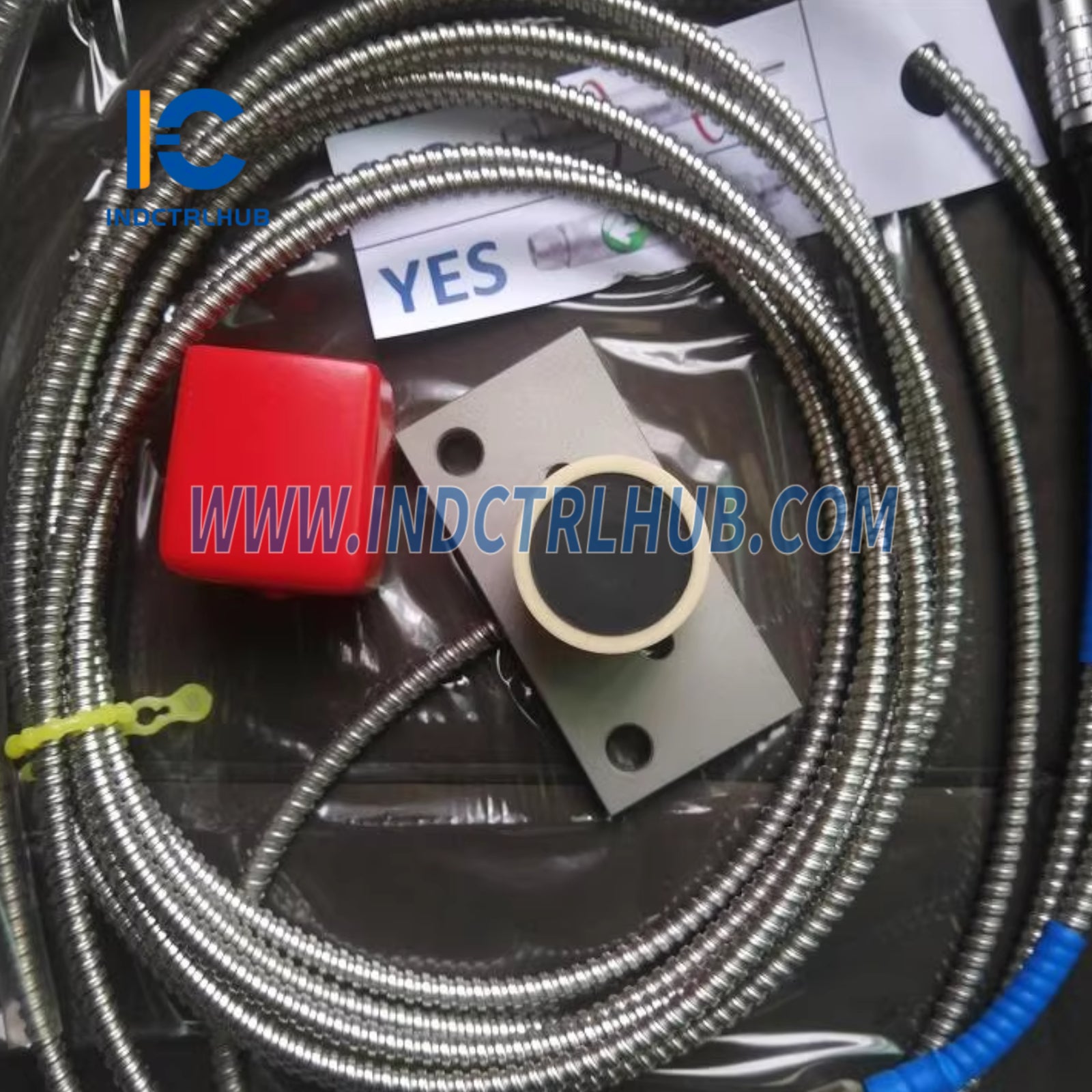

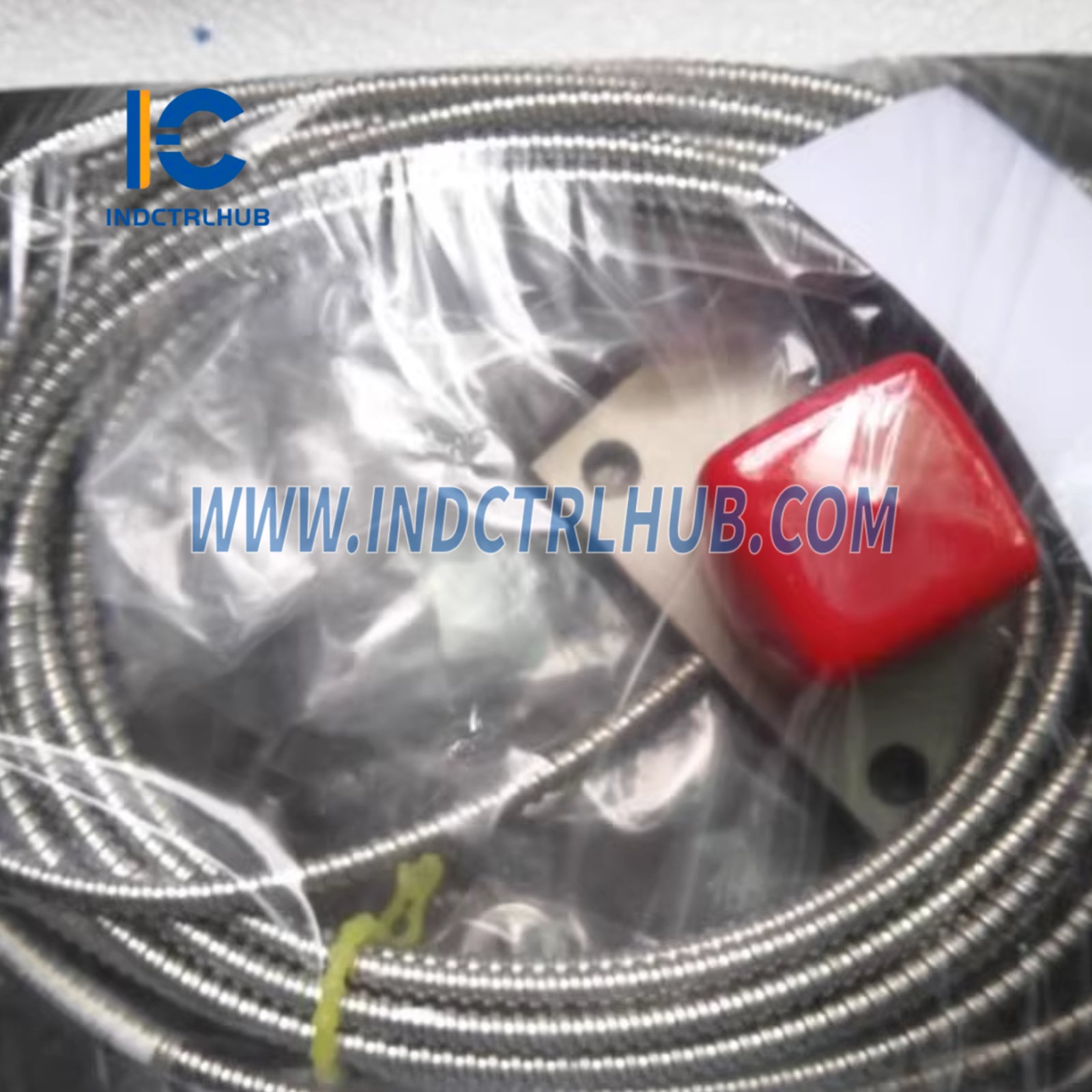

• Description: 32mm Eddy Current Sensor
Specifications
Dynamic Performance
|
Attribute |
Value |
|---|---|
|
Sensitivity |
2 V/mm (50.8 mV/mil) ≤ ±1.5% max |
|
Air Gap (Center) |
Approx. 5.5 mm (0.22”) Nominal |
|
Long-Term Drift |
< 0.3% |
|
Static Range |
±4.0 mm (0.157”) |
Target Specifications
|
Attribute |
Value |
|---|---|
|
Target Material |
Ferromagnetic Steel (42 Cr Mo 4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Minimum Shaft Diameter |
≥200 mm (7.87”) |
Environmental Limits
|
Attribute |
Value |
|---|---|
|
Operating Temperature Range |
-35 to 175°C (-31 to 347°F) |
|
Temperature Excursions (<4 Hours) |
200°C (392°F) |
|
Maximum Cable Temperature |
200°C (392°F) |
|
Temperature Error (at +23 to 100°C) |
-0.3%/100°K Zero Point, <0.15%/10°K Sensitivity |
|
Pressure Resistance (Sensor Head) |
6,500 hPa (94 psi) |
|
Shock and Vibration Resistance |
5g (49.05 m/s²) @ 60Hz @ 25°C (77°F) |
Physical Specifications
|
Attribute |
Value |
|---|---|
|
Material |
Sleeve – Stainless Steel, Cable – PTFE |
|
Weight (Sensor & 1m Cable, No Armor) |
~800 grams (28.22 oz) |
Ordering Information (Order Matrix PR6426 / X X X - X X X)
|
Parameter |
Options |
Code |
|---|---|---|
|
Sleeve Thread |
No Thread |
0 |
|
Armored Cable |
With |
1 |
|
Without |
0 |
|
|
Total Sensor Length |
Specified in part number |
X |
|
Mounting Plate |
80 mm x 40 mm |
0 |
|
Adaptor Plug |
With |
0 |
|
Without |
1 |
|
|
Total Cable Length |
4 m (0), 5 m (1), 6 m (2), 8 m (3), 10 m (4) |
X |
|
Cable End |
LEMO |
0 |
|
Open |
1 |
