Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |

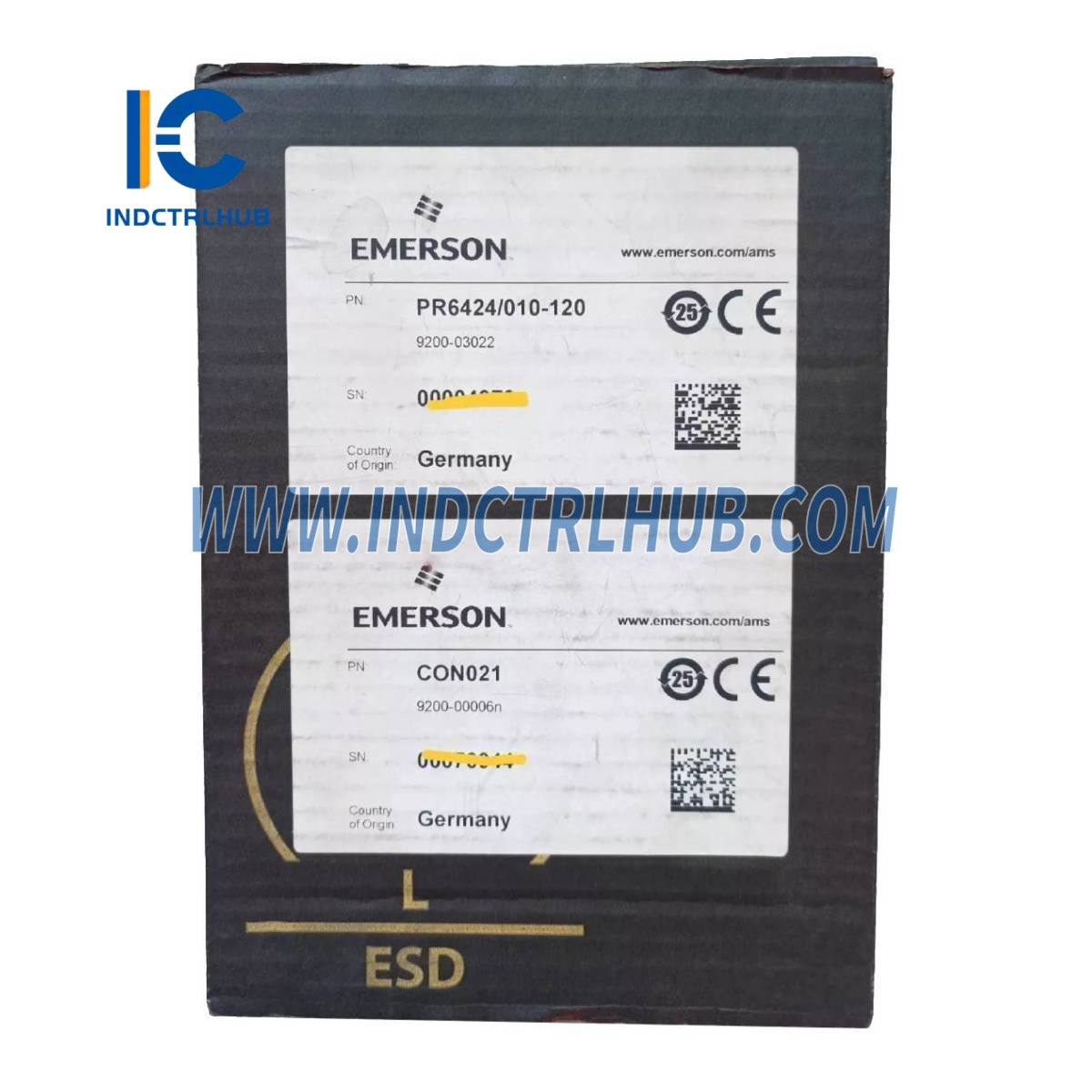

PR6424/010-120+CON011 |
|
Description |
Eddy Current Signal Converter with Sensor |
PR6424 - 16mm Eddy Current Sensor
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Sensitivity/Linearity |
4 V/mm (101.6 mV/mil) ≤ ±1.5% |
|
Air Gap (Center) |
Approx. 2.7 mm (0.11”) Nominal |
|
Long Term Drift |
< 0.3% |
|
Static Range |
±2.0 mm (0.079”) |
|
Dynamic Range |
0 to 1,000μm (0 to 0.039”) |
Target Specifications
|
Parameter |
Value |
|---|---|
|
Target/Surface Material |
Ferromagnetic Steel (42 Cr Mo4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Shaft Diameter |
≥80mm |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-35 to 150°C (-31 to 302°F) |
|
Temperature Error |
<4%/100°K (API 670 Compliant) |
|
Pressure Resistance (Sensor Head) |
10,000 hPa (145 psi) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Material |
Sleeve – Stainless Steel, Cable – PTFE |
|
Weight |
~200 grams (7.05 oz) (Sensor & 1M Cable, no Armor) |
Ordering Information
|
Order Matrix |
PR6424 / X X X - X X X |
|---|---|
|
Sleeve Thread |
M18x1.5 (0), 3/4”-16 UNF (1) |
|
Armored Cable |
WITH (1), WITHOUT (0) |
|
Total Sensor Length (C = Cx +12.5mm) |
0 (Cx=40mm), 1(50), 2(60), 3(70), 4(80), 5(90), 6(100), B(150), G(200), M(250), R(290) |
|
Adaptor Plug |
WITH (0), WITHOUT (1) |
|
Total Cable Length |
0 (4m), 1 (5m), 3 (8m), 4 (10m) |
|
Cable End |
LEMO (0), OPEN (1) |
CON011 - Eddy Current Signal Converter
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20000 Hz |
|
Rise Time |
<15 µs |
|
Input Sensor Types |
PR6422, PR6423, PR6424, PR6425, PR6426 |
|
Extended Measuring Range |
Requires CON011/91x-xxx |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP65 |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output: -4V to -20V) |
|
Supply Voltage Range |
-21V to -32V (Output: -2V to -18V) |
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Housing Material |
GD-ALSi9Cu3 |
|
Weight |
~600 grams (21.16 oz) |
|
Mounting |
4 Screws M5x20 (Included in Delivery) |
|
Connections |
Transducer – Self-Locking Lemo-Plug |
|
Supply/Output |
Spring Type (Max. 1.5mm²) |
Compliance and Certifications
|
Standard |
Compliance |
|---|---|
|
CE |
2014/30/EU (EN 61326-1), 2014/34/EU, 2011/65/EU |
|
ATEX |
EN 60079-0, EN 60079-11 |
Ordering Information
|
Part Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON011 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm (Standard Range) |
≤ 1.5% |
|
CON011 |
PR6422, PR6423, PR6424, PR6426 |
2.0mm (Standard Range) |
≤ 1.0% |
|
CON011 |
PR6422, PR6423, PR6424, PR6426 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON011 |
PR6422, PR6423, PR6424, PR6426 |
8.0mm (Standard Range) |
≤ 1.5% |
|
CON011/912-015 |
PR6422 |
1.5mm (Extended Range) |
≤ 2.0% |
|
CON011/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON011/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
|
CON011/914-060 |
PR6424 |
6.0mm (Extended Range) |
≤ 1.0% |
|
CON011/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
|
CON011/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
|
CON011/915-040 |
PR6425 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON011/915-060 |
PR6425 |
6.0mm (Extended Range) |
≤ 2.0% |
|
CON011/915-080 |
PR6425 |
8.0mm (Extended Range) |
≤ 3.0% |
|
CON011/915-100 |
PR6425 |
10.0mm (Extended Range) |
≤ 4.0% |
|
CON011/916-120 |
PR6426 |
12.0mm (Extended Range) |
≤ 1.5% |
|
CON011/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON011/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON011/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
