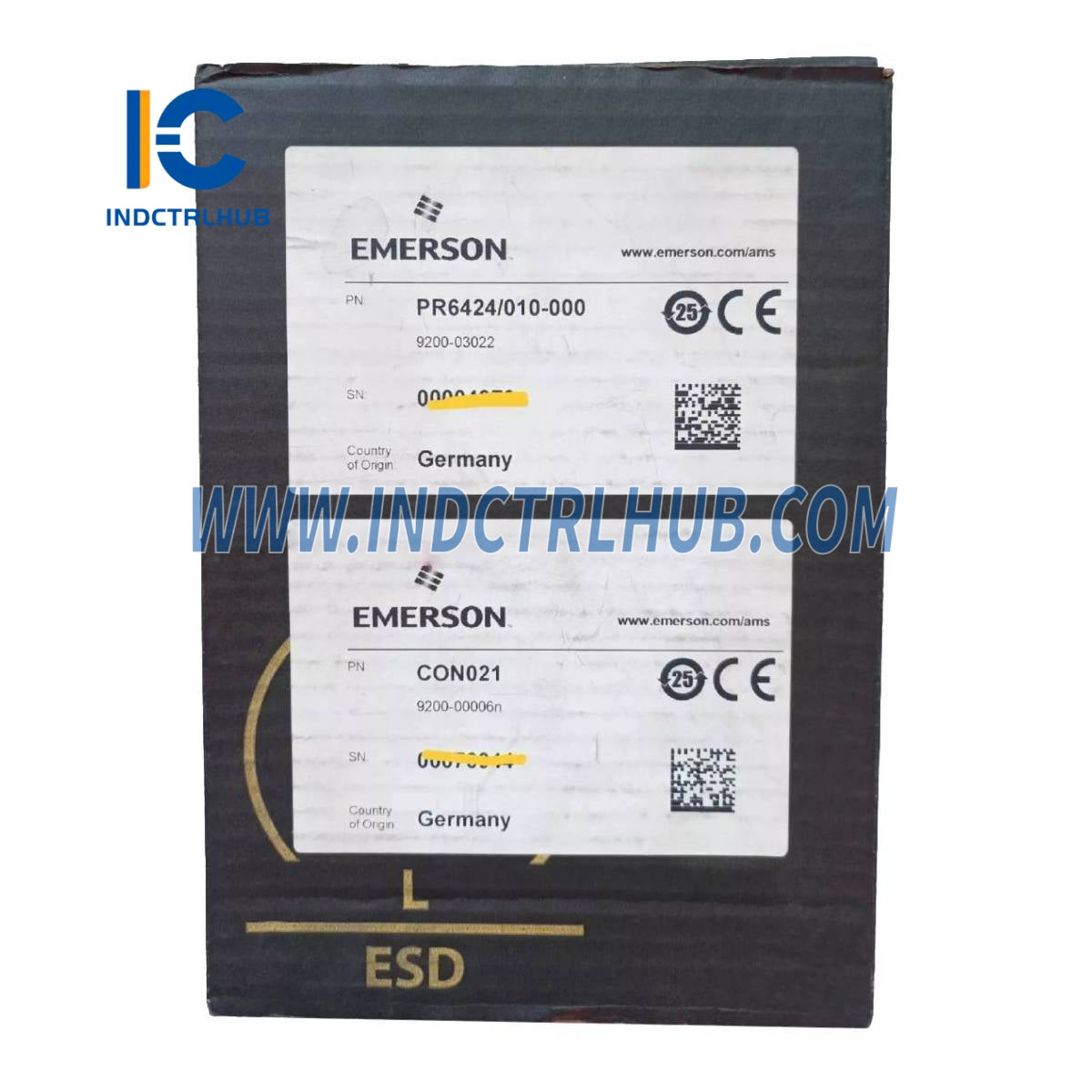

Emerson EPRO ‎‎PR6424/010-000+CON021 Eddy Current Signal Converter with Sensor

Model/Part Number

PR6424/010-000+CON021

Description

Eddy Current Signal Converter with Sensor

Sensitivity/Linearity

4 V/mm (101.6 mV/mil) ≤ ±1.5%

Air Gap (Center)

Approx. 2.7 mm (0.11”) Nominal

Long-Term Drift

< 0.3%

Static Range

±2.0 mm (0.079”)

Dynamic Range

0 to 1,000μm (0 to 0.039”)

Target/Surface Material

Ferromagnetic Steel (42CrMo4 Standard)

Maximum Surface Speed

2,500 m/s (98,425 ips)

Minimum Shaft Diameter

≥80 mm

Operating Temperature Range

-35 to 150°C (-31 to 302°F)

Temperature Error

<4%/100°K (API 670 Compliant)

Pressure Resistance to Sensor Head

10,000 hPa (145 psi)

Shock & Vibration

5g @ 60Hz @ 25°C (77°F)

Material

Sleeve – Stainless Steel, Cable – PTFE

Weight (Sensor & 1M Cable, No Armor)

~200 grams (7.05 oz)

Sleeve Thread

M18x1.5, 3/4”-16 UNF

Armored Cable

With (1), Without (0)

Total Sensor Length

C=Cx +12.5mm (various lengths available)

Adapter Plug

With (1), Without (0)

Total Cable Length

4m (0), 5m (1), 8m (3), 10m (4)

Cable End

LEMO (0), Open (1)

Frequency Range (-3 dB)

0 to 20,000 Hz

Rise Time

<15 µs

Compatible Sensors

PR6422, PR6423, PR6424, PR6425, PR6426, PR6453

Extended Range Use

CON021/91x-xxx (PR6425 requires extended range converter)

Operating Temperature Range

-30 to 100°C (-22 to 212°F)

Shock & Vibration

5g @ 60 Hz @ 25°C (77°F)

Protection Class

IP20

Supply Voltage Range

-23V to -32V (Output: -4V to -20V)

Supply Voltage Range

-21V to -32V (Output: -2V to -18V)

Housing Material

LMgSi 0.5 F22

Weight

~120 grams (4.24 oz)

Mounting

4 Screws M5x20 (Included)

Connections

Self-Locking Lemo-Plug (Transducer), Screw Terminal (Supply/Output)

CON021

PR6422, PR6423, PR6424, PR6426

1.0mm, 2.0mm, 4.0mm, 8.0mm, etc.

≤ 1.5%, ≤ 2.0% (varies by sensor model)
