Product Description
Product Details
Manufacturer:
Emerson
Model/Part Number:

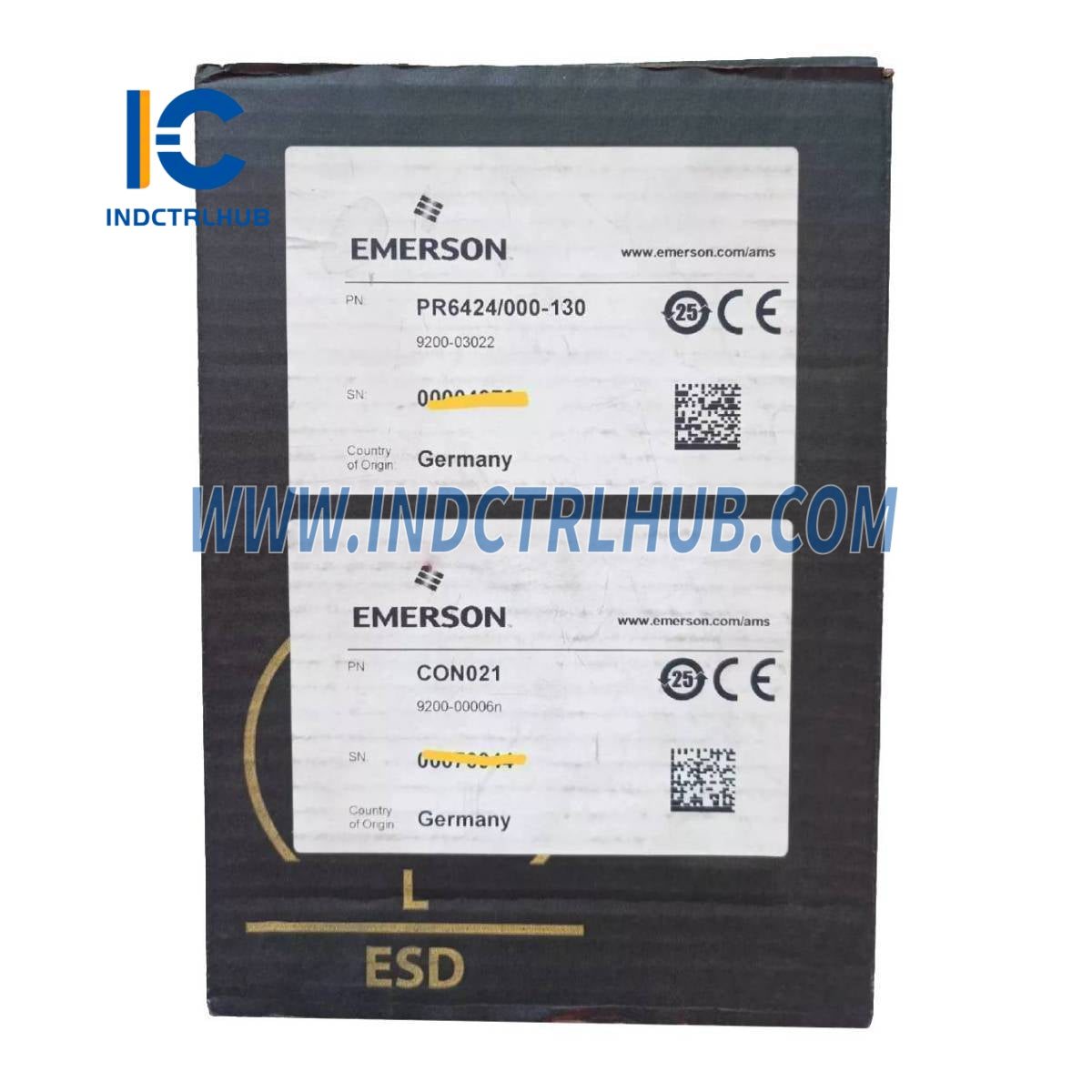

PR6424/000-130+CON021/914-100
Description:
Eddy Current Signal Converter with Sensor
PR6424 16mm Eddy Current Sensor
|
Specification |
Value |
|---|---|
|
Sensitivity/Linearity |
4 V/mm (101.6 mV/mil) ≤ ±1.5% |
|
Air Gap (Center) |
Approx. 2.7 mm (0.11”) Nominal |
|
Long Term Drift |
< 0.3% |
|
Static Range |
±2.0 mm (0.079”) |
|
Dynamic Range |
0 to 1,000μm (0 to 0.039”) |
|
Target/Surface Material |
Ferromagnetic Steel (42 Cr Mo4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Shaft Diameter |
≥80mm |
Environmental:
|
Specification |
Value |
|---|---|
|
Operating Temperature Range |
-35 to 150°C (-31 to 302°F) |
|
Temperature Error |
<4%/100°K (API 670 Compliant) |
|
Pressure Resistance to Sensor Head |
10,000 hPa (145 psi) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
Physical:
|
Specification |
Value |
|---|---|
|
Material (Sleeve) |
Stainless Steel |
|
Material (Cable) |
PTFE |
|
Weight |
~200 grams (7.05 oz) |
Ordering Information:
|
Specification |
Value |
|---|---|
|
Sleeve Thread |
M18x1.5 / 3/4”-16 UNF |
|
Armored Cable |
WITH / WITHOUT |
|
Total Sensor Length |
Various (40mm to 290mm) |
|
Adaptor Plug |
WITH / WITHOUT |
|
Total Cable Length |
4m, 5m, 8m, 10m |
|
Cable End |
LEMO / OPEN |
CON021 Eddy Current Signal Converter
Dynamic Performance:
|
Specification |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15 µs |
Environmental:
|
Specification |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical:
|
Specification |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) |
|
-21V to -32V (Output Range -2V to -18V) |
Physical:
|
Specification |
Value |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) |
|
Mounting |
4 Screws M5x20 (Included) |
|
Connections |
Self-Locking Lemo-Plug |
|
Supply/Output |
Screw Terminal (max. 1.5mm², wire) |
Ordering Information for CON021:
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
