Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |

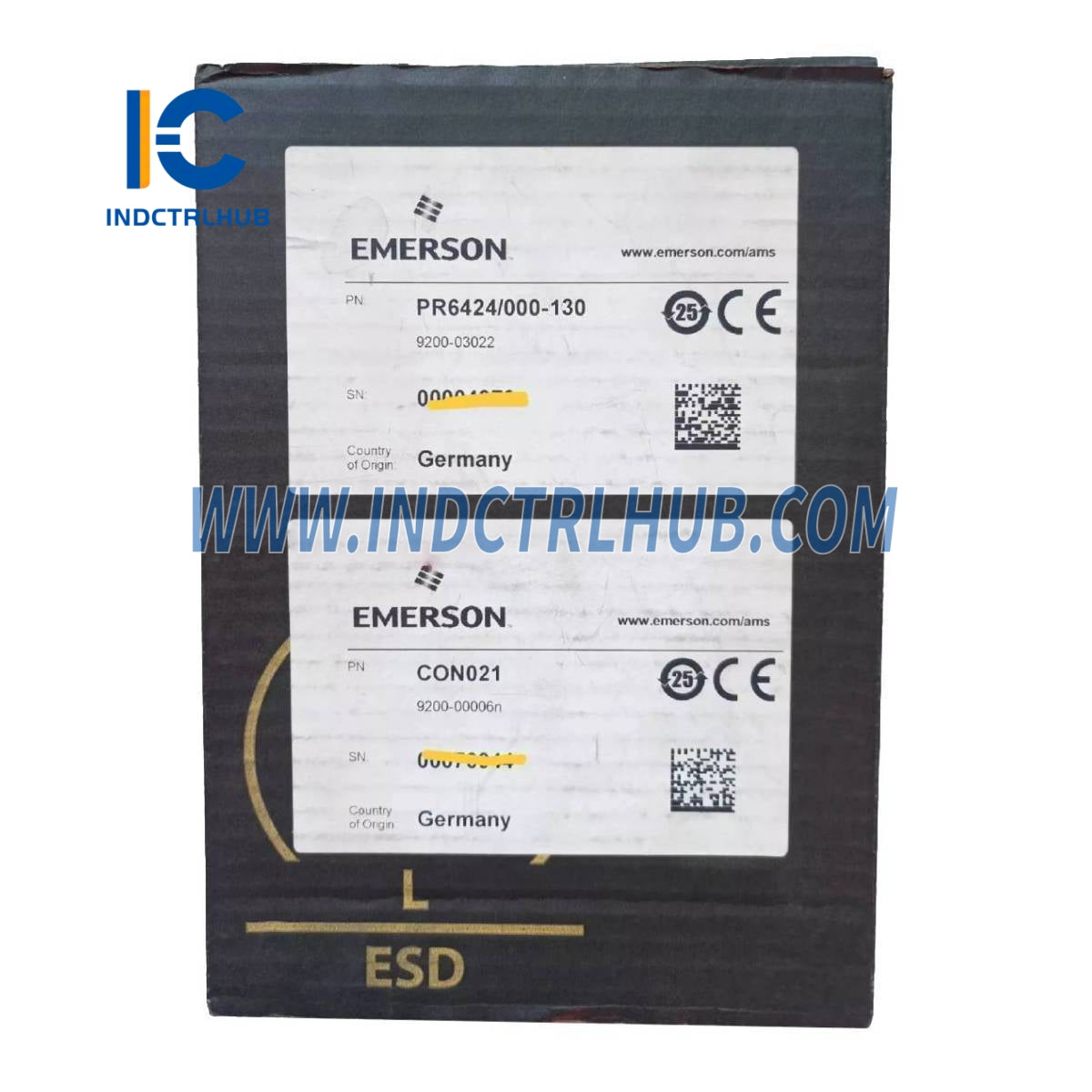

PR6424/000-130+CON021/914-080 |
|
Description |
Eddy Current Signal Converter with Sensor |
PR6424 – 16mm Eddy Current Sensor
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Sensitivity/Linearity |
4 V/mm (101.6 mV/mil) ≤ ±1.5% |
|
Air Gap (Center) |
Approx. 2.7 mm (0.11”) Nominal |
|
Long-Term Drift |
< 0.3% |
Range
|
Type |
Value |
|---|---|
|
Static |
±2.0 mm (0.079”) |
|
Dynamic |
0 to 1,000 μm (0 to 0.039”) |
Target
|
Parameter |
Value |
|---|---|
|
Target/Surface Material |
Ferromagnetic Steel (42 Cr Mo4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Shaft Diameter |
≥80 mm |
Environmental
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-35 to 150°C (-31 to 302°F) |
|
Temperature Error |
<4%/100°K (API 670 Compliant) |
|
Pressure Resistance to Sensor Head |
10,000 hPa (145 psi) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
Physical
|
Parameter |
Value |
|---|---|
|
Material |
Sleeve – Stainless Steel, Cable – PTFE |
|
Weight (Sensor & 1M Cable, no Armor) |
~200 grams (7.05 oz) |
Ordering Information
|
Parameter |
Options |
|---|---|
|
Sleeve Thread |
M18x1.5 (0), 3/4”-16 UNF (1) |
|
Armored Cable |
WITH (1), WITHOUT (0) |
|
Total Sensor Length |
0 (40mm), 1 (50mm), 2 (60mm), 3 (70mm), 4 (80mm), 5 (90mm), 6 (100mm), B (150mm), G (200mm), M (250mm), R (290mm) |
|
Adaptor Plug |
WITH (0), WITHOUT (1) |
|
Total Cable Length |
0 (4m), 1 (5m), 3 (8m), 4 (10m) |
|
Cable End |
LEMO (0), OPEN (1) |
CON021 – Eddy Current Signal Converter
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15 µs |
Environmental
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) / -21V to -32V (Output Range -2V to -18V) |
Physical
|
Parameter |
Value |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) |
|
Mounting |
4 Screws M5x20 (Included in Delivery) |
|
Connections |
Transducer – Self-Locking Lemo-Plug, Supply/Output – Screw Terminal Type (max.1.5mm² wire) |
Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021 |
PR6422 |
1.0mm (Standard Range) |
≤ 1.5% |
|
CON021 |
PR6423 |
2.0mm (Standard Range) |
≤ 1.0% |
|
CON021 |
PR6424 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON021 |
PR6426 |
8.0mm (Standard Range) |
≤ 1.5% |
|
CON021/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
