Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |

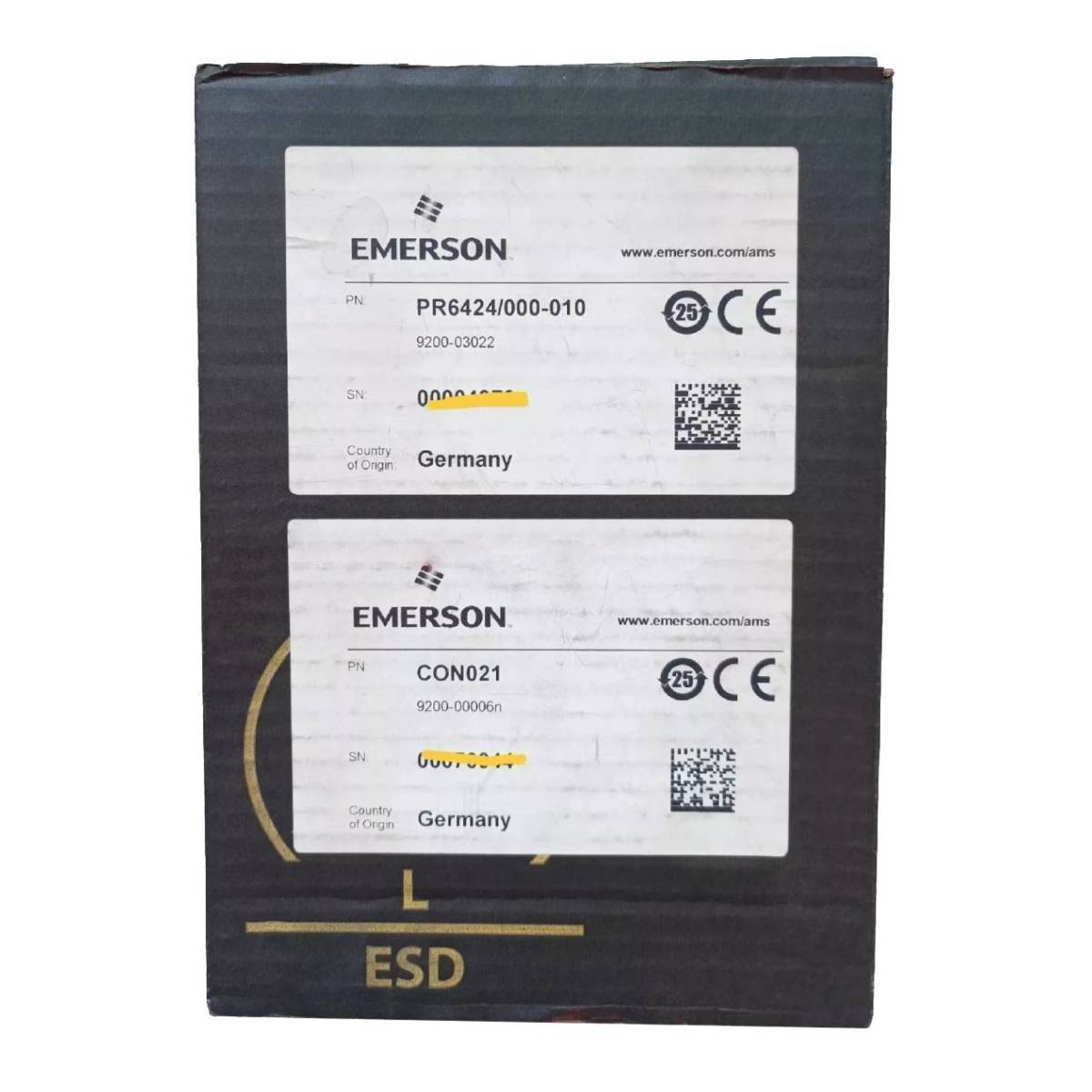

PR6424/000-010+CON021 |
|
Description |
Eddy Current Signal Converter with Sensor |
PR6424 16mm Eddy Current Sensor - Dynamic Performance
|
Parameter |
Specification |
|---|---|
|
Sensitivity/Linearity |
4 V/mm (101.6 mV/mil) ≤ ±1.5% |
|
Air Gap (Center) |
Approx. 2.7 mm (0.11”) Nominal |
|
Long-Term Drift |
< 0.3% |
|
Static Range |
±2.0 mm (0.079”) |
|
Dynamic Range |
0 to 1,000μm (0 to 0.039”) |
Measuring Target
|
Parameter |
Specification |
|---|---|
|
Target/Surface Material |
Ferromagnetic Steel (42CrMo4 Standard) |
|
Maximum Surface Speed |
2,500 m/s (98,425 ips) |
|
Minimum Shaft Diameter |
≥80 mm |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature Range |
-35 to 150°C (-31 to 302°F) |
|
Temperature Error |
<4%/100°K (API 670 Compliant) |
|
Pressure Resistance to Sensor Head |
10,000 hPa (145 psi) |
|
Shock & Vibration |
5g @ 60Hz @ 25°C (77°F) |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Material |
Sleeve – Stainless Steel, Cable – PTFE |
|
Weight (Sensor & 1M Cable, No Armor) |
~200 grams (7.05 oz) |
Ordering Information - PR6424 Sensor
|
Parameter |
Options |
|---|---|
|
Sleeve Thread |
M18x1.5 (0), 3/4”-16 UNF (1) |
|
Armored Cable |
With (1), Without (0) |
|
Total Sensor Length |
C=Cx +12.5mm (0=40mm, 1=50mm, 2=60mm, 3=70mm, 4=80mm, 5=90mm, 6=100mm, B=150mm, G=200mm, M=250mm, R=290mm) |
|
Adapter Plug |
With (0), Without (1) |
|
Total Cable Length |
4m (0), 5m (1), 8m (3), 10m (4) |
|
Cable End |
LEMO (0), Open (1) |
CON021 Eddy Current Signal Converter - Dynamic Performance
|
Parameter |
Specification |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20000 Hz |
|
Rise Time |
<15 µs |
|
Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426, PR6453 |
|
Extended Range Use |
CON021/91x-xxx (PR6425 requires extended range converter) |
CON021 - Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock & Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
CON021 - Power & Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output: -4V to -20V) |
|
Supply Voltage Range |
-21V to -32V (Output: -2V to -18V) |
CON021 - Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) |
|
Mounting |
4 Screws M5x20 (Included) |
|
Connections |
Self-Locking Lemo-Plug (Transducer), Screw Terminal (Supply/Output) |
CON021 - Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021 |
PR6422 |
1.0mm (Standard Range) |
≤ 1.5% |
|
CON021 |
PR6423 |
2.0mm (Standard Range) |
≤ 1.0% |
|
CON021 |
PR6424 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON021 |
PR6426 |
8.0mm (Standard Range) |
≤ 1.5% |
|
CON021/912-015 |
PR6422 |
1.5mm (Extended Range) |
≤ 2.0% |
|
CON021/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON021/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
|
CON021/914-060 |
PR6424 |
6.0mm (Extended Range) |
≤ 1.0% |
|
CON021/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
|
CON021/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
|
CON021/915-040 |
PR6425 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON021/915-060 |
PR6425 |
6.0mm (Extended Range) |
≤ 2.0% |
|
CON021/915-080 |
PR6425 |
8.0mm (Extended Range) |
≤ 3.0% |
|
CON021/915-100 |
PR6425 |
10.0mm (Extended Range) |
≤ 4.0% |
|
CON021/916-120 |
PR6426 |
12.0mm (Extended Range) |
≤ 1.5% |
|
CON021/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON021/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON021/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
