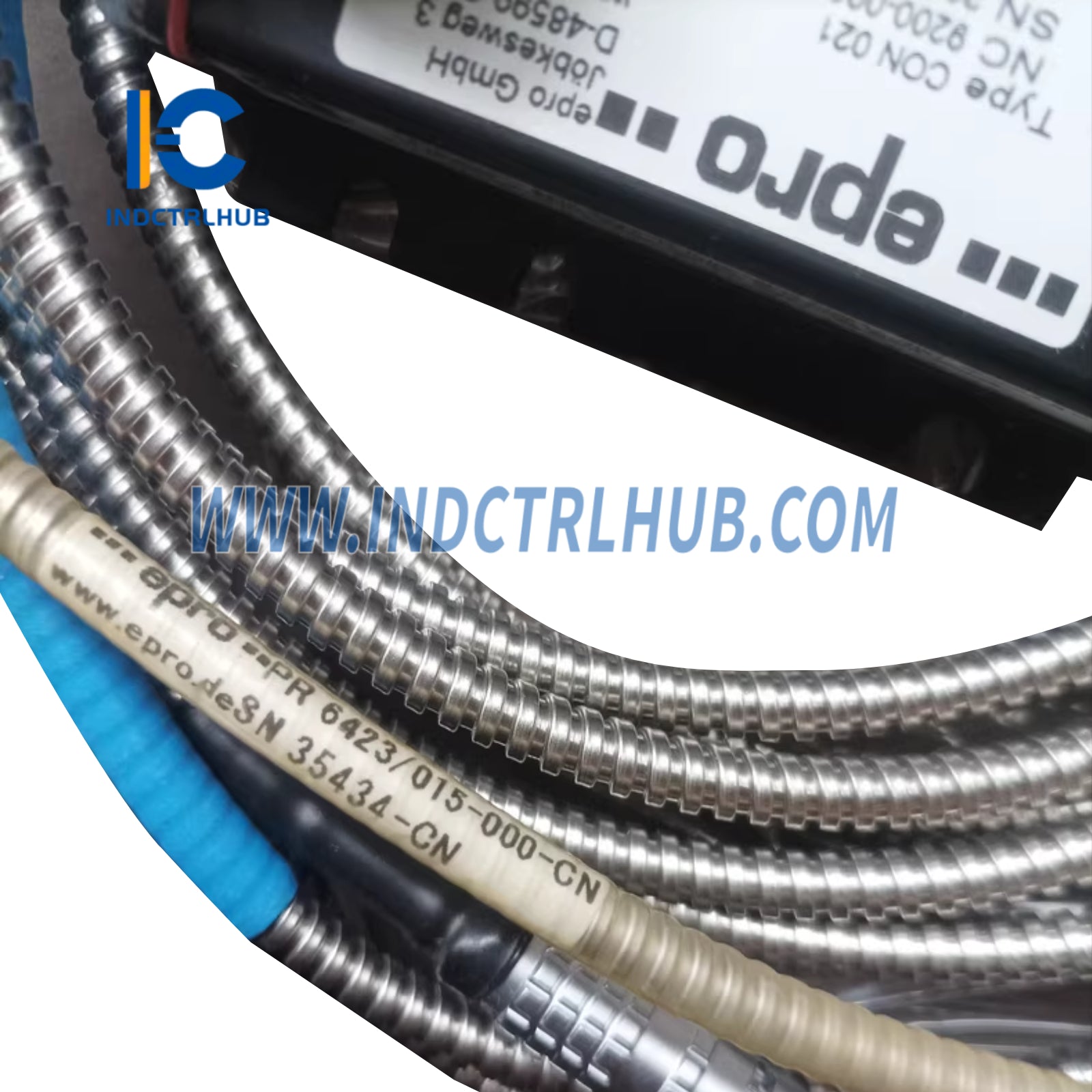

Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
PR6423/015-000 |
|
Description |
8mm Eddy Current Sensor |
Performance
|
Parameter |
Value |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
8 V/mm (203.2 mV/mil) ± 5% (ISO Standard) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) @ 0 to 45°C (+32 to +113°F) |
Measuring Target
|
Parameter |
Value |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
Ferromagnetic Steel (42CrMo4 / AISI/SAE 4140 Standard) |
|
Other Materials |
Available on request |
Environmental & General Information
|
Parameter |
Value |
|---|---|
|
Protection Class |
IP66 (IEC 60529) |
|
Operating Temperature Range (Sensor + 1m Cable) |
-35 to +180°C (-31 to 356°F) |
|
Operating Temperature Range (Cable & Connector) |
-35 to +150°C (-31 to 302°F) |
|
Material (Sensor Tip) |
PEEK (Polyether Ether Ketone) |
|
Material (Case) |
Stainless Steel |
|
Material (Cable) |
PTFE (Polytetrafluoroethylene) |
|
Material (Connector) |
Brass, nickel-plated |
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
Ordering Information
Tip Diameter, Case Threads, and Armored Cable Options
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
M10x1 |
Yes (Reverse Mount Option) |
PR6423/03* |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
|
8mm |
3/8”-24 UNF |
Yes (Reverse Mount Option) |
PR6423/13* |
Note: Armored cable option available for Reverse Mount if Adapter Plug is chosen.
Additional Model Configurations
|
Model No. |
Case Thread |
Adapter Plug |
Cable Length |
Cable End |
|---|---|---|---|---|
|
PR6423/00 |
X |
X |
X |
X |
|
PR6423/01 |
X |
X |
X |
X |
|
PR6423/10 |
X |
X |
X |
X |
|
PR6423/11 |
X |
X |
X |
X |
Cable Length Options
|
Code |
Length |
|---|---|
|
0 |
4.0m |
|
1 |
5.0m |
|
3 |
8.0m |
|
F |
9.0m |
|
4 |
10.0m |
Cable End Options
|
Code |
Connector Type |
|---|---|
|
0 |
Lemo* |
|
1 |
Open |
