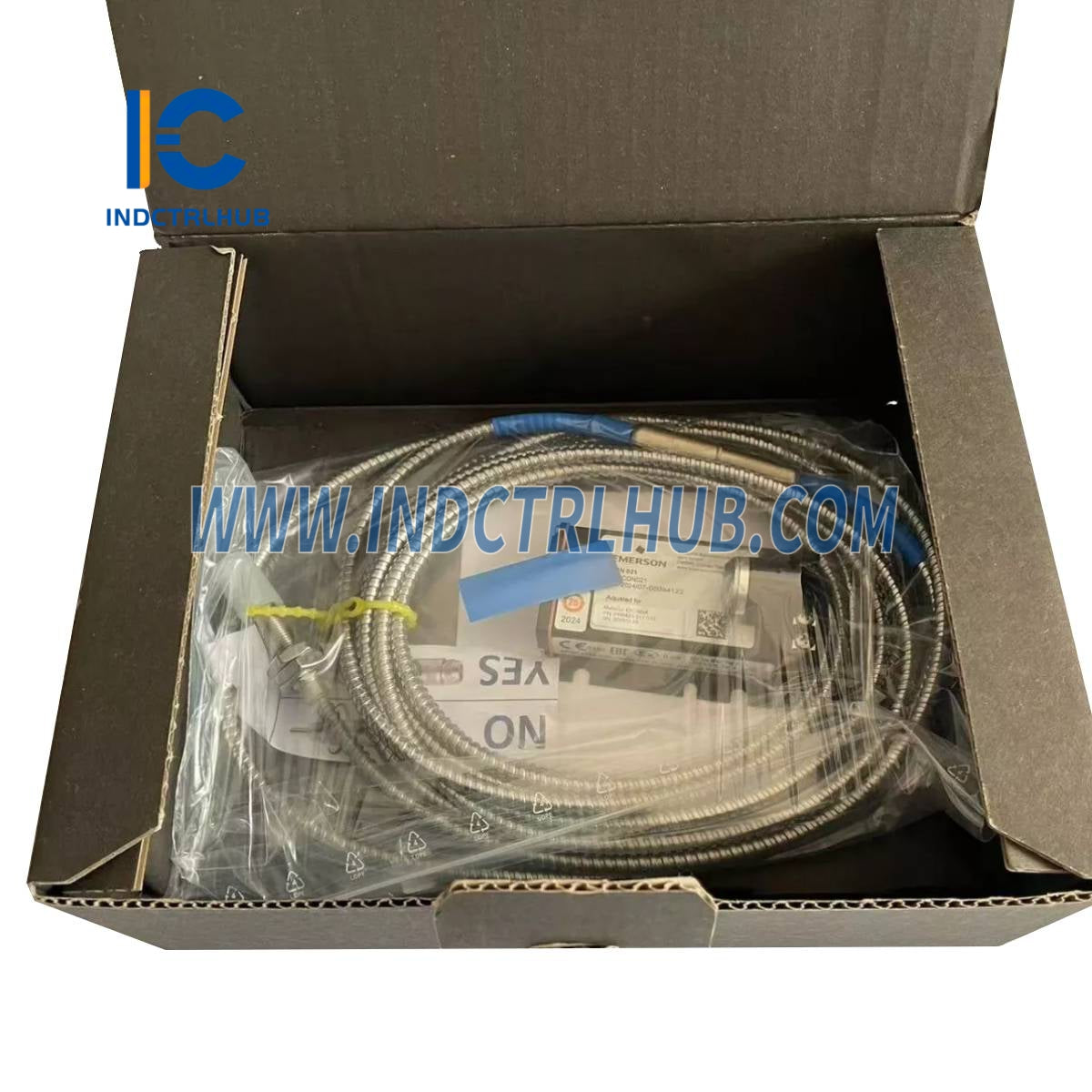

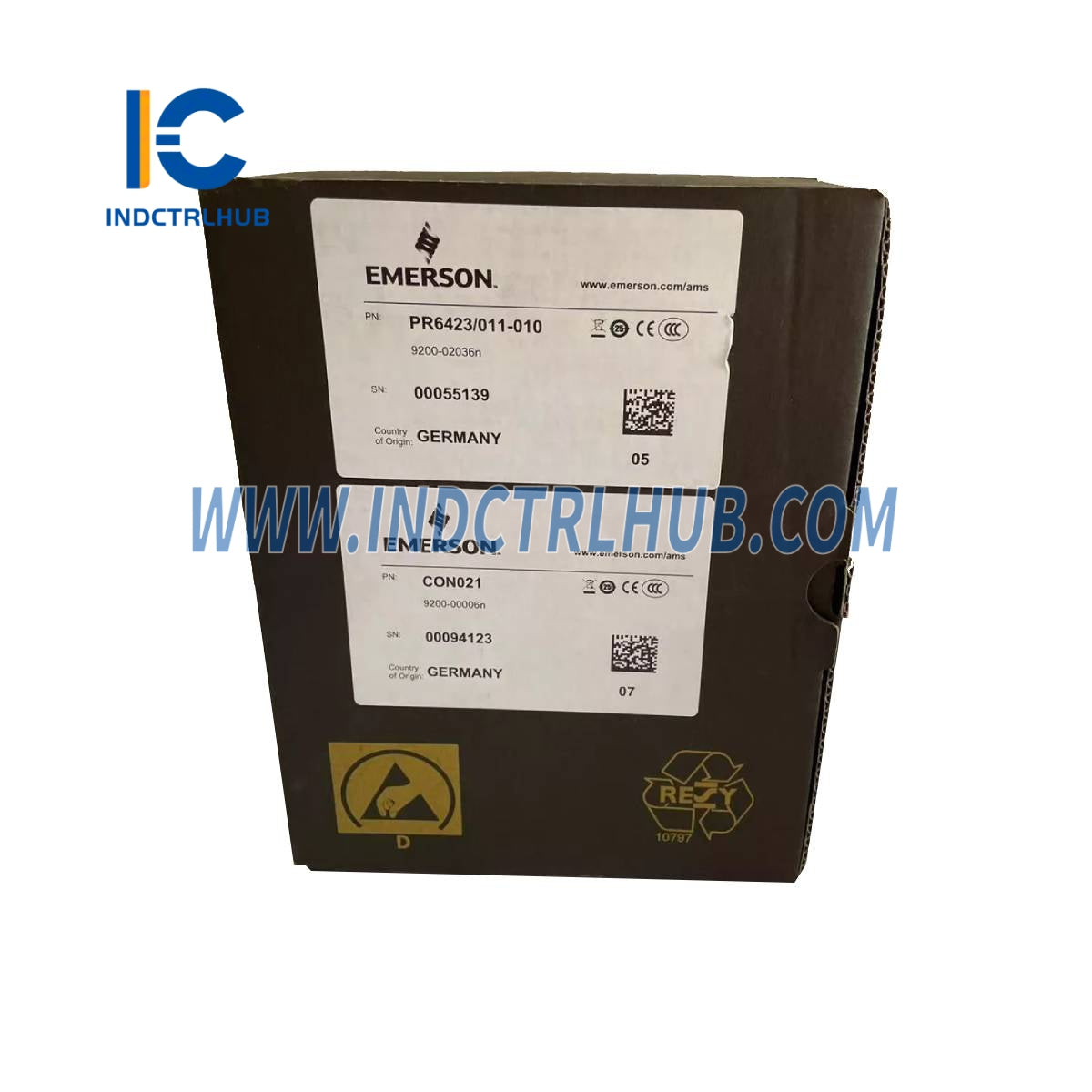

Emerson EPRO PR6423/011-010 8mm Eddy Current Sensor
Emerson EPRO PR6423/011-010 8mm Eddy Current Sensor
Manufacturer: Emerson
Product No.: PR6423/011-010
Condition:1000 in stock
Product Type: 8mm Eddy Current Sensor
Product Origin: USA
Payment: T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
PR6423/011-010 |
|
Description |
8mm Eddy Current Sensor |
Performance
|
Parameter |
Value |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) ISO |
8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) (0 to 45°C) |
Measuring Target
|
Parameter |
Value |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79_) |
|
Target Material |
Ferromagnetic Steel (42CrMo4, AISI/SAE 4140 Standard) |
|
Other Materials |
Available on request |
Environmental & General Information
|
Parameter |
Value |
|---|---|
|
Protection Class |
IP66 (IEC 60529) |
|
Operating Temperature Range (Sensor + 1m Cable) |
-35 to +180°C (-31 to 356°F) |
|
Operating Temperature Range (Cable & Connector) |
-35 to +150°C (-31 to 302°F) |
|
Material (Sensor Tip) |
PEEK (Polyether Ether Ketone) |
|
Material (Case) |
Stainless Steel |
|
Material (Cable) |
PTFE (Polytetrafluoroethylene) |
|
Material (Connector) |
Brass, Nickel-plated |
|
Weight (Sensor with 1m Cable) |
~100 grams (3.53 oz) |
Ordering Information
Model Number Based on Tip Diameter & Case Threads
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
M10x1 |
Yes (Reverse Mount Option) |
PR6423/03* |
|
8mm |
3/8_-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8_-24 UNF |
Yes |
PR6423/11 |
|
8mm |
3/8_-24 UNF |
Yes (Reverse Mount Option) |
PR6423/13* |
*Armored cable option for Reverse Mount, if Adapter Plug is chosen.
Customizable Ordering Options
|
Model No. |
Case Thread |
Adapter Plug |
Cable Length |
Cable End |
|---|---|---|---|---|
|
PR6423/00 |
X |
X |
X |
X |
|
PR6423/01 |
X |
X |
X |
X |
|
PR6423/10 |
X |
X |
X |
X |
|
PR6423/11 |
X |
X |
X |
X |
Case Thread Options:
__0: 25mm
__1: 35mm
__2: 45mm
__3: 55mm
__4: 65mm
__5: 75mm
__6: 85mm
__7: 95mm
__8: 105mm
__9: 115mm
__E: 155mm
__H: 195mm
__R: Reverse Mount
Adapter Plug Options:
__0: With
__1: Without
Cable Length Options:
__0: 4.0m
__1: 5.0m
__3: 8.0m
__F: 9.0m
__4: 10.0m
Cable End Options:
__0: Lemo*
__1: Open
_
