Product Details
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
PR6423/011-000+CON011 |
|
Description |

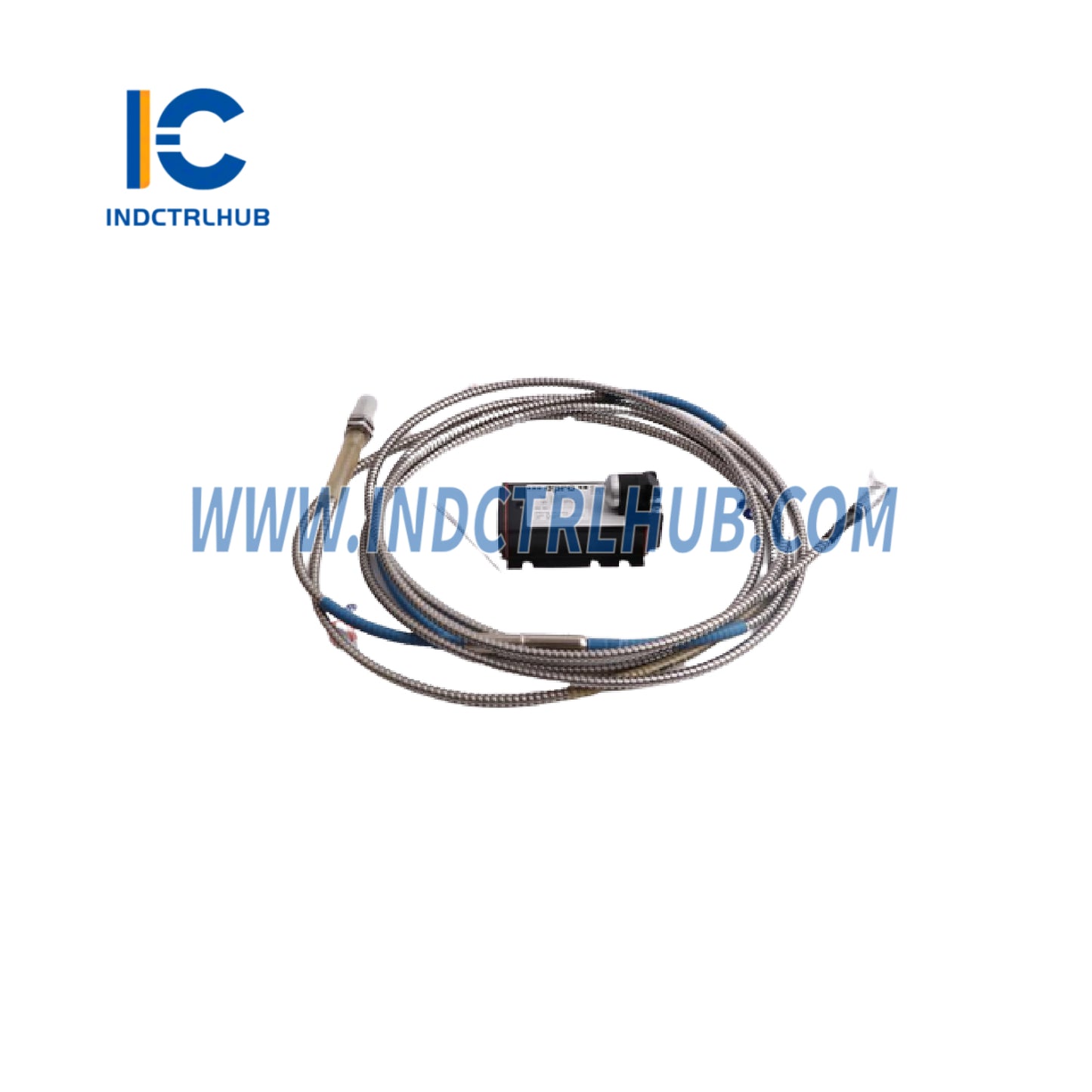

Eddy Current Signal Converter with Sensor |
Technical Data
Performance
|
Feature |
Specification |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C (+32 to +113°F) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) @ 0 to 45°C (+32 to +113°F) |
Measuring Target
|
Feature |
Specification |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
Ferromagnetic Steel (42CrMo4 / AISI 4140) |
|
Other Material Options |
Available on request |
Environmental & General
|
Feature |
Specification |
|---|---|
|
Protection Class |
IP66 (IEC 60529) |
|
Operating Temperature - Sensor (incl. 1m Cable) |
-35 to +180°C (-31 to 356°F) |
|
Operating Temperature - Cable & Connector |
-35 to +150°C (-31 to 302°F) |
|
Sensor Tip Material |
PEEK (Polyether Ether Ketone) |
|
Case Material |
Stainless Steel |
|
Cable Material |
PTFE (Polytetrafluoroethylene) |
|
Connector Material |
Brass, Nickel-plated |
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
Ordering Information - Sensor
Model Selection Based on Thread and Armored Cable
|
Tip Diameter |
Case Threads |
Armored Cable |
Model Number |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
M10x1 |
Yes (Reverse Mount) |
PR6423/03* |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
|
8mm |
3/8”-24 UNF |
Yes (Reverse Mount) |
PR6423/13* |
*Armored cable option for Reverse Mount, if Adapter Plug is chosen.
Configuration Options
|
Model No. |
Case Thread (X) |
Adapter Plug (X) |
Cable Length (X) |
Cable End (X) |
|---|---|---|---|---|
|
PR6423/00 |
0 (25mm) |
0 (With) |
0 (4.0m) |
0 (Lemo*) |
|
PR6423/01 |
1 (35mm) |
1 (Without) |
1 (5.0m) |
1 (Open) |
|
PR6423/10 |
2 (45mm) |
X |
3 (8.0m) |
X |
|
PR6423/11 |
3 (55mm) |
X |
F (9.0m) |
X |
|
PR6423/03 |
4 (65mm) |
X |
4 (10.0m) |
X |
|
PR6423/13 |
5 (75mm) |
X |
X |
X |
|
Reverse Mount Options |
R |
X |
X |
X |
CON011 - Eddy Current Signal Converter
Dynamic Performance
|
Feature |
Specification |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
< 15 µs |
|
Compatible Sensor Types |
PR6422, PR6423, PR6424, PR6425, PR6426 |
|
Extended Measuring Range |
Requires CON011/91x-xxx |
|
Note: PR6425 requires an extended range converter |
Environmental Specifications
|
Feature |
Specification |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP65 |
Power & Electrical
|
Feature |
Specification |
|---|---|
|
Supply Voltage Range (-23V to -32V) |
Output Range: -4V to -20V |
|
Supply Voltage Range (-21V to -32V) |
Output Range: -2V to -18V |
Physical Characteristics
|
Feature |
Specification |
|---|---|
|
Housing Material |
GD-ALSi9Cu3 |
|
Weight |
~600 grams (21.16 oz) |
|
Mounting |
4 Screws M5x20 (Included) |
|
Connections |
Transducer: Self-Locking Lemo-Plug |
|
Supply/Output |
Spring Type (Max. 1.5 mm²) |
Compliance and Certifications
|
Certification |
Standard |
|---|---|
|
CE |
2014/30/EU (EN 61326-1) |
|
ATEX |
EN 60079-0, EN 60079-11 |
|
Environmental |
2014/34/EU, 2011/65/EU |
Ordering Information - Signal Converter
|
Part Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON011 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm - 8.0mm (Standard Range) |
≤ 1.0% - ≤ 1.5% |
|
CON011/912-015 |
PR6422 |
1.5mm (Extended Range) |
≤ 2.0% |
|
CON011/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON011/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
|
CON011/914-060 |
PR6424 |
6.0mm (Extended Range) |
≤ 1.0% |
|
CON011/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
|
CON011/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
|
CON011/915-040 |
PR6425 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON011/915-060 |
PR6425 |
6.0mm (Extended Range) |
≤ 2.0% |
|
CON011/915-080 |
PR6425 |
8.0mm (Extended Range) |
≤ 3.0% |
|
CON011/915-100 |
PR6425 |
10.0mm (Extended Range) |
≤ 4.0% |
|
CON011/916-120 |
PR6426 |
12.0mm (Extended Range) |
≤ 1.5% |
|
CON011/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON011/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON011/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
