Product Description
General Information
• Manufacturer: Emerson
• Model/Part Number: PR6423/002-001+CON041

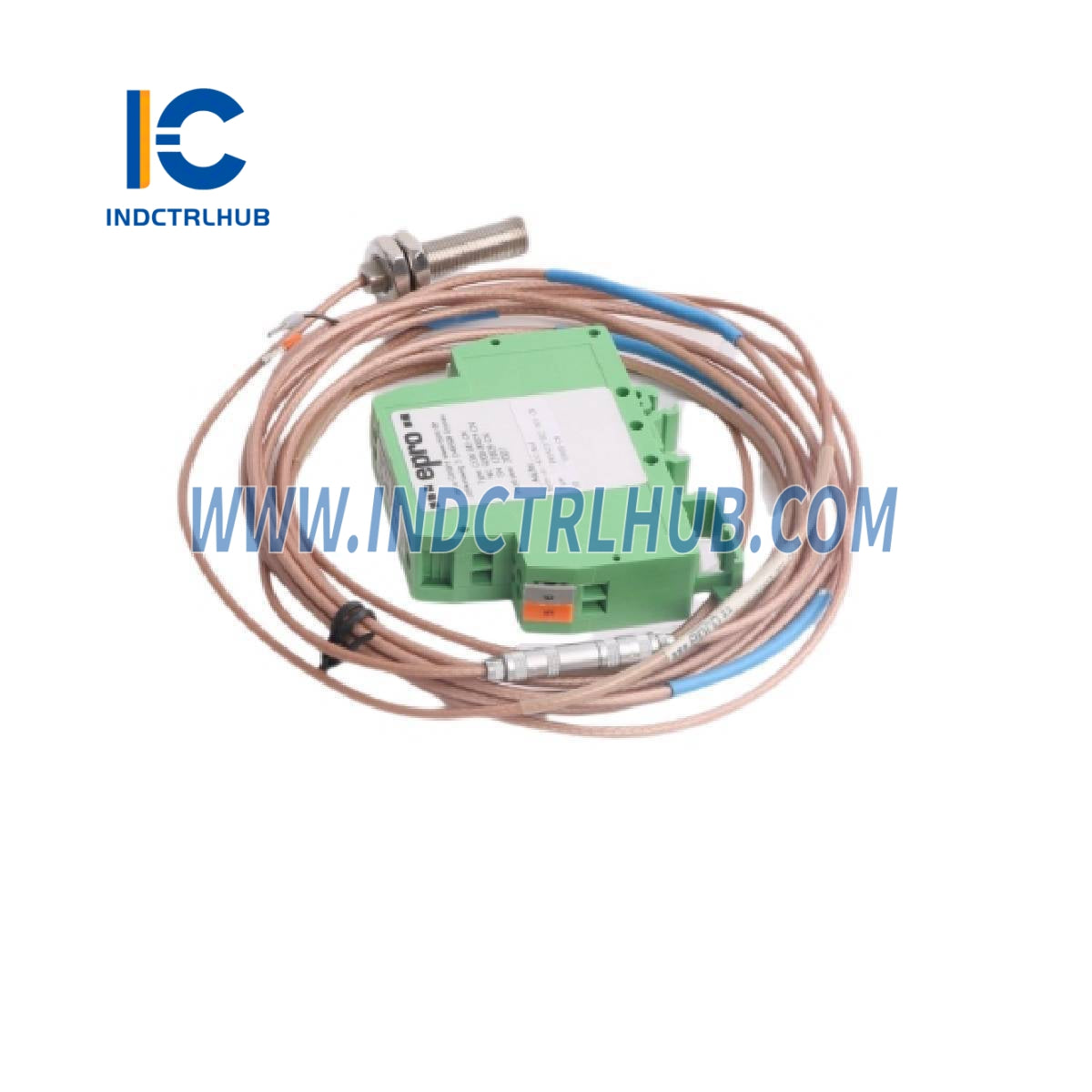

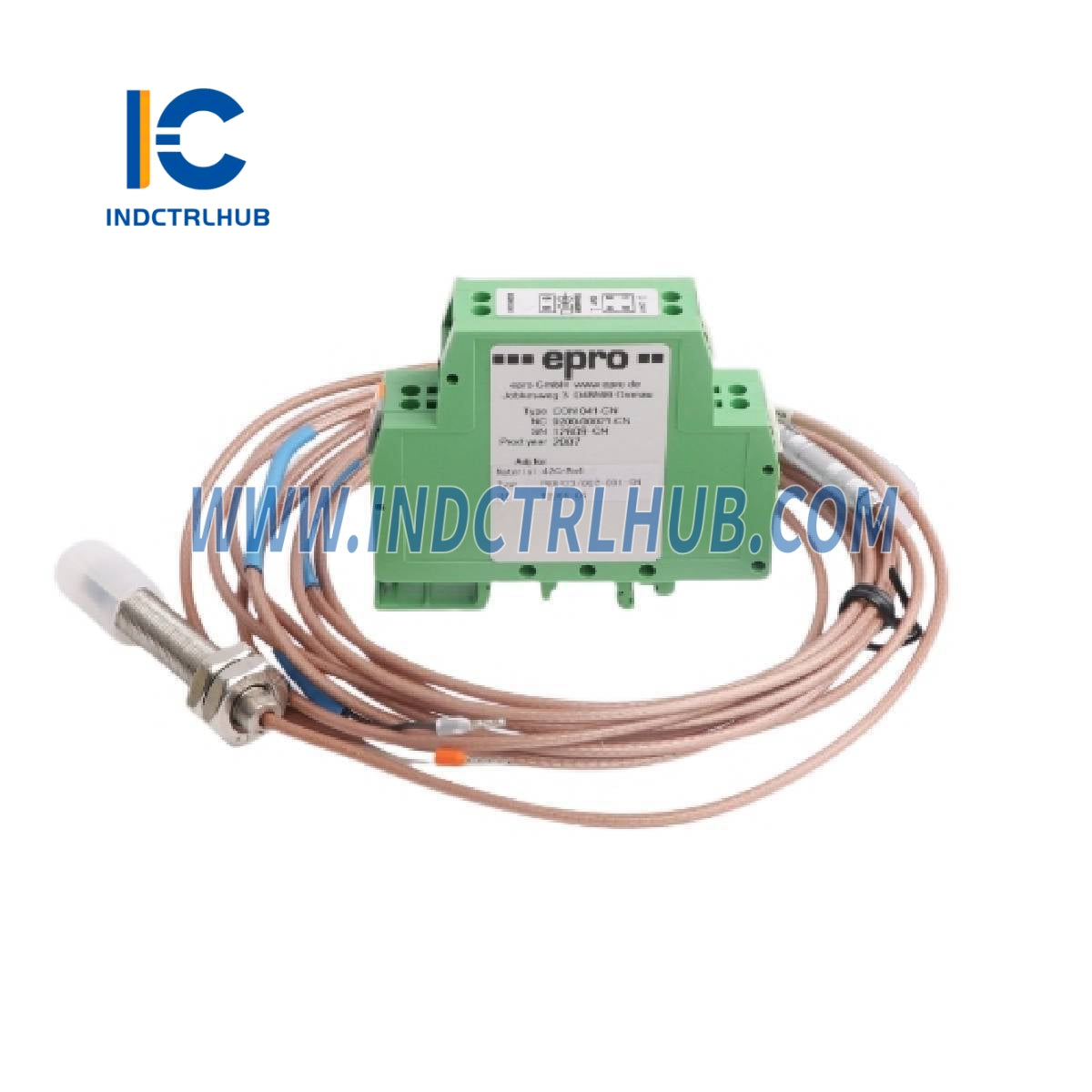

• Description: Eddy Current Signal Converter with Sensor
CON041 Eddy Current Signal Converter
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15µs |
• Designed for PR6422, PR6423, PR6424, PR6425, PR6426.
• Extended Range Use: CON041/91x-xxx required.
• PR6425 Requires Extended Range Converter.
Environmental
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range: -4V to -20V) |
|
-21V to -32V (Output Range: -2V to -18V) |
Physical
|
Parameter |
Value |
|---|---|
|
Housing Material / Weight |
PA 6.6 / ~60 grams (2.12 oz) |
|
Mounting |
DIN Rail |
|
Connections |
Screw Terminal (Max. 1.5mm², Wire-end Sleeves) |
Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON041 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm to 8.0mm (Standard Range) |
≤ 1.5% |
|
CON041/912-015 |
PR6422 |
1.5mm (Extended Range) |
≤ 2.0% |
|
CON041/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON041/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
|
CON041/914-060 |
PR6424 |
6.0mm (Extended Range) |
≤ 1.0% |
|
CON041/914-080 |
PR6424 |
8.0mm (Extended Range) |
≤ 1.5% |
|
CON041/914-100 |
PR6424 |
10.0mm (Extended Range) |
≤ 2.0% |
|
CON041/915-040 |
PR6425 |
4.0mm (Standard Range) |
≤ 1.5% |
|
CON041/915-060 |
PR6425 |
6.0mm (Extended Range) |
≤ 2.0% |
|
CON041/915-080 |
PR6425 |
8.0mm (Extended Range) |
≤ 3.0% |
|
CON041/915-100 |
PR6425 |
10.0mm (Extended Range) |
≤ 4.0% |
|
CON041/916-120 |
PR6426 |
12.0mm (Extended Range) |
≤ 1.5% |
|
CON041/916-160 |
PR6426 |
16.0mm (Extended Range) |
≤ 2.0% |
|
CON041/916-200 |
PR6426 |
20.0mm (Extended Range) |
≤ 2.5% |
|
CON041/916-240 |
PR6426 |
24.0mm (Extended Range) |
≤ 3.5% |
PR6423 - 8mm Eddy Current Sensor
Performance
|
Parameter |
Value |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) (0 to 45°C) |
Measuring Target
|
Parameter |
Value |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
42CrMo4 (AISI/SAE 4140) (Others on request) |
Environmental & General
|
Parameter |
Value |
|---|---|
|
Protection Class |
IP66, IEC 60529 |
|
Operating Temperature Range |
Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) |
|
Cable & Connector: -35 to +150°C (-31 to 302°F) |
|
|
Material |
Sensor Tip (PEEK), Case (Stainless Steel), Cable (PTFE), Connector (Brass, Nickel-Plated) |
|
Weight |
Approx. 100 grams (3.53 oz) (Sensor with 1m Cable) |
Ordering Information
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
• Reverse Mount Option: PR6423/03, PR6423/13 (with armored cable and adapter plug).
Additional Ordering Details:
|
Model No. |
Case Thread (X) |
Adapter Plug (X) |
Cable Length (X) |
Cable End (X) |
|---|---|---|---|---|
|
PR6423/00, PR6423/01, PR6423/10, PR6423/11 |
0 (25mm), 1 (35mm), 2 (45mm), 3 (55mm), 4 (65mm), 5 (75mm), 6 (85mm), 7 (95mm), 8 (105mm), 9 (115mm), E (155mm), H (195mm), R (Reverse Mount) |
0 (With), 1 (Without) |
0 (4.0m), 1 (5.0m), 3 (8.0m), F (9.0m), 4 (10.0m) |
0 (Lemo*), 1 (Open) |
