Product Details
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
MMS6740 |
|

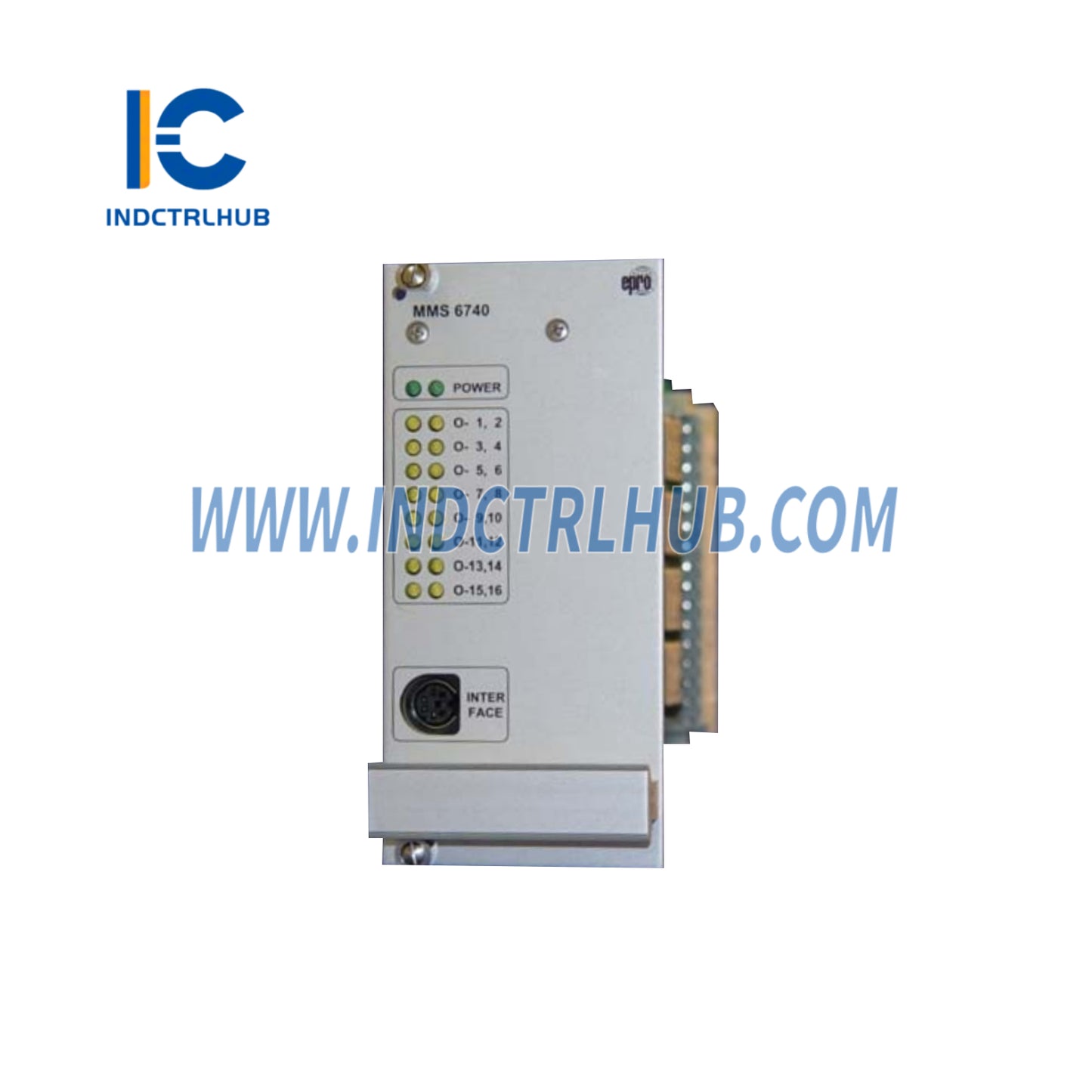

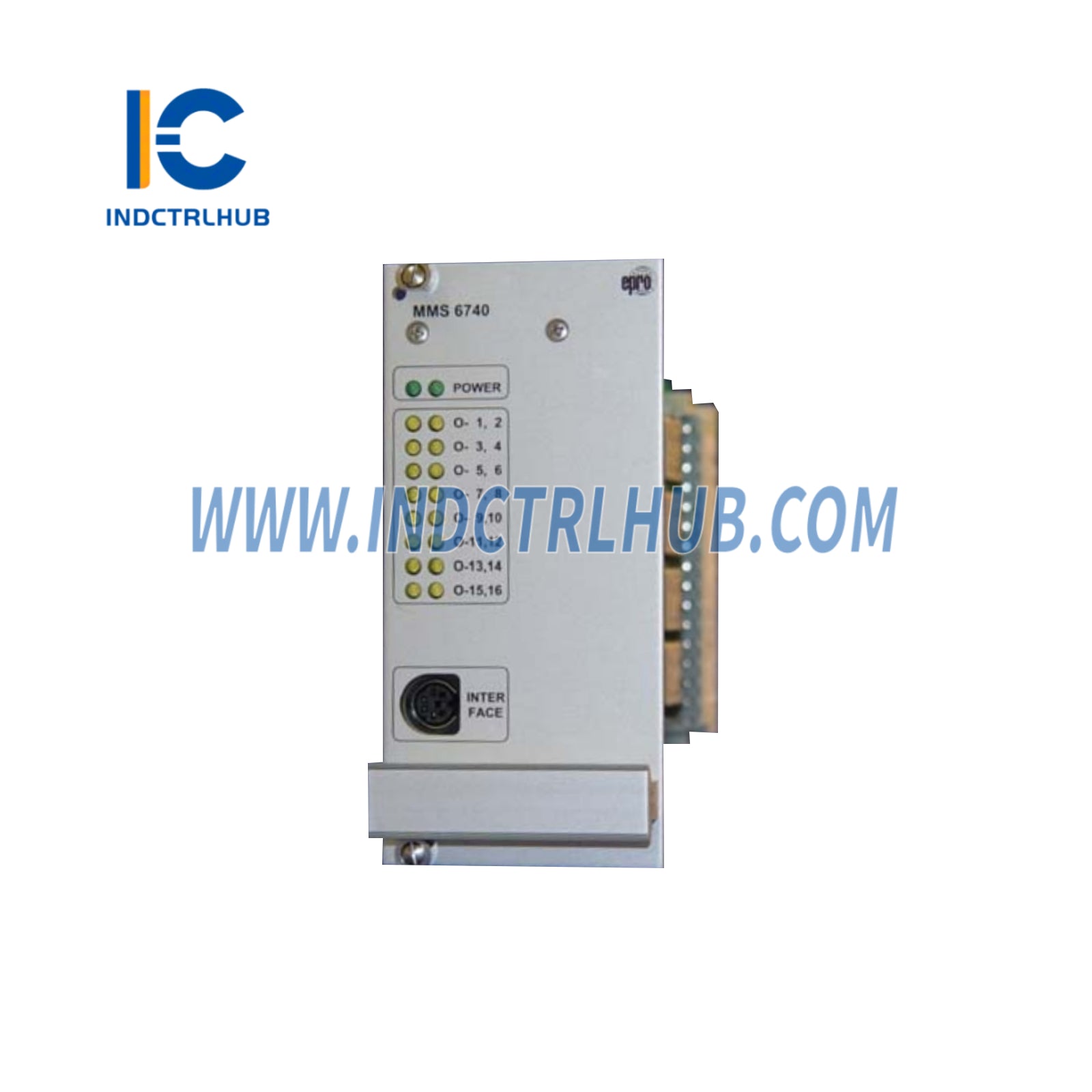

Description |
Programmable Logic Card |
Technical Data
Inputs
|
Feature |
Specification |
|---|---|
|
Number of Inputs |
60 |
|
Input Logic |
24V, galvanically separated by optocouplers |
Voltage Supply
|
Feature |
Specification |
|---|---|
|
Redundant Supply Voltage |
18…31.2V |
|
Internal System Voltage |
+5V (galvanically separated) |
|
Power Consumption (Controller Circuits) |
Approx. 2.5W |
|
Power Consumption (Relays) |
Approx. 16 x 0.2W = 3.2W |
|
Total Power Consumption |
Max. 6W |
Measuring Inputs
|
Feature |
Specification |
|---|---|
|
Nominal Range |
0 … +24 V (24V logic) |
|
Limit Range |
0 … 48 V |
|
Switching Level (Low Signal) |
0 … 3V |
|
Switching Level (High Signal) |
13 … 48V |
|
Input Resistance |
> 3 kΩ |
Relay Outputs
|
Feature |
Specification |
|---|---|
|
Number of Outputs |
16 single-pole switchover contacts |
|
Channels |
Channel 1 to Channel 16 |
|
Contact Type |
Potential-free, galvanically separated |
|
Switching Voltage |
Max. 48V DC, 20V RMS |
|
Switching Current |
Max. 1A (DC/AC) |
|
Reaction Time |
Max. 10 ms |
Communication Interface
|
Feature |
Specification |
|---|---|
|
RS232 Interface |
Front socket for configuration and visualization |
|
Connector Type |
Mini-DIN (TM 0508A/6) for configuration cable |
|
RS485 Interface |
Bus interface for communication with analysis and diagnostic systems (e.g., MMS68xx) |
|
Configuration Software |
Part of the MMS Para Kit |
Mechanical Design
|
Feature |
Specification |
|---|---|
|
Printed Board Format |
European Standard (100 mm x 160 mm) |
|
Design |
Sandwich, Distance: 6TE |
|
Width |
10 TE (Approx. 50 mm) |
|
Height |
3 HE (Approx. 128 mm) |
|
Length |
160 mm |
|
Net Weight |
Approx. 420 g |
|
Gross Weight |
Approx. 560 g |
Connectors
|
Feature |
Specification |
|---|---|
|
Relay Board |
DIN 41 612, Design F 48 M |
|
Main Board |
DIN 41 612, Design F 96 M |
Additional Equipment
|
Feature |
Specification |
|---|---|
|
System Frame |
IMR6000/xx (Required for operation) |
|
Front Plate |
10TE front plate with 2TE blind plate for IMR6000/xx system frame |
Environmental Conditions
|
Feature |
Specification |
|---|---|
|
Protection Class |
IP00 (Open Design, DIN 40050) |
|
Environmental Conditions |
DIN 40040, Class KTF |
|
Reference Temperature |
+25°C |
|
Operating Temperature Range |
0…+65°C |
|
Storage & Transport Temperature |
-30…+85°C |
|
Relative Humidity |
5…95% (Non-condensing) |
|
Permissible Vibration |
IEC 68-2, Part 29, 98 m/s² |
|
Acceleration Duration |
16 ms |
|
Permissible Shock |
IEC 68-2, Part 29, Peak Acceleration: 98 m/s² |
|
EMC Resistance |
EN50081-1 / EN50082-2 |
