Product Description
Product Details
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |

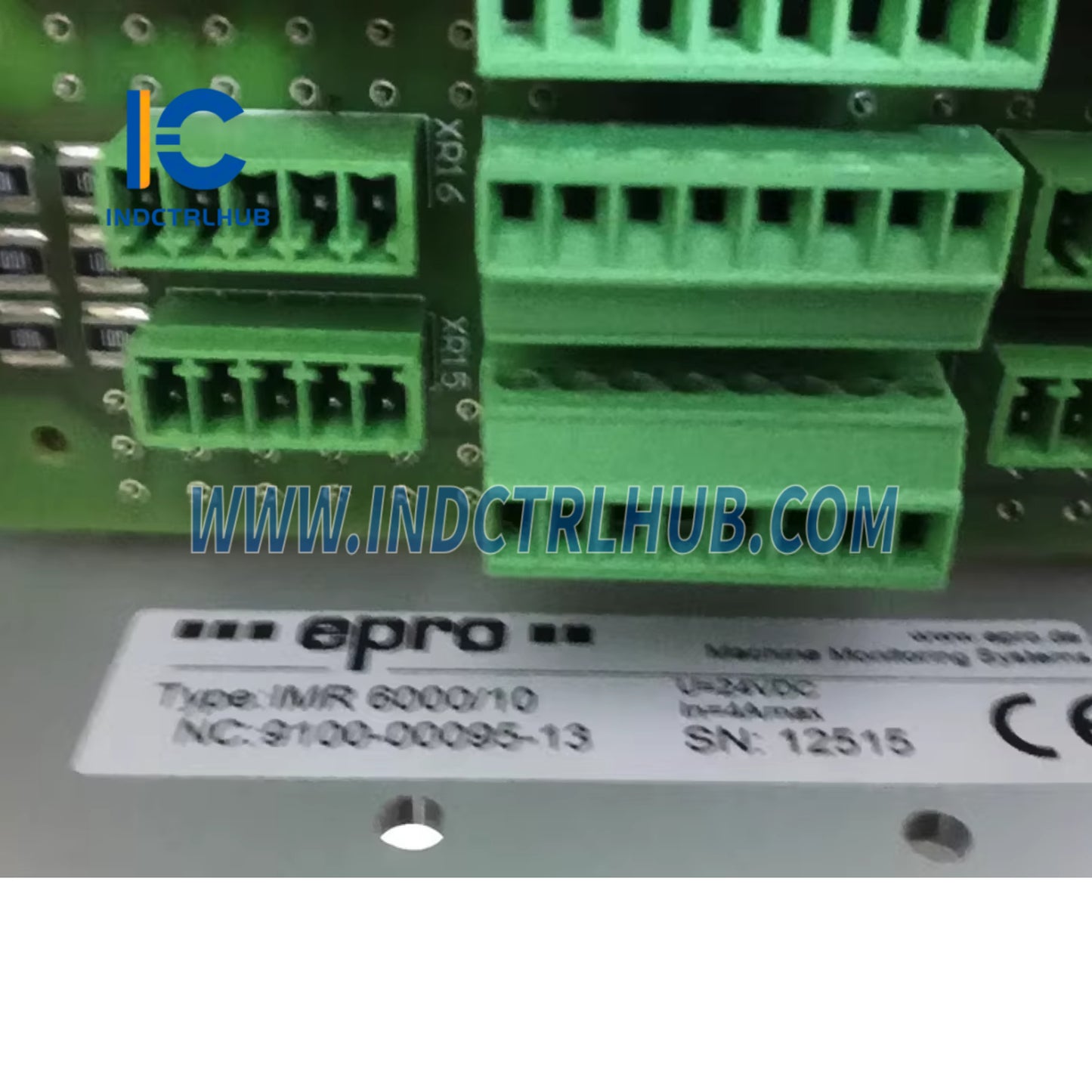

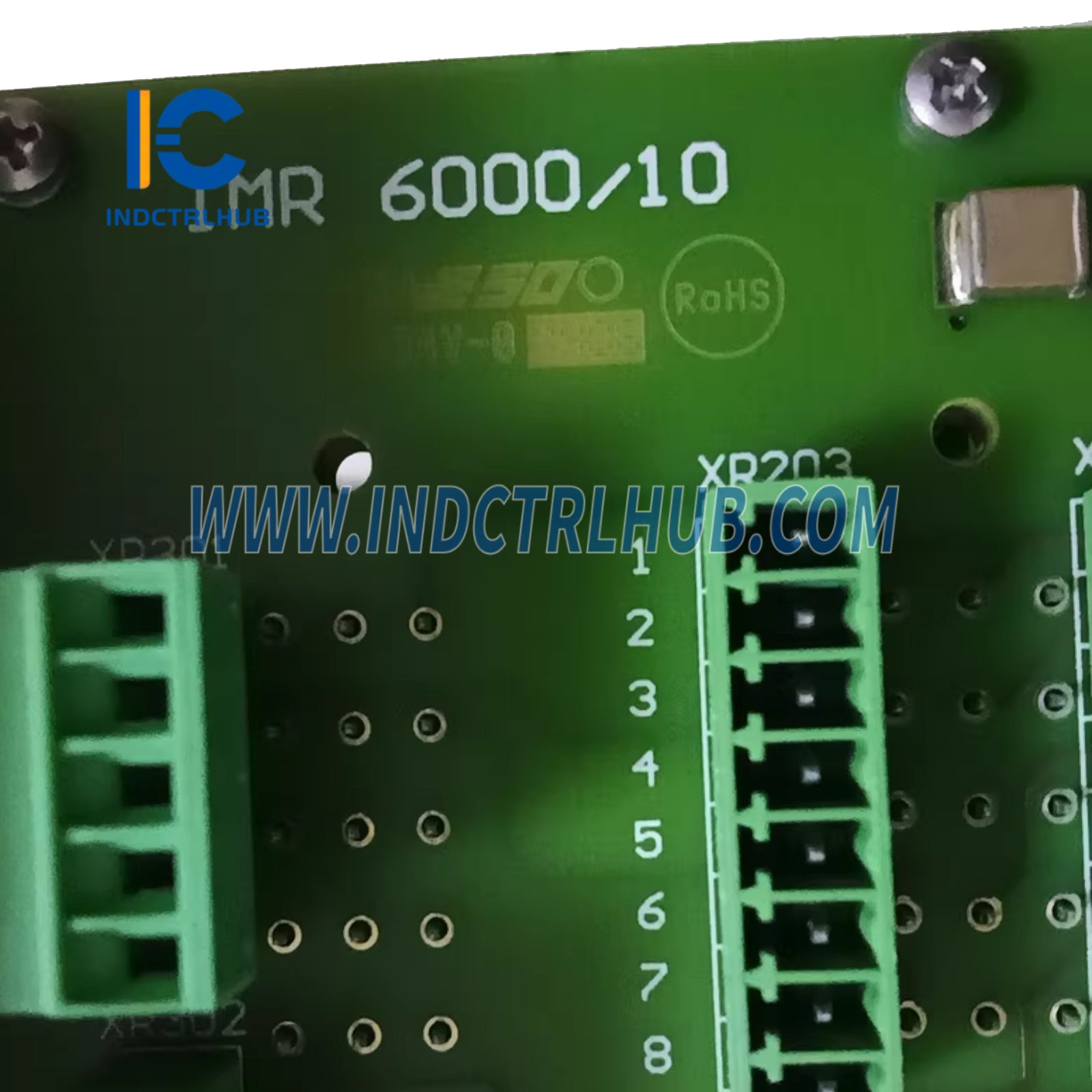

IMR6000/10 |
|
Description |

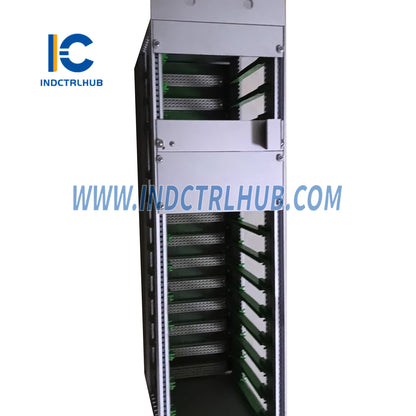

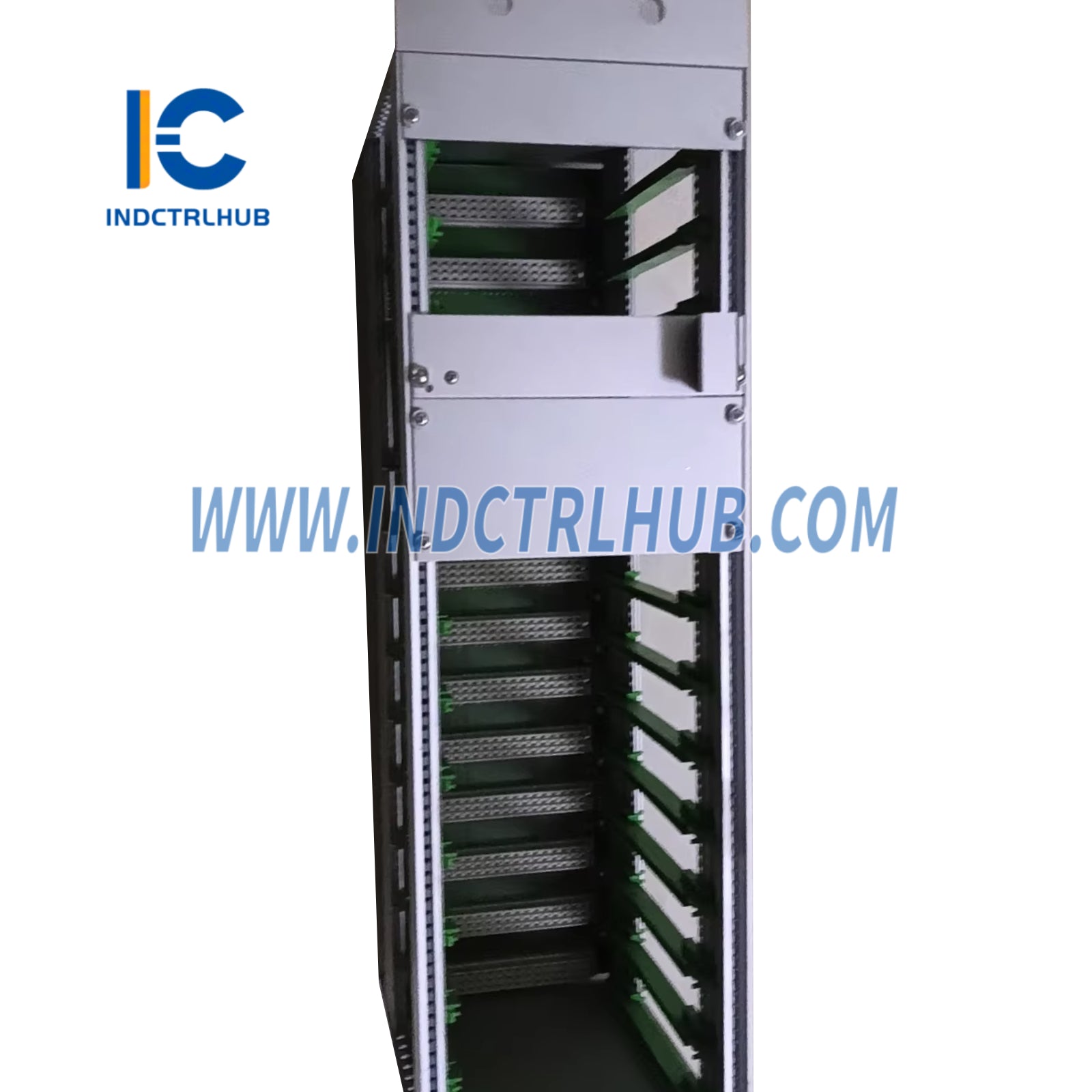

System Frame |
Specifications
Voltage Supply
|
Feature |
Specification |
|---|---|
|
Inputs |
Two redundant, diode-decoupled inputs |
|
Nominal Voltage |
+24V with common ground |
|
Voltage Input |
+24V UN+, +24V UB+ |
|
Common Reference |
0V U−, GND |
|
Permissible Voltage Range |
+18V to +31.2V |
|
Typical Power Consumption |
< 100 W |
|
Maximum Permissible Fuse (Input Current) |
4A (per supply) |
|
Internally Generated Galvanically Separated Voltage |
+24V |
|
Maximum Power of Internal Voltage |
2W |
|
Voltage Supply Inputs |
KFT according to DIN 40 040 |
Accessories
For signal connection and voltage supply, spring cage and screw connection plugs are required at the rear of the system frame.
• Spring Cage Connection Plug Set (IMR6000/10 NC: 9510−00029)
• 45 plugs: FK−MCP 1,5/5−ST−3,5 (5−pole)
• 26 plugs: FK−MCP 1,5/8−ST−3,5 (8−pole)
• 2 plugs: FKC 2,5/5−STF−5 (5−pole, voltage supply)
• Screw Connection Plug Set (IMR6000/10 NC: 9510−00028)
• 45 plugs: MC 1,5/5−ST−3,5 (5−pole)
• 26 plugs: MC 1,5/8−ST−3,5 (8−pole)
• 2 plugs: FRONT−MSTB 2,5/5− STF−5 (5−pole, voltage supply)
• 1 bridge: ELB2 (2−pole, ground)
Mechanical Design
|
Feature |
Specification |
|---|---|
|
Dimensions |
See drawing |
|
Rear Elements |
2 Yellow LEDs (Voltage Supply OK, +24V) |
|
Net Weight |
Approx. 2120 g |
|
Gross Weight |
Approx. 2680 g |
